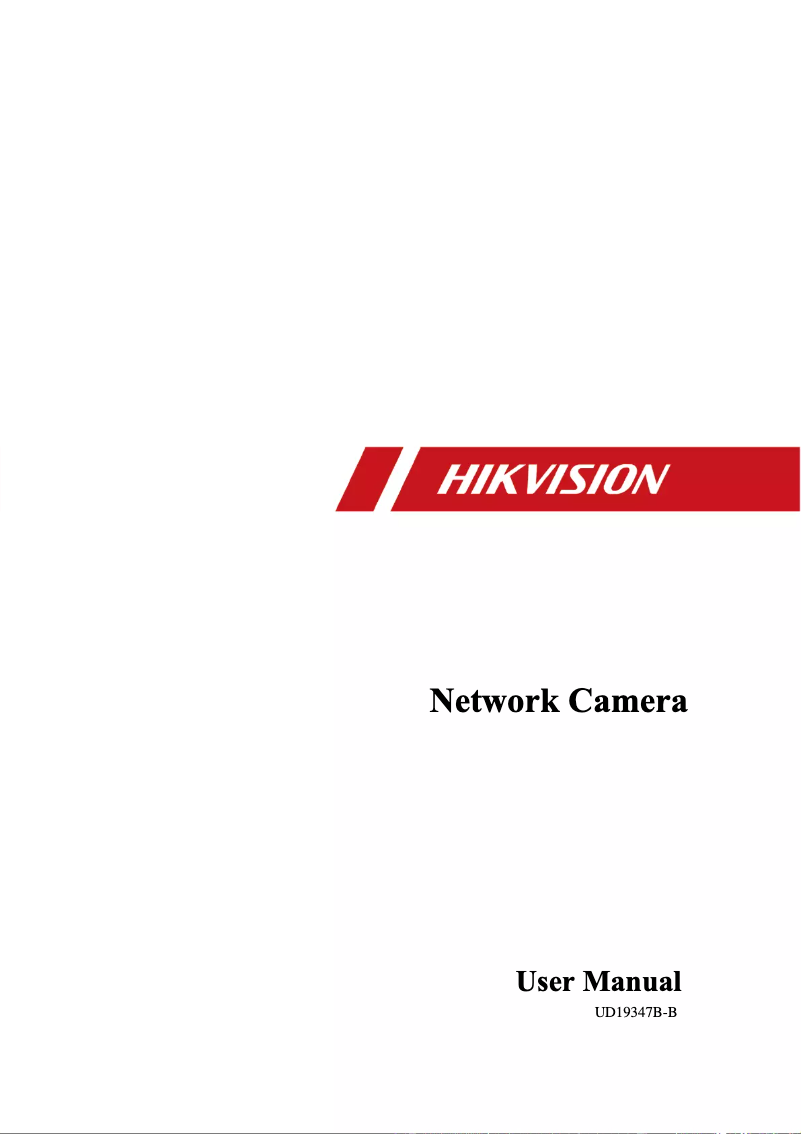

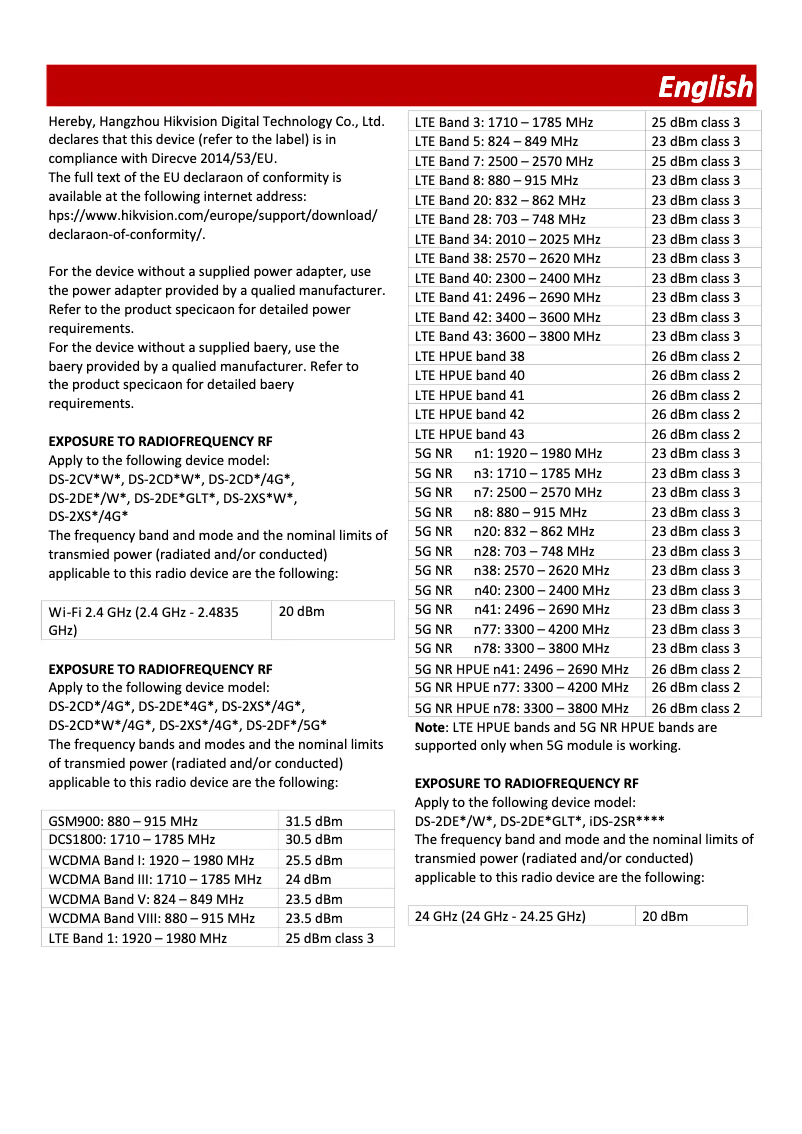

Manuals of product DS-2CV1021G0-IDW1
Technical Specifications DS-2CV1021G0-IDW1
General Information
-
ModelDS-2CV1021G0-IDW1
-
Brand
-
Category
-
Type
-
SKU1100347
-
MPN1100347
Image sensor
-
Progressive scanYes
-
Optical sensor size1/2.8 "
-
Number of sensors1
-
Sensor typeCMOS
Objective system
-
Number of lenses1
-
Fixed Focal Length2.8 mm
-
Maximum number of openings2
Camera
-
Minimum illumination0.01 lux
-
Camera shutter speed1/3 - 1/100000 s
-
Panoramic0 - 360 °
-
Inclination angle-90 - 90 °
-
Rotation angle90 °
-
Field of view of the lens, horizontal114.5 °
-
Angle of view of the lens, vertical62 °
-
Angle of view of the lens, diagonal135.5 °
-
Camera tilt controlYes
-
Camera tilt controlYes
Representation / realization
-
Large dynamic range (WRD)Yes
-
Large dynamic range (WRD)Yes
-
Connectivity technologyWired & wireless
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Maximum operating distance50 m
-
Large dynamic range (WRD)Yes
Video
-
Noise reductionYes
-
Noise reductionYes
-
Total megapixels2 MP
-
Maximum resolution1920 x 1080 pixels
-
Number of images per second30 fps
-
Noise reductionYes
-
Visual compression formatsH.264, H.264+, M-JPEG
-
Noise reductionYes
-
Supported graphic resolutions320 x 240, 640 x 360, 640 x 480 (VGA), 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Noise reductionYes
-
Bitrate32 Kbps - 8Mbps
-
Noise reductionYes
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Night vision
-
Infrared wavelength850 nm
-
Night vision distance30 m
-
Night visionYes
-
Type of LEDIR
Audio
-
Voice codecsG.711
-
Supported audio formatsG.722.1
-
Sampling frequencyG.726
-
Bitrate rangeMP2L2
-
Built-in microphonePCM
-
Sampling rate16 kHz
-
16 - 160 Kbit/s
-
Yes
-
8 - 16 kHz
Storage support
-
Maximum memory card size128 GB
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
Packaging contents
-
Number of cameras1
Security
-
Privacy protectionYes
-
Security-supported algorithm64-bit WEP, 128-bit WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPS
-
Privacy protectionYes
-
Privacy protectionYes
-
Privacy protectionYes
-
Privacy protectionYes
-
Privacy protectionYes
-
Privacy protectionYes
-
Privacy protectionYes
-
Privacy protectionYes
-
Privacy protectionYes
Network
-
Supported network protocolsTCP/IP
-
Live viewICMP
-
Number of usersHTTP
-
Live viewHTTPS
-
Live viewFTP
-
BluetoothDHCP
-
Type of Ethernet interfaceDNS
-
Wiring technologyDDNS
-
Wifi standardsRTP
-
Network standardsRTSP
-
Frequency bandRTCP
-
Maximum data transfer rate via the wireless local area networkPPPoE
-
User access levelNTP
-
Live viewUPnP
-
Number of simultaneous live viewing channelsSMTP
-
SNMP
-
IGMP
-
QoS
-
IPv6
-
UDP
-
Bonjour
-
Yes
-
32 user(s)
-
Yes
-
Yes
-
No
-
Fast Ethernet
-
10/100Base-T(X)
-
802.11b, 802.11g, Wi-Fi 4 (802.11n)
-
IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
-
2.4 - 2.4835 GHz
-
150 Mbit/s
-
Administrator, Operator, User
-
Yes
-
6 channels
Management features
-
Scalable firmwareYes
-
Scalable firmwareYes
-
Firmware versionV5.5.70
Connectivity
-
InterfaceRJ-45/WLAN
-
Number of Ethernet LAN ports (RJ-45)1
Weight and dimensions
-
Width99 mm
-
Depth68 mm
-
Height66 mm
-
Weight272 g
-
Weight (with support)- g
Packaging information
-
Package width172 mm
-
Package depth110 mm
-
Package height99 mm
-
Package weight517 g
Design
-
International Protection Code (IP)IP66
-
FormatTerminal
-
Product colorBlack, White
-
Mounting typeCeiling/Wall
-
Material of the case/bodyMetal, Plastic
Power
-
Power supply typeCC
-
Output CC in volts12
-
Output CC in amperes0.4 A
-
Consumption (max)5 W
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
