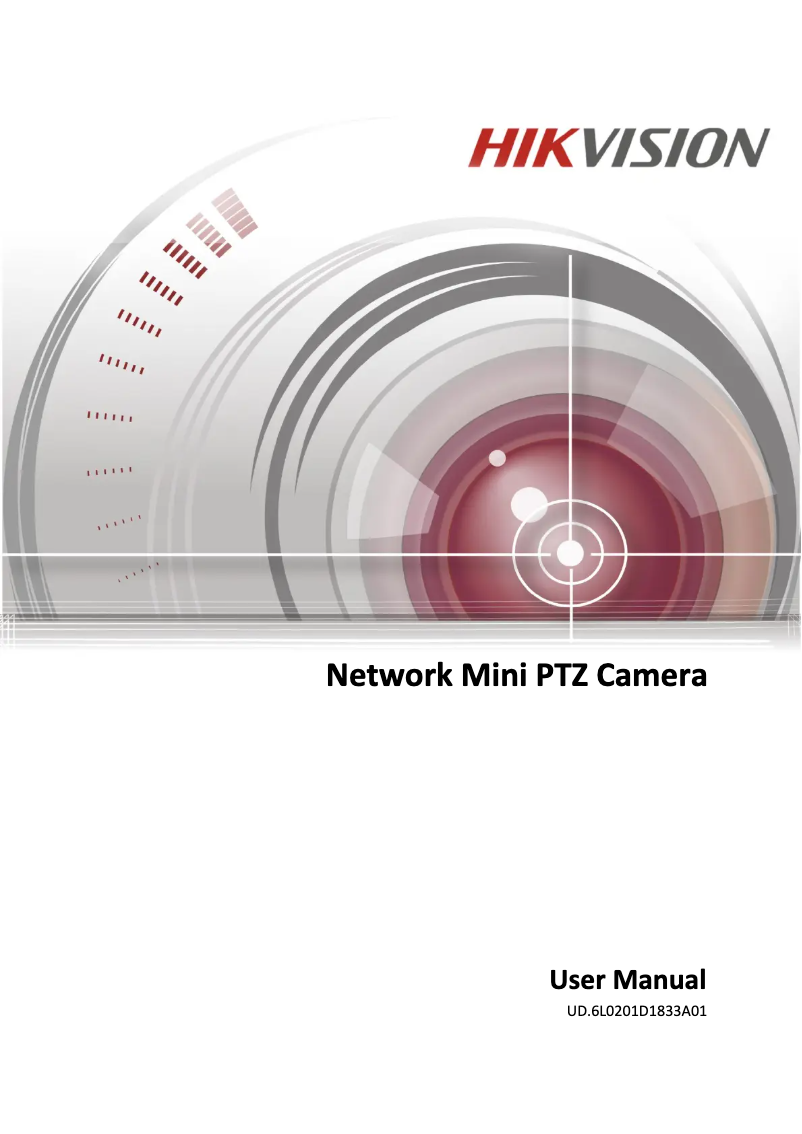

Manual of product DS-2DE2103-DE3/W
Technical Specifications DS-2DE2103-DE3/W
General Information
-
ModelDS-2DE2103-DE3/W
-
Brand
-
Category
-
Type
-
SKU515543
-
MPN515543
Image sensor
-
Progressive scanYes
-
Sensor typeCMOS
-
Optical sensor size1/3
Camera
-
Minimum illumination0.05 lux
-
Field of view of the lens, horizontal77 °
-
Angle of view of the lens, vertical37 °
-
Camera shutter speed1/1- 1/10000 s
-
White balanceATW, Outdoor, Auto, Indoor, Sodium lamp, Manual, Daylight
-
Panoramic0 - 350 °
-
Inclination angle0 - 90 °
-
Tilt speed40 °/sec
-
Panoramic speed50 °/sec
Video
-
Maximum resolution1280 x 720 pixels
-
Number of images per second30 fps
-
Supported graphic resolutions320 x 240, 704 x 576, 352 x 288, 1280 x 720 (HD 720)
-
Supported video formatH.264, M-JPEG
-
Supported video modes720p
Objective system
-
Focal length- mm
-
Zoom capacityYes
-
Digital zoom16 x
-
Tuning2.0
-
Optical zoom3 x
Representation / realization
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
Connectivity technologyWired & wireless
-
PTZ ControlYes
-
TypeIP security camera
-
PTZ ControlYes
-
Supported installationIndoor and outdoor
Audio
-
Built-in microphoneYes
-
Signal-to-noise ratio report52 dB
-
Built-in microphoneYes
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Password protectionUser
-
Security-supported algorithm64-bit WEP, WPA2-PSK, 128-bit WEP, WPS, WPA, WPA-PSK, WPA2
Connectivity
-
Microphone jack inputYes
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
InterfaceRJ-45
Network
-
WifiYes
-
Wiring technology10/100Base-T(X)
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-
WifiYes
-
Wifi standards802.11g, 802.11b, Wi-Fi 4 (802.11n)
-
Maximum data transfer rate via the wireless local area network150 Mbit/s
Storage support
-
Integrated hard drive-
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Power
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Output CC in volts+12V
-
Consumption (max)5.5 W
-
Power supply typePoE
Environmental conditions
-
Operating temperature-10 - 50 °C
-
Operating relative humidity (H-H)0 - 90 %
Design
-
International Protection Code (IP)IP54
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling/wall
Weight and dimensions
-
Diameter120 mm
-
Height83.7 mm
-
Weight340 g
Night vision
-
Night visionYes
-
Type of LEDIR
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DE2103-DE3/W specifications from brand Hikvision
Image sensor
Does the product Hikvision DS-2DE2103-DE3/W have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2DE2103-DE3/W is 1/3 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hikvision DS-2DE2103-DE3/W is CMOS. This type of sensor ensures optimal image quality for your needs.
Generalities
The EAN code of the product Hikvision DS-2DE2103-DE3/W is 6954273609061, 816783019555, 0816783019555, 5420016842596. This code allows for the unique identification of the product in the distribution system. The brand of the product Hikvision DS-2DE2103-DE3/W is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2DE2103-DE3/W is DS-2DE2103-DE3/W | DS-2DE2103-DE3/W. This model ensures optimal performance and an enhanced user experience.
Video
The maximum resolution of the product Hikvision DS-2DE2103-DE3/W is 1280 x 720 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2DE2103-DE3/W are 320 x 240,704 x 576,352 x 288,1280 x 720 (HD 720). These resolutions provide optimal display quality for your content. The number of frames per second of the product Hikvision DS-2DE2103-DE3/W is 30 ips. This specification ensures optimal smoothness when playing videos. The supported video format of the product Hikvision DS-2DE2103-DE3/W contains H.264, M-JPEG. This format allows for smooth and high-quality playback of your multimedia content. The supported video mode of the product Hikvision DS-2DE2103-DE3/W is 720p. This mode allows you to enjoy optimal image quality for your videos.
Camera
The minimum illumination of the product Hikvision DS-2DE2103-DE3/W is 0.05 lux. This feature ensures optimal performance even in low light conditions. The vertical field of view of the product Hikvision DS-2DE2103-DE3/W is 37 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The field of view of the Hikvision DS-2DE2103-DE3/W lens is 77 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The shutter speed of the camera of the product Hikvision DS-2DE2103-DE3/W is 1/1- 1/10000 s. This feature allows capturing sharp images even in low light conditions. The white balance of the product Hikvision DS-2DE2103-DE3/W consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The panoramic view of the product Hikvision DS-2DE2103-DE3/W is 0 - 350 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The panning speed of the product Hikvision DS-2DE2103-DE3/W is 50 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt angle of the product Hikvision DS-2DE2103-DE3/W is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The tilt speed of the product Hikvision DS-2DE2103-DE3/W is 40 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience.
Objective system
The focal length of the product Hikvision DS-2DE2103-DE3/W is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. Does the product Hikvision DS-2DE2103-DE3/W have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The digital zoom of the product Hikvision DS-2DE2103-DE3/W is 16 x. This zoom allows for capturing precise details even from a distance. The adjustment of the Hikvision DS-2DE2103-DE3/W is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The optical zoom of the product Hikvision DS-2DE2103-DE3/W is 3 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality.
Audio
Does the product Hikvision DS-2DE2103-DE3/W have Audio Detection? Oui. This feature allows capturing and analyzing surrounding sounds for an enhanced audio experience. Does the product Hikvision DS-2DE2103-DE3/W have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings. The signal-to-noise ratio of the product Hikvision DS-2DE2103-DE3/W is 52 dB. This high ratio ensures exceptional audio quality, allowing for clear and precise listening without unwanted interference.
Representation / realization
Does the product Hikvision DS-2DE2103-DE3/W have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2DE2103-DE3/W have an entry/end Alarm? Oui. This feature effectively secures access to your space. The product Hikvision DS-2DE2103-DE3/W features a Avec fil &sans fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2DE2103-DE3/W have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2DE2103-DE3/W have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The type of product Hikvision DS-2DE2103-DE3/W is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The PTZ control of the product Hikvision DS-2DE2103-DE3/W is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The design of the product Hikvision DS-2DE2103-DE3/W supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality.
Connectivity
Does the product Hikvision DS-2DE2103-DE3/W have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DE2103-DE3/W is 1. These ports provide a stable and fast network connection for your devices. The product Hikvision DS-2DE2103-DE3/W has an Interface RJ-45. This interface allows for easy and quick connection with various devices. The output component of the product Hikvision DS-2DE2103-DE3/W contains 1. This specification ensures optimal connectivity for efficient use.
Security
Does the product Hikvision DS-2DE2103-DE3/W have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the product Hikvision DS-2DE2103-DE3/W have a Motion Detector? Oui. This device allows for the detection of any presence within its field of vision, thus providing enhanced security. Does the Hikvision DS-2DE2103-DE3/W product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2DE2103-DE3/W have Password Protection? Utilisateur. This feature ensures the security of your personal data. The supported security algorithm of the product Hikvision DS-2DE2103-DE3/W contains 64-bit WEP, WPA2-PSK, 128-bit WEP, WPS, WPA, WPA-PSK, WPA2. This algorithm ensures optimal protection of your data.
Storage support
The product Hikvision DS-2DE2103-DE3/W has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2DE2103-DE3/W have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hikvision DS-2DE2103-DE3/W is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2DE2103-DE3/W have a built-in hard drive? No. This feature means that the product does not have internal storage.
Network
Does the product Hikvision DS-2DE2103-DE3/W have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2DE2103-DE3/W contains Oui. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product Hikvision DS-2DE2103-DE3/W are IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS , FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. The wiring technology of the product Hikvision DS-2DE2103-DE3/W contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The wifi standard of the product Hikvision DS-2DE2103-DE3/W contains 802.11g, 802.11b, Wi-Fi 4 (802.11n). This wifi standard ensures a fast and reliable connection for all your devices. The maximum data transfer rate via the wireless local area network of the product Hikvision DS-2DE2103-DE3/W is 150 Mbit/s. This high rate allows for a fast and smooth connection for all your devices.
Design
The format of the product Hikvision DS-2DE2103-DE3/W is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision DS-2DE2103-DE3/W contains IP54. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Hikvision DS-2DE2103-DE3/W is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2DE2103-DE3/W is Blanc. This shade gives it a modern and elegant look.
Environmental conditions
The operating temperature of the product Hikvision DS-2DE2103-DE3/W is -10 - 50 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2DE2103-DE3/W has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Power
Does the Hikvision DS-2DE2103-DE3/W have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The product Hikvision DS-2DE2103-DE3/W has a DC output in volts of +12V. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2DE2103-DE3/W is 5.5 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Hikvision DS-2DE2103-DE3/W is PoE. This type of power supply ensures optimal performance and efficient use of the device.
Weight and dimensions
The diameter of the product Hikvision DS-2DE2103-DE3/W is 120 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Hikvision DS-2DE2103-DE3/W is 83.7 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hikvision DS-2DE2103-DE3/W is 340 g. This weight is ideal for ensuring optimal use and easy handling.
Night vision
Does the product Hikvision DS-2DE2103-DE3/W have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2DE2103-DE3/W is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
