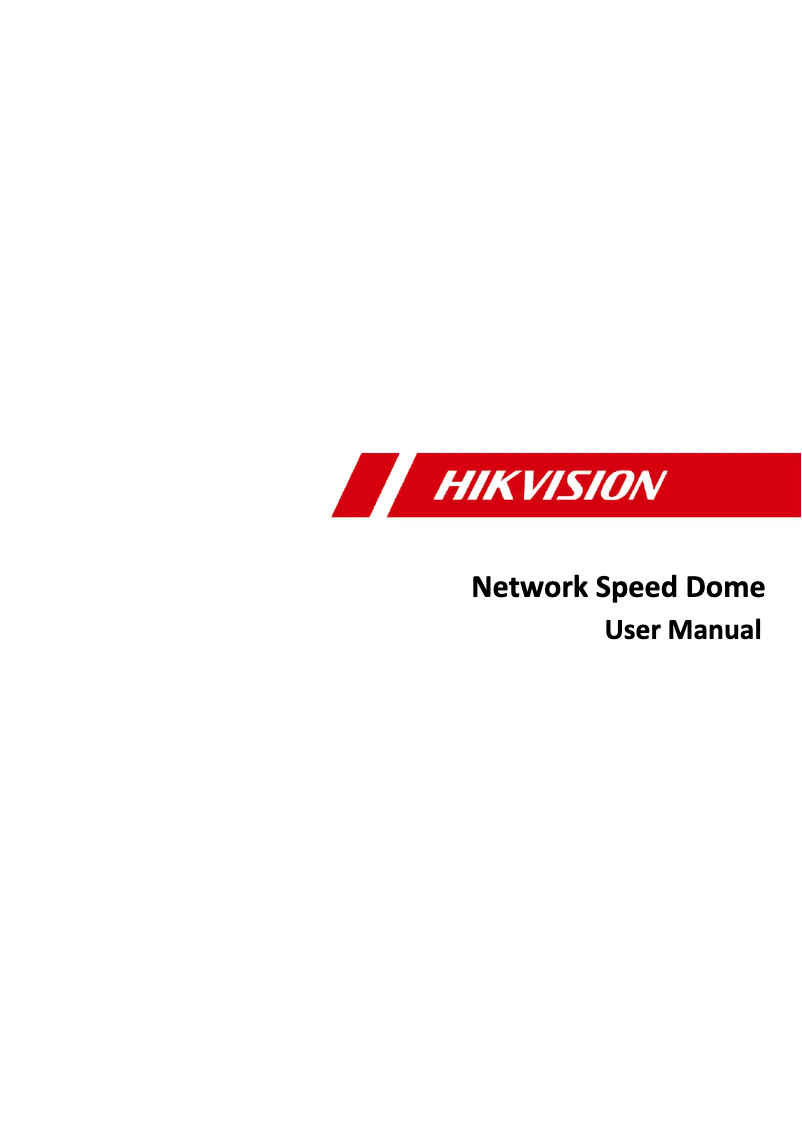

Manual of product DS-2DE4215W-DE(E)
Technical Specifications DS-2DE4215W-DE(E)
General Information
-
ModelDS-2DE4215W-DE(E)
-
Brand
-
Category
-
Type
-
SKU1575750
-
MPN1575750
Representation / realization
-
TypeIP security camera
-
Day/Night ModeYes
-
PTZ Modes4 Pattern, Auto pan
-
Connectivity technologyWired
-
Supported installationIndoor and outdoor
-
Day/Night ModeYes
-
Number of languages32
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Languages taken into accountMulti
-
Dynamic range120 dB
Camera
-
Minimum illumination0.01 lux
-
White balanceATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
-
Rotation angle360 °
-
Pan tilt preset speed160 °/sec
-
Pan tilt preset speed160 °/sec
-
Tilt speed120 °/sec
-
Inclination angle0 - 90 °
-
Camera shutter speed1/3 - 1/100000 s
Objective system
-
Number of lenses-
-
TuningMotorized/manual
-
Digital zoom16 x
-
Zoom capacityYes
-
Optical zoom15 x
-
Zoom capacityYes
-
Minimum opening amount1.6
-
Maximum number of openings2.8
-
Focal length5 - 75 mm
-
Detection distance (tele)960 m
-
Observation distance (tele)981 m
-
Recognition distance (tele)192 m
-
Identification distance (tele)96 m
Video
-
Maximum resolution1920 x 1080 pixels
-
Supported graphic resolutions352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080)
-
Total megapixels2 MP
-
Visual compression formatsM-JPEG, H.264, H.264+, H.265, H.265+
-
Number of images per second60 ips
-
Highlight Compensation (HLC)Yes
-
Highlight Compensation (HLC)Yes
-
Bitrate32 Kbps - 16 Mbps
-
Highlight Compensation (HLC)Yes
-
Highlight Compensation (HLC)Yes
-
Image quality adjustmentDNR
Storage support
-
Maximum memory card size256 GB
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Network
-
Supported network protocolsIPv4/IPv6
-
Number of simultaneous live viewing channelsHTTP
-
Number of usersHTTPS
-
Ethernet/LAN802.1x
-
BluetoothQos
-
BluetoothFTP
-
Type of Ethernet interfaceSMTP
-
Network standardsUPnP
-
SNMP
-
DNS
-
DDNS
-
NTP
-
RTSP
-
RTCP
-
RTP
-
TCP/IP
-
UDP
-
IGMP
-
ICMP
-
DHCP
-
PPPoE
-
Bonjour
-
20 channels
-
32 user(s)
-
Yes
-
No
-
No
-
Fast Ethernet
-
IEEE 802.1x, IEEE 802.3at
Power
-
Energy consumption (Power over Ethernet (PoE))18 W
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Output CC in amperes2 A
Environmental conditions
-
Operating temperature-30 - 65 °C
-
Operating relative humidity (H-H)0 - 90 %
Design
-
International Protection Code (IP)IP66
-
Material of the case/bodyAcrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Polymethyl methacrylate (PMMA)
-
FormatDome
-
Mounting typeCeiling
-
Product colorWhite
Weight and dimensions
-
Height239.5 mm
-
Diameter180 mm
-
Weight2000 g
Packaging contents
-
Number of cameras1
-
Lift hooks includedYes
Security
-
Active anti-tampering alarmYes
-
Active anti-tampering alarmYes
-
Active anti-tampering alarmYes
-
Functions of the IVS system (intelligent video surveillance)Crossing line
-
Intrusion
-
Missing object
-
Region entrance detection
-
Region exiting detection
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
DC InputYes
Management features
-
Web BrowserYes
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Night vision
-
Night vision-
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DE4215W-DE(E) specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2DE4215W-DE(E) is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2DE4215W-DE(E) is DS-2DE4215W-DE(E) | DS-2DE4215W-DE(E). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2DE4215W-DE(E) is 6941264055549. This code allows for the unique identification of the product in the distribution system.
Camera
The minimum illumination of the product Hikvision DS-2DE4215W-DE(E) is 0.01 lux. This feature ensures optimal performance even in low light conditions. The panning speed of the product Hikvision DS-2DE4215W-DE(E) is 160 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The white balance of the product Hikvision DS-2DE4215W-DE(E) consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The rotation angle of the product Hikvision DS-2DE4215W-DE(E) is 360 °. This angle allows for optimal usage flexibility. The product Hikvision DS-2DE4215W-DE(E) has a preset panning speed of 160 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The tilt speed of the product Hikvision DS-2DE4215W-DE(E) is 120 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The tilt angle of the product Hikvision DS-2DE4215W-DE(E) is 0 - 90 °. This angle allows for adjusting the position for optimal comfort. The shutter speed of the camera of the product Hikvision DS-2DE4215W-DE(E) is 1/3 - 1/100000 s. This feature allows capturing sharp images even in low light conditions.
Representation / realization
The type of product Hikvision DS-2DE4215W-DE(E) is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2DE4215W-DE(E) features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The PTZ control of the product Hikvision DS-2DE4215W-DE(E) is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The PTZ modes of the product Hikvision DS-2DE4215W-DE(E) contain 4 Pattern, Auto pan. These modes allow for increased flexibility and customization to meet your specific needs. The design of the product Hikvision DS-2DE4215W-DE(E) supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2DE4215W-DE(E) have preset points? Oui. This feature allows for simplified and customized use according to your preferences. The number of languages of the product Hikvision DS-2DE4215W-DE(E) is 32. This product offers an enriching multilingual experience. Does the product Hikvision DS-2DE4215W-DE(E) have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2DE4215W-DE(E) have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The dynamic range of the product Hikvision DS-2DE4215W-DE(E) is 120 dB. This feature allows for precise and nuanced sound reproduction, ideal for fully enjoying your favorite tracks. The languages considered for the product Hikvision DS-2DE4215W-DE(E) are Multi. This product thus caters to a wide international audience.
Objective system
The adjustment of the Hikvision DS-2DE4215W-DE(E) is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. Does the Hikvision DS-2DE4215W-DE(E) have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The optical zoom of the product Hikvision DS-2DE4215W-DE(E) is 15 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The digital zoom of the product Hikvision DS-2DE4215W-DE(E) is 16 x. This zoom allows for capturing precise details even from a distance. Does the product Hikvision DS-2DE4215W-DE(E) have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The minimum opening number of the product Hikvision DS-2DE4215W-DE(E) is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The maximum number of openings for the product Hikvision DS-2DE4215W-DE(E) is 2.8. This feature allows for optimal use and increased flexibility. The number of lenses in the product Hikvision DS-2DE4215W-DE(E) is -. This number determines the quality and versatility of the lens. The focal length of the product Hikvision DS-2DE4215W-DE(E) is 5 - 75 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The detection distance (tele) of the product Hikvision DS-2DE4215W-DE(E) is 960 m. This specification ensures optimal performance for your remote detection needs. The recognition (tele) distance of the product Hikvision DS-2DE4215W-DE(E) is 192 m. This specification allows for assessing the effective range of the lens in terms of detecting subjects at a distance. The observation (tele) distance of the product Hikvision DS-2DE4215W-DE(E) is 981 m. This specification allows for an appreciation of the lens's range for distant shots. The identification (tele) distance of the product Hikvision DS-2DE4215W-DE(E) is 96 m. This specification allows for determining the remote identification range, essential for optimal use.
Video
The supported graphic resolutions of the product Hikvision DS-2DE4215W-DE(E) are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The maximum resolution of the product Hikvision DS-2DE4215W-DE(E) is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2DE4215W-DE(E) has visual compression formats: M-JPEG, H.264, H.264+, H.265, H.265+. These formats ensure optimal image quality for your videos. The total megapixels of the product Hikvision DS-2DE4215W-DE(E) is 2 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2DE4215W-DE(E) have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The bit rate of the product Hikvision DS-2DE4215W-DE(E) is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. The number of frames per second of the product Hikvision DS-2DE4215W-DE(E) is 60 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2DE4215W-DE(E) have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2DE4215W-DE(E) have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2DE4215W-DE(E) have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The image quality setting of the product Hikvision DS-2DE4215W-DE(E) contains DNR. This setting allows for optimizing the display for an enhanced visual experience.
Storage support
The maximum size of the memory card for the product Hikvision DS-2DE4215W-DE(E) is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2DE4215W-DE(E) have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2DE4215W-DE(E) have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2DE4215W-DE(E) has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Network
The supported network protocols of the product Hikvision DS-2DE4215W-DE(E) are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2DE4215W-DE(E) is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2DE4215W-DE(E) have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The number of simultaneous live viewing channels for the product Hikvision DS-2DE4215W-DE(E) is 20 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. The Wifi of the product Hikvision DS-2DE4215W-DE(E) contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2DE4215W-DE(E) have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2DE4215W-DE(E) is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision DS-2DE4215W-DE(E) are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols.
Power
The product Hikvision DS-2DE4215W-DE(E) has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2DE4215W-DE(E) is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product Hikvision DS-2DE4215W-DE(E) is 18 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The product Hikvision DS-2DE4215W-DE(E) has a DC output in amperes of 2 A. This specification ensures a stable power supply suitable for your needs.
Environmental conditions
The operating temperature of the product Hikvision DS-2DE4215W-DE(E) is -30 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2DE4215W-DE(E) has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Weight and dimensions
The height of the product Hikvision DS-2DE4215W-DE(E) is 239.5 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hikvision DS-2DE4215W-DE(E) is 180 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2DE4215W-DE(E) is 2000 g. This weight is ideal for ensuring optimal use and easy handling.
Design
The International Protection Code (IP) for product Hikvision DS-2DE4215W-DE(E) contains IP66. This code indicates the level of protection against solid objects and moisture. The format of the product Hikvision DS-2DE4215W-DE(E) is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Hikvision DS-2DE4215W-DE(E) is Acrylonitrile butadiene styrene (ABS), Polycarbonate (PC), Polymethyl methacrylate (PMMA). This material ensures both durability and elegance. The mounting type of the product Hikvision DS-2DE4215W-DE(E) is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2DE4215W-DE(E) is Blanc. This shade gives it a modern and elegant look.
Packaging contents
The number of cameras of the product Hikvision DS-2DE4215W-DE(E) is 1. This product is equipped with a camera that allows capturing high-quality images. Does the product Hikvision DS-2DE4215W-DE(E) come with included lift hooks? Oui. These hooks make it easier to use and store the product.
Security
Does the product Hikvision DS-2DE4215W-DE(E) have Automatic Network Replenishment (ANR)? Oui. This feature ensures proactive and secure management of network resources. Does the product Hikvision DS-2DE4215W-DE(E) have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2DE4215W-DE(E) have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. The intelligent video surveillance system of the product Hikvision DS-2DE4215W-DE(E) has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Management features
Does the product Hikvision DS-2DE4215W-DE(E) have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DE4215W-DE(E) is 1. These ports provide a stable and fast network connection for your devices. Does the product Hikvision DS-2DE4215W-DE(E) have a DC Input? Oui. This specification ensures compatibility with DC power supplies.
Image sensor
The sensor type of the product Hikvision DS-2DE4215W-DE(E) is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hikvision DS-2DE4215W-DE(E) is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product Hikvision DS-2DE4215W-DE(E) is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2DE4215W-DE(E) have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Night vision
Does the product Hikvision DS-2DE4215W-DE(E) have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
