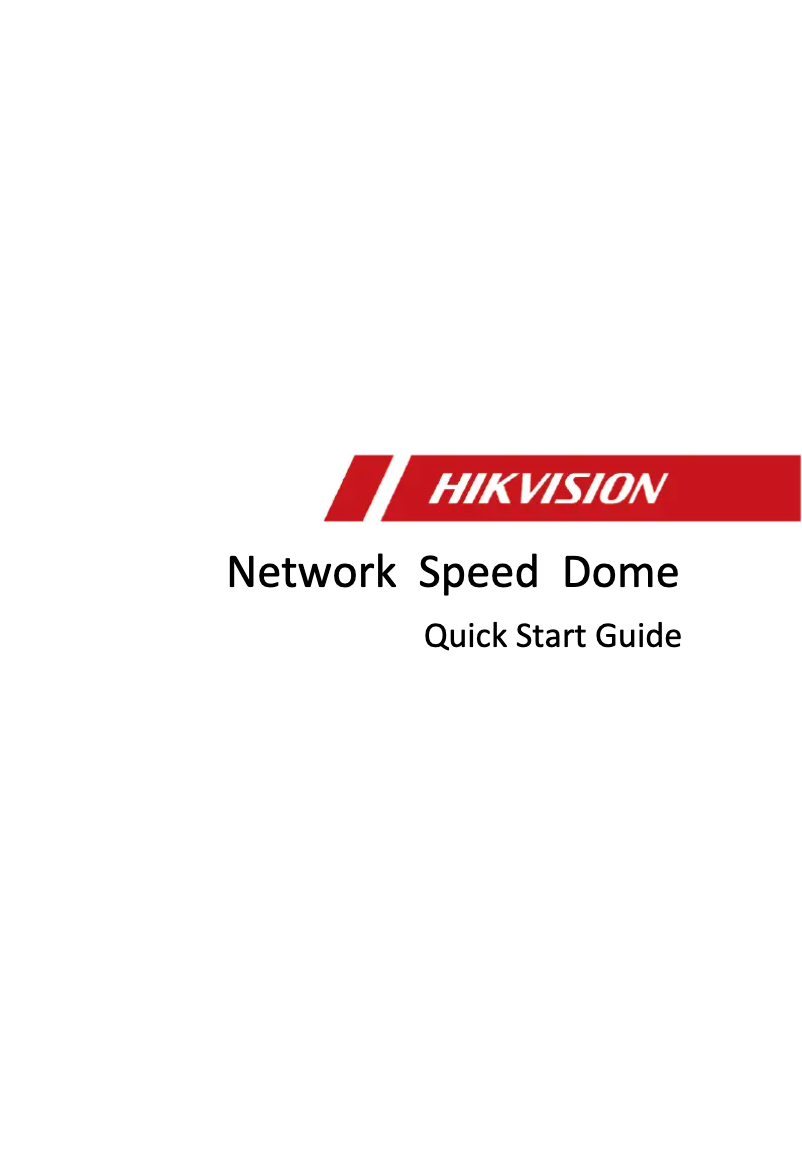

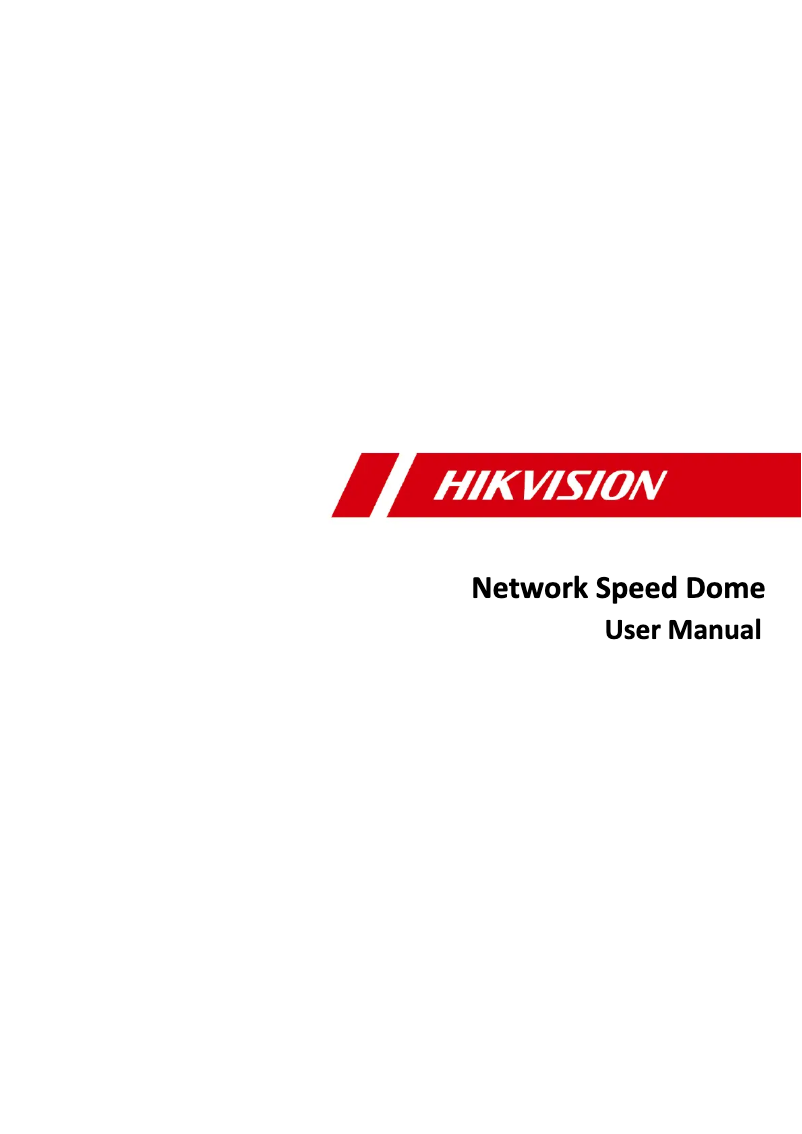

Manuals of product DS-2DE4415IW-DE
Technical Specifications DS-2DE4415IW-DE
General Information
-
ModelDS-2DE4415IW-DE
-
Brand
-
Category
-
Type
-
SKU1447894
-
MPN1447894
Weight and dimensions
-
Weight2000 g
-
Diameter164.5 mm
-
Height290 mm
Power
-
Consumption (max)18 W
-
Output CC in volts12
-
Power supply typeDC, PoE
Night vision
-
Night vision distance100 m
-
Night visionYes
-
Type of LEDIR
Video
-
Bitrate32 kbps - 16384 kbps
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Noise reduction technology3D digital noise reduction
-
Noise reductionYes
-
Noise reductionYes
-
Number of images per second30 fps
-
Total megapixels4 MP
-
Maximum resolution2560 x 1440 pixels
-
Supported graphic resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Camera
-
Inclination angle-15 - 90 °
-
Panoramic0 - 360 °
-
Pan tilt preset speed80 °/sec
-
Pan tilt preset speed80 °/sec
-
Pan tilt preset speed80 °/sec
-
Field of view of the lens, horizontal55 °
-
Angle of view of the lens, vertical33 °
-
Angle of view of the lens, diagonal61.5 °
-
Camera shutter speed1 - 30000 s
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
Objective system
-
Focal length4.8 - 72 mm
-
Optical zoom15 x
-
Maximum number of openings3.8
-
Minimum opening amount1.6
-
Digital zoom16 x
-
Detection distance1440 m
-
Observation distance571 m
-
Recognition distance288 m
-
Identification distance144 m
-
Zoom capacityYes
-
TuningMotorized/manual
-
Number of lenses1
-
Zoom capacityYes
Network
-
Supported network protocolsIPv4/IPv6
-
Network standardsHTTP
-
Type of Ethernet interfaceHTTPS
-
Quality of Service (QoS)802.1x
-
BluetoothQos
-
BluetoothFTP
-
Number of usersSMTP
-
Quality of Service (QoS)UPnP
-
SNMP
-
DNS
-
DDNS
-
NTP
-
RTSP
-
RTCP
-
RTP
-
TCP/IP
-
UDP
-
IGMP
-
ICMP
-
DHCP
-
PPPoE
-
Bonjour
-
IEEE 802.1x
-
IEEE 802.3at
-
Fast Ethernet
-
Yes
-
No
-
No
-
32 user(s)
-
Yes
Audio
-
Sampling frequency48 kHz
-
Voice codecsAAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM
-
Audio input channels1 channels
-
Audio input channels1 channels
Packaging contents
-
Number of cameras1
Environmental conditions
-
Operating temperature-30 - 65 °C
-
Operating relative humidity (H-H)0 - 90 %
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Management features
-
Behavior analysisIntrusion detection
-
Reset buttonLine crossing detection
-
Reset buttonRegion entrance detection
-
Region exiting detection
-
Unattended baggage detection
-
Yes
-
Yes
Security
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Security-supported algorithmEAP-LEAP, EAP-MD5, EAP-TLS
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Motion detector (video)Yes
Design
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP66
Representation / realization
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
PTZ ControlYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DE4415IW-DE specifications from brand Hikvision
Power
The type of power source for the product Hikvision DS-2DE4415IW-DE is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The product Hikvision DS-2DE4415IW-DE has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2DE4415IW-DE is 18 W. This specification allows for the assessment of the energy efficiency of the device.
Generalities
The brand of the product Hikvision DS-2DE4415IW-DE is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2DE4415IW-DE is 6941264088141. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2DE4415IW-DE is DS-2DE4415IW-DE | DS-2DE4415IW-DE(S6). This model ensures optimal performance and an enhanced user experience.
Weight and dimensions
The diameter of the product Hikvision DS-2DE4415IW-DE is 164.5 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2DE4415IW-DE is 2000 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2DE4415IW-DE is 290 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Night vision
The night vision distance of the product Hikvision DS-2DE4415IW-DE is 100 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2DE4415IW-DE have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2DE4415IW-DE is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Video
The bit rate of the product Hikvision DS-2DE4415IW-DE is 32 kbps - 16384 kbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2DE4415IW-DE have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2DE4415IW-DE have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2DE4415IW-DE have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2DE4415IW-DE have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The image quality setting of the product Hikvision DS-2DE4415IW-DE contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The product Hikvision DS-2DE4415IW-DE features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2DE4415IW-DE have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2DE4415IW-DE have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The number of frames per second of the product Hikvision DS-2DE4415IW-DE is 30 ips. This specification ensures optimal smoothness when playing videos. The total megapixels of the product Hikvision DS-2DE4415IW-DE is 4 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2DE4415IW-DE is 2560 x 1440 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2DE4415IW-DE are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440. These resolutions provide optimal display quality for your content. The product Hikvision DS-2DE4415IW-DE has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos.
Camera
The tilt angle of the product Hikvision DS-2DE4415IW-DE is -15 - 90 °. This angle allows for adjusting the position for optimal comfort. The panning speed of the product Hikvision DS-2DE4415IW-DE is 80 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt speed of the product Hikvision DS-2DE4415IW-DE is 80 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The panoramic view of the product Hikvision DS-2DE4415IW-DE is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The product Hikvision DS-2DE4415IW-DE has a preset panning speed of 80 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The field of view of the Hikvision DS-2DE4415IW-DE lens is 55 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2DE4415IW-DE is 33 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2DE4415IW-DE is 61.5 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The shutter speed of the camera of the product Hikvision DS-2DE4415IW-DE is 1 - 30000 s. This feature allows capturing sharp images even in low light conditions. The minimum illumination of the product Hikvision DS-2DE4415IW-DE is 0 lux. This feature ensures optimal performance even in low light conditions. Does the product Hikvision DS-2DE4415IW-DE have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2DE4415IW-DE camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives.
Network
The supported network protocols of the product Hikvision DS-2DE4415IW-DE are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2DE4415IW-DE have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hikvision DS-2DE4415IW-DE is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision DS-2DE4415IW-DE are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The Wifi of the product Hikvision DS-2DE4415IW-DE contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2DE4415IW-DE have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The number of users of the product Hikvision DS-2DE4415IW-DE is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2DE4415IW-DE have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Objective system
The focal length of the product Hikvision DS-2DE4415IW-DE is 4.8 - 72 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The minimum opening number of the product Hikvision DS-2DE4415IW-DE is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The optical zoom of the product Hikvision DS-2DE4415IW-DE is 15 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The maximum number of openings for the product Hikvision DS-2DE4415IW-DE is 3.8. This feature allows for optimal use and increased flexibility. The digital zoom of the product Hikvision DS-2DE4415IW-DE is 16 x. This zoom allows for capturing precise details even from a distance. The detection distance of the product Hikvision DS-2DE4415IW-DE is 1440 m. This feature allows for effective detection over a significant range. The observation distance of the product Hikvision DS-2DE4415IW-DE is 571 m. This specification allows for an appreciation of the range and clarity of the observed images. The detection range of the product Hikvision DS-2DE4415IW-DE is 288 m. This specification allows for the assessment of the system's effectiveness under various usage conditions. The product identification distance Hikvision DS-2DE4415IW-DE is 144 m. This specification allows determining the range at which the device can recognize objects or people. Does the Hikvision DS-2DE4415IW-DE have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The adjustment of the Hikvision DS-2DE4415IW-DE is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The number of lenses in the product Hikvision DS-2DE4415IW-DE is 1. This number determines the quality and versatility of the lens. Does the product Hikvision DS-2DE4415IW-DE have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance.
Packaging contents
The number of cameras of the product Hikvision DS-2DE4415IW-DE is 1. This product is equipped with a camera that allows capturing high-quality images.
Audio
The sampling frequency of the product Hikvision DS-2DE4415IW-DE is 48 kHz. This feature ensures optimal sound quality for your recordings. The voice codec of the Hikvision DS-2DE4415IW-DE product contains AAC, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications. The number of audio input channels of the product Hikvision DS-2DE4415IW-DE is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The audio output channels of the Hikvision DS-2DE4415IW-DE are 1 canaux. This specification allows for an immersive and high-quality sound experience.
Environmental conditions
The product Hikvision DS-2DE4415IW-DE has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2DE4415IW-DE is -30 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Image sensor
The sensor type of the product Hikvision DS-2DE4415IW-DE is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hikvision DS-2DE4415IW-DE is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product Hikvision DS-2DE4415IW-DE is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2DE4415IW-DE have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Management features
The Hikvision DS-2DE4415IW-DE product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision DS-2DE4415IW-DE system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2DE4415IW-DE have a Reset Button? Oui. This button allows you to easily reset the product settings.
Design
The color of the product Hikvision DS-2DE4415IW-DE is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2DE4415IW-DE is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2DE4415IW-DE is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision DS-2DE4415IW-DE contains IP66. This code indicates the level of protection against solid objects and moisture.
Security
Does the product Hikvision DS-2DE4415IW-DE have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The supported security algorithm of the product Hikvision DS-2DE4415IW-DE contains EAP-LEAP, EAP-MD5, EAP-TLS. This algorithm ensures optimal protection of your data. Does the Hikvision DS-2DE4415IW-DE product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The intelligent video surveillance system of the product Hikvision DS-2DE4415IW-DE has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision DS-2DE4415IW-DE have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2DE4415IW-DE have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Representation / realization
Does the product Hikvision DS-2DE4415IW-DE have an entry/end Alarm? Oui. This feature effectively secures access to your space. Does the product Hikvision DS-2DE4415IW-DE have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2DE4415IW-DE have preset points? Oui. This feature allows for simplified and customized use according to your preferences. Does the product Hikvision DS-2DE4415IW-DE have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2DE4415IW-DE have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The type of product Hikvision DS-2DE4415IW-DE is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2DE4415IW-DE supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2DE4415IW-DE features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The PTZ control of the product Hikvision DS-2DE4415IW-DE is Oui. This control allows for precise and efficient management of pan, tilt, and zoom.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DE4415IW-DE is 1. These ports provide a stable and fast network connection for your devices.
Storage support
The maximum size of the memory card for the product Hikvision DS-2DE4415IW-DE is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2DE4415IW-DE have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2DE4415IW-DE has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2DE4415IW-DE have a built-in hard drive? No. This feature means that the product does not have internal storage.
