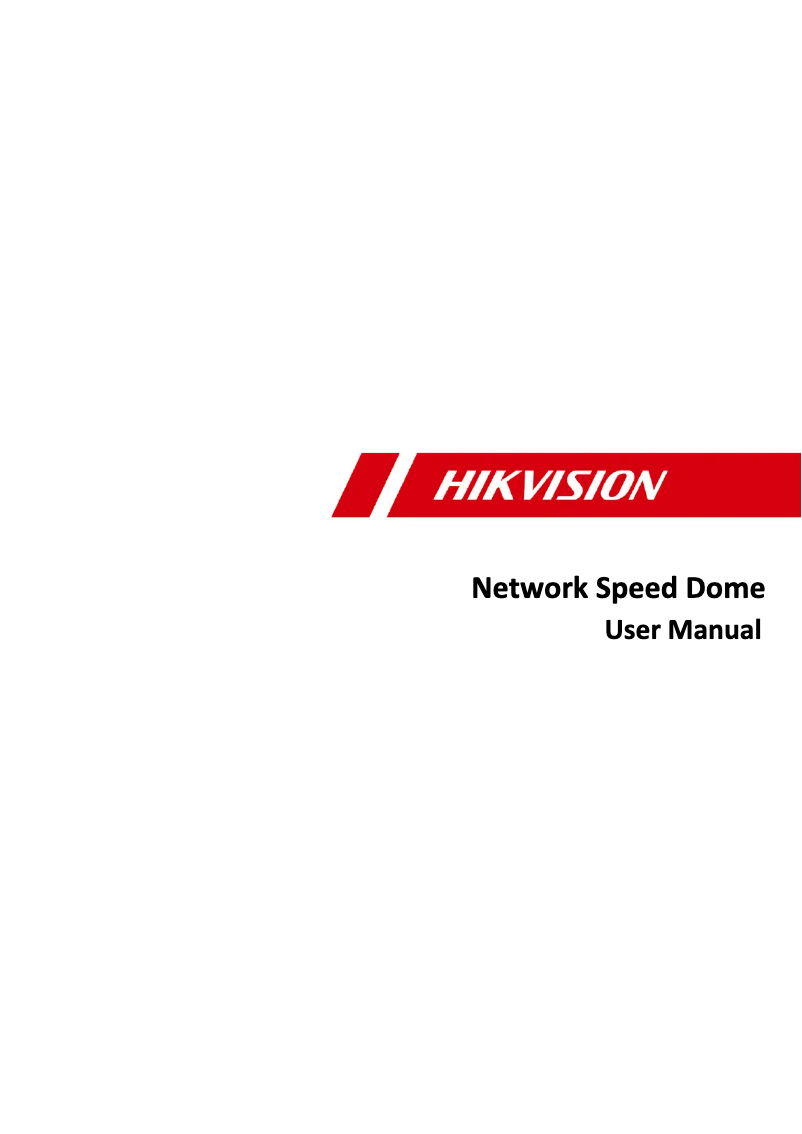

Manuals of product DS-2DE4A225IW-DE
Technical Specifications DS-2DE4A225IW-DE
General Information
-
ModelDS-2DE4A225IW-DE
-
Brand
-
Category
-
Type
-
SKU1044385
-
MPN1044385
Image sensor
-
Progressive scanYes
-
Optical sensor size1/2.8 "
-
Sensor typeCMOS
Camera
-
Minimum illumination0 lux
-
White balanceATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
-
Camera shutter speed1/1 - 1/30000 s
-
Field of view of the lens, horizontal57.6 °
-
Angle of view of the lens, vertical34.4 °
-
Angle of view of the lens, diagonal64.5 °
-
Panoramic0 - 360 °
-
Panoramic speed300 °/sec
-
Pan tilt preset speed350 °/sec
-
Tilt preset speed200 °/sec
-
Tilt speed160 °/sec
-
Inclination angle-5 - 90 °
Video
-
Brightness compensationYes
-
Gain control typeAuto/Manual
-
Brightness compensationYes
-
Brightness compensationYes
-
Total megapixels2 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Brightness compensationYes
-
Maximum resolution1920 x 1080 pixels
-
Supported graphic resolutions352 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Brightness compensationYes
-
Brightness compensationYes
-
Brightness compensationYes
-
Brightness compensationYes
Representation / realization
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
TypeIP security camera
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Connectivity technologyWired
-
Supported installationOutdoor
Objective system
-
Auto focusYes
-
Digital zoom16 x
-
Auto focusYes
-
TuningMotorized/manual
-
Optical zoom25 x
-
Focal length- mm
-
Minimum opening amount1.6
-
Maximum number of openings3.5
Packaging contents
-
Number of cameras1
Management features
-
Web-based managementYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
Night vision
-
Night visionYes
-
Type of LEDIR
-
Night vision distance50 m
Audio
-
Voice codecsG.711a
-
G.711u
-
G.722
-
G.726
-
MP2L2
Security
-
Motion detector (video)Yes
-
Functions of the IVS system (intelligent video surveillance)Face detection
Storage support
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Maximum memory card size256 GB
Network
-
Supported network protocolsIPv4/IPv6
-
Number of usersHTTP
-
Network standardsHTTPS
-
Ethernet/LAN802.1x
-
BluetoothQos
-
BluetoothFTP
-
Type of Ethernet interfaceSMTP
-
Wiring technologyUPnP
-
SNMP
-
DNS
-
DDNS
-
NTP
-
RTSP
-
RTCP
-
RTP
-
TCP/IP
-
UDP
-
IGMP
-
ICMP
-
DHCP
-
PPPoE
-
Bonjour
-
32 user(s)
-
IEEE 802.1x
-
IEEE 802.3at
-
Yes
-
No
-
No
-
Fast Ethernet
-
10/100Base-T(X)
Other features
-
Number of simultaneous users (local + network)20 user(s)
Connectivity
-
InterfaceRJ-45
Environmental conditions
-
Operating temperature-30 - 65 °C
-
Operating relative humidity (H-H)0 - 90 %
Power
-
Power supply typeDC, PoE
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Consumption (max)18 W
-
Output CC in volts12
Weight and dimensions
-
Diameter169 mm
-
Height161 mm
-
Weight2450 g
Design
-
Mounting typeCeiling/wall
-
FormatDome
-
Product colorBlack, White
-
International Protection Code (IP)IP66
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DE4A225IW-DE specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2DE4A225IW-DE is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2DE4A225IW-DE is 6954273651510, 0842571117202. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2DE4A225IW-DE is DS-2DE4A225IW-DE | DS-2DE4A225IW-DE. This model ensures optimal performance and an enhanced user experience.
Image sensor
The optical sensor size of the product Hikvision DS-2DE4A225IW-DE is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2DE4A225IW-DE have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Hikvision DS-2DE4A225IW-DE is CMOS. This type of sensor ensures optimal image quality for your needs.
Camera
The minimum illumination of the product Hikvision DS-2DE4A225IW-DE is 0 lux. This feature ensures optimal performance even in low light conditions. The field of view of the Hikvision DS-2DE4A225IW-DE lens is 57.6 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The shutter speed of the camera of the product Hikvision DS-2DE4A225IW-DE is 1/1 - 1/30000 s. This feature allows capturing sharp images even in low light conditions. The white balance of the product Hikvision DS-2DE4A225IW-DE consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The vertical field of view of the product Hikvision DS-2DE4A225IW-DE is 34.4 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2DE4A225IW-DE is 64.5 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The panoramic view of the product Hikvision DS-2DE4A225IW-DE is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The panning speed of the product Hikvision DS-2DE4A225IW-DE is 300 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2DE4A225IW-DE has a preset panning speed of 350 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The tilt pre-setting speed of the product Hikvision DS-2DE4A225IW-DE is 200 °/sec. This feature allows for quick and precise adjustment of the camera angle to capture images from different angles. The tilt speed of the product Hikvision DS-2DE4A225IW-DE is 160 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The tilt angle of the product Hikvision DS-2DE4A225IW-DE is -5 - 90 °. This angle allows for adjusting the position for optimal comfort.
Video
Does the product Hikvision DS-2DE4A225IW-DE have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. Does the product Hikvision DS-2DE4A225IW-DE have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hikvision DS-2DE4A225IW-DE have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. The gain control type of the product Hikvision DS-2DE4A225IW-DE is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The total megapixels of the product Hikvision DS-2DE4A225IW-DE is 2 MP. This total ensures exceptional image quality for your photos. The product Hikvision DS-2DE4A225IW-DE has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision DS-2DE4A225IW-DE are 352 x 288,640 x 480 (VGA),704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2DE4A225IW-DE have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The maximum resolution of the product Hikvision DS-2DE4A225IW-DE is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Hikvision DS-2DE4A225IW-DE have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2DE4A225IW-DE have a wide dynamic range (WDR)? Oui. This feature enhances image quality by optimizing contrast in varying lighting conditions. Does the product Hikvision DS-2DE4A225IW-DE have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the product Hikvision DS-2DE4A225IW-DE have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience.
Packaging contents
The number of cameras of the product Hikvision DS-2DE4A225IW-DE is 1. This product is equipped with a camera that allows capturing high-quality images.
Representation / realization
Does the product Hikvision DS-2DE4A225IW-DE have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The PTZ control of the product Hikvision DS-2DE4A225IW-DE is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Hikvision DS-2DE4A225IW-DE have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2DE4A225IW-DE have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2DE4A225IW-DE have preset points? Oui. This feature allows for simplified and customized use according to your preferences. The type of product Hikvision DS-2DE4A225IW-DE is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2DE4A225IW-DE features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hikvision DS-2DE4A225IW-DE supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2DE4A225IW-DE have a Patrol mode? Oui. This mode allows for effective and continuous monitoring. Does the product Hikvision DS-2DE4A225IW-DE have an entry/end Alarm? Oui. This feature effectively secures access to your space.
Management features
The Hikvision DS-2DE4A225IW-DE system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. The Hikvision DS-2DE4A225IW-DE product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Objective system
The digital zoom of the product Hikvision DS-2DE4A225IW-DE is 16 x. This zoom allows for capturing precise details even from a distance. Does the product Hikvision DS-2DE4A225IW-DE have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The adjustment of the Hikvision DS-2DE4A225IW-DE is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. Does the Hikvision DS-2DE4A225IW-DE have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The optical zoom of the product Hikvision DS-2DE4A225IW-DE is 25 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The focal length of the product Hikvision DS-2DE4A225IW-DE is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The minimum opening number of the product Hikvision DS-2DE4A225IW-DE is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The maximum number of openings for the product Hikvision DS-2DE4A225IW-DE is 3.5. This feature allows for optimal use and increased flexibility.
Night vision
The type of LED of the product Hikvision DS-2DE4A225IW-DE is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. Does the product Hikvision DS-2DE4A225IW-DE have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2DE4A225IW-DE is 50 m. This feature allows for clear and precise observation even in darkness.
Security
Does the product Hikvision DS-2DE4A225IW-DE have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The intelligent video surveillance system of the product Hikvision DS-2DE4A225IW-DE has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Audio
The voice codec of the Hikvision DS-2DE4A225IW-DE product contains G.711a, G.711u, G.722, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications.
Storage support
Does the Hikvision DS-2DE4A225IW-DE have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2DE4A225IW-DE have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2DE4A225IW-DE has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2DE4A225IW-DE is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Other features
The number of simultaneous users (local + network) of the product Hikvision DS-2DE4A225IW-DE is 20 utilisateur(s). This feature allows for smooth and efficient use by multiple users at the same time.
Connectivity
The product Hikvision DS-2DE4A225IW-DE has an Interface RJ-45. This interface allows for easy and quick connection with various devices.
Power
The type of power source for the product Hikvision DS-2DE4A225IW-DE is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2DE4A225IW-DE is 18 W. This specification allows for the assessment of the energy efficiency of the device. Does the Hikvision DS-2DE4A225IW-DE have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The product Hikvision DS-2DE4A225IW-DE has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices.
Network
The supported network protocols of the product Hikvision DS-2DE4A225IW-DE are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The network standards of the product Hikvision DS-2DE4A225IW-DE are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The number of users of the product Hikvision DS-2DE4A225IW-DE is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2DE4A225IW-DE have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2DE4A225IW-DE contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The Ethernet interface type of the product Hikvision DS-2DE4A225IW-DE is Fast Ethernet. This type of interface allows for fast and efficient network connections. The wiring technology of the product Hikvision DS-2DE4A225IW-DE contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. Does the Hikvision DS-2DE4A225IW-DE have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
Environmental conditions
The operating temperature of the product Hikvision DS-2DE4A225IW-DE is -30 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2DE4A225IW-DE has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Weight and dimensions
The diameter of the product Hikvision DS-2DE4A225IW-DE is 169 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2DE4A225IW-DE is 2450 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2DE4A225IW-DE is 161 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Design
The mounting type of the product Hikvision DS-2DE4A225IW-DE is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The International Protection Code (IP) for product Hikvision DS-2DE4A225IW-DE contains IP66. This code indicates the level of protection against solid objects and moisture. The format of the product Hikvision DS-2DE4A225IW-DE is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2DE4A225IW-DE is Black, White. This shade gives it a modern and elegant look.
