Thumbnail of product DS-2DE5120W-AE from brand Hikvision
Logo of brand Hikvision

Surveillance camera Hikvision DS-2DE5120W-AE

Hikvision
Camera and photography
Surveillance camera

The DS-2DE5120W-AE is a product in the category Camera and photography, specifically of type Surveillance camera. We have listed 1 manual of type User Manual for product Surveillance camera Hikvision DS-2DE5120W-AE. We have also listed 90 specifications for product Surveillance camera Hikvision DS-2DE5120W-AE. Have a question about product Hikvision DS-2DE5120W-AE and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manual of product DS-2DE5120W-AE

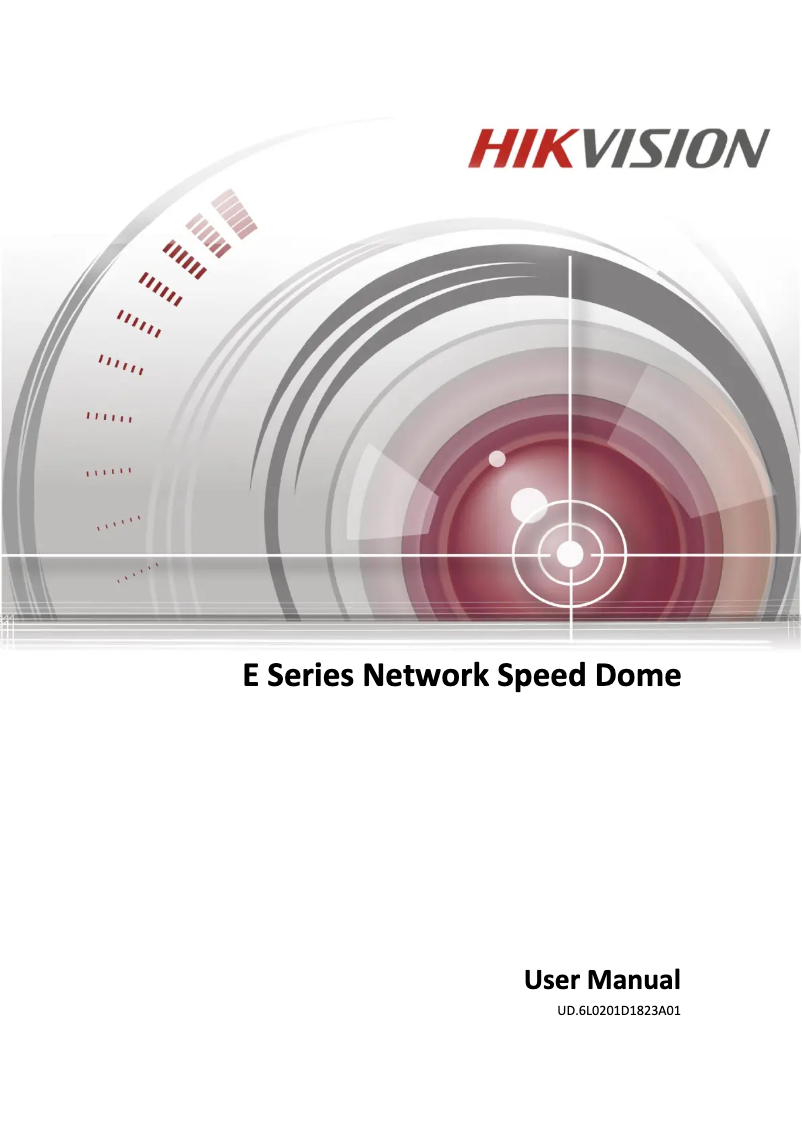

First page image of the manual for DS-2DE5120W-AE

User Manual
109 pages
View manual

Technical Specifications DS-2DE5120W-AE

General Information

Image sensor

  • Progressive scan
    Yes
  • Number of sensors
    1
  • Optical sensor size
    1/3 "
  • Sensor type
    CMOS

Objective system

  • Number of lenses
    1
  • Maximum number of openings
    3.5
  • Focal length
    - mm
  • Optical zoom
    20 x
  • Digital zoom
    16 x
  • Auto focus
    Yes
  • Minimum focusing distance
    0.01 m
  • Minimum opening amount
    1.6
  • Auto focus
    Yes
  • Tuning
    Motorized/manual

Video

  • Maximum resolution
    1280 x 960 pixels
  • Total megapixels
    1.3 MP
  • Video broadcasting
    Yes
  • Gain control type
    Auto/Manual
  • Video broadcasting
    Yes
  • Noise reduction technology
    3D digital noise reduction
  • Video broadcasting
    Yes
  • Video broadcasting
    Yes
  • Video broadcasting
    Yes
  • Video broadcasting
    Yes
  • Number of images per second
    60 fps
  • Supported graphic resolutions
    352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960
  • Visual compression formats
    H.264, M-JPEG

Packaging contents

  • Number of cameras
    1

Power

  • Power supply type
    AC, PoE
  • AC input voltage
    24 V
  • Consumption (max)
    18 W

Camera

  • Minimum illumination
    0.01 lux
  • Field of view (FOV)
    58.3 °
  • Camera shutter speed
    1-1/10000 s
  • White balance
    ATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
  • Automatic flipping
    Yes
  • Automatic flipping
    Yes
  • Panoramic
    0 - 360 °
  • Inclination angle
    -5 - 90 °
  • Automatic flipping
    Yes
  • Tilt speed
    150 °/sec
  • Panoramic speed
    250 °/sec
  • Pan tilt preset speed
    300 °/sec

Representation / realization

  • PTZ Control
    Yes
  • PTZ Control
    Yes
  • PTZ Control
    Yes
  • PTZ Control
    Yes
  • Type
    IP security camera
  • Supported installation
    Outdoor
  • Connectivity technology
    Wired
  • PTZ Control
    Yes
  • Certification
    FCC, CE, UL, IEC/EN 61000, IEC/EN 55022, IEC/EN 55024, IEC/EN 60950-1

Storage support

  • Integrated hard drive
    No
  • Maximum memory card size
    128 GB
  • Built-in memory card reader
    Yes
  • Compatible memory cards
    MicroSD (TransFlash), MicroSDHC, MicroSDXC

Management features

  • Behavior analysis
    Intrusion detection
  • Web-based management
    Line crossing detection
  • Yes

Security

  • Motion detector (video)
    Yes

Audio

  • Audio output channels
    1 channels
  • Audio output channels
    1 channels
  • Voice codecs
    G.711alaw, G.711ulaw

Connectivity

  • Microphone jack input
    Yes
  • Number of Ethernet LAN ports (RJ-45)
    1

Network

  • Quality of Service (QoS)
    Yes
  • Type of Ethernet interface
    Fast Ethernet
  • Quality of Service (QoS)
    Yes
  • Network standards
    IEEE 802.1x, IEEE 802.3at
  • Supported network protocols
    IPv4/IPv6, HTTP, HTTPS, 802.1X, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
  • Number of users
    20 user(s)
  • Bluetooth
    No
  • Bluetooth
    No

Environmental conditions

  • Operating temperature
    -30 - 65 °C
  • Operating relative humidity (H-H)
    0 - 90 %

Design

  • International Protection Code (IP)
    IP66
  • Code IK
    IK10
  • Format
    Dome
  • Mounting type
    Ceiling
  • Product color
    Black, White

Sustainability

  • Sustainability certificates
    RoHS

Weight and dimensions

  • Diameter
    220 mm
  • Height
    305 mm
  • Weight
    3000 g

Night vision

  • Night vision
    -
