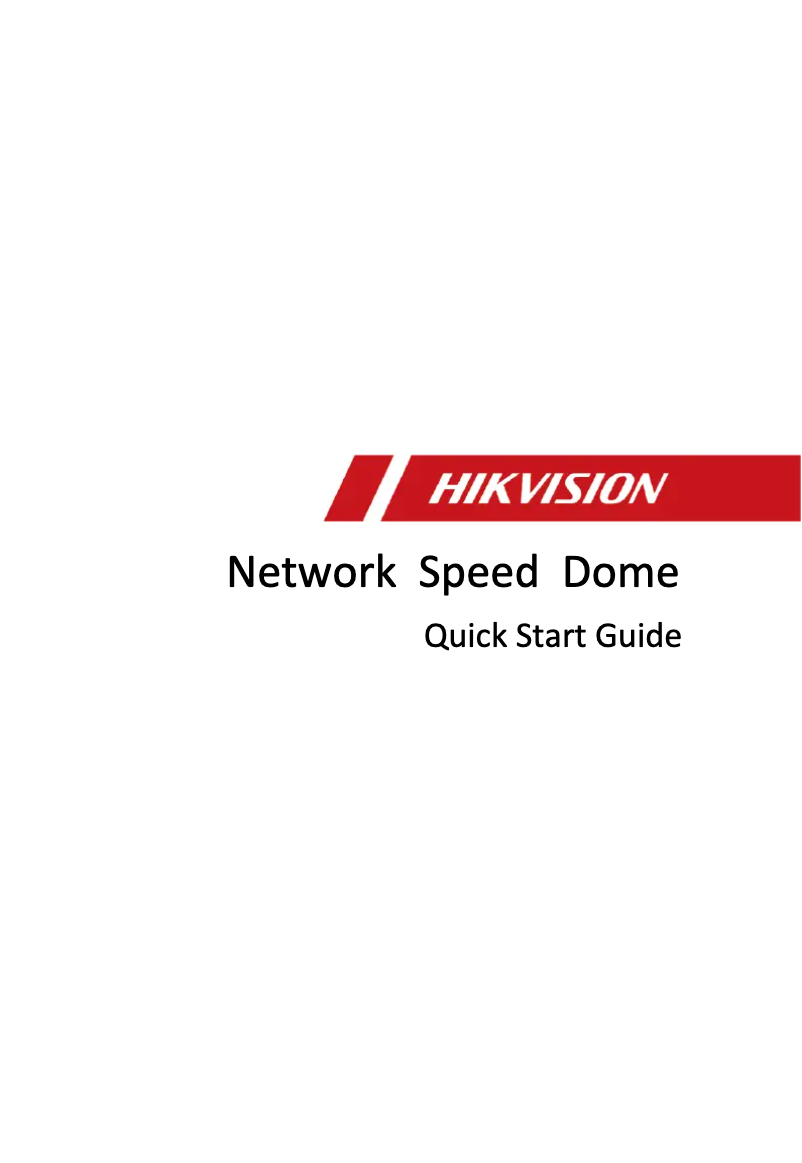

Manuals of product DS-2DE5232W-AE
Technical Specifications DS-2DE5232W-AE
General Information
-
ModelDS-2DE5232W-AE
-
Brand
-
Category
-
Type
-
SKU1046983
-
MPN1046983
Image sensor
-
Progressive scanYes
-
Optical sensor size1/2.8 "
-
Sensor typeCMOS
Camera
-
Minimum illumination0.001 lux
-
White balanceAuto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
-
Camera shutter speed1/10000 - 1 s
-
Field of view of the lens, horizontal55.6 °
-
Angle of view of the lens, vertical32.4 °
-
Angle of view of the lens, diagonal63 °
-
Panoramic0 - 360 °
-
Panoramic speed250 °/sec
-
Pan tilt preset speed300 °/sec
-
Inclination angle-5 - 90 °
-
Tilt speed150 °/sec
-
Tilt preset speed200 °/sec
Packaging contents
-
Number of cameras1
Video
-
Number of images per second60 ips
-
Maximum resolution1920 x 1080 pixels
-
Masking of personal dataYes
-
Total megapixels2 MP
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Analog signal format systemNTSC, PAL
-
Gain control typeAuto/Manual
-
Supported graphic resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080)
-
Masking of personal dataYes
-
Masking of personal dataYes
Objective system
-
Optical zoom32 x
-
Digital zoom16 x
-
Focal length- mm
-
Maximum number of openings4.4
-
Minimum opening amount1.2
Representation / realization
-
Entry/exit alarmYes
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
TypeIP security camera
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Supported installationIndoor
-
Entry/exit alarmYes
-
PTZ Modes4 patterns
-
Entry/exit alarmYes
-
Number of languages1
-
Languages taken into accountEnglish
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Quality of Service (QoS)Yes
-
Type of Ethernet interfaceFast Ethernet
-
Wiring technology10/100Base-T(X)
-
Network standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
-
Number of users32 user(s)
Design
-
Anti-fogYes
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling/wall
-
International Protection Code (IP)IP66
-
Code IKIK10
-
Material of the case/bodyAcrylonitrile butadiene styrene (ABS), Polymethyl methacrylate (PMMA)
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
InterfaceRJ-45
Power
-
Power supply typeAC, PoE
-
AC input voltage24 V
-
Consumption (max)22 W
Night vision
-
Night visionYes
Audio
-
Audio output channels1 channels
-
Audio output channels1 channels
-
Voice codecsG.711, G.722.1, G.726, MP2L2
-
Supported audio formatsPCM
Security
-
Security-supported algorithm802.1x RADIUS, HTTPS
-
Motion detector (video)Yes
Other features
-
Number of simultaneous users (local + network)20 user(s)
Storage support
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
-
Built-in memory card readerYes
Management features
-
Web-based managementYes
-
Web-based managementYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Environmental conditions
-
Operating temperature-30 - 65 °C
Weight and dimensions
-
Diameter220 mm
-
Height280 mm
-
Weight3000 g
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DE5232W-AE specifications from brand Hikvision
Packaging contents
The number of cameras of the product Hikvision DS-2DE5232W-AE is 1. This product is equipped with a camera that allows capturing high-quality images.
Generalities
The EAN code of the product Hikvision DS-2DE5232W-AE is 6954273651572, 0842571116380. This code allows for the unique identification of the product in the distribution system. The brand of the product Hikvision DS-2DE5232W-AE is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2DE5232W-AE is DS-2DE5232W-AE | DS-2DE5232W-AE. This model ensures optimal performance and an enhanced user experience.
Image sensor
The optical sensor size of the product Hikvision DS-2DE5232W-AE is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hikvision DS-2DE5232W-AE is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hikvision DS-2DE5232W-AE have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Camera
The minimum illumination of the product Hikvision DS-2DE5232W-AE is 0.001 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision DS-2DE5232W-AE is 1/10000 - 1 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Hikvision DS-2DE5232W-AE lens is 55.6 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The white balance of the product Hikvision DS-2DE5232W-AE consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The vertical field of view of the product Hikvision DS-2DE5232W-AE is 32.4 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2DE5232W-AE is 63 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The panoramic view of the product Hikvision DS-2DE5232W-AE is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The panning speed of the product Hikvision DS-2DE5232W-AE is 250 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2DE5232W-AE has a preset panning speed of 300 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The tilt angle of the product Hikvision DS-2DE5232W-AE is -5 - 90 °. This angle allows for adjusting the position for optimal comfort. The tilt speed of the product Hikvision DS-2DE5232W-AE is 150 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The tilt pre-setting speed of the product Hikvision DS-2DE5232W-AE is 200 °/sec. This feature allows for quick and precise adjustment of the camera angle to capture images from different angles.
Objective system
The maximum number of openings for the product Hikvision DS-2DE5232W-AE is 4.4. This feature allows for optimal use and increased flexibility. The digital zoom of the product Hikvision DS-2DE5232W-AE is 16 x. This zoom allows for capturing precise details even from a distance. The focal length of the product Hikvision DS-2DE5232W-AE is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The optical zoom of the product Hikvision DS-2DE5232W-AE is 32 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The minimum opening number of the product Hikvision DS-2DE5232W-AE is 1.2. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions.
Video
The number of frames per second of the product Hikvision DS-2DE5232W-AE is 60 ips. This specification ensures optimal smoothness when playing videos. The maximum resolution of the product Hikvision DS-2DE5232W-AE is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2DE5232W-AE is 2 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2DE5232W-AE have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product Hikvision DS-2DE5232W-AE have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. Does the product Hikvision DS-2DE5232W-AE have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2DE5232W-AE have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The product Hikvision DS-2DE5232W-AE has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision DS-2DE5232W-AE have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2DE5232W-AE have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. The analog signal format system of the product Hikvision DS-2DE5232W-AE contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The gain control type of the product Hikvision DS-2DE5232W-AE is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The supported graphic resolutions of the product Hikvision DS-2DE5232W-AE are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2DE5232W-AE have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2DE5232W-AE have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos.
Network
Does the product Hikvision DS-2DE5232W-AE have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2DE5232W-AE contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2DE5232W-AE have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product Hikvision DS-2DE5232W-AE have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Ethernet interface type of the product Hikvision DS-2DE5232W-AE is Fast Ethernet. This type of interface allows for fast and efficient network connections. The supported network protocols of the product Hikvision DS-2DE5232W-AE are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2DE5232W-AE is 32 utilisateur(s). This product is ideal for several people. The wiring technology of the product Hikvision DS-2DE5232W-AE contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The network standards of the product Hikvision DS-2DE5232W-AE are IEEE 802.3, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u. These standards ensure optimal compatibility with various equipment and protocols.
Representation / realization
Does the product Hikvision DS-2DE5232W-AE have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The type of product Hikvision DS-2DE5232W-AE is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2DE5232W-AE features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2DE5232W-AE have Automatic Tracking? Oui. This feature allows you to track your orders in real-time, providing you with peace of mind while shopping. Does the product Hikvision DS-2DE5232W-AE have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2DE5232W-AE have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2DE5232W-AE have a Patrol mode? Oui. This mode allows for effective and continuous monitoring. The design of the product Hikvision DS-2DE5232W-AE supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ control of the product Hikvision DS-2DE5232W-AE is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The PTZ modes of the product Hikvision DS-2DE5232W-AE contain 4 motifs. These modes allow for increased flexibility and customization to meet your specific needs. Does the product Hikvision DS-2DE5232W-AE have an entry/end Alarm? Oui. This feature effectively secures access to your space. The number of languages of the product Hikvision DS-2DE5232W-AE is 1. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2DE5232W-AE are Anglais. This product thus caters to a wide international audience.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DE5232W-AE is 1. These ports provide a stable and fast network connection for your devices. The product Hikvision DS-2DE5232W-AE has an Interface RJ-45. This interface allows for easy and quick connection with various devices.
Night vision
Does the product Hikvision DS-2DE5232W-AE have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Power
The type of power source for the product Hikvision DS-2DE5232W-AE is AC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The AC input voltage of the Hikvision DS-2DE5232W-AE is 24 V. This specification ensures optimal compatibility with standard electrical systems. The maximum consumption of the product Hikvision DS-2DE5232W-AE is 22 W. This specification allows for the assessment of the energy efficiency of the device.
Design
Does the product Hikvision DS-2DE5232W-AE have an anti-fog feature? Oui. This feature helps prevent fogging, ensuring optimal visibility. The color of the product Hikvision DS-2DE5232W-AE is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2DE5232W-AE is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2DE5232W-AE is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision DS-2DE5232W-AE contains IP66. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Hikvision DS-2DE5232W-AE is IK10. This IK Code allows for easy identification of the specific design of the item. The material of the product case Hikvision DS-2DE5232W-AE is Acrylonitrile butadiene styrene (ABS), Polymethyl methacrylate (PMMA). This material ensures both durability and elegance.
Audio
The audio output channels of the Hikvision DS-2DE5232W-AE are 1 canaux. This specification allows for an immersive and high-quality sound experience. The voice codec of the Hikvision DS-2DE5232W-AE product contains G.711, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. The supported audio formats of the product Hikvision DS-2DE5232W-AE are PCM. These formats ensure optimal compatibility for an enriching listening experience. The number of audio input channels of the product Hikvision DS-2DE5232W-AE is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience.
Security
The supported security algorithm of the product Hikvision DS-2DE5232W-AE contains 802.1x RADIUS, HTTPS. This algorithm ensures optimal protection of your data. Does the product Hikvision DS-2DE5232W-AE have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Storage support
The product Hikvision DS-2DE5232W-AE has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2DE5232W-AE have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2DE5232W-AE is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2DE5232W-AE have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Other features
The number of simultaneous users (local + network) of the product Hikvision DS-2DE5232W-AE is 20 utilisateur(s). This feature allows for smooth and efficient use by multiple users at the same time.
Management features
Does the product Hikvision DS-2DE5232W-AE have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites. The Hikvision DS-2DE5232W-AE product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision DS-2DE5232W-AE system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Environmental conditions
The operating temperature of the product Hikvision DS-2DE5232W-AE is -30 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The diameter of the product Hikvision DS-2DE5232W-AE is 220 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Hikvision DS-2DE5232W-AE is 280 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hikvision DS-2DE5232W-AE is 3000 g. This weight is ideal for ensuring optimal use and easy handling.
