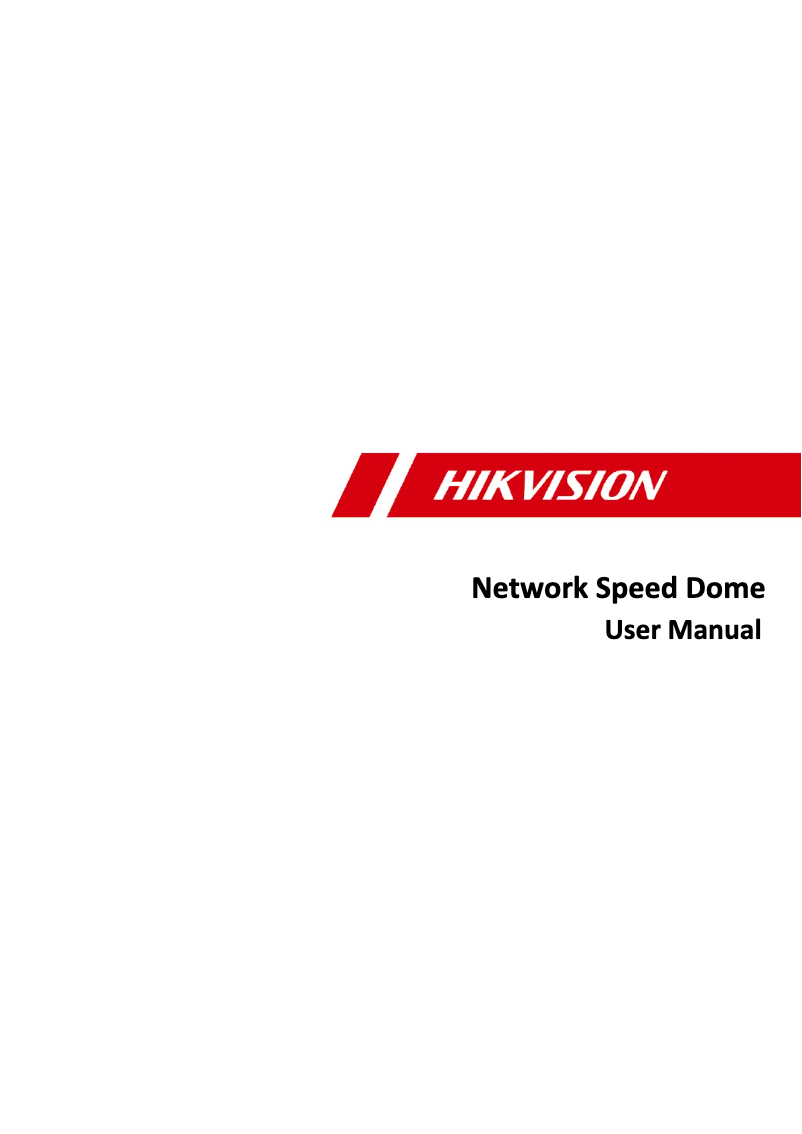

Manuals of product DS-2DE7232IW-AE
Technical Specifications DS-2DE7232IW-AE
General Information
-
ModelDS-2DE7232IW-AE
-
Brand
-
Category
-
Type
-
SKU1044386
-
MPN1044386
Video
-
Total megapixels2 MP
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Video broadcastingYes
-
Analog signal format systemNTSC, PAL
-
Video broadcastingYes
-
Maximum resolution1920 x 1080 pixels
-
Video broadcastingYes
-
Video broadcastingYes
-
Gain control typeAuto/Manual
-
Video broadcastingYes
-
Visual compression formatsH.264, M-JPEG
-
Supported graphic resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Video broadcastingYes
-
Video broadcastingYes
-
Bitrate32Kbps~16Mbps
Representation / realization
-
Supported installationInterior and exterior
-
TypeIP security camera
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
Connectivity technologyWired
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
Number of languages1
-
Languages taken into accountEnglish
-
Automatic trackingYes
Design
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling/wall
-
Anti-fogYes
-
International Protection Code (IP)IP66
Camera
-
Minimum illumination0 lux
-
White balanceATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
-
Field of view of the lens, horizontal65.5 °
-
Panoramic0 - 360 °
-
Panoramic speed160 °/sec
-
Pan tilt preset speed240 °/sec
-
Inclination angle-15 - 90 °
-
Tilt speed120 °/sec
-
Tilt preset speed200 °/sec
-
Quantity of predefined programs300
-
Automatic flippingYes
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Storage support
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
Night vision
-
Night visionYes
-
Type of LEDIR
-
Night vision distance150 m
Objective system
-
Auto focusYes
-
Optical zoom32 x
-
Digital zoom16 x
-
Auto focusYes
-
Focal length- mm
-
Maximum number of openings5
-
Minimum opening amount1.6
Network
-
Bluetooth-
-
Quality of Service (QoS)Yes
-
WifiNo
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
-
Type of Ethernet interfaceFast Ethernet
-
Wiring technology10/100Base-T(X)
-
Network standardsIEEE 802.3, IEEE 802.3at, IEEE 802.3u
Packaging contents
-
Number of cameras1
Audio
-
Voice codecsG.711ulaw
-
G.711
-
G.726
-
MP2L2
Power
-
Power supply typeAC, PoE
-
Ethernet connection, supporting power over this port (PoE)Yes
-
AC input voltage24 V
-
Consumption (max)40 W
Environmental conditions
-
Operating temperature-30 - 65 °C
Weight and dimensions
-
Diameter220 mm
-
Height353.4 mm
-
Weight4500 g
Security
-
Filtering IP addressesYes
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Security-supported algorithm802.1x RADIUS
-
Filtering IP addressesYes
-
Filtering IP addressesYes
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
InterfaceRJ-45
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DE7232IW-AE specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2DE7232IW-AE is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2DE7232IW-AE is DS-2DE7232IW-AE | DS-2DE7232IW-AE. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2DE7232IW-AE is 6954273651596, 0842571117219. This code allows for the unique identification of the product in the distribution system.
Design
The format of the product Hikvision DS-2DE7232IW-AE is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2DE7232IW-AE is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2DE7232IW-AE is Blanc. This shade gives it a modern and elegant look. Does the product Hikvision DS-2DE7232IW-AE have an anti-fog feature? Oui. This feature helps prevent fogging, ensuring optimal visibility. The International Protection Code (IP) for product Hikvision DS-2DE7232IW-AE contains IP66. This code indicates the level of protection against solid objects and moisture.
Representation / realization
The design of the product Hikvision DS-2DE7232IW-AE supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product Hikvision DS-2DE7232IW-AE is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2DE7232IW-AE have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The PTZ control of the product Hikvision DS-2DE7232IW-AE is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Hikvision DS-2DE7232IW-AE have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product Hikvision DS-2DE7232IW-AE features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2DE7232IW-AE have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2DE7232IW-AE have an entry/end Alarm? Oui. This feature effectively secures access to your space. The number of languages of the product Hikvision DS-2DE7232IW-AE is 1. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2DE7232IW-AE are Anglais. This product thus caters to a wide international audience. Does the product Hikvision DS-2DE7232IW-AE have a Patrol mode? Oui. This mode allows for effective and continuous monitoring. Does the product Hikvision DS-2DE7232IW-AE have Automatic Tracking? Oui. This feature allows you to track your orders in real-time, providing you with peace of mind while shopping.
Video
The total megapixels of the product Hikvision DS-2DE7232IW-AE is 2 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2DE7232IW-AE have a wide dynamic range (WDR)? Oui. This feature enhances image quality by optimizing contrast in varying lighting conditions. Does the product Hikvision DS-2DE7232IW-AE have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the product Hikvision DS-2DE7232IW-AE have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product Hikvision DS-2DE7232IW-AE have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The analog signal format system of the product Hikvision DS-2DE7232IW-AE contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. Does the product Hikvision DS-2DE7232IW-AE have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. The maximum resolution of the product Hikvision DS-2DE7232IW-AE is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Hikvision DS-2DE7232IW-AE have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2DE7232IW-AE have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The gain control type of the product Hikvision DS-2DE7232IW-AE is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2DE7232IW-AE have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The product Hikvision DS-2DE7232IW-AE has visual compression formats: H.264, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision DS-2DE7232IW-AE are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2DE7232IW-AE have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2DE7232IW-AE have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The bit rate of the product Hikvision DS-2DE7232IW-AE is 32Kbps~16Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience.
Image sensor
The sensor type of the product Hikvision DS-2DE7232IW-AE is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2DE7232IW-AE is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2DE7232IW-AE have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Camera
The minimum illumination of the product Hikvision DS-2DE7232IW-AE is 0 lux. This feature ensures optimal performance even in low light conditions. The panoramic view of the product Hikvision DS-2DE7232IW-AE is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The white balance of the product Hikvision DS-2DE7232IW-AE consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The field of view of the Hikvision DS-2DE7232IW-AE lens is 65.5 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The panning speed of the product Hikvision DS-2DE7232IW-AE is 160 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2DE7232IW-AE has a preset panning speed of 240 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The tilt pre-setting speed of the product Hikvision DS-2DE7232IW-AE is 200 °/sec. This feature allows for quick and precise adjustment of the camera angle to capture images from different angles. The tilt angle of the product Hikvision DS-2DE7232IW-AE is -15 - 90 °. This angle allows for adjusting the position for optimal comfort. The tilt speed of the product Hikvision DS-2DE7232IW-AE is 120 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The number of predefined programs of the product Hikvision DS-2DE7232IW-AE is 300. This specification allows for optimizing the use and customization of the device. Does the Hikvision DS-2DE7232IW-AE have automatic flipping? Oui. This feature allows the camera to automatically adjust to capture the best angles.
Storage support
Does the Hikvision DS-2DE7232IW-AE have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2DE7232IW-AE have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2DE7232IW-AE has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Night vision
Does the product Hikvision DS-2DE7232IW-AE have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2DE7232IW-AE is 150 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2DE7232IW-AE is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Packaging contents
The number of cameras of the product Hikvision DS-2DE7232IW-AE is 1. This product is equipped with a camera that allows capturing high-quality images.
Audio
The voice codec of the Hikvision DS-2DE7232IW-AE product contains G.711ulaw, G.711, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications.
Objective system
Does the Hikvision DS-2DE7232IW-AE have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The digital zoom of the product Hikvision DS-2DE7232IW-AE is 16 x. This zoom allows for capturing precise details even from a distance. The optical zoom of the product Hikvision DS-2DE7232IW-AE is 32 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. Does the product Hikvision DS-2DE7232IW-AE have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The focal length of the product Hikvision DS-2DE7232IW-AE is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Hikvision DS-2DE7232IW-AE is 5. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hikvision DS-2DE7232IW-AE is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions.
Network
The Wifi of the product Hikvision DS-2DE7232IW-AE contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2DE7232IW-AE have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Hikvision DS-2DE7232IW-AE are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. Does the Hikvision DS-2DE7232IW-AE have Bluetooth? -. This feature allows for a convenient wireless connection with other compatible devices. Does the product Hikvision DS-2DE7232IW-AE have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of users of the product Hikvision DS-2DE7232IW-AE is 32 utilisateur(s). This product is ideal for several people. The network standards of the product Hikvision DS-2DE7232IW-AE are IEEE 802.3, IEEE 802.3at, IEEE 802.3u. These standards ensure optimal compatibility with various equipment and protocols. The Ethernet interface type of the product Hikvision DS-2DE7232IW-AE is Fast Ethernet. This type of interface allows for fast and efficient network connections. The wiring technology of the product Hikvision DS-2DE7232IW-AE contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs.
Power
The type of power source for the product Hikvision DS-2DE7232IW-AE is AC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2DE7232IW-AE is 40 W. This specification allows for the assessment of the energy efficiency of the device. Does the Hikvision DS-2DE7232IW-AE have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The AC input voltage of the Hikvision DS-2DE7232IW-AE is 24 V. This specification ensures optimal compatibility with standard electrical systems.
Environmental conditions
The operating temperature of the product Hikvision DS-2DE7232IW-AE is -30 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The weight of the product Hikvision DS-2DE7232IW-AE is 4500 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hikvision DS-2DE7232IW-AE is 220 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Hikvision DS-2DE7232IW-AE is 353.4 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DE7232IW-AE is 1. These ports provide a stable and fast network connection for your devices. The product Hikvision DS-2DE7232IW-AE has an Interface RJ-45. This interface allows for easy and quick connection with various devices.
Management features
The Hikvision DS-2DE7232IW-AE system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Security
The supported security algorithm of the product Hikvision DS-2DE7232IW-AE contains 802.1x RADIUS. This algorithm ensures optimal protection of your data. The intelligent video surveillance system of the product Hikvision DS-2DE7232IW-AE has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision DS-2DE7232IW-AE have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2DE7232IW-AE have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the Hikvision DS-2DE7232IW-AE product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
