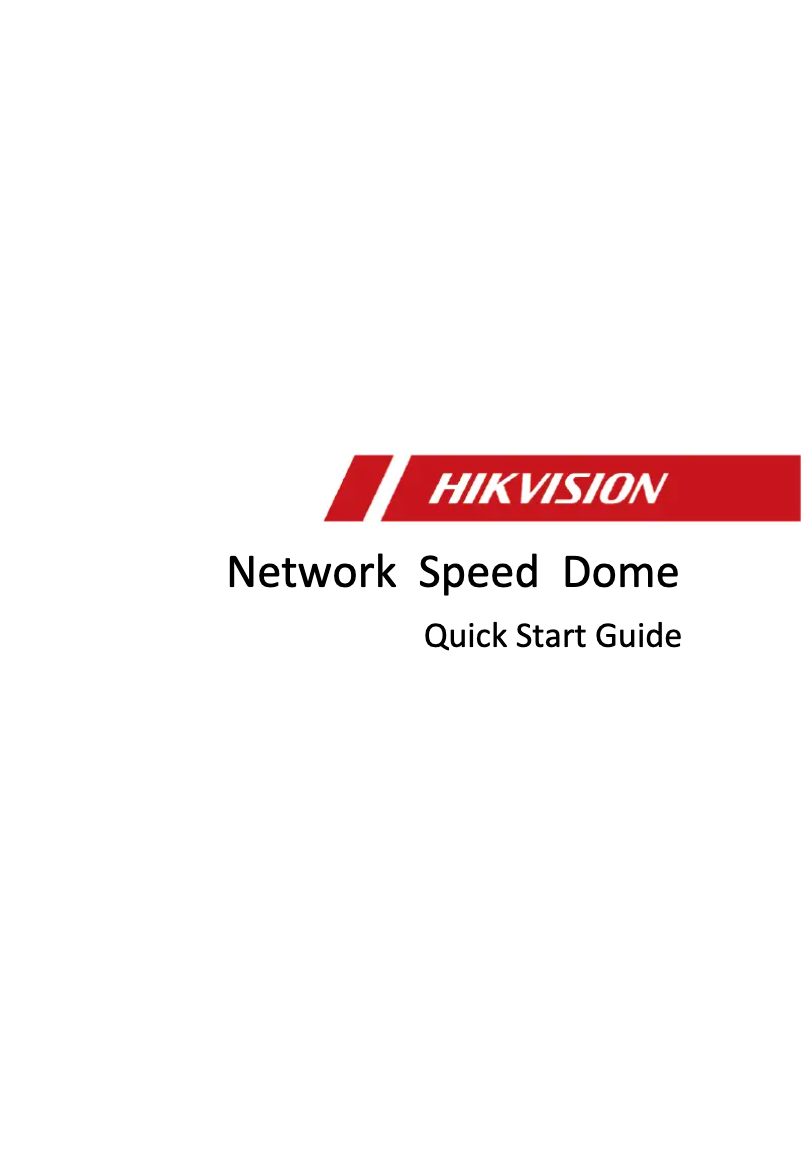

Manuals of product DS-2DF5225X-AEL
Technical Specifications DS-2DF5225X-AEL
General Information
-
ModelDS-2DF5225X-AEL
-
Brand
-
Category
-
Type
-
SKU1135993
-
MPN1135993
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
PTZ ProtocolsPelco-P/D
-
Languages taken into accountBUL, CHI (TR), CZE, DAN, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, KOR, LAT, LAV, NOR, POL, POR, RUM, RUS, SLK, SLV, SRP, SWE, THA, TUR
Network
-
Quality of Service (QoS)Yes
-
Type of Ethernet interfaceFast Ethernet
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
-
Quality of Service (QoS)Yes
-
Streaming methodMulticast
-
Number of users32 user(s)
-
BluetoothNo
-
BluetoothNo
Design
-
FormatDome
-
Mounting typeCeiling/Wall/Post
-
Product colorWhite
-
International Protection Code (IP)IP66
-
Code IKIK10
Camera
-
Minimum illumination0.0002 lux
-
Camera shutter speed1 - 1/30000 s
-
White balanceATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
-
Field of view of the lens, horizontal58.4 °
-
Angle of view of the lens, vertical33.8 °
-
Angle of view of the lens, diagonal65.6 °
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Rotation angle360 °
-
Panoramic0 - 360 °
-
Inclination angle-5 - 90 °
-
Tilt speed240 °/sec
-
Panoramic speed300 °/sec
-
Pan tilt preset speed540 °/sec
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Objective system
-
Number of lenses1
-
Auto focusYes
-
Digital zoom16 x
-
Optical zoom25 x
-
Auto focusYes
-
Maximum number of openings2.8
-
Minimum opening amount1.2
-
Focal length- mm
Audio
-
Audio output channels1 channels
-
Audio output channels1 channels
-
Audio CodecsG.711ulaw/G.711alaw/G.726/MP2L2
-
Audio detectionYes
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels2 MP
-
Number of images per second60 ips
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Analog signal format systemNTSC, PAL
-
Supported graphic resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
Night vision
-
Night visionNo
Connectivity
-
BNC output ports1
-
BNC output ports1
-
BNC output ports1
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Packaging contents
-
Number of cameras1
Security
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Filtering IP addressesYes
-
Functions of the IVS system (intelligent video surveillance)Crossing line
-
Face detection
-
Intrusion
Management features
-
Web BrowserYes
-
Web BrowserYes
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Power
-
Power supply typeAC, PoE
-
AC input voltage24 V
-
AC input frequency50 - 60 Hz
-
Consumption (max)60 W
-
Energy consumption (Power over Ethernet (PoE))50 W
Environmental conditions
-
Operating temperature-40 - 70 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Diameter220 mm
-
Height302 mm
-
Weight4000 g
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DF5225X-AEL specifications from brand Hikvision
Generalities
The EAN code of the product Hikvision DS-2DF5225X-AEL is 6954273651633. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2DF5225X-AEL is DS-2DF5225X-AEL | DS-2DF5225X-AEL. This model ensures optimal performance and an enhanced user experience. The brand of the product Hikvision DS-2DF5225X-AEL is Hikvision. This brand is known for its quality and innovation in the field of household appliances.
Design
The mounting type of the product Hikvision DS-2DF5225X-AEL is Plafond/Mur/Poteau. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2DF5225X-AEL is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2DF5225X-AEL is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2DF5225X-AEL contains IP66. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Hikvision DS-2DF5225X-AEL is IK10. This IK Code allows for easy identification of the specific design of the item.
Network
Does the product Hikvision DS-2DF5225X-AEL have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hikvision DS-2DF5225X-AEL is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the product Hikvision DS-2DF5225X-AEL have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The supported network protocols of the product Hikvision DS-2DF5225X-AEL are IPv4/IPv6, HTTP, HTTPS, 802.1x, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The streaming method of the product Hikvision DS-2DF5225X-AEL is Multi-diffusion. This method allows for efficient data transmission to multiple users simultaneously. The number of users of the product Hikvision DS-2DF5225X-AEL is 32 utilisateur(s). This product is ideal for several people. The Wifi of the product Hikvision DS-2DF5225X-AEL contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2DF5225X-AEL have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices.
Representation / realization
The type of product Hikvision DS-2DF5225X-AEL is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2DF5225X-AEL features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2DF5225X-AEL have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product Hikvision DS-2DF5225X-AEL supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2DF5225X-AEL have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The PTZ control of the product Hikvision DS-2DF5225X-AEL is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Hikvision DS-2DF5225X-AEL have preset points? Oui. This feature allows for simplified and customized use according to your preferences. Does the product Hikvision DS-2DF5225X-AEL have a Patrol mode? Oui. This mode allows for effective and continuous monitoring. Does the product Hikvision DS-2DF5225X-AEL have Automatic Tracking? Oui. This feature allows you to track your orders in real-time, providing you with peace of mind while shopping. Does the product Hikvision DS-2DF5225X-AEL have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The Hikvision DS-2DF5225X-AEL product has remote viewing. This feature allows for monitoring and interacting with the product remotely, thus providing increased flexibility and control. Does the product Hikvision DS-2DF5225X-AEL have an entry/end Alarm? Oui. This feature effectively secures access to your space. The product Hikvision DS-2DF5225X-AEL has PTZ Protocols Pelco-P/D. These Protocols allow for precise and effective control of the camera movements, thus ensuring optimal surveillance. The languages considered for the product Hikvision DS-2DF5225X-AEL are BUL, CHI (TR), CZE, DAN, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, KOR, LAT, LAV, NOR, POL, POR, RUM, RUS, SLK, SLV, SRP, SWE, THA, TUR. This product thus caters to a wide international audience.
Image sensor
The number of sensors of the product Hikvision DS-2DF5225X-AEL is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2DF5225X-AEL is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2DF5225X-AEL is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2DF5225X-AEL have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Camera
The shutter speed of the camera of the product Hikvision DS-2DF5225X-AEL is 1 - 1/30000 s. This feature allows capturing sharp images even in low light conditions. The minimum illumination of the product Hikvision DS-2DF5225X-AEL is 0.0002 lux. This feature ensures optimal performance even in low light conditions. The field of view of the Hikvision DS-2DF5225X-AEL lens is 58.4 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The white balance of the product Hikvision DS-2DF5225X-AEL consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The vertical field of view of the product Hikvision DS-2DF5225X-AEL is 33.8 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2DF5225X-AEL is 65.6 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. Does the product Hikvision DS-2DF5225X-AEL have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2DF5225X-AEL camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The rotation angle of the product Hikvision DS-2DF5225X-AEL is 360 °. This angle allows for optimal usage flexibility. The panoramic view of the product Hikvision DS-2DF5225X-AEL is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2DF5225X-AEL is -5 - 90 °. This angle allows for adjusting the position for optimal comfort. The tilt speed of the product Hikvision DS-2DF5225X-AEL is 240 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The panning speed of the product Hikvision DS-2DF5225X-AEL is 300 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2DF5225X-AEL has a preset panning speed of 540 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes.
Objective system
The number of lenses in the product Hikvision DS-2DF5225X-AEL is 1. This number determines the quality and versatility of the lens. The digital zoom of the product Hikvision DS-2DF5225X-AEL is 16 x. This zoom allows for capturing precise details even from a distance. The optical zoom of the product Hikvision DS-2DF5225X-AEL is 25 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. Does the product Hikvision DS-2DF5225X-AEL have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. Does the Hikvision DS-2DF5225X-AEL have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The maximum number of openings for the product Hikvision DS-2DF5225X-AEL is 2.8. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hikvision DS-2DF5225X-AEL is 1.2. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The focal length of the product Hikvision DS-2DF5225X-AEL is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately.
Audio
The number of audio input channels of the product Hikvision DS-2DF5225X-AEL is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The audio output channels of the Hikvision DS-2DF5225X-AEL are 1 canaux. This specification allows for an immersive and high-quality sound experience. Does the product Hikvision DS-2DF5225X-AEL have Audio Detection? Oui. This feature allows capturing and analyzing surrounding sounds for an enhanced audio experience. The audio codecs of the product Hikvision DS-2DF5225X-AEL contain G.711ulaw/G.711alaw/G.726/MP2L2. These codecs ensure optimal sound quality and a smooth listening experience.
Night vision
Does the product Hikvision DS-2DF5225X-AEL have night vision? Non. This feature allows for clear visibility in the dark, thus providing enhanced security.
Connectivity
The RS-485 port of the Hikvision DS-2DF5225X-AEL contains 1. This port allows for robust serial communication and is ideal for industrial applications. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DF5225X-AEL is 1. These ports provide a stable and fast network connection for your devices. The product Hikvision DS-2DF5225X-AEL has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment.
Packaging contents
The number of cameras of the product Hikvision DS-2DF5225X-AEL is 1. This product is equipped with a camera that allows capturing high-quality images.
Video
The total megapixels of the product Hikvision DS-2DF5225X-AEL is 2 MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product Hikvision DS-2DF5225X-AEL is 60 ips. This specification ensures optimal smoothness when playing videos. The product Hikvision DS-2DF5225X-AEL has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The maximum resolution of the product Hikvision DS-2DF5225X-AEL is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The analog signal format system of the product Hikvision DS-2DF5225X-AEL contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The supported graphic resolutions of the product Hikvision DS-2DF5225X-AEL are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2DF5225X-AEL have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2DF5225X-AEL have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2DF5225X-AEL have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2DF5225X-AEL have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hikvision DS-2DF5225X-AEL have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis.
Storage support
Does the Hikvision DS-2DF5225X-AEL have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2DF5225X-AEL has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2DF5225X-AEL have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2DF5225X-AEL is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Security
Does the product Hikvision DS-2DF5225X-AEL have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2DF5225X-AEL have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. The intelligent video surveillance system of the product Hikvision DS-2DF5225X-AEL has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the Hikvision DS-2DF5225X-AEL product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Management features
The Hikvision DS-2DF5225X-AEL product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision DS-2DF5225X-AEL system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2DF5225X-AEL have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Environmental conditions
The operating temperature of the product Hikvision DS-2DF5225X-AEL is -40 - 70 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2DF5225X-AEL has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Power
The AC input voltage of the Hikvision DS-2DF5225X-AEL is 24 V. This specification ensures optimal compatibility with standard electrical systems. The type of power source for the product Hikvision DS-2DF5225X-AEL is AC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The AC input frequency of the product Hikvision DS-2DF5225X-AEL is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The maximum consumption of the product Hikvision DS-2DF5225X-AEL is 60 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision DS-2DF5225X-AEL is 50 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Weight and dimensions
The weight of the product Hikvision DS-2DF5225X-AEL is 4000 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hikvision DS-2DF5225X-AEL is 220 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Hikvision DS-2DF5225X-AEL is 302 mm. This dimension is essential to ensure that the product fits perfectly in your space.
