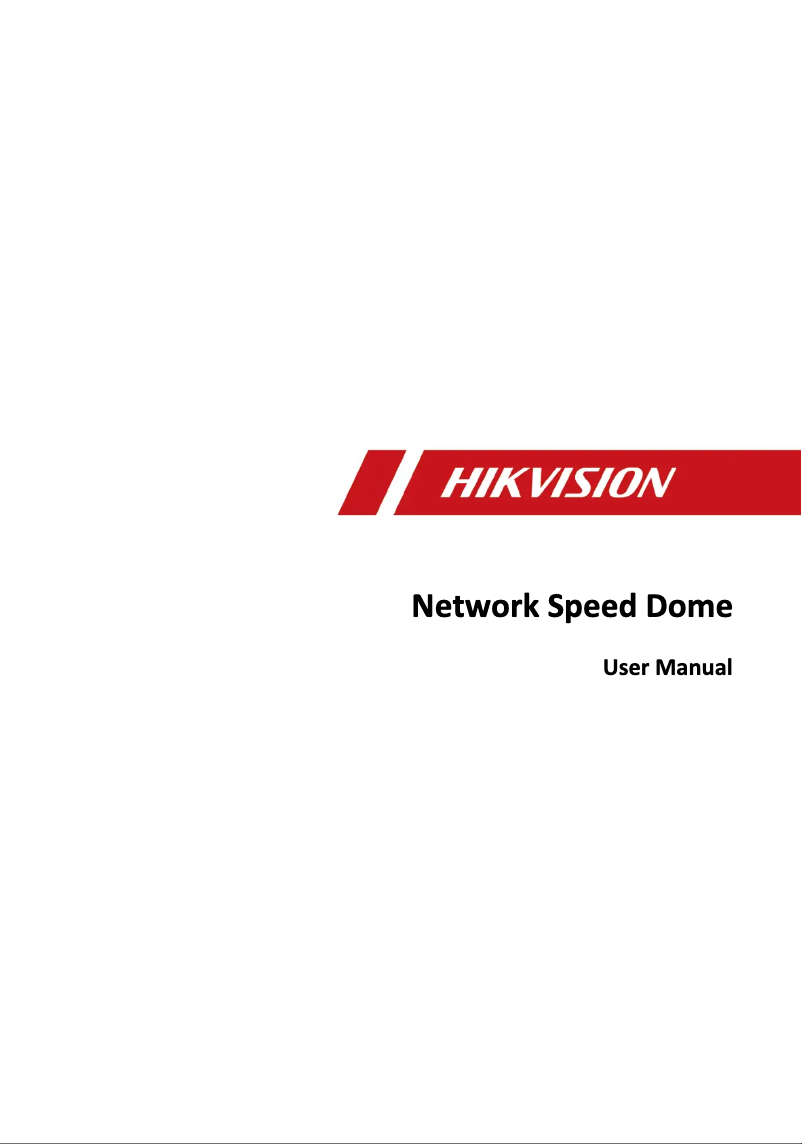

Manuals of product DS-2DF5232X-AEL
Technical Specifications DS-2DF5232X-AEL
General Information
-
ModelDS-2DF5232X-AEL
-
Brand
-
Category
-
Type
-
SKU1043591
-
MPN1043591
Representation / realization
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Automatic trackingYes
-
Connectivity technologyWired
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
PTZ Modes4 patterns
-
Automatic trackingYes
-
PTZ ProtocolsPelco-P/D
-
Number of languages1
-
Languages taken into accountEnglish
-
Automatic trackingYes
Image sensor
-
Optical sensor size1/2.8 "
-
Progressive scanYes
-
Sensor typeCMOS
Camera
-
Minimum illumination0.0002 lux
-
White balanceATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
-
Camera shutter speed1/30000 - 1 s
-
Field of view of the lens, horizontal61.4 °
-
Angle of view of the lens, vertical40.7 °
-
Angle of view of the lens, diagonal70 °
-
Inclination angle-5 - 90 °
-
Automatic flippingYes
-
Panoramic0 - 360 °
-
Panoramic speed300 °/sec
-
Pan tilt preset speed540 °/sec
-
Tilt speed240 °/sec
-
Tilt preset speed400 °/sec
Video
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Total megapixels2 MP
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Analog signal format systemNTSC, PAL
-
Maximum resolution1920 x 1080 pixels
-
Gain control typeAuto/Manual
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Supported graphic resolutions176 x 120, 176 x 144, 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Coding of the region of interestYes
-
Number of images per second60 fps
Design
-
FormatDome
-
Product colorWhite
-
Mounting typeCeiling/wall
-
International Protection Code (IP)IP66
-
Code IKIK10
-
Anti-fogYes
Objective system
-
Auto focusYes
-
Optical zoom32 x
-
Digital zoom16 x
-
Auto focusYes
-
Focal length- mm
-
Maximum number of openings4.4
-
Minimum opening amount1.6
Packaging contents
-
Number of cameras1
Management features
-
Behavior analysisIntrusion detection
-
Web-based managementLine crossing detection
-
Web-based managementYes
-
Yes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Microphone jack inputYes
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
Technical details
-
Output impedance75 Ohm
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Integrated hard driveNo
-
Maximum memory card size256 GB
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Wiring technology10/100Base-T(X)
-
Network standardsIEEE 802.3, IEEE 802.3u
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
Night vision
-
Night visionNo
Security
-
Password protectionYes
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Security-supported algorithm802.1x RADIUS
-
Password protectionYes
-
Password protectionYes
-
Password protectionUser
Power
-
AC input voltage24 V
-
Power supply typePoE
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Consumption (max)60 W
-
Energy consumption (Power over Ethernet (PoE))50 W
Environmental conditions
-
Operating temperature-40 - 65 °C
Audio
-
Voice codecsG.711ulaw
-
Supported audio formatsG.711alaw
-
Audio output channelsG.711
-
Audio output channelsG.722.1
-
G.726
-
MP2L2
-
PCM
-
1 channels
-
1 channels
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DF5232X-AEL specifications from brand Hikvision
Image sensor
The optical sensor size of the product Hikvision DS-2DF5232X-AEL is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2DF5232X-AEL have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Hikvision DS-2DF5232X-AEL is CMOS. This type of sensor ensures optimal image quality for your needs.
Generalities
The EAN code of the product Hikvision DS-2DF5232X-AEL is 0842571110036, 6954273651619. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2DF5232X-AEL is DS-2DF5232X-AEL | DS-2DF5232X-AEL. This model ensures optimal performance and an enhanced user experience. The brand of the product Hikvision DS-2DF5232X-AEL is Hikvision. This brand is known for its quality and innovation in the field of household appliances.
Camera
The minimum illumination of the product Hikvision DS-2DF5232X-AEL is 0.0002 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision DS-2DF5232X-AEL is 1/30000 - 1 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Hikvision DS-2DF5232X-AEL lens is 61.4 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The white balance of the product Hikvision DS-2DF5232X-AEL consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The vertical field of view of the product Hikvision DS-2DF5232X-AEL is 40.7 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2DF5232X-AEL is 70 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The tilt angle of the product Hikvision DS-2DF5232X-AEL is -5 - 90 °. This angle allows for adjusting the position for optimal comfort. Does the Hikvision DS-2DF5232X-AEL have automatic flipping? Oui. This feature allows the camera to automatically adjust to capture the best angles. The panoramic view of the product Hikvision DS-2DF5232X-AEL is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The panning speed of the product Hikvision DS-2DF5232X-AEL is 300 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2DF5232X-AEL has a preset panning speed of 540 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The tilt speed of the product Hikvision DS-2DF5232X-AEL is 240 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The tilt pre-setting speed of the product Hikvision DS-2DF5232X-AEL is 400 °/sec. This feature allows for quick and precise adjustment of the camera angle to capture images from different angles.
Representation / realization
Does the product Hikvision DS-2DF5232X-AEL have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product Hikvision DS-2DF5232X-AEL supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product Hikvision DS-2DF5232X-AEL is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2DF5232X-AEL features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2DF5232X-AEL have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2DF5232X-AEL have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. Does the product Hikvision DS-2DF5232X-AEL have a Patrol mode? Oui. This mode allows for effective and continuous monitoring. The PTZ control of the product Hikvision DS-2DF5232X-AEL is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The PTZ modes of the product Hikvision DS-2DF5232X-AEL contain 4 motifs. These modes allow for increased flexibility and customization to meet your specific needs. Does the product Hikvision DS-2DF5232X-AEL have an entry/end Alarm? Oui. This feature effectively secures access to your space. The product Hikvision DS-2DF5232X-AEL has PTZ Protocols Pelco-P/D. These Protocols allow for precise and effective control of the camera movements, thus ensuring optimal surveillance. The number of languages of the product Hikvision DS-2DF5232X-AEL is 1. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2DF5232X-AEL are Anglais. This product thus caters to a wide international audience. Does the product Hikvision DS-2DF5232X-AEL have Automatic Tracking? Oui. This feature allows you to track your orders in real-time, providing you with peace of mind while shopping.
Design
The mounting type of the product Hikvision DS-2DF5232X-AEL is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2DF5232X-AEL is Blanc. This shade gives it a modern and elegant look. The format of the product Hikvision DS-2DF5232X-AEL is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision DS-2DF5232X-AEL contains IP66. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Hikvision DS-2DF5232X-AEL is IK10. This IK Code allows for easy identification of the specific design of the item. Does the product Hikvision DS-2DF5232X-AEL have an anti-fog feature? Oui. This feature helps prevent fogging, ensuring optimal visibility.
Packaging contents
The number of cameras of the product Hikvision DS-2DF5232X-AEL is 1. This product is equipped with a camera that allows capturing high-quality images.
Management features
The Hikvision DS-2DF5232X-AEL system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. The Hikvision DS-2DF5232X-AEL product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Hikvision DS-2DF5232X-AEL have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Video
Does the product Hikvision DS-2DF5232X-AEL have Full HD? Oui. This feature ensures exceptional image quality for an immersive viewing experience. Does the product Hikvision DS-2DF5232X-AEL have Automatic Gain Control? Oui. This feature allows for automatic adjustment of the sound level for an optimal audio experience. Does the product Hikvision DS-2DF5232X-AEL have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The total megapixels of the product Hikvision DS-2DF5232X-AEL is 2 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2DF5232X-AEL have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the product Hikvision DS-2DF5232X-AEL have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The analog signal format system of the product Hikvision DS-2DF5232X-AEL contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The maximum resolution of the product Hikvision DS-2DF5232X-AEL is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The gain control type of the product Hikvision DS-2DF5232X-AEL is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2DF5232X-AEL have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2DF5232X-AEL have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The supported graphic resolutions of the product Hikvision DS-2DF5232X-AEL are 176 x 120,176 x 144,352 x 240,352 x 288,704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The product Hikvision DS-2DF5232X-AEL has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision DS-2DF5232X-AEL have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2DF5232X-AEL have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The number of frames per second of the product Hikvision DS-2DF5232X-AEL is 60 ips. This specification ensures optimal smoothness when playing videos.
Objective system
Does the product Hikvision DS-2DF5232X-AEL have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. Does the Hikvision DS-2DF5232X-AEL have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The digital zoom of the product Hikvision DS-2DF5232X-AEL is 16 x. This zoom allows for capturing precise details even from a distance. The optical zoom of the product Hikvision DS-2DF5232X-AEL is 32 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The focal length of the product Hikvision DS-2DF5232X-AEL is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum number of openings for the product Hikvision DS-2DF5232X-AEL is 4.4. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hikvision DS-2DF5232X-AEL is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions.
Technical details
The output impedance of the Hikvision DS-2DF5232X-AEL is 75 Ohm. This feature is essential to ensure optimal audio quality and compatibility with various equipment.
Storage support
The product Hikvision DS-2DF5232X-AEL has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2DF5232X-AEL have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hikvision DS-2DF5232X-AEL is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2DF5232X-AEL have a built-in hard drive? No. This feature means that the product does not have internal storage.
Connectivity
The output component of the product Hikvision DS-2DF5232X-AEL contains 1. This specification ensures optimal connectivity for efficient use. Does the product Hikvision DS-2DF5232X-AEL have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The RS-485 port of the Hikvision DS-2DF5232X-AEL contains 1. This port allows for robust serial communication and is ideal for industrial applications. The headphone output of the Hikvision DS-2DF5232X-AEL is %. This output allows for easy connection of headphones or a headset for an optimal audio experience. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DF5232X-AEL is 1. These ports provide a stable and fast network connection for your devices.
Night vision
Does the product Hikvision DS-2DF5232X-AEL have night vision? Non. This feature allows for clear visibility in the dark, thus providing enhanced security.
Network
Does the Hikvision DS-2DF5232X-AEL have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Hikvision DS-2DF5232X-AEL contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2DF5232X-AEL have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hikvision DS-2DF5232X-AEL is Fast Ethernet. This type of interface allows for fast and efficient network connections. The wiring technology of the product Hikvision DS-2DF5232X-AEL contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The network standards of the product Hikvision DS-2DF5232X-AEL are IEEE 802.3, IEEE 802.3u. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-2DF5232X-AEL are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2DF5232X-AEL is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2DF5232X-AEL have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Security
The supported security algorithm of the product Hikvision DS-2DF5232X-AEL contains 802.1x RADIUS. This algorithm ensures optimal protection of your data. The intelligent video surveillance system of the product Hikvision DS-2DF5232X-AEL has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the Hikvision DS-2DF5232X-AEL product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2DF5232X-AEL have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2DF5232X-AEL have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the product Hikvision DS-2DF5232X-AEL have Password Protection? Utilisateur. This feature ensures the security of your personal data.
Power
The AC input voltage of the Hikvision DS-2DF5232X-AEL is 24 V. This specification ensures optimal compatibility with standard electrical systems. Does the Hikvision DS-2DF5232X-AEL have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The type of power source for the product Hikvision DS-2DF5232X-AEL is PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision DS-2DF5232X-AEL is 60 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision DS-2DF5232X-AEL is 50 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Environmental conditions
The operating temperature of the product Hikvision DS-2DF5232X-AEL is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Audio
The supported audio formats of the product Hikvision DS-2DF5232X-AEL are PCM. These formats ensure optimal compatibility for an enriching listening experience. The voice codec of the Hikvision DS-2DF5232X-AEL product contains G.711ulaw, G.711alaw, G.711, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. The number of audio input channels of the product Hikvision DS-2DF5232X-AEL is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The audio output channels of the Hikvision DS-2DF5232X-AEL are 1 canaux. This specification allows for an immersive and high-quality sound experience.
