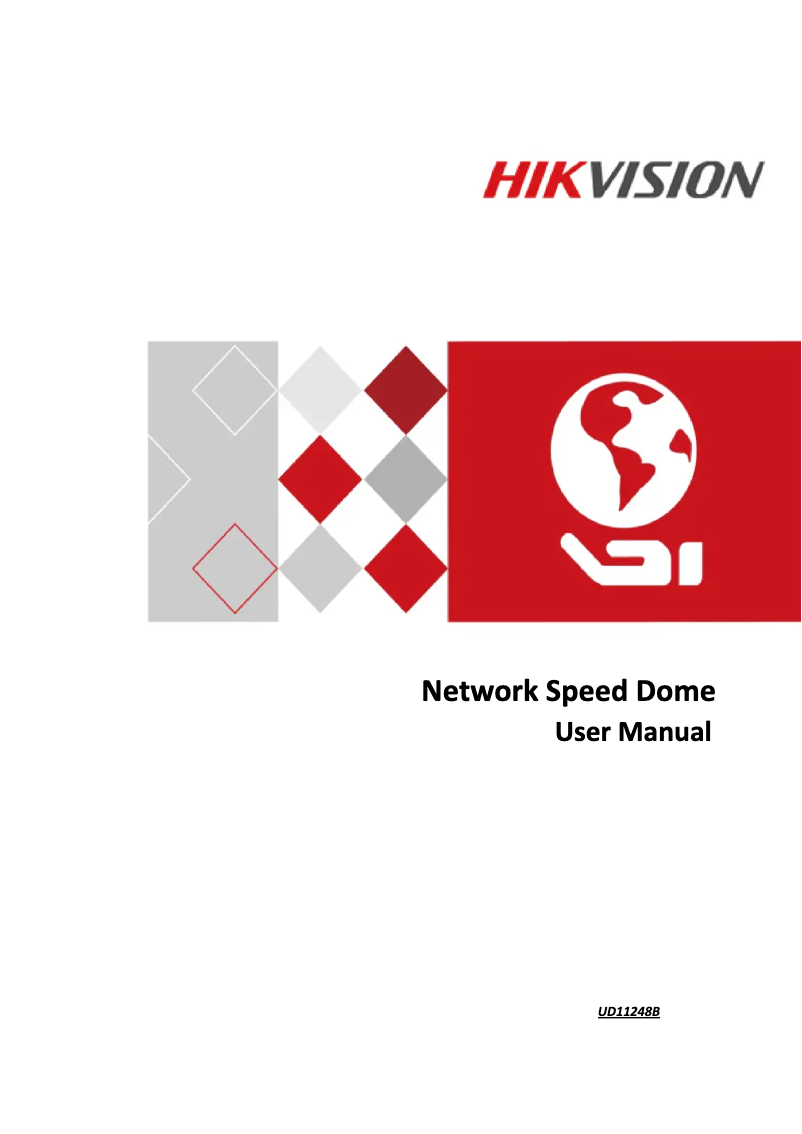

Manuals of product DS-2DF6A425X-AEL
Technical Specifications DS-2DF6A425X-AEL
General Information
-
ModelDS-2DF6A425X-AEL
-
Brand
-
Category
-
Type
-
SKU1127213
-
MPN1127213
Video
-
Total megapixels4 MP
-
Gain control typeAuto/Manual
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Maximum resolution2560 x 1440 pixels
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Bitrate32 Kbps - 16384 Kbps
-
Coding of the region of interestYes
-
Number of images per second30 fps
-
Supported graphic resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440
Image sensor
-
Progressive scanYes
-
Number of sensors1
-
Optical sensor size1/1.8 "
-
Sensor typeCMOS
Objective system
-
Number of lenses1
-
Digital zoom16 x
-
Auto focusYes
-
TuningMotorized/manual
-
Auto focusYes
-
Focal length- mm
-
Optical zoom25 x
-
Minimum focusing distance0.01 m
-
Maximum number of openings3.4
-
Minimum opening amount1.5
Camera
-
Minimum illumination0.0002 lux
-
White balanceATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
-
Camera shutter speed1/1 - 1/30000 s
-
Field of view of the lens, horizontal59.8 °
-
Angle of view of the lens, vertical33.6 °
-
Angle of view of the lens, diagonal68.6 °
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Panoramic0 - 360 °
-
Inclination angle-20 - 90 °
-
Panoramic speed350 °/sec
-
Pan tilt preset speed540 °/sec
-
Tilt speed400 °/sec
Representation / realization
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
PTZ ModesPreselection point
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Number of languages32
-
Languages taken into accountBUL, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
-
Network standardsIEEE 802.1x
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
Storage support
-
Integrated hard driveNo
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
Packaging contents
-
Number of cameras1
Audio
-
Voice codecsG.711
-
Supported audio formatsG.711alaw
-
Audio output channelsG.711ulaw
-
Audio output channelsG.722.1
-
G.726
-
MP2L2
-
PCM
-
1 channels
-
1 channels
Security
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Filtering IP addressesYes
-
Filtering IP addressesYes
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Unattended baggage detection
Connectivity
-
BNC output ports1
-
BNC output ports1
-
BNC output ports1
Environmental conditions
-
Operating temperature-40 - 70 °C
-
Operating relative humidity (H-H)0 - 90 %
Power
-
AC input voltage24 V
-
Power supply typeAC, PoE
-
Consumption (max)60 W
-
Energy consumption (Power over Ethernet (PoE))50 W
Design
-
Product colorBlack, Grey
-
FormatDome
-
Mounting typeCeiling
-
International Protection Code (IP)IP67
-
Code IKIK10
-
Material of the case/bodyAluminium
Weight and dimensions
-
Diameter231.1 mm
-
Height355.6 mm
-
Weight6000 g
Night vision
-
Night vision-
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DF6A425X-AEL specifications from brand Hikvision
Image sensor
Does the product Hikvision DS-2DF6A425X-AEL have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2DF6A425X-AEL is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hikvision DS-2DF6A425X-AEL is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hikvision DS-2DF6A425X-AEL is 1. This number of sensors allows for precise and efficient image detection.
Generalities
The brand of the product Hikvision DS-2DF6A425X-AEL is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2DF6A425X-AEL is DS-2DF6A425X-AEL | DS-2DF6A425X-AEL. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2DF6A425X-AEL is 6954273684174. This code allows for the unique identification of the product in the distribution system.
Video
The total megapixels of the product Hikvision DS-2DF6A425X-AEL is 4 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2DF6A425X-AEL have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The gain control type of the product Hikvision DS-2DF6A425X-AEL is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2DF6A425X-AEL have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The maximum resolution of the product Hikvision DS-2DF6A425X-AEL is 2560 x 1440 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2DF6A425X-AEL has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The bit rate of the product Hikvision DS-2DF6A425X-AEL is 32 Kbps - 16384 Kbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2DF6A425X-AEL have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The number of frames per second of the product Hikvision DS-2DF6A425X-AEL is 30 ips. This specification ensures optimal smoothness when playing videos. The supported graphic resolutions of the product Hikvision DS-2DF6A425X-AEL are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2048 x 1536 (QXGA),2560 x 1440. These resolutions provide optimal display quality for your content.
Objective system
Does the product Hikvision DS-2DF6A425X-AEL have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The number of lenses in the product Hikvision DS-2DF6A425X-AEL is 1. This number determines the quality and versatility of the lens. The adjustment of the Hikvision DS-2DF6A425X-AEL is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The digital zoom of the product Hikvision DS-2DF6A425X-AEL is 16 x. This zoom allows for capturing precise details even from a distance. Does the Hikvision DS-2DF6A425X-AEL have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The focal length of the product Hikvision DS-2DF6A425X-AEL is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The optical zoom of the product Hikvision DS-2DF6A425X-AEL is 25 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The minimum focusing distance of the product Hikvision DS-2DF6A425X-AEL is 0.01 m. This feature allows for sharp images even at relatively far distances. The maximum number of openings for the product Hikvision DS-2DF6A425X-AEL is 3.4. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hikvision DS-2DF6A425X-AEL is 1.5. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions.
Storage support
Does the Hikvision DS-2DF6A425X-AEL have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2DF6A425X-AEL is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2DF6A425X-AEL has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Camera
The minimum illumination of the product Hikvision DS-2DF6A425X-AEL is 0.0002 lux. This feature ensures optimal performance even in low light conditions. The white balance of the product Hikvision DS-2DF6A425X-AEL consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The shutter speed of the camera of the product Hikvision DS-2DF6A425X-AEL is 1/1 - 1/30000 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Hikvision DS-2DF6A425X-AEL lens is 59.8 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2DF6A425X-AEL is 33.6 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2DF6A425X-AEL is 68.6 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The panoramic view of the product Hikvision DS-2DF6A425X-AEL is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2DF6A425X-AEL is -20 - 90 °. This angle allows for adjusting the position for optimal comfort. Does the product Hikvision DS-2DF6A425X-AEL have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2DF6A425X-AEL camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The panning speed of the product Hikvision DS-2DF6A425X-AEL is 350 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2DF6A425X-AEL has a preset panning speed of 540 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The tilt speed of the product Hikvision DS-2DF6A425X-AEL is 400 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience.
Network
Does the product Hikvision DS-2DF6A425X-AEL have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2DF6A425X-AEL contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2DF6A425X-AEL have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2DF6A425X-AEL is Fast Ethernet. This type of interface allows for fast and efficient network connections. The supported network protocols of the product Hikvision DS-2DF6A425X-AEL are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The network standards of the product Hikvision DS-2DF6A425X-AEL are IEEE 802.1x. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hikvision DS-2DF6A425X-AEL have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of users of the product Hikvision DS-2DF6A425X-AEL is 32 utilisateur(s). This product is ideal for several people.
Representation / realization
Does the product Hikvision DS-2DF6A425X-AEL have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The design of the product Hikvision DS-2DF6A425X-AEL supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2DF6A425X-AEL have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The type of product Hikvision DS-2DF6A425X-AEL is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2DF6A425X-AEL features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2DF6A425X-AEL have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The PTZ control of the product Hikvision DS-2DF6A425X-AEL is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The PTZ modes of the product Hikvision DS-2DF6A425X-AEL contain Point de préselection. These modes allow for increased flexibility and customization to meet your specific needs. Does the product Hikvision DS-2DF6A425X-AEL have preset points? Oui. This feature allows for simplified and customized use according to your preferences. Does the product Hikvision DS-2DF6A425X-AEL have an entry/end Alarm? Oui. This feature effectively secures access to your space. The number of languages of the product Hikvision DS-2DF6A425X-AEL is 32. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2DF6A425X-AEL are BUL, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR. This product thus caters to a wide international audience.
Packaging contents
The number of cameras of the product Hikvision DS-2DF6A425X-AEL is 1. This product is equipped with a camera that allows capturing high-quality images.
Audio
The voice codec of the Hikvision DS-2DF6A425X-AEL product contains G.711, G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. The audio output channels of the Hikvision DS-2DF6A425X-AEL are 1 canaux. This specification allows for an immersive and high-quality sound experience. The supported audio formats of the product Hikvision DS-2DF6A425X-AEL are PCM. These formats ensure optimal compatibility for an enriching listening experience. The number of audio input channels of the product Hikvision DS-2DF6A425X-AEL is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience.
Security
Does the Hikvision DS-2DF6A425X-AEL product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2DF6A425X-AEL have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The intelligent video surveillance system of the product Hikvision DS-2DF6A425X-AEL has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring.
Management features
The Hikvision DS-2DF6A425X-AEL system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DF6A425X-AEL is 1. These ports provide a stable and fast network connection for your devices. The RS-485 port of the Hikvision DS-2DF6A425X-AEL contains 1. This port allows for robust serial communication and is ideal for industrial applications. The product Hikvision DS-2DF6A425X-AEL has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment.
Power
The AC input voltage of the Hikvision DS-2DF6A425X-AEL is 24 V. This specification ensures optimal compatibility with standard electrical systems. The type of power source for the product Hikvision DS-2DF6A425X-AEL is AC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product Hikvision DS-2DF6A425X-AEL is 50 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The maximum consumption of the product Hikvision DS-2DF6A425X-AEL is 60 W. This specification allows for the assessment of the energy efficiency of the device.
Environmental conditions
The product Hikvision DS-2DF6A425X-AEL has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2DF6A425X-AEL is -40 - 70 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The diameter of the product Hikvision DS-2DF6A425X-AEL is 231.1 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision DS-2DF6A425X-AEL is 6000 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2DF6A425X-AEL is 355.6 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Night vision
Does the product Hikvision DS-2DF6A425X-AEL have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
Design
The color of the product Hikvision DS-2DF6A425X-AEL is Black, Grey. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2DF6A425X-AEL contains IP67. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Hikvision DS-2DF6A425X-AEL is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2DF6A425X-AEL is a bar. This format allows for practical and efficient use in various contexts. The IK Code of the product Hikvision DS-2DF6A425X-AEL is IK10. This IK Code allows for easy identification of the specific design of the item. The material of the product case Hikvision DS-2DF6A425X-AEL is Aluminium. This material ensures both durability and elegance.
