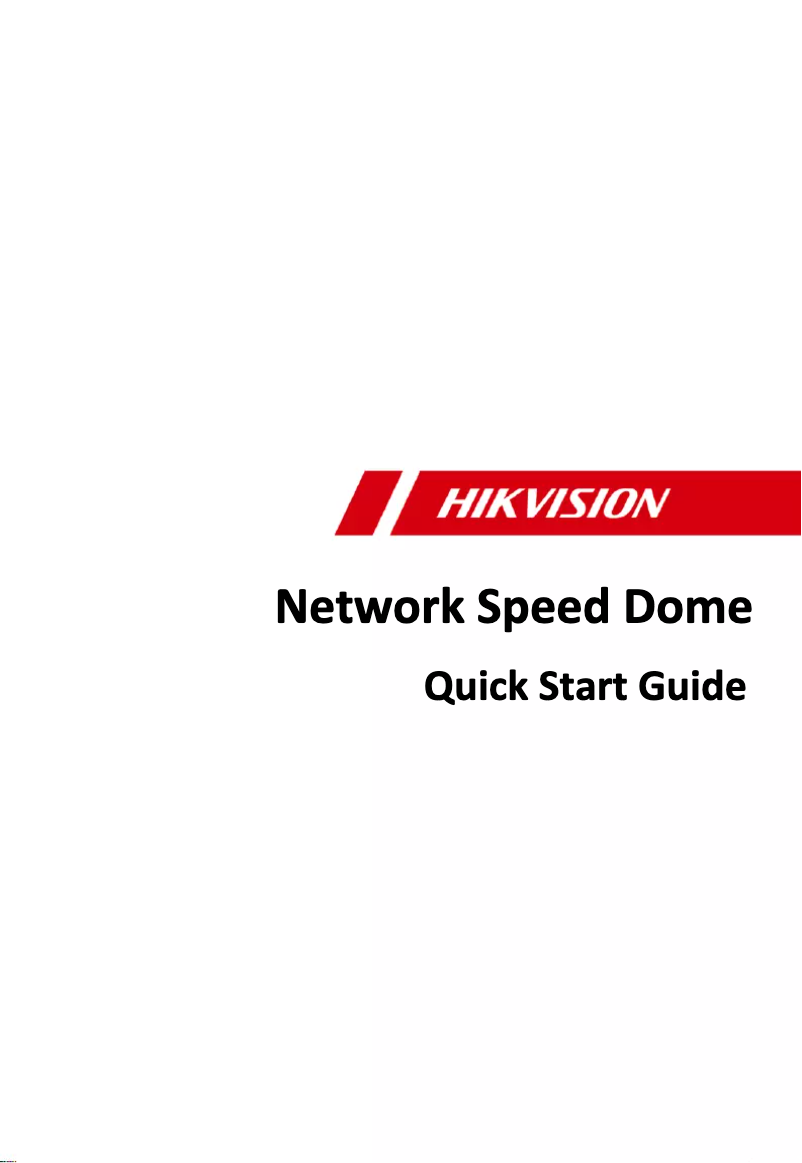

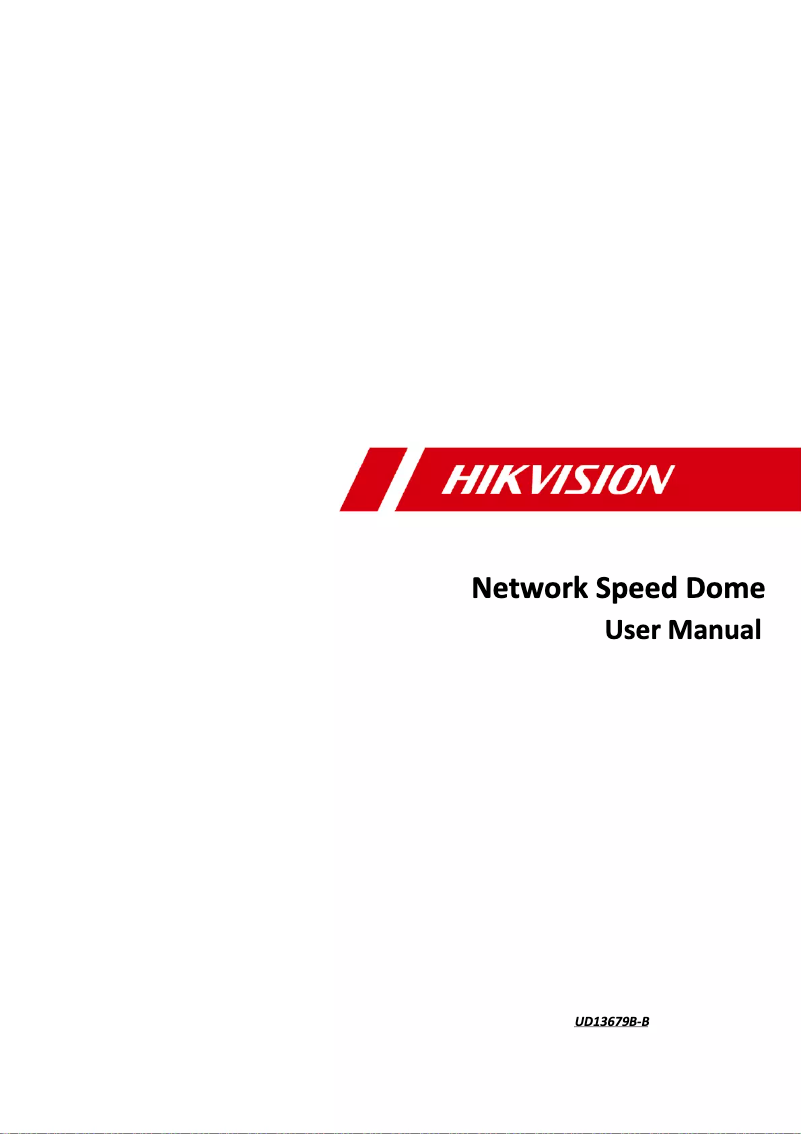

Manuals of product DS-2DF8436IX-AEL
Technical Specifications DS-2DF8436IX-AEL
General Information
-
ModelDS-2DF8436IX-AEL
-
Brand
-
Category
-
Type
-
SKU1841538
-
MPN1841538
Image sensor
-
Progressive scanYes
-
Number of sensors1
-
Optical sensor size1/1.8 "
-
Sensor typeCMOS
Objective system
-
Number of lenses1
-
Digital zoom16 x
-
Auto focusYes
-
TuningMotorized/manual
-
Auto focusYes
-
Focal length- mm
-
Optical zoom36 x
-
Minimum focusing distance1.5 m
-
Maximum number of openings4.5
-
Minimum opening amount1.5
Camera
-
Minimum illumination0 lux
-
Camera shutter speed1/1 - 1/30000 s
-
White balanceATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
-
Field of view of the lens, horizontal51.1 °
-
Angle of view of the lens, vertical31.3 °
-
Angle of view of the lens, diagonal58 °
-
Panoramic0 - 360 °
-
Inclination angle-20 - 90 °
-
Pan tilt preset speed280 °/sec
-
Panoramic speed210 °/sec
-
Tilt speed150 °/sec
-
Tilt preset speed250 °/sec
Video
-
Gain control typeAuto/Manual
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Maximum resolution2560 x 1440 pixels
-
Total megapixels4 MP
-
Supported graphic resolutions352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2048 x 1536 (QXGA),2560 x 1440
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Noise reductionYes
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Representation / realization
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Supported installationIndoor and outdoor
-
TypeIP security camera
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Connectivity technologyWired
Management features
-
Behavior analysisIntrusion detection
-
Web-based managementLine crossing detection
-
Object removal detection
-
Unattended baggage detection
-
Yes
Security
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
Security-supported algorithmHTTPS
-
Filtering IP addressesYes
Night vision
-
Night visionYes
-
Night vision distance200 m
-
Type of LEDIR
Audio
-
Voice codecsG.711alaw
-
Supported audio formatsG.711ulaw
-
Audio output channelsG.722.1
-
Audio output channelsG.726
-
MP2L2
-
PCM
-
1 channels
-
1 channels
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Wiring technology10/100Base-T(X)
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
-
Network standardsIEEE 802.1x
Power
-
Power supply typeAC, PoE
-
Consumption (max)60 W
-
AC input voltage24 V
Environmental conditions
-
Operating temperature-40 - 70 °C
-
Operating relative humidity (H-H)0 - 90 %
Packaging contents
-
Number of cameras1
Weight and dimensions
-
Diameter266.6 mm
-
Height410 mm
-
Weight8000 g
Design
-
International Protection Code (IP)IP67
-
Code IKIK10
-
FormatDome
-
Product colorBlack, White
-
Mounting typeCeiling/Wall
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Integrated hard driveNo
-
Maximum memory card size256 GB
Connectivity
-
InterfaceRJ-45
-
Number of Ethernet LAN ports (RJ-45)1
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DF8436IX-AEL specifications from brand Hikvision
Image sensor
The sensor type of the product Hikvision DS-2DF8436IX-AEL is CMOS. This type of sensor ensures optimal image quality for your needs. The number of sensors of the product Hikvision DS-2DF8436IX-AEL is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product Hikvision DS-2DF8436IX-AEL is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2DF8436IX-AEL have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Generalities
The brand of the product Hikvision DS-2DF8436IX-AEL is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2DF8436IX-AEL is DS-2DF8436IX-AEL | DS-2DF8436IX-AEL. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2DF8436IX-AEL is 6954273651787. This code allows for the unique identification of the product in the distribution system.
Objective system
The number of lenses in the product Hikvision DS-2DF8436IX-AEL is 1. This number determines the quality and versatility of the lens. Does the product Hikvision DS-2DF8436IX-AEL have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The adjustment of the Hikvision DS-2DF8436IX-AEL is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The digital zoom of the product Hikvision DS-2DF8436IX-AEL is 16 x. This zoom allows for capturing precise details even from a distance. Does the Hikvision DS-2DF8436IX-AEL have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The focal length of the product Hikvision DS-2DF8436IX-AEL is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The optical zoom of the product Hikvision DS-2DF8436IX-AEL is 36 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The minimum focusing distance of the product Hikvision DS-2DF8436IX-AEL is 1.5 m. This feature allows for sharp images even at relatively far distances. The maximum number of openings for the product Hikvision DS-2DF8436IX-AEL is 4.5. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hikvision DS-2DF8436IX-AEL is 1.5. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions.
Camera
The shutter speed of the camera of the product Hikvision DS-2DF8436IX-AEL is 1/1 - 1/30000 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Hikvision DS-2DF8436IX-AEL lens is 51.1 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The white balance of the product Hikvision DS-2DF8436IX-AEL consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The minimum illumination of the product Hikvision DS-2DF8436IX-AEL is 0 lux. This feature ensures optimal performance even in low light conditions. The vertical field of view of the product Hikvision DS-2DF8436IX-AEL is 31.3 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2DF8436IX-AEL is 58 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The panoramic view of the product Hikvision DS-2DF8436IX-AEL is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The product Hikvision DS-2DF8436IX-AEL has a preset panning speed of 280 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The panning speed of the product Hikvision DS-2DF8436IX-AEL is 210 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt speed of the product Hikvision DS-2DF8436IX-AEL is 150 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The tilt angle of the product Hikvision DS-2DF8436IX-AEL is -20 - 90 °. This angle allows for adjusting the position for optimal comfort. The tilt pre-setting speed of the product Hikvision DS-2DF8436IX-AEL is 250 °/sec. This feature allows for quick and precise adjustment of the camera angle to capture images from different angles.
Representation / realization
Does the product Hikvision DS-2DF8436IX-AEL have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2DF8436IX-AEL have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The design of the product Hikvision DS-2DF8436IX-AEL supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2DF8436IX-AEL have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The type of product Hikvision DS-2DF8436IX-AEL is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The PTZ control of the product Hikvision DS-2DF8436IX-AEL is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Hikvision DS-2DF8436IX-AEL have an entry/end Alarm? Oui. This feature effectively secures access to your space. The product Hikvision DS-2DF8436IX-AEL features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Management features
The Hikvision DS-2DF8436IX-AEL system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. The Hikvision DS-2DF8436IX-AEL product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Video
Does the product Hikvision DS-2DF8436IX-AEL have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The gain control type of the product Hikvision DS-2DF8436IX-AEL is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2DF8436IX-AEL have 3D noise reduction? Oui. This feature enhances video quality by reducing unwanted noise for a more enjoyable viewing experience. Does the product Hikvision DS-2DF8436IX-AEL have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2DF8436IX-AEL have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2DF8436IX-AEL have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The supported graphic resolutions of the product Hikvision DS-2DF8436IX-AEL are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2048 x 1536 (QXGA),2560 x 1440. These resolutions provide optimal display quality for your content. The product Hikvision DS-2DF8436IX-AEL has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The maximum resolution of the product Hikvision DS-2DF8436IX-AEL is 2560 x 1440 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2DF8436IX-AEL is 4 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2DF8436IX-AEL have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2DF8436IX-AEL have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2DF8436IX-AEL features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience.
Security
The intelligent video surveillance system of the product Hikvision DS-2DF8436IX-AEL has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. The supported security algorithm of the product Hikvision DS-2DF8436IX-AEL contains HTTPS. This algorithm ensures optimal protection of your data. Does the Hikvision DS-2DF8436IX-AEL product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Night vision
The type of LED of the product Hikvision DS-2DF8436IX-AEL is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2DF8436IX-AEL is 200 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2DF8436IX-AEL have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Audio
The voice codec of the Hikvision DS-2DF8436IX-AEL product contains G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. The number of audio input channels of the product Hikvision DS-2DF8436IX-AEL is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The supported audio formats of the product Hikvision DS-2DF8436IX-AEL are PCM. These formats ensure optimal compatibility for an enriching listening experience. The audio output channels of the Hikvision DS-2DF8436IX-AEL are 1 canaux. This specification allows for an immersive and high-quality sound experience.
Environmental conditions
The operating temperature of the product Hikvision DS-2DF8436IX-AEL is -40 - 70 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2DF8436IX-AEL has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Network
Does the Hikvision DS-2DF8436IX-AEL have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Hikvision DS-2DF8436IX-AEL contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2DF8436IX-AEL have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hikvision DS-2DF8436IX-AEL is Fast Ethernet. This type of interface allows for fast and efficient network connections. The wiring technology of the product Hikvision DS-2DF8436IX-AEL contains 10/100Base-T(X). This technology ensures a fast and reliable connection for your networking needs. The supported network protocols of the product Hikvision DS-2DF8436IX-AEL are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, UDP, IGMP, ICMP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2DF8436IX-AEL have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The network standards of the product Hikvision DS-2DF8436IX-AEL are IEEE 802.1x. These standards ensure optimal compatibility with various equipment and protocols. The number of users of the product Hikvision DS-2DF8436IX-AEL is 32 utilisateur(s). This product is ideal for several people.
Power
The type of power source for the product Hikvision DS-2DF8436IX-AEL is AC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The AC input voltage of the Hikvision DS-2DF8436IX-AEL is 24 V. This specification ensures optimal compatibility with standard electrical systems. The maximum consumption of the product Hikvision DS-2DF8436IX-AEL is 60 W. This specification allows for the assessment of the energy efficiency of the device.
Packaging contents
The number of cameras of the product Hikvision DS-2DF8436IX-AEL is 1. This product is equipped with a camera that allows capturing high-quality images.
Connectivity
The product Hikvision DS-2DF8436IX-AEL has an Interface RJ-45. This interface allows for easy and quick connection with various devices. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DF8436IX-AEL is 1. These ports provide a stable and fast network connection for your devices.
Design
The color of the product Hikvision DS-2DF8436IX-AEL is Black, White. This shade gives it a modern and elegant look. The format of the product Hikvision DS-2DF8436IX-AEL is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision DS-2DF8436IX-AEL contains IP67. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Hikvision DS-2DF8436IX-AEL is IK10. This IK Code allows for easy identification of the specific design of the item. The mounting type of the product Hikvision DS-2DF8436IX-AEL is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Storage support
The maximum size of the memory card for the product Hikvision DS-2DF8436IX-AEL is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2DF8436IX-AEL has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2DF8436IX-AEL have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2DF8436IX-AEL have a built-in hard drive? No. This feature means that the product does not have internal storage.
Weight and dimensions
The weight of the product Hikvision DS-2DF8436IX-AEL is 8000 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hikvision DS-2DF8436IX-AEL is 266.6 mm. This diameter allows for optimal use and fits perfectly with your needs. The height of the product Hikvision DS-2DF8436IX-AEL is 410 mm. This dimension is essential to ensure that the product fits perfectly in your space.
