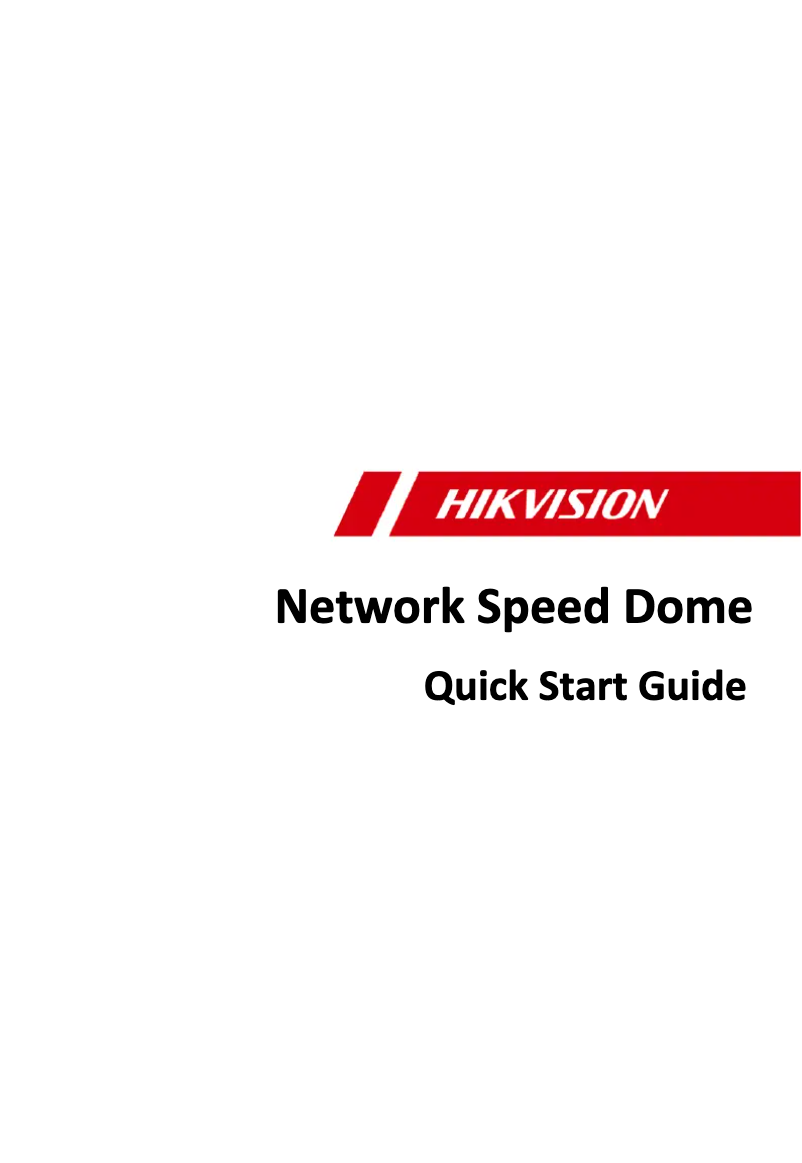

Manuals of product DS-2DF9C435IH-DLW
Technical Specifications DS-2DF9C435IH-DLW
General Information
-
ModelDS-2DF9C435IH-DLW
-
Brand
-
Category
-
Type
-
SKU1120449
-
MPN1120449
Representation / realization
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Connectivity technologyWired
-
TypeIP security camera
-
Supported installationOutdoor
-
Entry/exit alarmYes
Video
-
Total megapixels4 MP
-
Gain control typeAuto/Manual
-
Noise reductionYes
-
Noise reductionYes
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Bitrate32 Kbps - 16384 Kbps
-
Noise reductionYes
-
Maximum resolution2688 x 1512 pixels
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
-
Analog signal format systemNTSC, PAL
-
Number of images per second30 fps
-
Supported graphic resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA), 2560 x 1440, 2688 x 1512
Image sensor
-
Optical sensor size1/1.8 "
-
Number of sensors
-
Sensor type1
-
Progressive scan
-
CMOS
-
-
Yes
Objective system
-
Number of lenses1
-
Auto focusYes
-
Digital zoom16 x
-
TuningMotorized/manual
-
Auto focusYes
-
Focal length- mm
-
Optical zoom35 x
-
Minimum focusing distance1.5 m
-
Maximum number of openings4.4
-
Minimum opening amount1.6
Camera
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
-
White balanceATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
-
Camera shutter speed1/1 - 1/30000 s
-
Field of view of the lens, horizontal58.9 °
-
Angle of view of the lens, vertical35.3 °
-
Angle of view of the lens, diagonal65.9 °
-
Panoramic0 - 360 °
-
Inclination angle-25 - 90 °
-
Panoramic speed210 °/sec
-
Pan tilt preset speed280 °/sec
Design
-
FormatDome
-
Mounting typeCeiling
-
Product colorBlack, Stainless steel
-
International Protection Code (IP)IP67
Packaging contents
-
Number of cameras1
Night vision
-
Night vision distance250 m
-
Night visionYes
-
Type of LEDIR
Audio
-
Voice codecsG.711alaw
-
Audio output channelsG.711ulaw
-
Audio output channelsG.722.1
-
G.726
-
MP2L2
-
1 channels
-
1 channels
Management features
-
Behavior analysisIntrusion detection
-
Web-based managementLine crossing detection
-
Object removal detection
-
Unattended baggage detection
-
Yes
Security
-
Functions of the IVS system (intelligent video surveillance)Face detection
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Connectivity
-
RS-485 ports1
-
RS-485 ports1
-
RS-485 ports1
Network
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x
Power
-
Power supply typeCC
-
Output CC in volts36
-
Consumption (max)105 W
Environmental conditions
-
Operating temperature-40 - 70 °C
-
Operating relative humidity (H-H)0 - 90 %
Weight and dimensions
-
Diameter293 mm
-
Height422 mm
-
Weight12000 g
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DF9C435IH-DLW specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2DF9C435IH-DLW is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2DF9C435IH-DLW is DS-2DF9C435IH-DLW | DS-2DF9C435IH-DLW. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2DF9C435IH-DLW is 6941264011170. This code allows for the unique identification of the product in the distribution system.
Image sensor
Does the product Hikvision DS-2DF9C435IH-DLW have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The number of sensors of the product Hikvision DS-2DF9C435IH-DLW is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2DF9C435IH-DLW is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2DF9C435IH-DLW is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Representation / realization
The PTZ control of the product Hikvision DS-2DF9C435IH-DLW is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Hikvision DS-2DF9C435IH-DLW have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2DF9C435IH-DLW have preset points? Oui. This feature allows for simplified and customized use according to your preferences. Does the product Hikvision DS-2DF9C435IH-DLW have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The product Hikvision DS-2DF9C435IH-DLW features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Hikvision DS-2DF9C435IH-DLW is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2DF9C435IH-DLW supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2DF9C435IH-DLW have an entry/end Alarm? Oui. This feature effectively secures access to your space.
Video
The total megapixels of the product Hikvision DS-2DF9C435IH-DLW is 4 MP. This total ensures exceptional image quality for your photos. The gain control type of the product Hikvision DS-2DF9C435IH-DLW is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2DF9C435IH-DLW have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2DF9C435IH-DLW have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The product Hikvision DS-2DF9C435IH-DLW has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The bit rate of the product Hikvision DS-2DF9C435IH-DLW is 32 Kbps - 16384 Kbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2DF9C435IH-DLW have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The maximum resolution of the product Hikvision DS-2DF9C435IH-DLW is 2688 x 1512 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Hikvision DS-2DF9C435IH-DLW have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2DF9C435IH-DLW have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2DF9C435IH-DLW have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2DF9C435IH-DLW features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The analog signal format system of the product Hikvision DS-2DF9C435IH-DLW contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The number of frames per second of the product Hikvision DS-2DF9C435IH-DLW is 30 ips. This specification ensures optimal smoothness when playing videos. The supported graphic resolutions of the product Hikvision DS-2DF9C435IH-DLW are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2048 x 1536 (QXGA),2560 x 1440,2688 x 1512. These resolutions provide optimal display quality for your content.
Design
The format of the product Hikvision DS-2DF9C435IH-DLW is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision DS-2DF9C435IH-DLW contains IP67. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2DF9C435IH-DLW is Black, Stainless steel. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2DF9C435IH-DLW is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Objective system
Does the product Hikvision DS-2DF9C435IH-DLW have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The number of lenses in the product Hikvision DS-2DF9C435IH-DLW is 1. This number determines the quality and versatility of the lens. The digital zoom of the product Hikvision DS-2DF9C435IH-DLW is 16 x. This zoom allows for capturing precise details even from a distance. The adjustment of the Hikvision DS-2DF9C435IH-DLW is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. Does the Hikvision DS-2DF9C435IH-DLW have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The focal length of the product Hikvision DS-2DF9C435IH-DLW is - mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The optical zoom of the product Hikvision DS-2DF9C435IH-DLW is 35 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The maximum number of openings for the product Hikvision DS-2DF9C435IH-DLW is 4.4. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hikvision DS-2DF9C435IH-DLW is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The minimum focusing distance of the product Hikvision DS-2DF9C435IH-DLW is 1.5 m. This feature allows for sharp images even at relatively far distances.
Camera
The minimum illumination of the product Hikvision DS-2DF9C435IH-DLW is 0 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Hikvision DS-2DF9C435IH-DLW camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. Does the product Hikvision DS-2DF9C435IH-DLW have a camera pan command? No. This feature is not available on this model. The white balance of the product Hikvision DS-2DF9C435IH-DLW consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The shutter speed of the camera of the product Hikvision DS-2DF9C435IH-DLW is 1/1 - 1/30000 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Hikvision DS-2DF9C435IH-DLW lens is 58.9 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The angle of view of the lens, diagonal of the product Hikvision DS-2DF9C435IH-DLW is 65.9 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The panoramic view of the product Hikvision DS-2DF9C435IH-DLW is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2DF9C435IH-DLW is -25 - 90 °. This angle allows for adjusting the position for optimal comfort. The vertical field of view of the product Hikvision DS-2DF9C435IH-DLW is 35.3 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The panning speed of the product Hikvision DS-2DF9C435IH-DLW is 210 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2DF9C435IH-DLW has a preset panning speed of 280 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes.
Packaging contents
The number of cameras of the product Hikvision DS-2DF9C435IH-DLW is 1. This product is equipped with a camera that allows capturing high-quality images.
Audio
The voice codec of the Hikvision DS-2DF9C435IH-DLW product contains G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. The audio output channels of the Hikvision DS-2DF9C435IH-DLW are 1 canaux. This specification allows for an immersive and high-quality sound experience. The number of audio input channels of the product Hikvision DS-2DF9C435IH-DLW is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience.
Night vision
Does the product Hikvision DS-2DF9C435IH-DLW have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2DF9C435IH-DLW is 250 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2DF9C435IH-DLW is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Management features
The Hikvision DS-2DF9C435IH-DLW system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. The Hikvision DS-2DF9C435IH-DLW product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet.
Security
The intelligent video surveillance system of the product Hikvision DS-2DF9C435IH-DLW has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision DS-2DF9C435IH-DLW have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Hikvision DS-2DF9C435IH-DLW product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision DS-2DF9C435IH-DLW have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DF9C435IH-DLW is 1. These ports provide a stable and fast network connection for your devices. The product Hikvision DS-2DF9C435IH-DLW has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment. The RS-485 port of the Hikvision DS-2DF9C435IH-DLW contains 1. This port allows for robust serial communication and is ideal for industrial applications.
Storage support
Does the Hikvision DS-2DF9C435IH-DLW have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2DF9C435IH-DLW have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2DF9C435IH-DLW is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2DF9C435IH-DLW has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Power
The maximum consumption of the product Hikvision DS-2DF9C435IH-DLW is 105 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2DF9C435IH-DLW has a DC output in volts of 36. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2DF9C435IH-DLW is CC. This type of power supply ensures optimal performance and efficient use of the device.
Network
Does the product Hikvision DS-2DF9C435IH-DLW have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2DF9C435IH-DLW contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2DF9C435IH-DLW have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2DF9C435IH-DLW is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision DS-2DF9C435IH-DLW are IEEE 802.1x. These standards ensure optimal compatibility with various equipment and protocols.
Weight and dimensions
The weight of the product Hikvision DS-2DF9C435IH-DLW is 12000 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2DF9C435IH-DLW is 422 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hikvision DS-2DF9C435IH-DLW is 293 mm. This diameter allows for optimal use and fits perfectly with your needs.
Environmental conditions
The operating temperature of the product Hikvision DS-2DF9C435IH-DLW is -40 - 70 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2DF9C435IH-DLW has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
