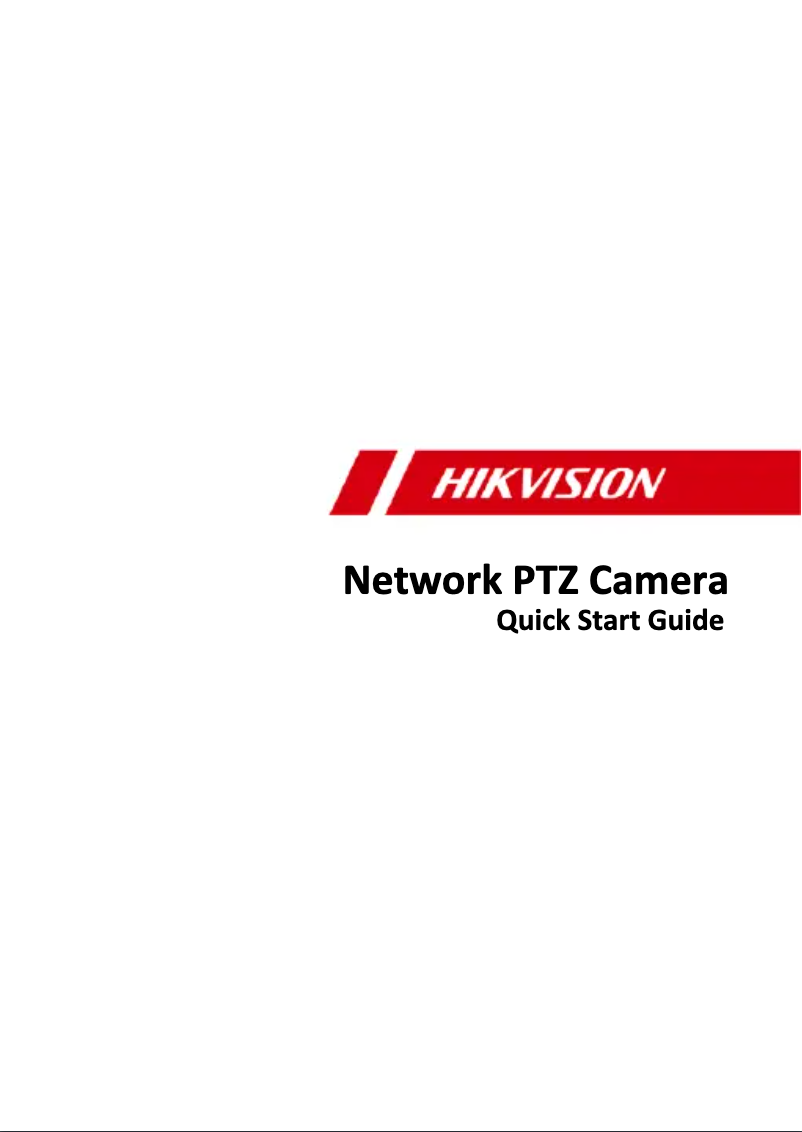

Manuals of product DS-2DY3320IW-DE4
Technical Specifications DS-2DY3320IW-DE4
General Information
-
ModelDS-2DY3320IW-DE4
-
Brand
-
Category
-
Type
-
SKU1448173
-
MPN1448173
Weight and dimensions
-
Width255 mm
-
Depth129 mm
-
Height195 mm
-
Weight3000 g
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x, IEEE 802.3at
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour
-
Number of users32 user(s)
-
Quality of Service (QoS)Yes
Audio
-
Voice codecsG.711alaw
-
Audio input channelsG.711ulaw
-
Audio input channelsG.722.1
-
G.726
-
MP2L2
-
PCM
-
1 channels
-
1 channels
Video
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Noise reduction technology3D digital noise suppression
-
Masking of personal dataYes
-
Masking of personal dataYes
-
Gain control typeAuto/Manual
-
Masking of personal dataYes
-
Number of images per second60 fps
-
Maximum resolution2048 x 1536 pixels
-
Total megapixels3 MP
-
Supported graphic resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2048 x 1536 (QXGA)
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Packaging contents
-
Number of cameras1
Night vision
-
Night vision distance100 m
-
Night visionYes
-
Type of LEDIR
Objective system
-
Minimum focusing distance0.01 m
-
Minimum opening amount1.6
-
Focal length4.7 - 94 mm
-
Maximum number of openings3.5
-
TuningMotorized/manual
-
Number of lenses1
-
Auto focusYes
-
Optical zoom20 x
-
Digital zoom16 x
-
Auto focusYes
Environmental conditions
-
Operating temperature-30 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Output CC in volts12
-
Output CC in amperes1.6 A
-
Consumption (max)19 W
-
Power supply typeDC, PoE
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Progressive scanYes
Camera
-
Camera shutter speed1/1 - 1/30000 s
-
White balanceATW, Auto, Fluorescent, Indoor, Manual, Outdoor, Sodium lamp
-
Panoramic0 - 360 °
-
Inclination angle-40 - 30 °
-
Tilt speed25 °/sec
-
Pan tilt preset speed50 °/sec
-
Pan tilt preset speed50 °/sec
-
Minimum illumination0 lux
-
Field of view (FOV)58.3 °
-
Camera tilt controlYes
-
Camera tilt controlYes
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP66
Security
-
HTTPS encryptionYes
-
HTTPS encryptionYes
Representation / realization
-
Number of languages32
-
Preset pointsYes
-
Preset pointsYes
-
Preset pointsYes
-
Preset pointsYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Preset pointsYes
-
PTZ ModesPreselection point
-
Preset pointsYes
-
Preset pointsYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size128 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2DY3320IW-DE4 specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2DY3320IW-DE4 is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2DY3320IW-DE4 is DS-2DY3320IW-DE4 | DS-2DY3320IW-DE4(B). This model ensures optimal performance and an enhanced user experience.
Weight and dimensions
The weight of the product Hikvision DS-2DY3320IW-DE4 is 3000 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Hikvision DS-2DY3320IW-DE4 is 255 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Hikvision DS-2DY3320IW-DE4 is 195 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-2DY3320IW-DE4 is 129 mm. This dimension allows for optimal integration into your space.
Audio
The voice codec of the Hikvision DS-2DY3320IW-DE4 product contains G.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications. The audio output channels of the Hikvision DS-2DY3320IW-DE4 are 1 canaux. This specification allows for an immersive and high-quality sound experience. The number of audio input channels of the product Hikvision DS-2DY3320IW-DE4 is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience.
Packaging contents
The number of cameras of the product Hikvision DS-2DY3320IW-DE4 is 1. This product is equipped with a camera that allows capturing high-quality images.
Night vision
The type of LED of the product Hikvision DS-2DY3320IW-DE4 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. Does the product Hikvision DS-2DY3320IW-DE4 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2DY3320IW-DE4 is 100 m. This feature allows for clear and precise observation even in darkness.
Network
The Wifi of the product Hikvision DS-2DY3320IW-DE4 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2DY3320IW-DE4 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Hikvision DS-2DY3320IW-DE4 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2DY3320IW-DE4 is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision DS-2DY3320IW-DE4 are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-2DY3320IW-DE4 are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2DY3320IW-DE4 is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2DY3320IW-DE4 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Video
Does the product Hikvision DS-2DY3320IW-DE4 have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision DS-2DY3320IW-DE4 have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The product Hikvision DS-2DY3320IW-DE4 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2DY3320IW-DE4 have a wide dynamic range (WDR)? Oui. This feature enhances image quality by optimizing contrast in varying lighting conditions. Does the product Hikvision DS-2DY3320IW-DE4 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2DY3320IW-DE4 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The number of frames per second of the product Hikvision DS-2DY3320IW-DE4 is 60 ips. This specification ensures optimal smoothness when playing videos. The gain control type of the product Hikvision DS-2DY3320IW-DE4 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2DY3320IW-DE4 have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The maximum resolution of the product Hikvision DS-2DY3320IW-DE4 is 2048 x 1536 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2DY3320IW-DE4 is 3 MP. This total ensures exceptional image quality for your photos. The supported graphic resolutions of the product Hikvision DS-2DY3320IW-DE4 are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2048 x 1536 (QXGA). These resolutions provide optimal display quality for your content. The product Hikvision DS-2DY3320IW-DE4 has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos.
Environmental conditions
The operating temperature of the product Hikvision DS-2DY3320IW-DE4 is -30 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2DY3320IW-DE4 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Objective system
The minimum focusing distance of the product Hikvision DS-2DY3320IW-DE4 is 0.01 m. This feature allows for sharp images even at relatively far distances. The maximum number of openings for the product Hikvision DS-2DY3320IW-DE4 is 3.5. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hikvision DS-2DY3320IW-DE4 is 1.6. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The focal length of the product Hikvision DS-2DY3320IW-DE4 is 4.7 - 94 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The adjustment of the Hikvision DS-2DY3320IW-DE4 is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The number of lenses in the product Hikvision DS-2DY3320IW-DE4 is 1. This number determines the quality and versatility of the lens. The digital zoom of the product Hikvision DS-2DY3320IW-DE4 is 16 x. This zoom allows for capturing precise details even from a distance. Does the Hikvision DS-2DY3320IW-DE4 have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. Does the product Hikvision DS-2DY3320IW-DE4 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The optical zoom of the product Hikvision DS-2DY3320IW-DE4 is 20 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality.
Power
The product Hikvision DS-2DY3320IW-DE4 has a DC output in amperes of 1.6 A. This specification ensures a stable power supply suitable for your needs. The maximum consumption of the product Hikvision DS-2DY3320IW-DE4 is 19 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2DY3320IW-DE4 has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2DY3320IW-DE4 is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Image sensor
The number of sensors of the product Hikvision DS-2DY3320IW-DE4 is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2DY3320IW-DE4 is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2DY3320IW-DE4 is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2DY3320IW-DE4 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Management features
The Hikvision DS-2DY3320IW-DE4 system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Design
The format of the product Hikvision DS-2DY3320IW-DE4 is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2DY3320IW-DE4 is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2DY3320IW-DE4 is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2DY3320IW-DE4 contains IP66. This code indicates the level of protection against solid objects and moisture.
Security
Does the product Hikvision DS-2DY3320IW-DE4 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Hikvision DS-2DY3320IW-DE4 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Camera
The tilt angle of the product Hikvision DS-2DY3320IW-DE4 is -40 - 30 °. This angle allows for adjusting the position for optimal comfort. The white balance of the product Hikvision DS-2DY3320IW-DE4 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The panoramic view of the product Hikvision DS-2DY3320IW-DE4 is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The shutter speed of the camera of the product Hikvision DS-2DY3320IW-DE4 is 1/1 - 1/30000 s. This feature allows capturing sharp images even in low light conditions. The tilt speed of the product Hikvision DS-2DY3320IW-DE4 is 25 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The panning speed of the product Hikvision DS-2DY3320IW-DE4 is 50 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2DY3320IW-DE4 has a preset panning speed of 50 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The field of view (FOV) of the product Hikvision DS-2DY3320IW-DE4 is 58.3 °. This wide field of view allows for capturing images with an immersive and detailed perspective. Does the product Hikvision DS-2DY3320IW-DE4 have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2DY3320IW-DE4 camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The minimum illumination of the product Hikvision DS-2DY3320IW-DE4 is 0 lux. This feature ensures optimal performance even in low light conditions.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2DY3320IW-DE4 is 1. These ports provide a stable and fast network connection for your devices.
Storage support
The maximum size of the memory card for the product Hikvision DS-2DY3320IW-DE4 is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2DY3320IW-DE4 have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2DY3320IW-DE4 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2DY3320IW-DE4 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Representation / realization
Does the product Hikvision DS-2DY3320IW-DE4 have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The number of languages of the product Hikvision DS-2DY3320IW-DE4 is 32. This product offers an enriching multilingual experience. Does the product Hikvision DS-2DY3320IW-DE4 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2DY3320IW-DE4 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2DY3320IW-DE4 have an entry/end Alarm? Oui. This feature effectively secures access to your space. The type of product Hikvision DS-2DY3320IW-DE4 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2DY3320IW-DE4 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ control of the product Hikvision DS-2DY3320IW-DE4 is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The PTZ modes of the product Hikvision DS-2DY3320IW-DE4 contain Point de préselection. These modes allow for increased flexibility and customization to meet your specific needs. The product Hikvision DS-2DY3320IW-DE4 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2DY3320IW-DE4 have preset points? Oui. This feature allows for simplified and customized use according to your preferences. Does the product Hikvision DS-2DY3320IW-DE4 have a Patrol mode? Oui. This mode allows for effective and continuous monitoring.
