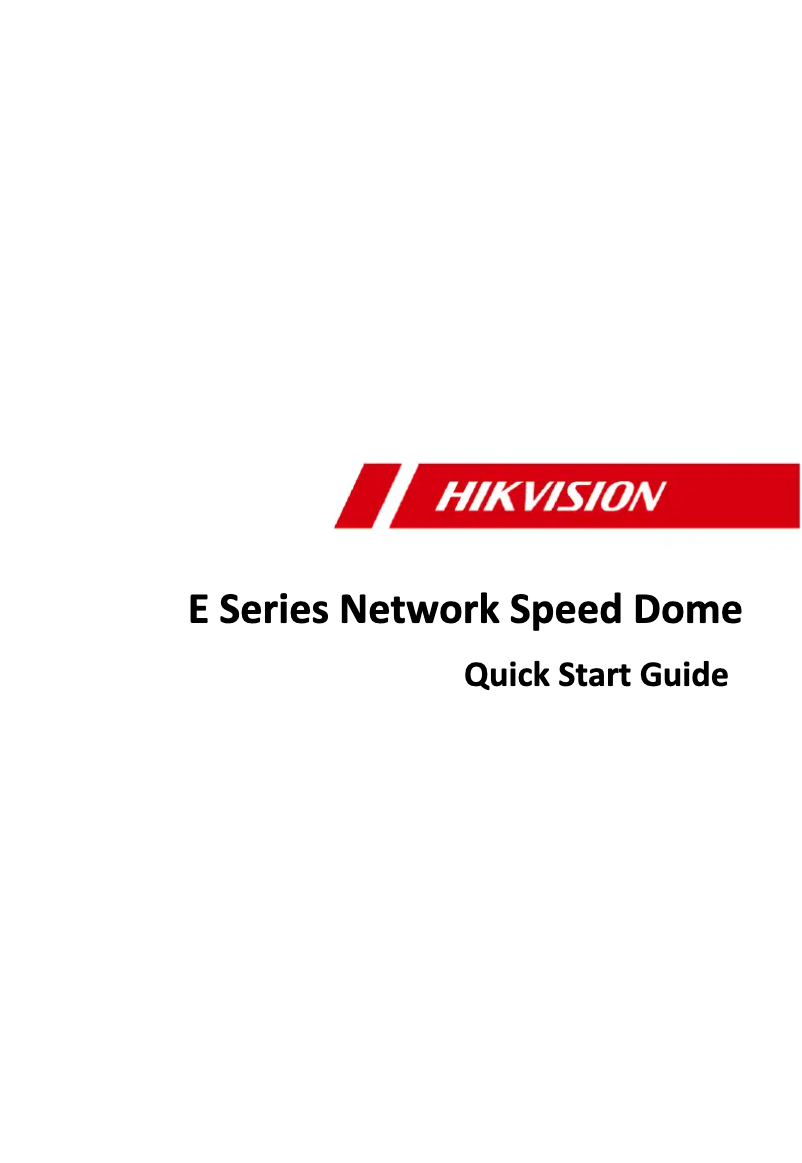

Manuals of product DS-2SE7C144IW-AE
Technical Specifications DS-2SE7C144IW-AE
General Information
-
ModelDS-2SE7C144IW-AE
-
Brand
-
Category
-
Type
-
SKU1448141
-
MPN1448141
Objective system
-
Number of lenses-
-
Detection distance (tele)3060 m
-
Observation distance (tele)1214.3 m
-
Recognition distance (tele)612 m
-
Identification distance (tele)306 m
-
TuningMotorized/manual
-
Zoom capacityYes
-
Optical zoom32 x
-
Digital zoom16 x
Representation / realization
-
Entry/exit alarmYes
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
TypeIP security camera
-
Entry/exit alarmYes
-
Dynamic range120 dB
-
Entry/exit alarmYes
-
PTZ Modes4 Pattern, Auto Scan
-
Entry/exit alarmYes
Storage support
-
Integrated hard driveNo
Video
-
Total megapixels4 MP
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Image quality adjustmentBrightness, Contrast, DNR, Saturation, Sharpness
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Maximum resolution2560 x 1440 pixels
-
Supported graphic resolutions352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440
-
Visual compression formatsH.264, H.265, M-JPEG
-
Bitrate32 Kbps - 16 Mbps
-
Coding of the region of interestYes
-
Number of images per second30 ips
Image sensor
-
Sensor typeCMOS
-
Progressive scanYes
-
Optical sensor size1/2.8
Camera
-
Minimum illumination0 lux
-
Camera shutter speed1 - 1/30000 s
-
White balanceATW, Auto, Fluorescent, Indoor, MWB, Outdoor, Sodium lamp
-
Panoramic0 - 360 °
-
Inclination angle-15 - 90 °
-
Panoramic speed160 °/sec
-
Pan tilt preset speed240 °/sec
-
Tilt speed200 °/sec
Security
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
Functions of the IVS system (intelligent video surveillance)Crossing line, Face detection, Intrusion, Region entrance detection, Region exiting detection
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
Audio
-
Supported audio formatsAAC
-
Bitrate rangeG.711 A-law
-
Sampling frequencyG.711 μ-law
-
Audio output channelsG.722.1
-
Audio output channelsG.726
-
MP2L2
-
PCM
-
32 - 192 Kbit/s
-
48 kHz
-
1 channel
-
1 channel
Network
-
Supported network protocolsIPv4/IPv6
-
Number of usersHTTP
-
Number of simultaneous live viewing channelsHTTPS
-
Type of Ethernet interface802.1x
-
Ethernet/LANQoS
-
BluetoothFTP
-
BluetoothSMTP
-
Network standardsUPnP
-
SNMP
-
DNS
-
DDNS
-
NTP
-
RTSP
-
RTCP
-
RTP
-
TCP/IP
-
UDP
-
IGMP
-
ICMP
-
DHCP
-
PPPoE
-
Bonjour
-
32 user(s)
-
20 channels
-
Fast Ethernet
-
Yes
-
No
-
No
-
IEEE 802.1x
Management features
-
Reset buttonYes
-
Reset buttonYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Night vision
-
Night visionYes
-
Night vision distance150 m
-
Type of LEDIR
Power
-
Power supply typeAC, PoE
-
AC input voltage24 V
-
Consumption (max)42 W
Environmental conditions
-
Operating temperature-30 - 65 °C
-
Operating relative humidity (H-H)0 - 90 %
Design
-
Anti-fogYes
-
FormatDome
-
Mounting typeCeiling
-
Product colorWhite
-
International Protection Code (IP)IP66
-
Code IKIK10
Weight and dimensions
-
Height382.1 mm
-
Diameter220 mm
-
Weight4500 g
Packaging contents
-
Number of cameras1
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2SE7C144IW-AE specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2SE7C144IW-AE is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2SE7C144IW-AE is 6941264084532. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2SE7C144IW-AE is DS-2SE7C144IW-AE | DS-2SE7C144IW-AE(32X/4)(S5). This model ensures optimal performance and an enhanced user experience.
Storage support
Does the Hikvision DS-2SE7C144IW-AE have a built-in hard drive? No. This feature means that the product does not have internal storage.
Representation / realization
The design of the product Hikvision DS-2SE7C144IW-AE supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ control of the product Hikvision DS-2SE7C144IW-AE is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The product Hikvision DS-2SE7C144IW-AE features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Hikvision DS-2SE7C144IW-AE is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2SE7C144IW-AE have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The dynamic range of the product Hikvision DS-2SE7C144IW-AE is 120 dB. This feature allows for precise and nuanced sound reproduction, ideal for fully enjoying your favorite tracks. Does the product Hikvision DS-2SE7C144IW-AE have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The PTZ modes of the product Hikvision DS-2SE7C144IW-AE contain 4 Pattern, Auto Scan. These modes allow for increased flexibility and customization to meet your specific needs. Does the product Hikvision DS-2SE7C144IW-AE have an entry/end Alarm? Oui. This feature effectively secures access to your space.
Objective system
The identification (tele) distance of the product Hikvision DS-2SE7C144IW-AE is 306 m. This specification allows for determining the remote identification range, essential for optimal use. The detection distance (tele) of the product Hikvision DS-2SE7C144IW-AE is 3060 m. This specification ensures optimal performance for your remote detection needs. The recognition (tele) distance of the product Hikvision DS-2SE7C144IW-AE is 612 m. This specification allows for assessing the effective range of the lens in terms of detecting subjects at a distance. The observation (tele) distance of the product Hikvision DS-2SE7C144IW-AE is 1214.3 m. This specification allows for an appreciation of the lens's range for distant shots. The adjustment of the Hikvision DS-2SE7C144IW-AE is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. Does the product Hikvision DS-2SE7C144IW-AE have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The optical zoom of the product Hikvision DS-2SE7C144IW-AE is 32 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The digital zoom of the product Hikvision DS-2SE7C144IW-AE is 16 x. This zoom allows for capturing precise details even from a distance. The number of lenses in the product Hikvision DS-2SE7C144IW-AE is -. This number determines the quality and versatility of the lens.
Image sensor
Does the product Hikvision DS-2SE7C144IW-AE have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Hikvision DS-2SE7C144IW-AE is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2SE7C144IW-AE is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Video
The total megapixels of the product Hikvision DS-2SE7C144IW-AE is 4 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2SE7C144IW-AE have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision DS-2SE7C144IW-AE have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The image quality setting of the product Hikvision DS-2SE7C144IW-AE contains Brightness, Contrast, DNR, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the Hikvision DS-2SE7C144IW-AE have an image stabilizer? Oui. This image stabilizer allows for sharp videos and photos, even in motion. Does the product Hikvision DS-2SE7C144IW-AE have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The maximum resolution of the product Hikvision DS-2SE7C144IW-AE is 2560 x 1440 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2SE7C144IW-AE are 352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2560 x 1440. These resolutions provide optimal display quality for your content. The product Hikvision DS-2SE7C144IW-AE has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The bit rate of the product Hikvision DS-2SE7C144IW-AE is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision DS-2SE7C144IW-AE have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The number of frames per second of the product Hikvision DS-2SE7C144IW-AE is 30 ips. This specification ensures optimal smoothness when playing videos.
Camera
The minimum illumination of the product Hikvision DS-2SE7C144IW-AE is 0 lux. This feature ensures optimal performance even in low light conditions. The white balance of the product Hikvision DS-2SE7C144IW-AE consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The panoramic view of the product Hikvision DS-2SE7C144IW-AE is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The shutter speed of the camera of the product Hikvision DS-2SE7C144IW-AE is 1 - 1/30000 s. This feature allows capturing sharp images even in low light conditions. The tilt angle of the product Hikvision DS-2SE7C144IW-AE is -15 - 90 °. This angle allows for adjusting the position for optimal comfort. The panning speed of the product Hikvision DS-2SE7C144IW-AE is 160 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2SE7C144IW-AE has a preset panning speed of 240 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The tilt speed of the product Hikvision DS-2SE7C144IW-AE is 200 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience.
Audio
The supported audio formats of the product Hikvision DS-2SE7C144IW-AE are AAC, G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM. These formats ensure optimal compatibility for an enriching listening experience. The sampling frequency of the product Hikvision DS-2SE7C144IW-AE is 48 kHz. This feature ensures optimal sound quality for your recordings. The number of audio input channels of the product Hikvision DS-2SE7C144IW-AE is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The bit rate range of the product Hikvision DS-2SE7C144IW-AE is 32 - 192 Kbit/s. This specification ensures audio quality suited to your needs. The audio output channels of the Hikvision DS-2SE7C144IW-AE are 1 canaux. This specification allows for an immersive and high-quality sound experience.
Security
Does the product Hikvision DS-2SE7C144IW-AE have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. Does the product Hikvision DS-2SE7C144IW-AE have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product Hikvision DS-2SE7C144IW-AE have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the Hikvision DS-2SE7C144IW-AE product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The intelligent video surveillance system of the product Hikvision DS-2SE7C144IW-AE has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision DS-2SE7C144IW-AE have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision DS-2SE7C144IW-AE have an active anti-tampering alarm? Oui. This feature provides enhanced protection against any sabotage attempts, thereby ensuring the safety of your belongings. Does the product Hikvision DS-2SE7C144IW-AE have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2SE7C144IW-AE have Automatic Network Replenishment (ANR)? Oui. This feature ensures proactive and secure management of network resources.
Management features
Does the product Hikvision DS-2SE7C144IW-AE have a Reset Button? Oui. This button allows you to easily reset the product settings. Does the product Hikvision DS-2SE7C144IW-AE have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2SE7C144IW-AE is 1. These ports provide a stable and fast network connection for your devices.
Night vision
The type of LED of the product Hikvision DS-2SE7C144IW-AE is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2SE7C144IW-AE is 150 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2SE7C144IW-AE have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Network
The number of users of the product Hikvision DS-2SE7C144IW-AE is 32 utilisateur(s). This product is ideal for several people. The supported network protocols of the product Hikvision DS-2SE7C144IW-AE are IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The number of simultaneous live viewing channels for the product Hikvision DS-2SE7C144IW-AE is 20 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. The Ethernet interface type of the product Hikvision DS-2SE7C144IW-AE is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the product Hikvision DS-2SE7C144IW-AE have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2SE7C144IW-AE contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2SE7C144IW-AE have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The network standards of the product Hikvision DS-2SE7C144IW-AE are IEEE 802.1x. These standards ensure optimal compatibility with various equipment and protocols.
Power
The type of power source for the product Hikvision DS-2SE7C144IW-AE is AC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The AC input voltage of the Hikvision DS-2SE7C144IW-AE is 24 V. This specification ensures optimal compatibility with standard electrical systems. The maximum consumption of the product Hikvision DS-2SE7C144IW-AE is 42 W. This specification allows for the assessment of the energy efficiency of the device.
Environmental conditions
The operating temperature of the product Hikvision DS-2SE7C144IW-AE is -30 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2SE7C144IW-AE has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging contents
The number of cameras of the product Hikvision DS-2SE7C144IW-AE is 1. This product is equipped with a camera that allows capturing high-quality images.
Weight and dimensions
The height of the product Hikvision DS-2SE7C144IW-AE is 382.1 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hikvision DS-2SE7C144IW-AE is 4500 g. This weight is ideal for ensuring optimal use and easy handling. The diameter of the product Hikvision DS-2SE7C144IW-AE is 220 mm. This diameter allows for optimal use and fits perfectly with your needs.
Design
Does the product Hikvision DS-2SE7C144IW-AE have an anti-fog feature? Oui. This feature helps prevent fogging, ensuring optimal visibility. The mounting type of the product Hikvision DS-2SE7C144IW-AE is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2SE7C144IW-AE is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2SE7C144IW-AE is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2SE7C144IW-AE contains IP66. This code indicates the level of protection against solid objects and moisture. The IK Code of the product Hikvision DS-2SE7C144IW-AE is IK10. This IK Code allows for easy identification of the specific design of the item.
