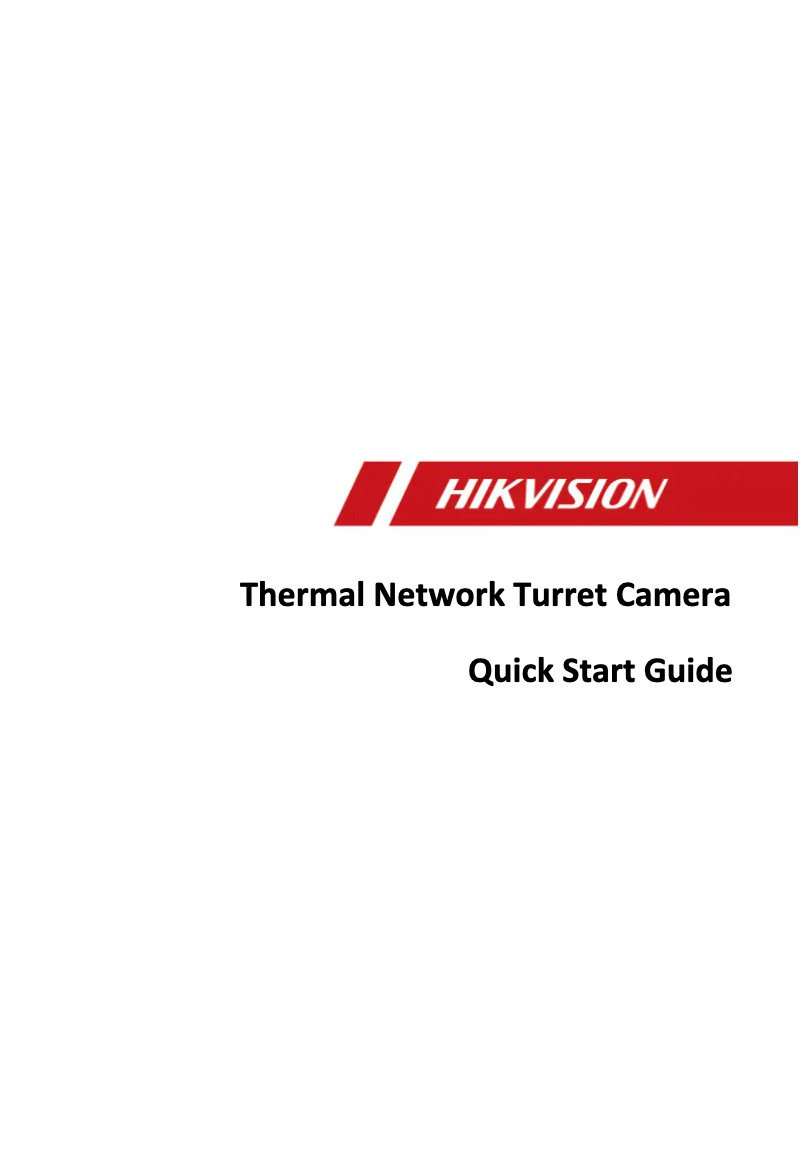

Manuals of product DS-2TD1117-3/PA
Technical Specifications DS-2TD1117-3/PA
General Information
-
ModelDS-2TD1117-3/PA
-
Brand
-
Category
-
Type
-
SKU1302368
-
MPN1302368
Representation / realization
-
Number of languages32
-
Connectivity technologyWired
-
Supported installationIndoor and outdoor
-
IFOV (spatial resolution)5.48 mRad
-
TypeIP security camera
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Thermal sensitivity (NETD)40 mK
Network
-
Quality of Service (QoS)Yes
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
-
Type of Ethernet interfaceFast Ethernet
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Quality of Service (QoS)Yes
-
Number of simultaneous live viewing channels20 channels
-
BluetoothNo
-
BluetoothNo
-
Network standardsIEEE 802.3af
Security
-
Fire detectionYes
-
Fire detectionYes
-
Security-supported algorithm802.1x RADIUS
-
Fire detectionYes
-
Alert notification typeEmail
-
Fire detectionYes
-
Temperature range-20 - 150 °C
-
Temperature measurement accuracy8 °C
-
Fire detectionYes
-
Number of detectable fire points10
Connectivity
-
RS-485 ports1
-
RS-485 ports1
-
Port on the terminal blockYes
-
Port on the terminal blockYes
Video
-
Visual compression formatsH.264, H.265
-
Maximum resolution1280 x 720 pixels
-
Supported graphic resolutions704 x 576, 1280 x 720 (HD 720), 320 x 240, 352 x 288, 640 x 480 (VGA)
-
Analog signal format systemNTSC, PAL
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
-
Gain control typeAuto
-
Image quality adjustmentContrast, Colour depth
-
Total megapixels- MP
Objective system
-
Number of lenses-
-
Minimum focusing distance0.2 m
-
Zoom capacityYes
-
Digital zoom8 x
-
Opening number (thermal model)1.1
-
Fixed focal length (thermal module)3.1 mm
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Design
-
FormatTurret
-
Mounting typeCeiling
-
Product colorWhite
-
International Protection Code (IP)IP66
Camera
-
Camera pan commandYes
-
Rotation angle360 °
-
Inclination angle0 - 75 °
-
Panoramic0 - 360 °
-
Field of View (FOV) angle (thermal module)50 x 37.2 °
Management features
-
Reset buttonYes
-
Behavior analysisIntrusion detection
-
Region exiting detection
-
Line crossing detection
-
Region entrance detection
Power
-
Power supply typeDC, PoE
-
Electricity consumption400 mA
-
Energy consumption (Power over Ethernet (PoE))5 W
-
Typical electricity consumption4.5 W
Image sensor
-
Sensor type-
-
Effective pixel count (H x V)160 x 120 pixels
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
Environmental conditions
-
Temperature out of operation-40 - 65 °C
-
Temperature out of operation-40 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Depth138.3 mm
-
Depth138.3 mm
-
Height123.1 mm
-
Weight920 g
Night vision
-
Night vision-
Packaging contents
-
Number of cameras1
Audio
-
Supported audio formatsG.711 A-law
-
G.711 μ-law
-
MP2L2
-
G.722.1
-
G.726
-
PCM
Technical details
-
Output impedance600 Ohm
Other features
-
Supported browsersIE9+
-
chrome31-44
-
Firefox 30-51
-
Safari 5.02+
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD1117-3/PA specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2TD1117-3/PA is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2TD1117-3/PA is 6941264032397. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2TD1117-3/PA is DS-2TD1117-3/PA | DS-2TD1117-3/PA. This model ensures optimal performance and an enhanced user experience.
Representation / realization
The number of languages of the product Hikvision DS-2TD1117-3/PA is 32. This product offers an enriching multilingual experience. The spatial resolution of the Hikvision DS-2TD1117-3/PA product is 5.48 mRad. This resolution allows for optimal image clarity for detailed analysis. The design of the product Hikvision DS-2TD1117-3/PA supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2TD1117-3/PA features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Hikvision DS-2TD1117-3/PA is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The PTZ control of the product Hikvision DS-2TD1117-3/PA is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The product Hikvision DS-2TD1117-3/PA has a thermal sensitivity (NETD) of 40 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. Does the product Hikvision DS-2TD1117-3/PA have an entry/end Alarm? Oui. This feature effectively secures access to your space.
Network
Does the product Hikvision DS-2TD1117-3/PA have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Hikvision DS-2TD1117-3/PA are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. The Ethernet interface type of the product Hikvision DS-2TD1117-3/PA is Fast Ethernet. This type of interface allows for fast and efficient network connections. The number of users of the product Hikvision DS-2TD1117-3/PA is 32 utilisateur(s). This product is ideal for several people. The user access level of the product Hikvision DS-2TD1117-3/PA contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user. Does the product Hikvision DS-2TD1117-3/PA have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of simultaneous live viewing channels for the product Hikvision DS-2TD1117-3/PA is 20 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. The Wifi of the product Hikvision DS-2TD1117-3/PA contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2TD1117-3/PA have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The network standards of the product Hikvision DS-2TD1117-3/PA are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols.
Security
Does the product Hikvision DS-2TD1117-3/PA have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The supported security algorithm of the product Hikvision DS-2TD1117-3/PA contains 802.1x RADIUS. This algorithm ensures optimal protection of your data. Does the Hikvision DS-2TD1117-3/PA have a temperature sensor? Oui. This sensor allows for accurate measurement of the ambient temperature to ensure optimal comfort. Does the Hikvision DS-2TD1117-3/PA product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The alert notification type for the product Hikvision DS-2TD1117-3/PA is E-mail. This feature allows for real-time alerts for better security. Does the product Hikvision DS-2TD1117-3/PA have a Mirror? Oui. This mirror ensures better visibility and contributes to the safety of your space. Does the product Hikvision DS-2TD1117-3/PA have Fire Detection? Oui. This feature ensures optimal safety by quickly detecting any source of heat or smoke. The number of detectable fire points of the product Hikvision DS-2TD1117-3/PA is 10. This number ensures optimal protection against fire hazards. The temperature range of the product Hikvision DS-2TD1117-3/PA is -20 - 150 °C. This feature ensures optimal use in varied conditions. The temperature measurement accuracy of the product Hikvision DS-2TD1117-3/PA is 8 °C. This feature ensures a reliable assessment of thermal conditions, essential for ensuring the safety and proper functioning of your equipment.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD1117-3/PA is 1. These ports provide a stable and fast network connection for your devices. The RS-485 port of the Hikvision DS-2TD1117-3/PA contains 1. This port allows for robust serial communication and is ideal for industrial applications. Does the product Hikvision DS-2TD1117-3/PA have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. Does the product Hikvision DS-2TD1117-3/PA have a terminal block port? Oui. This feature allows for a secure and reliable connection for your installations.
Objective system
The minimum focusing distance of the product Hikvision DS-2TD1117-3/PA is 0.2 m. This feature allows for sharp images even at relatively far distances. The number of lenses in the product Hikvision DS-2TD1117-3/PA is -. This number determines the quality and versatility of the lens. The digital zoom of the product Hikvision DS-2TD1117-3/PA is 8 x. This zoom allows for capturing precise details even from a distance. Does the product Hikvision DS-2TD1117-3/PA have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The opening number of the product Hikvision DS-2TD1117-3/PA is 1.1. This opening number is essential for determining the thermal performance of the device. The product Hikvision DS-2TD1117-3/PA has a fixed focal length (thermal module) of 3.1 mm. This specification ensures optimal performance for precise and detailed shots.
Storage support
The product Hikvision DS-2TD1117-3/PA has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2TD1117-3/PA have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2TD1117-3/PA have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2TD1117-3/PA is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Design
The International Protection Code (IP) for product Hikvision DS-2TD1117-3/PA contains IP66. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2TD1117-3/PA is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2TD1117-3/PA is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2TD1117-3/PA is a bar. This format allows for practical and efficient use in various contexts.
Video
The maximum resolution of the product Hikvision DS-2TD1117-3/PA is 1280 x 720 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2TD1117-3/PA has visual compression formats: H.264, H.265. These formats ensure optimal image quality for your videos. The analog signal format system of the product Hikvision DS-2TD1117-3/PA contains NTSC, PAL. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience. The supported graphic resolutions of the product Hikvision DS-2TD1117-3/PA are 704 x 576,1280 x 720 (HD 720),320 x 240,352 x 288,640 x 480 (VGA). These resolutions provide optimal display quality for your content. Does the product Hikvision DS-2TD1117-3/PA have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2TD1117-3/PA features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. The gain control type of the product Hikvision DS-2TD1117-3/PA is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The total megapixels of the product Hikvision DS-2TD1117-3/PA is - MP. This total ensures exceptional image quality for your photos. The image quality setting of the product Hikvision DS-2TD1117-3/PA contains Contrast, Colour depth. This setting allows for optimizing the display for an enhanced visual experience.
Management features
The Hikvision DS-2TD1117-3/PA system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision DS-2TD1117-3/PA have a Reset Button? Oui. This button allows you to easily reset the product settings.
Camera
The panoramic view of the product Hikvision DS-2TD1117-3/PA is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2TD1117-3/PA is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hikvision DS-2TD1117-3/PA is 360 °. This angle allows for optimal usage flexibility. Does the product Hikvision DS-2TD1117-3/PA have a camera pan command? No. This feature is not available on this model. The product Hikvision DS-2TD1117-3/PA has a field of view (FOV) angle (thermal module) of 50 x 37.2 °. This angle allows for precise and effective visualization of the monitored areas.
Power
The energy consumption of the product Hikvision DS-2TD1117-3/PA is 5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The electrical consumption of the product Hikvision DS-2TD1117-3/PA is 400 mA. This consumption ensures optimal operation while guaranteeing energy efficiency. The type of power source for the product Hikvision DS-2TD1117-3/PA is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The typical power consumption of the product Hikvision DS-2TD1117-3/PA is 4.5 W. This feature allows for the assessment of the energy efficiency of the device.
Image sensor
The image detector of the product Hikvision DS-2TD1117-3/PA contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection. The effective pixel count (H x V) of the product Hikvision DS-2TD1117-3/PA is 160 x 120 pixels. This specification ensures accurate and detailed image quality. The sensor type of the product Hikvision DS-2TD1117-3/PA is -. This type of sensor ensures optimal image quality for your needs.
Environmental conditions
The operating temperature of the product Hikvision DS-2TD1117-3/PA is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2TD1117-3/PA has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Hikvision DS-2TD1117-3/PA is -40 - 65 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Weight and dimensions
The width of the product Hikvision DS-2TD1117-3/PA is 138.3 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Hikvision DS-2TD1117-3/PA is 920 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Hikvision DS-2TD1117-3/PA is 138.3 mm. This dimension allows for optimal integration into your space. The height of the product Hikvision DS-2TD1117-3/PA is 123.1 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Packaging contents
The number of cameras of the product Hikvision DS-2TD1117-3/PA is 1. This product is equipped with a camera that allows capturing high-quality images.
Night vision
Does the product Hikvision DS-2TD1117-3/PA have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
Audio
The supported audio formats of the product Hikvision DS-2TD1117-3/PA are G.711 A-law, G.711 μ-law, MP2L2, G.722.1, G.726, PCM. These formats ensure optimal compatibility for an enriching listening experience.
Other features
The browser support for the product Hikvision DS-2TD1117-3/PA includes IE9+, chrome31-44, Firefox 30-51, Safari 5.02+. This feature ensures an optimal user experience on compatible platforms.
Technical details
The output impedance of the Hikvision DS-2TD1117-3/PA is 600 Ohm. This feature is essential to ensure optimal audio quality and compatibility with various equipment.
