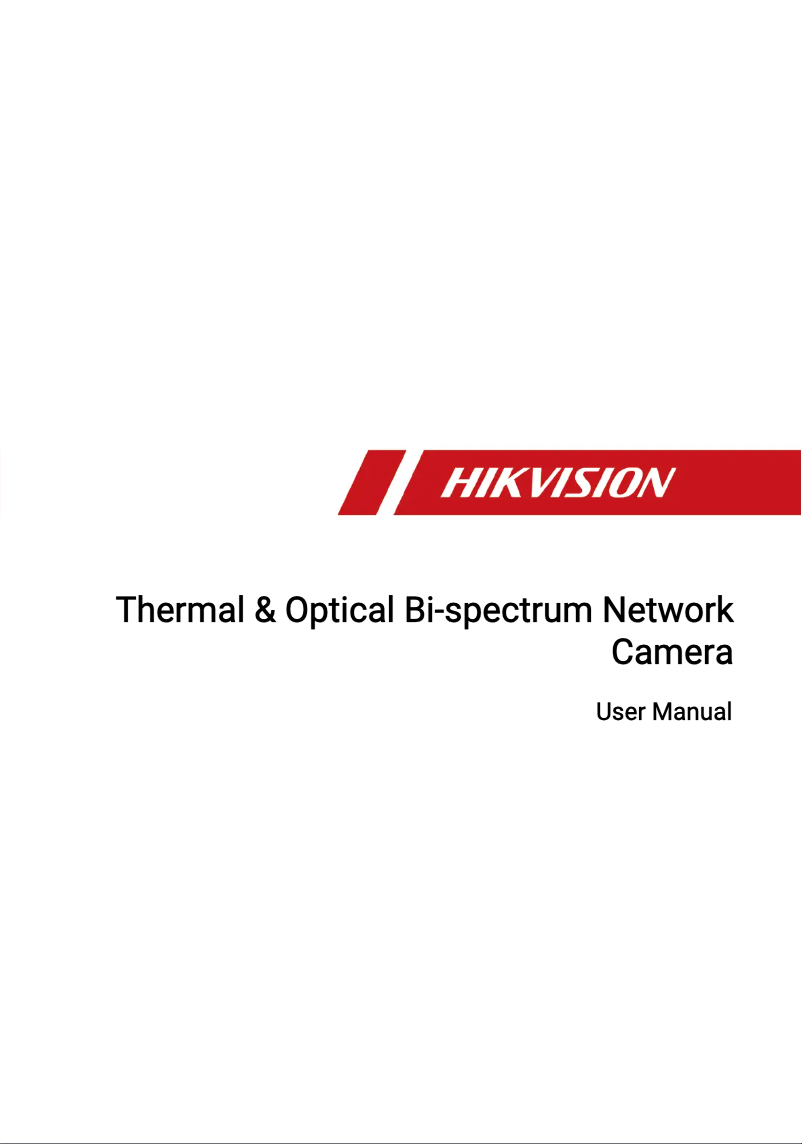

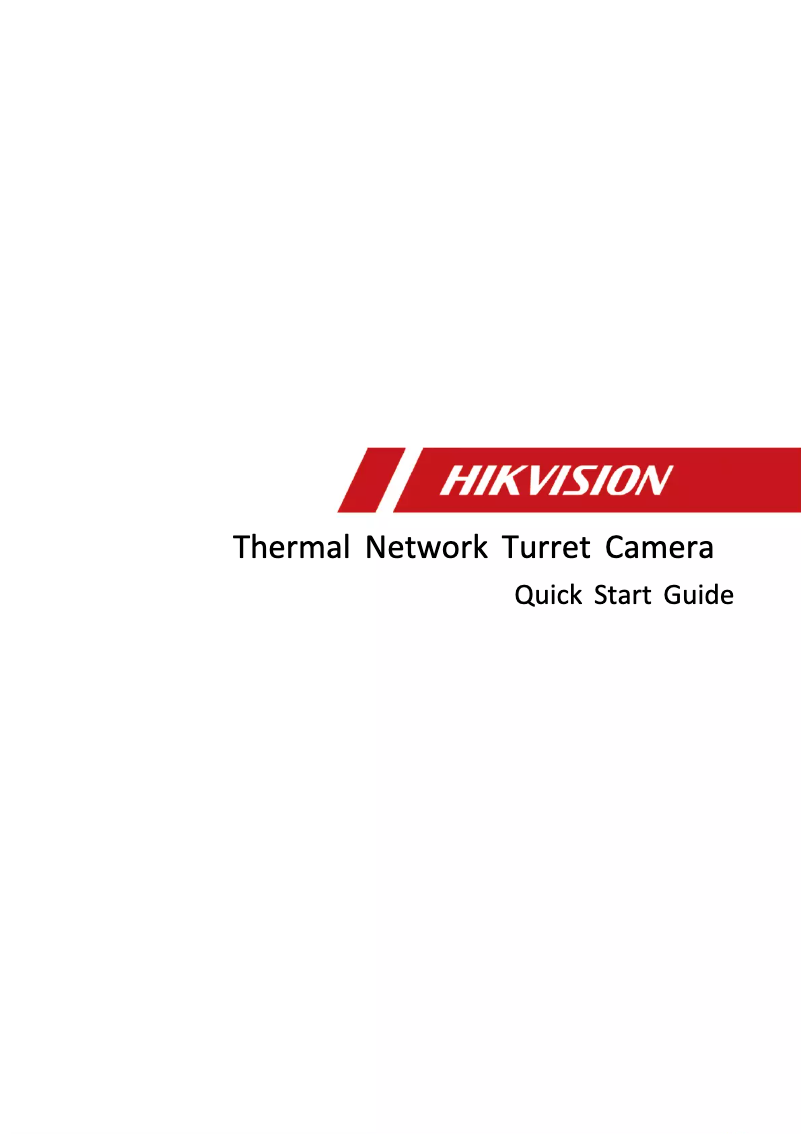

Manuals of product DS-2TD1217-6
Technical Specifications DS-2TD1217-6
General Information
-
ModelDS-2TD1217-6
-
Brand
-
Category
-
Type
-
SKU1448181
-
MPN1448181
Weight and dimensions
-
Depth138.3 mm
-
Depth138.3 mm
-
Height123.1 mm
-
Weight940 g
Design
-
International Protection Code (IP)IP66
-
FormatTurret
-
Mounting typeCeiling/wall
-
Product colorWhite
Power
-
Consumption (max)6 W
-
Energy consumption (Power over Ethernet (PoE))6.5 W
-
Output CC in amperes0.5 A
-
Power supply typeDC, PoE
-
Output CC in volts12
Night vision
-
Night vision distance15 m
-
Night visionYes
-
Type of LEDIR
Objective system
-
Number of lenses-
-
Maximum number of openings2.3
-
Fixed Focal Length8 mm
-
Digital zoom8 x
-
Fixed focal length (thermal module)6.2 mm
-
Opening number (thermal model)1.1
-
Minimum focusing distance0.6 m
-
Zoom capacityYes
Camera
-
Field of view of the lens, horizontal39.42 °
-
Angle of view of the lens, vertical22.14 °
-
Minimum illumination0.0018 lux
-
Field of View (FOV) angle (thermal module)25 x 18.7 °
-
Camera shutter speed1 - 1/100000 s
Representation / realization
-
IFOV (spatial resolution)2.74 mRad
-
Thermal sensitivity (NETD)40 mK
-
Number of languages32
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
Image sensor
-
Effective sensor resolution (thermal module)160 x 120 pixels
-
Optical sensor size1/2.7 "
-
Progressive scanYes
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Sensor typeCMOS
Network
-
Network standardsIEEE 802.1x, IEEE 802.3af
-
Supported network protocols
-
Type of Ethernet interfaceIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-
Quality of Service (QoS)
-
BluetoothFast Ethernet
-
Bluetooth
-
Number of usersYes
-
Quality of Service (QoS)
-
No
-
-
No
-
-
32 user(s)
-
-
Yes
Audio
-
Voice codecsG.711a
-
G.711u
-
G.722.1
-
G.726
-
MP2L2
-
PCM
Video
-
Noise reduction technologyDigital noise suppression 3D
-
Noise reductionYes
-
Noise reductionYes
-
Gain control typeAuto
-
Number of images per second30 fps
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Supported graphic resolutions352 x 288, 384 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Packaging contents
-
Number of cameras1
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Security
-
Security-supported algorithmEAP-MD5
-
Temperature sensorEAP-TLS
-
Temperature sensorYes
-
Temperature sensorYes
-
Yes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Microphone jack inputYes
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD1217-6 specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2TD1217-6 is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2TD1217-6 is DS-2TD1217-6 | DS-2TD1217-6/PA (B). This model ensures optimal performance and an enhanced user experience.
Design
The International Protection Code (IP) for product Hikvision DS-2TD1217-6 contains IP66. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2TD1217-6 is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2TD1217-6 is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2TD1217-6 is a bar. This format allows for practical and efficient use in various contexts.
Power
The maximum consumption of the product Hikvision DS-2TD1217-6 is 6 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2TD1217-6 has a DC output in amperes of 0.5 A. This specification ensures a stable power supply suitable for your needs. The type of power source for the product Hikvision DS-2TD1217-6 is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product Hikvision DS-2TD1217-6 is 6.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The product Hikvision DS-2TD1217-6 has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices.
Weight and dimensions
The height of the product Hikvision DS-2TD1217-6 is 123.1 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Hikvision DS-2TD1217-6 is 138.3 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Hikvision DS-2TD1217-6 is 940 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Hikvision DS-2TD1217-6 is 138.3 mm. This dimension allows for optimal integration into your space.
Night vision
The night vision distance of the product Hikvision DS-2TD1217-6 is 15 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2TD1217-6 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. Does the product Hikvision DS-2TD1217-6 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Camera
The field of view of the Hikvision DS-2TD1217-6 lens is 39.42 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2TD1217-6 is 22.14 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The minimum illumination of the product Hikvision DS-2TD1217-6 is 0.0018 lux. This feature ensures optimal performance even in low light conditions. The product Hikvision DS-2TD1217-6 has a field of view (FOV) angle (thermal module) of 25 x 18.7 °. This angle allows for precise and effective visualization of the monitored areas. The shutter speed of the camera of the product Hikvision DS-2TD1217-6 is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions.
Image sensor
The effective resolution of the sensor (thermal module) of the product Hikvision DS-2TD1217-6 is 160 x 120 pixels. This specification ensures accurate and reliable detection of temperature variations. Does the product Hikvision DS-2TD1217-6 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2TD1217-6 is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The image detector of the product Hikvision DS-2TD1217-6 contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection. The sensor type of the product Hikvision DS-2TD1217-6 is CMOS. This type of sensor ensures optimal image quality for your needs.
Representation / realization
The spatial resolution of the Hikvision DS-2TD1217-6 product is 2.74 mRad. This resolution allows for optimal image clarity for detailed analysis. Does the product Hikvision DS-2TD1217-6 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Hikvision DS-2TD1217-6 has a thermal sensitivity (NETD) of 40 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. The number of languages of the product Hikvision DS-2TD1217-6 is 32. This product offers an enriching multilingual experience. Does the product Hikvision DS-2TD1217-6 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2TD1217-6 have an entry/end Alarm? Oui. This feature effectively secures access to your space. The type of product Hikvision DS-2TD1217-6 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2TD1217-6 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hikvision DS-2TD1217-6 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality.
Objective system
The product goal system Hikvision DS-2TD1217-6 has a fixed focal length of 8 mm. This feature allows for images with great sharpness and exceptional quality. The maximum number of openings for the product Hikvision DS-2TD1217-6 is 2.3. This feature allows for optimal use and increased flexibility. The product Hikvision DS-2TD1217-6 has a fixed focal length (thermal module) of 6.2 mm. This specification ensures optimal performance for precise and detailed shots. The digital zoom of the product Hikvision DS-2TD1217-6 is 8 x. This zoom allows for capturing precise details even from a distance. The opening number of the product Hikvision DS-2TD1217-6 is 1.1. This opening number is essential for determining the thermal performance of the device. The minimum focusing distance of the product Hikvision DS-2TD1217-6 is 0.6 m. This feature allows for sharp images even at relatively far distances. Does the product Hikvision DS-2TD1217-6 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The number of lenses in the product Hikvision DS-2TD1217-6 is -. This number determines the quality and versatility of the lens.
Audio
The voice codec of the Hikvision DS-2TD1217-6 product contains G.711a, G.711u, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications.
Packaging contents
The number of cameras of the product Hikvision DS-2TD1217-6 is 1. This product is equipped with a camera that allows capturing high-quality images.
Network
The network standards of the product Hikvision DS-2TD1217-6 are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-2TD1217-6 are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. The Ethernet interface type of the product Hikvision DS-2TD1217-6 is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the product Hikvision DS-2TD1217-6 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2TD1217-6 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2TD1217-6 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The number of users of the product Hikvision DS-2TD1217-6 is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2TD1217-6 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Management features
The Hikvision DS-2TD1217-6 system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Environmental conditions
The operating temperature of the product Hikvision DS-2TD1217-6 is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2TD1217-6 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Video
The product Hikvision DS-2TD1217-6 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2TD1217-6 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The gain control type of the product Hikvision DS-2TD1217-6 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2TD1217-6 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The number of frames per second of the product Hikvision DS-2TD1217-6 is 30 ips. This specification ensures optimal smoothness when playing videos. The maximum resolution of the product Hikvision DS-2TD1217-6 is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The product Hikvision DS-2TD1217-6 has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The total megapixels of the product Hikvision DS-2TD1217-6 is 4 MP. This total ensures exceptional image quality for your photos. The supported graphic resolutions of the product Hikvision DS-2TD1217-6 are 352 x 288,384 x 288,640 x 480 (VGA),704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2688 x 1520. These resolutions provide optimal display quality for your content.
Security
Does the product Hikvision DS-2TD1217-6 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Hikvision DS-2TD1217-6 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The supported security algorithm of the product Hikvision DS-2TD1217-6 contains EAP-MD5, EAP-TLS. This algorithm ensures optimal protection of your data. Does the Hikvision DS-2TD1217-6 have a temperature sensor? Oui. This sensor allows for accurate measurement of the ambient temperature to ensure optimal comfort.
Connectivity
Does the product Hikvision DS-2TD1217-6 have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The product Hikvision DS-2TD1217-6 has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment. The RS-485 port of the Hikvision DS-2TD1217-6 contains 1. This port allows for robust serial communication and is ideal for industrial applications. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD1217-6 is 1. These ports provide a stable and fast network connection for your devices.
Storage support
The product Hikvision DS-2TD1217-6 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2TD1217-6 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hikvision DS-2TD1217-6 is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2TD1217-6 have a built-in hard drive? No. This feature means that the product does not have internal storage.
