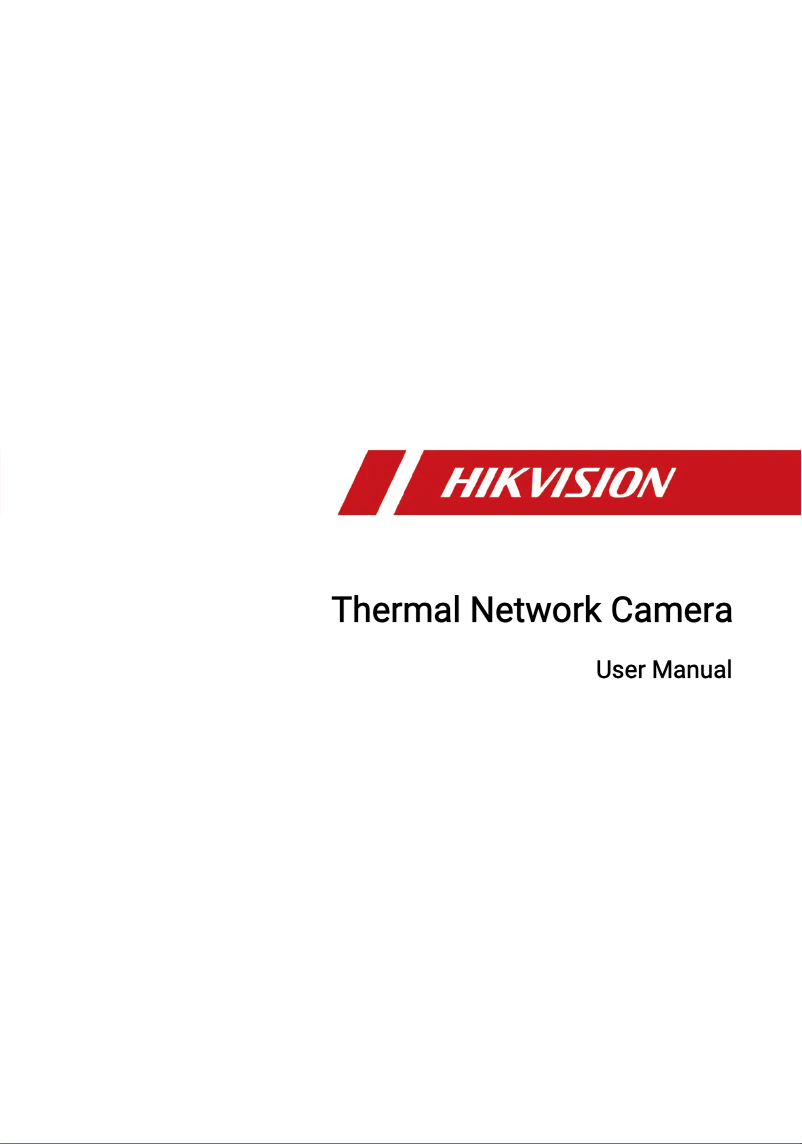

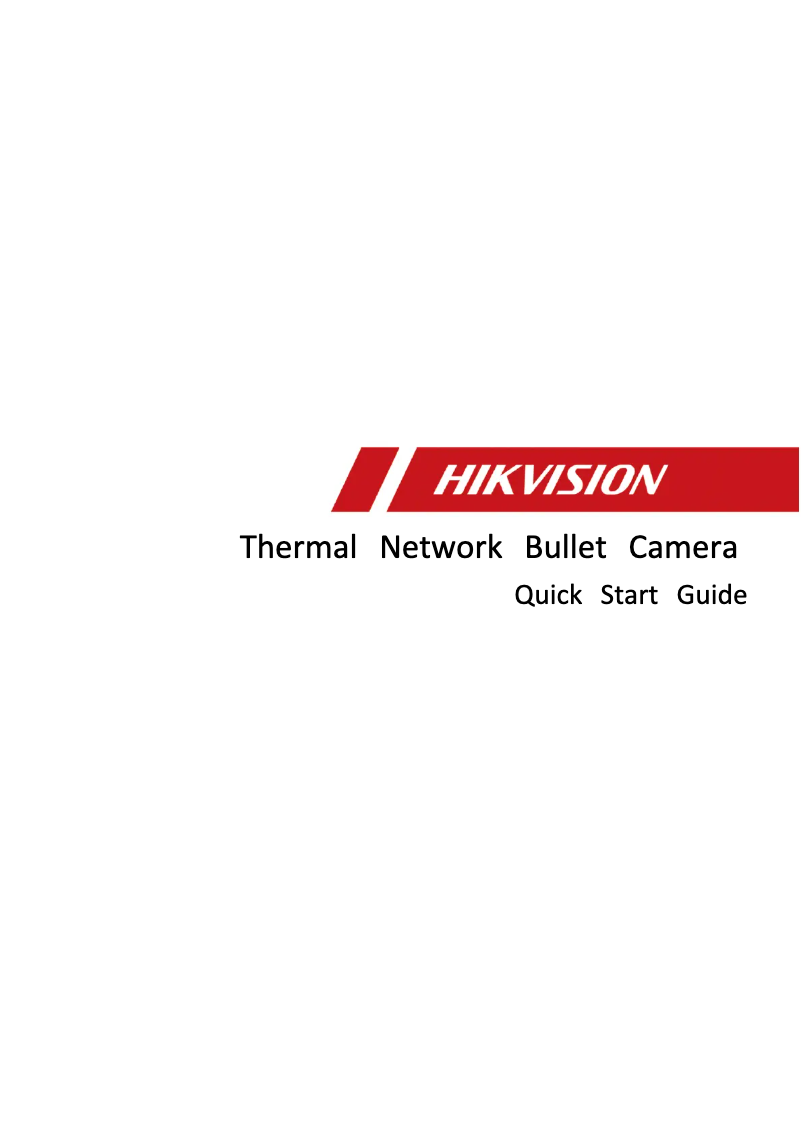

Manuals of product DS-2TD2137-35/PI
Technical Specifications DS-2TD2137-35/PI
General Information
-
ModelDS-2TD2137-35/PI
-
Brand
-
Category
-
Type
-
SKU1575724
-
MPN1575724
Representation / realization
-
Number of languages32
-
Connectivity technologyWired
-
Supported installationIndoor and outdoor
-
IFOV (spatial resolution)0.49 mRad
-
Thermal sensitivity (NETD)35 mK
-
TypeIP security camera
-
Entry/exit alarmYes
Security
-
Fire detectionYes
-
Fire detectionYes
-
Security-supported algorithm802.1x RADIUS
-
Fire detectionYes
-
Alert notification typeEmail
-
Temperature range-20 - 150 °C
-
Temperature measurement accuracy8 °C
-
Fire detectionYes
-
Number of detectable fire points10
Video
-
Visual compression formatsH.264, H.265
-
Maximum resolution1280 x 720 pixels
-
Total megapixels- MP
-
Supported graphic resolutions704 x 576, 1280 x 720 (HD 720), 352 x 288, 384 x 288
-
Number of images per second25 ips
Network
-
Supported network protocolsIPv4/IPv6
-
Quality of Service (QoS)HTTP
-
Type of Ethernet interfaceHTTPS
-
Number of users802.1x
-
User access levelQos
-
Quality of Service (QoS)FTP
-
Number of simultaneous live viewing channelsSMTP
-
BluetoothUPnP
-
BluetoothSNMP
-
Network standardsDNS
-
DDNS
-
NTP
-
RTSP
-
RTCP
-
RTP
-
TCP
-
UDP
-
IGMP
-
ICMP
-
DHCP
-
PPPoE
-
Yes
-
Fast Ethernet
-
32 user(s)
-
Administrator, Operator, User
-
Yes
-
20 channels
-
No
-
No
-
IEEE 802.3af
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Port on the terminal blockYes
-
Port on the terminal blockYes
Objective system
-
Number of lenses-
-
Minimum focusing distance30 m
-
Zoom capacityYes
-
Digital zoom8 x
-
Opening number (thermal model)1
-
Fixed focal length (thermal module)35 mm
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP66
Management features
-
Behavior analysisIntrusion detection
-
Region exiting detection
-
Line crossing detection
-
Region entrance detection
Power
-
Power supply typeDC, PoE
-
Typical electricity consumption5 W
-
Energy consumption (Power over Ethernet (PoE))5.5 W
Environmental conditions
-
Temperature out of operation-40 - 65 °C
-
Temperature out of operation-40 - 65 °C
-
Operating relative humidity (H-H)0 - 90 %
Image sensor
-
Sensor type-
-
Effective pixel count (H x V)384 x 288 pixels
Weight and dimensions
-
Width144.1 mm
-
Depth353.9 mm
-
Height156.6 mm
-
Weight2160 g
Night vision
-
Night vision-
Packaging contents
-
Number of cameras1
Audio
-
Supported audio formatsG.711 A-law
-
G.711 μ-law
-
MP2L2
-
G.722.1
-
G.726
-
PCM
Technical details
-
Output impedance600 Ohm
Other features
-
Supported browsersIE 11
-
Chrome 41-44
-
Firefox 30-51
Camera
-
Field of View (FOV) angle (thermal module)10.7 x 8 °
-
Camera pixel size17 µm
-
Response waveband8 - 14 µm
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD2137-35/PI specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2TD2137-35/PI is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2TD2137-35/PI is DS-2TD2137-35/PI | DS-2TD2137-35/PI. This model ensures optimal performance and an enhanced user experience.
Representation / realization
The number of languages of the product Hikvision DS-2TD2137-35/PI is 32. This product offers an enriching multilingual experience. The product Hikvision DS-2TD2137-35/PI features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The spatial resolution of the Hikvision DS-2TD2137-35/PI product is 0.49 mRad. This resolution allows for optimal image clarity for detailed analysis. The design of the product Hikvision DS-2TD2137-35/PI supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2TD2137-35/PI has a thermal sensitivity (NETD) of 35 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. The type of product Hikvision DS-2TD2137-35/PI is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2TD2137-35/PI have an entry/end Alarm? Oui. This feature effectively secures access to your space.
Video
The product Hikvision DS-2TD2137-35/PI has visual compression formats: H.264, H.265. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision DS-2TD2137-35/PI are 704 x 576,1280 x 720 (HD 720),352 x 288,384 x 288. These resolutions provide optimal display quality for your content. The maximum resolution of the product Hikvision DS-2TD2137-35/PI is 1280 x 720 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2TD2137-35/PI is - MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product Hikvision DS-2TD2137-35/PI is 25 ips. This specification ensures optimal smoothness when playing videos.
Security
The supported security algorithm of the product Hikvision DS-2TD2137-35/PI contains 802.1x RADIUS. This algorithm ensures optimal protection of your data. Does the product Hikvision DS-2TD2137-35/PI have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Hikvision DS-2TD2137-35/PI product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the Hikvision DS-2TD2137-35/PI have a temperature sensor? Oui. This sensor allows for accurate measurement of the ambient temperature to ensure optimal comfort. The alert notification type for the product Hikvision DS-2TD2137-35/PI is E-mail. This feature allows for real-time alerts for better security. The temperature range of the product Hikvision DS-2TD2137-35/PI is -20 - 150 °C. This feature ensures optimal use in varied conditions. The temperature measurement accuracy of the product Hikvision DS-2TD2137-35/PI is 8 °C. This feature ensures a reliable assessment of thermal conditions, essential for ensuring the safety and proper functioning of your equipment. The number of detectable fire points of the product Hikvision DS-2TD2137-35/PI is 10. This number ensures optimal protection against fire hazards. Does the product Hikvision DS-2TD2137-35/PI have Fire Detection? Oui. This feature ensures optimal safety by quickly detecting any source of heat or smoke.
Connectivity
Does the product Hikvision DS-2TD2137-35/PI have a terminal block port? Oui. This feature allows for a secure and reliable connection for your installations. Does the product Hikvision DS-2TD2137-35/PI have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD2137-35/PI is 1. These ports provide a stable and fast network connection for your devices.
Network
The Ethernet interface type of the product Hikvision DS-2TD2137-35/PI is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the product Hikvision DS-2TD2137-35/PI have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Hikvision DS-2TD2137-35/PI are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2TD2137-35/PI is 32 utilisateur(s). This product is ideal for several people. The user access level of the product Hikvision DS-2TD2137-35/PI contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user. Does the product Hikvision DS-2TD2137-35/PI have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of simultaneous live viewing channels for the product Hikvision DS-2TD2137-35/PI is 20 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. The Wifi of the product Hikvision DS-2TD2137-35/PI contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2TD2137-35/PI have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The network standards of the product Hikvision DS-2TD2137-35/PI are IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols.
Objective system
The minimum focusing distance of the product Hikvision DS-2TD2137-35/PI is 30 m. This feature allows for sharp images even at relatively far distances. The digital zoom of the product Hikvision DS-2TD2137-35/PI is 8 x. This zoom allows for capturing precise details even from a distance. The number of lenses in the product Hikvision DS-2TD2137-35/PI is -. This number determines the quality and versatility of the lens. Does the product Hikvision DS-2TD2137-35/PI have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The opening number of the product Hikvision DS-2TD2137-35/PI is 1. This opening number is essential for determining the thermal performance of the device. The product Hikvision DS-2TD2137-35/PI has a fixed focal length (thermal module) of 35 mm. This specification ensures optimal performance for precise and detailed shots.
Design
The format of the product Hikvision DS-2TD2137-35/PI is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2TD2137-35/PI is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The International Protection Code (IP) for product Hikvision DS-2TD2137-35/PI contains IP66. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2TD2137-35/PI is Blanc. This shade gives it a modern and elegant look.
Storage support
Does the Hikvision DS-2TD2137-35/PI have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2TD2137-35/PI have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2TD2137-35/PI has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2TD2137-35/PI is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Management features
The Hikvision DS-2TD2137-35/PI system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Power
The type of power source for the product Hikvision DS-2TD2137-35/PI is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The typical power consumption of the product Hikvision DS-2TD2137-35/PI is 5 W. This feature allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision DS-2TD2137-35/PI is 5.5 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Environmental conditions
The product Hikvision DS-2TD2137-35/PI has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Hikvision DS-2TD2137-35/PI is -40 - 65 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Hikvision DS-2TD2137-35/PI is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Image sensor
The effective pixel count (H x V) of the product Hikvision DS-2TD2137-35/PI is 384 x 288 pixels. This specification ensures accurate and detailed image quality. The sensor type of the product Hikvision DS-2TD2137-35/PI is -. This type of sensor ensures optimal image quality for your needs.
Night vision
Does the product Hikvision DS-2TD2137-35/PI have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
Weight and dimensions
The width of the product Hikvision DS-2TD2137-35/PI is 144.1 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Hikvision DS-2TD2137-35/PI is 2160 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Hikvision DS-2TD2137-35/PI is 353.9 mm. This dimension allows for optimal integration into your space. The height of the product Hikvision DS-2TD2137-35/PI is 156.6 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Packaging contents
The number of cameras of the product Hikvision DS-2TD2137-35/PI is 1. This product is equipped with a camera that allows capturing high-quality images.
Audio
The supported audio formats of the product Hikvision DS-2TD2137-35/PI are G.711 A-law, G.711 μ-law, MP2L2, G.722.1, G.726, PCM. These formats ensure optimal compatibility for an enriching listening experience.
Technical details
The output impedance of the Hikvision DS-2TD2137-35/PI is 600 Ohm. This feature is essential to ensure optimal audio quality and compatibility with various equipment.
Other features
The browser support for the product Hikvision DS-2TD2137-35/PI includes IE 11, Chrome 41-44, Firefox 30-51. This feature ensures an optimal user experience on compatible platforms.
Camera
The pixel size of the Hikvision DS-2TD2137-35/PI camera is 17 µm. An optimal pixel size allows for capturing high-quality images, even in low-light conditions. The product Hikvision DS-2TD2137-35/PI has a field of view (FOV) angle (thermal module) of 10.7 x 8 °. This angle allows for precise and effective visualization of the monitored areas. The response wavelength range of the product Hikvision DS-2TD2137-35/PI is 8 - 14 µm. This specification is essential for determining the camera's sensitivity to different wavelengths.
