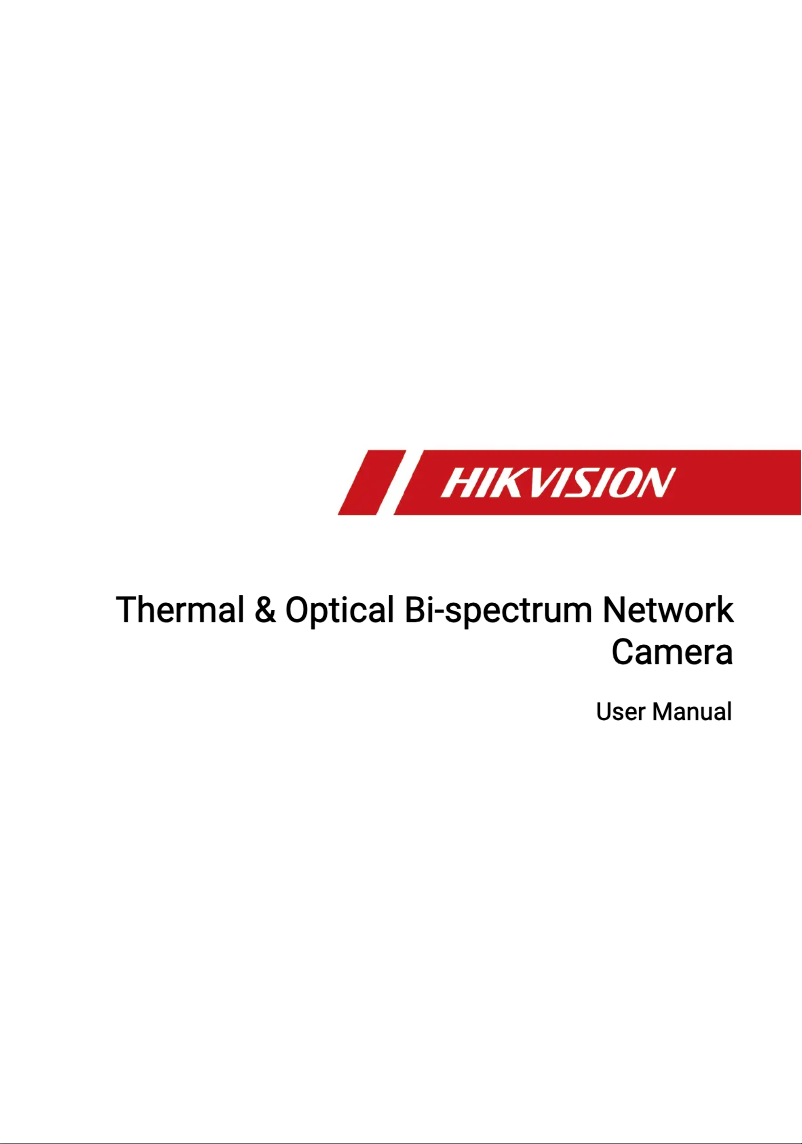

Manuals of product DS-2TD2528T-7/Q
Technical Specifications DS-2TD2528T-7/Q
General Information
-
ModelDS-2TD2528T-7/Q
-
Brand
-
Category
-
Type
-
SKU1843899
-
MPN1843899
Representation / realization
-
TypeIP security camera
-
Thermal sensitivity (NETD)40 mK
-
IFOV (spatial resolution)1.71 mRad
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Number of languages1
-
Languages taken into accountEnglish
-
Dynamic range120 dB
-
CertificationCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
-
RCM (AS/NZS CISPR 32: 2015);
-
IC (ICES-003: Issue 7)
-
CB: IEC 62368-1: 2014+A11;
-
CE-LVD: EN 62368-1: 2014/A11: 2017;
-
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
Image sensor
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.7 "
-
Effective sensor resolution (thermal module)256 x 192 pixels
Camera
-
Field of view of the lens, horizontal24.9 °
-
Angle of view of the lens, vertical18.7 °
-
Camera pixel size12 µm
-
Response waveband8 - 14 µm
-
Minimum illumination0.05 lux
-
Camera shutter speed1 - 1/100000 s
Objective system
-
Number of lenses-
-
Fixed focal length (thermal module)7 mm
-
Opening number (thermal model)1
-
Maximum number of openings1.6
-
Fixed Focal Length4 mm
Network
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Ethernet/LANYes
-
Number of simultaneous live viewing channels20 channels
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Connectivity
-
Component output1
-
Component output1
Security
-
Alarm output channels2
-
Alarm output channels2
-
Temperature range-20 - 550 °C
-
Temperature measurement accuracy2 °C
-
Security-supported algorithmHTTPS
Design
-
FormatTerminal
-
Mounting typeWall
-
Product colorSilver
-
International Protection Code (IP)IP68
Power
-
Power supply typeAC, PoE
-
AC input voltage100/240 V
-
Energy consumption (Power over Ethernet (PoE))8 W
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Width150.1 mm
-
Depth286.7 mm
-
Height175.2 mm
-
Weight6100 g
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels- MP
-
Visual compression formatsH.265+, H.264, H.264+, M-JPEG, H.265
-
Supported graphic resolutions704 x 576, 1280 x 720 (HD 720), 320 x 240, 352 x 288, 352 x 240, 384 x 288, 2688 x 1520, 640 x 512, 1920 x 1080 (HD 1080)
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Audio
-
Supported audio formatsG.711 μ-law
-
G.722
-
G.722.1
-
MP2L2
-
G.726
-
PCM
-
G.711 A-law
