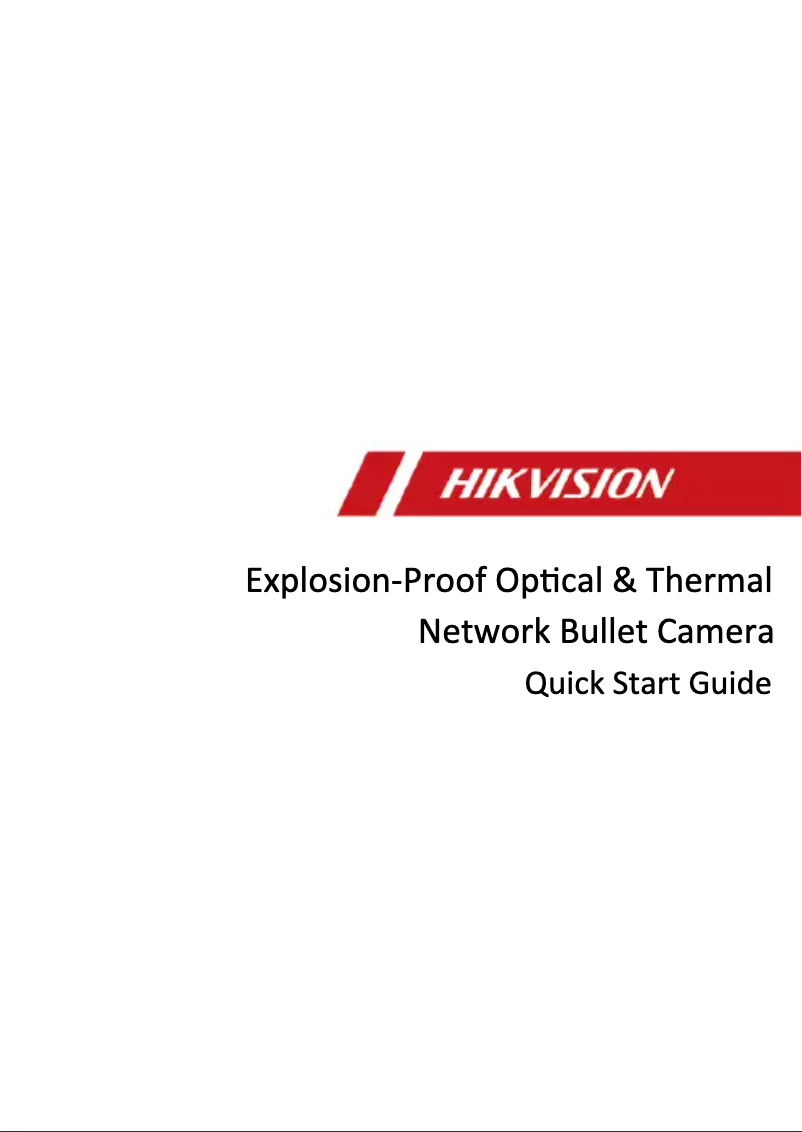

Manuals of product DS-2TD2537T-10/Q
Technical Specifications DS-2TD2537T-10/Q
General Information
-
ModelDS-2TD2537T-10/Q
-
Brand
-
Category
-
Type
-
SKU1843858
-
MPN1843858
Representation / realization
-
TypeIP security camera
-
IFOV (spatial resolution)1.75 mRad
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Number of languages1
-
Languages taken into accountEnglish
-
Thermal sensitivity (NETD)35 mK
-
Dynamic range120 dB
-
CertificationCE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);
-
RCM (AS/NZS CISPR 32: 2015);
-
IC (ICES-003: Issue 7)
-
CB: IEC 62368-1: 2014+A11;
-
CE-LVD: EN 62368-1: 2014/A11: 2017;
-
BIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005
Image sensor
-
Effective sensor resolution (thermal module)384 x 288 pixels
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.7 "
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
Objective system
-
Number of lenses-
-
Fixed focal length (thermal module)9.7 mm
-
Maximum number of openings1.6
-
Fixed Focal Length4 mm
-
Opening number (thermal model)1
Camera
-
Field of view of the lens, horizontal37.9 °
-
Angle of view of the lens, vertical28.7 °
-
Minimum illumination0.05 lux
-
Camera pixel size17 µm
-
Response waveband8 - 14 µm
-
Camera shutter speed1 - 1/100000 s
Network
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Ethernet/LANYes
-
Number of simultaneous live viewing channels20 channels
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsNo
-
IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
Storage support
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Connectivity
-
Component output1
-
Component output1
Design
-
FormatTerminal
-
Mounting typeWall
-
Product colorSilver
-
International Protection Code (IP)IP68
Security
-
Alarm output channels2
-
Alarm output channels2
-
Temperature range-20 - 550 °C
-
Temperature measurement accuracy2 °C
-
Security-supported algorithmHTTPS
Power
-
Power supply typeAC, PoE
-
Energy consumption (Power over Ethernet (PoE))8 W
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Operating relative humidity (H-H)0 - 90 %
Weight and dimensions
-
Width150.1 mm
-
Depth286.7 mm
-
Height175.2 mm
-
Weight6100 g
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels- MP
-
Visual compression formatsH.265+, H.264, H.264+, M-JPEG, H.265
-
Supported graphic resolutions704 x 576, 1280 x 720 (HD 720), 320 x 240, 352 x 288, 352 x 240, 384 x 288, 2688 x 1520, 640 x 512, 1920 x 1080 (HD 1080)
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Audio
-
Supported audio formatsG.711 μ-law
-
G.722
-
G.722.1
-
MP2L2
-
G.726
-
PCM
-
G.711 A-law
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD2537T-10/Q specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2TD2537T-10/Q is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2TD2537T-10/Q is 6931847158361. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2TD2537T-10/Q is DS-2TD2537T-10/Q | DS-2TD2537T-10/Q. This model ensures optimal performance and an enhanced user experience.
Objective system
The number of lenses in the product Hikvision DS-2TD2537T-10/Q is -. This number determines the quality and versatility of the lens. The product Hikvision DS-2TD2537T-10/Q has a fixed focal length (thermal module) of 9.7 mm. This specification ensures optimal performance for precise and detailed shots. The maximum number of openings for the product Hikvision DS-2TD2537T-10/Q is 1.6. This feature allows for optimal use and increased flexibility. The product goal system Hikvision DS-2TD2537T-10/Q has a fixed focal length of 4 mm. This feature allows for images with great sharpness and exceptional quality. The opening number of the product Hikvision DS-2TD2537T-10/Q is 1. This opening number is essential for determining the thermal performance of the device.
Image sensor
The effective resolution of the sensor (thermal module) of the product Hikvision DS-2TD2537T-10/Q is 384 x 288 pixels. This specification ensures accurate and reliable detection of temperature variations. The sensor type of the product Hikvision DS-2TD2537T-10/Q is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2TD2537T-10/Q is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2TD2537T-10/Q is 1. This number of sensors allows for precise and efficient image detection. The image detector of the product Hikvision DS-2TD2537T-10/Q contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection.
Representation / realization
The type of product Hikvision DS-2TD2537T-10/Q is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The spatial resolution of the Hikvision DS-2TD2537T-10/Q product is 1.75 mRad. This resolution allows for optimal image clarity for detailed analysis. The design of the product Hikvision DS-2TD2537T-10/Q supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2TD2537T-10/Q features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2TD2537T-10/Q have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2TD2537T-10/Q have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The number of languages of the product Hikvision DS-2TD2537T-10/Q is 1. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2TD2537T-10/Q are Anglais. This product thus caters to a wide international audience. The certification of the product Hikvision DS-2TD2537T-10/Q contains CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN50130-4: 2011+A1: 2014);\n\nRCM (AS/NZS CISPR 32: 2015);\n\nIC (ICES-003: Issue 7)\nCB: IEC 62368-1: 2014+A11;\n\nCE-LVD: EN 62368-1: 2014/A11: 2017;\n\nBIS: IS 13252 (Part 1): 2010/ IEC 60950-1: 2005. This certification guarantees compliance with the required safety and performance standards. The product Hikvision DS-2TD2537T-10/Q has a thermal sensitivity (NETD) of 35 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. The dynamic range of the product Hikvision DS-2TD2537T-10/Q is 120 dB. This feature allows for precise and nuanced sound reproduction, ideal for fully enjoying your favorite tracks.
Storage support
Does the Hikvision DS-2TD2537T-10/Q have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision DS-2TD2537T-10/Q is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2TD2537T-10/Q has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Camera
The field of view of the Hikvision DS-2TD2537T-10/Q lens is 37.9 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2TD2537T-10/Q is 28.7 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The minimum illumination of the product Hikvision DS-2TD2537T-10/Q is 0.05 lux. This feature ensures optimal performance even in low light conditions. The pixel size of the Hikvision DS-2TD2537T-10/Q camera is 17 µm. An optimal pixel size allows for capturing high-quality images, even in low-light conditions. The response wavelength range of the product Hikvision DS-2TD2537T-10/Q is 8 - 14 µm. This specification is essential for determining the camera's sensitivity to different wavelengths. The shutter speed of the camera of the product Hikvision DS-2TD2537T-10/Q is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions.
Network
The number of users of the product Hikvision DS-2TD2537T-10/Q is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2TD2537T-10/Q have a live view? Oui. This feature allows you to see in real-time what the camera captures. The number of simultaneous live viewing channels for the product Hikvision DS-2TD2537T-10/Q is 20 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. The user access level of the product Hikvision DS-2TD2537T-10/Q contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user. Does the product Hikvision DS-2TD2537T-10/Q have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2TD2537T-10/Q contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2TD2537T-10/Q have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The supported network protocols of the product Hikvision DS-2TD2537T-10/Q are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD2537T-10/Q is 1. These ports provide a stable and fast network connection for your devices. The output component of the product Hikvision DS-2TD2537T-10/Q contains 1. This specification ensures optimal connectivity for efficient use.
Design
The International Protection Code (IP) for product Hikvision DS-2TD2537T-10/Q contains IP68. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Hikvision DS-2TD2537T-10/Q is Mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2TD2537T-10/Q is Argent. This shade gives it a modern and elegant look. The format of the product Hikvision DS-2TD2537T-10/Q is a bar. This format allows for practical and efficient use in various contexts.
Security
The alarm output channel of the product Hikvision DS-2TD2537T-10/Q contains 2. This channel allows for the effective reporting of any alerts or important events. The alarm input channel of the product Hikvision DS-2TD2537T-10/Q contains 2. This channel allows for efficient integration of security systems. The temperature range of the product Hikvision DS-2TD2537T-10/Q is -20 - 550 °C. This feature ensures optimal use in varied conditions. The temperature measurement accuracy of the product Hikvision DS-2TD2537T-10/Q is 2 °C. This feature ensures a reliable assessment of thermal conditions, essential for ensuring the safety and proper functioning of your equipment. The supported security algorithm of the product Hikvision DS-2TD2537T-10/Q contains HTTPS. This algorithm ensures optimal protection of your data.
Power
The type of power source for the product Hikvision DS-2TD2537T-10/Q is AC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The energy consumption of the product Hikvision DS-2TD2537T-10/Q is 8 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed.
Environmental conditions
The product Hikvision DS-2TD2537T-10/Q has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2TD2537T-10/Q is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Packaging contents
The number of cameras of the product Hikvision DS-2TD2537T-10/Q is 1. This product is equipped with a camera that allows capturing high-quality images.
Weight and dimensions
The width of the product Hikvision DS-2TD2537T-10/Q is 150.1 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Hikvision DS-2TD2537T-10/Q is 286.7 mm. This dimension allows for optimal integration into your space. The height of the product Hikvision DS-2TD2537T-10/Q is 175.2 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product Hikvision DS-2TD2537T-10/Q is 6100 g. This weight is ideal for ensuring optimal use and easy handling.
Night vision
Does the product Hikvision DS-2TD2537T-10/Q have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2TD2537T-10/Q is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2TD2537T-10/Q is 30 m. This feature allows for clear and precise observation even in darkness.
Audio
The supported audio formats of the product Hikvision DS-2TD2537T-10/Q are G.711 μ-law, G.722, G.722.1, MP2L2, G.726, PCM, G.711 A-law. These formats ensure optimal compatibility for an enriching listening experience.
Video
The product Hikvision DS-2TD2537T-10/Q has visual compression formats: H.265+, H.264, H.264+, M-JPEG, H.265. These formats ensure optimal image quality for your videos. The maximum resolution of the product Hikvision DS-2TD2537T-10/Q is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2TD2537T-10/Q are 704 x 576,1280 x 720 (HD 720),320 x 240,352 x 288,352 x 240,384 x 288,2688 x 1520,640 x 512,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The total megapixels of the product Hikvision DS-2TD2537T-10/Q is - MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2TD2537T-10/Q have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2TD2537T-10/Q features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience.
