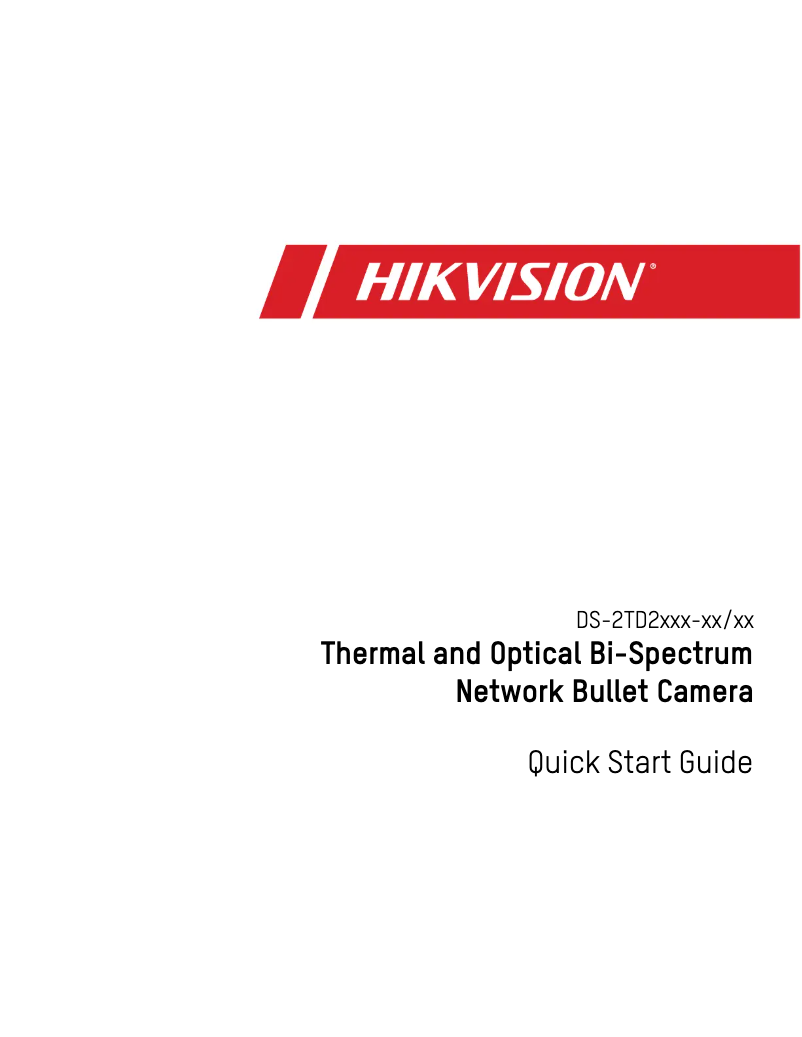

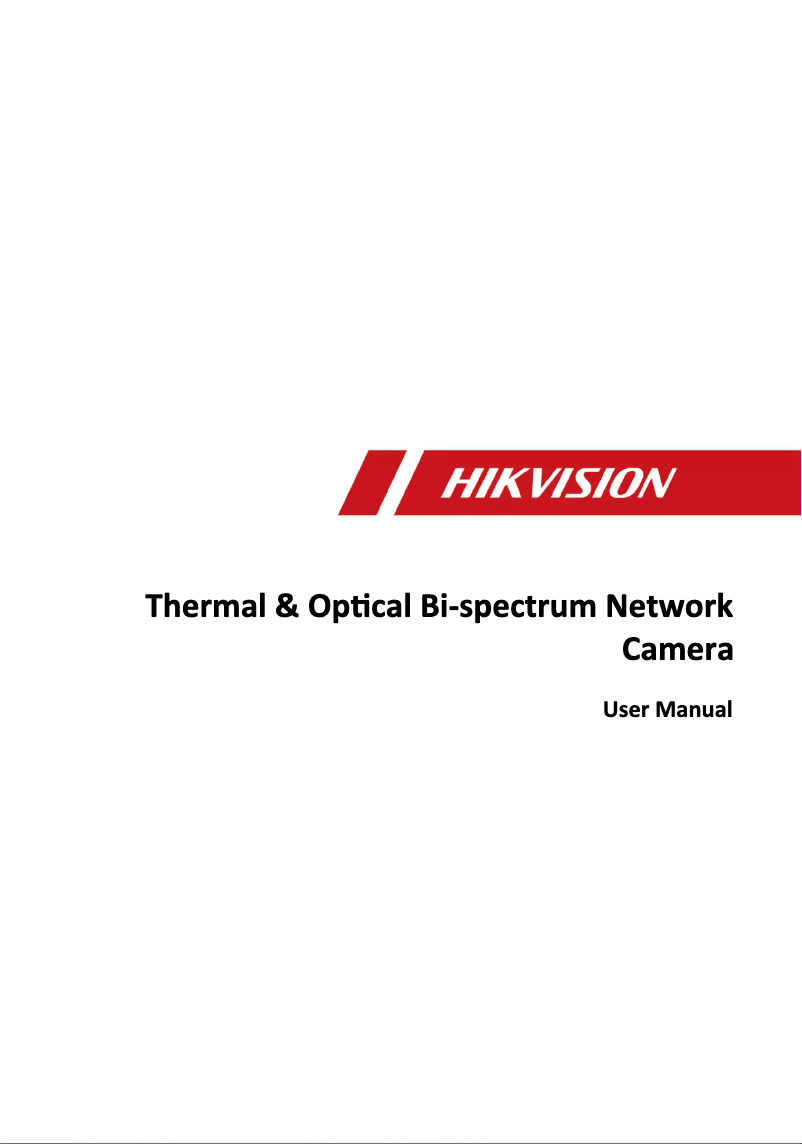

Manuals of product DS-2TD2617-3/PA
Technical Specifications DS-2TD2617-3/PA
General Information
-
ModelDS-2TD2617-3/PA
-
Brand
-
Category
-
Type
-
SKU1575689
-
MPN1575689
Representation / realization
-
Day/Night ModeYes
-
Thermal sensitivity (NETD)40 mK
-
IFOV (spatial resolution)5.48 mRad
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Day/Night ModeYes
-
Number of languages32
Camera
-
Field of View (FOV) angle (thermal module)50 x 37.2 °
-
Minimum illumination0.0018 lux
-
Camera shutter speed1 - 1/100000 s
Image sensor
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)160 x 120 pixels
-
Number of sensors1
-
Optical sensor size1/2.7 "
-
Sensor typeCMOS
-
Progressive scanYes
Objective system
-
Fixed focal length (thermal module)3.1 mm
-
Opening number (thermal model)1.1
-
Number of lenses1
-
Fixed Focal Length4 mm
-
Maximum number of openings1.6
Video
-
Total megapixels- MP
-
Maximum resolution2688 x 1520 pixels
-
Number of images per second30 ips
-
Supported graphic resolutions176 x 120, 176 x 144, 320 x 240, 352 x 240, 352 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
-
Visual compression formatsH.264, H.265, M-JPEG
-
Video broadcastingYes
Packaging contents
-
Number of cameras1
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Security
-
Filtering IP addressesYes
-
Temperature range-20 - 150 °C
-
Temperature measurement accuracy8 °C
-
Security-supported algorithmEAP-MD5, EAP-TLS
-
Filtering IP addressesYes
-
Filtering IP addressesYes
Night vision
-
Night visionYes
-
Night vision distance40 m
-
Type of LEDIR
Audio
-
Voice codecsG.711a
-
Audio output channelsG.711u
-
Audio output channelsG.722.1
-
G.726
-
MP2L2
-
PCM
-
1 channels
-
1 channels
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-
Number of users32 user(s)
-
Quality of Service (QoS)Yes
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x, IEEE 802.3af
Connectivity
-
RS-485 ports1
-
RS-485 ports1
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Power
-
Power supply typeDC, PoE
-
Output CC in volts12
-
Consumption (max)7.5 W
-
Energy consumption (Power over Ethernet (PoE))8 W
Weight and dimensions
-
Product length358.3 mm
-
Width113.5 mm
-
Depth115.2 mm
-
Weight1760 g
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Design
-
International Protection Code (IP)IP66
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD2617-3/PA specifications from brand Hikvision
Generalities
The product model Hikvision DS-2TD2617-3/PA is DS-2TD2617-3/PA | DS-2TD2617-3/PA(O-STD). This model ensures optimal performance and an enhanced user experience. The brand of the product Hikvision DS-2TD2617-3/PA is Hikvision. This brand is known for its quality and innovation in the field of household appliances.
Image sensor
The optical sensor size of the product Hikvision DS-2TD2617-3/PA is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The image detector of the product Hikvision DS-2TD2617-3/PA contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection. The effective resolution of the sensor (thermal module) of the product Hikvision DS-2TD2617-3/PA is 160 x 120 pixels. This specification ensures accurate and reliable detection of temperature variations. The number of sensors of the product Hikvision DS-2TD2617-3/PA is 1. This number of sensors allows for precise and efficient image detection. The sensor type of the product Hikvision DS-2TD2617-3/PA is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hikvision DS-2TD2617-3/PA have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Camera
The product Hikvision DS-2TD2617-3/PA has a field of view (FOV) angle (thermal module) of 50 x 37.2 °. This angle allows for precise and effective visualization of the monitored areas. The minimum illumination of the product Hikvision DS-2TD2617-3/PA is 0.0018 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision DS-2TD2617-3/PA is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions.
Objective system
The opening number of the product Hikvision DS-2TD2617-3/PA is 1.1. This opening number is essential for determining the thermal performance of the device. The product Hikvision DS-2TD2617-3/PA has a fixed focal length (thermal module) of 3.1 mm. This specification ensures optimal performance for precise and detailed shots. The product goal system Hikvision DS-2TD2617-3/PA has a fixed focal length of 4 mm. This feature allows for images with great sharpness and exceptional quality. The number of lenses in the product Hikvision DS-2TD2617-3/PA is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2TD2617-3/PA is 1.6. This feature allows for optimal use and increased flexibility.
Representation / realization
Does the product Hikvision DS-2TD2617-3/PA have a thermal module? Oui. This module ensures optimal temperature management for efficient operation. The product Hikvision DS-2TD2617-3/PA has a thermal sensitivity (NETD) of 40 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. The type of product Hikvision DS-2TD2617-3/PA is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The spatial resolution of the Hikvision DS-2TD2617-3/PA product is 5.48 mRad. This resolution allows for optimal image clarity for detailed analysis. The design of the product Hikvision DS-2TD2617-3/PA supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2TD2617-3/PA features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. Does the product Hikvision DS-2TD2617-3/PA have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2TD2617-3/PA have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2TD2617-3/PA have an entry/end Alarm? Oui. This feature effectively secures access to your space. The number of languages of the product Hikvision DS-2TD2617-3/PA is 32. This product offers an enriching multilingual experience.
Video
The maximum resolution of the product Hikvision DS-2TD2617-3/PA is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2TD2617-3/PA is - MP. This total ensures exceptional image quality for your photos. The number of frames per second of the product Hikvision DS-2TD2617-3/PA is 30 ips. This specification ensures optimal smoothness when playing videos. The supported graphic resolutions of the product Hikvision DS-2TD2617-3/PA are 176 x 120,176 x 144,320 x 240,352 x 240,352 x 288,704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520. These resolutions provide optimal display quality for your content. The product Hikvision DS-2TD2617-3/PA has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision DS-2TD2617-3/PA have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Packaging contents
The number of cameras of the product Hikvision DS-2TD2617-3/PA is 1. This product is equipped with a camera that allows capturing high-quality images.
Management features
The Hikvision DS-2TD2617-3/PA system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Security
The temperature range of the product Hikvision DS-2TD2617-3/PA is -20 - 150 °C. This feature ensures optimal use in varied conditions. Does the Hikvision DS-2TD2617-3/PA have a temperature sensor? Oui. This sensor allows for accurate measurement of the ambient temperature to ensure optimal comfort. The supported security algorithm of the product Hikvision DS-2TD2617-3/PA contains EAP-MD5, EAP-TLS. This algorithm ensures optimal protection of your data. The temperature measurement accuracy of the product Hikvision DS-2TD2617-3/PA is 8 °C. This feature ensures a reliable assessment of thermal conditions, essential for ensuring the safety and proper functioning of your equipment. Does the product Hikvision DS-2TD2617-3/PA have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Hikvision DS-2TD2617-3/PA product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Night vision
Does the product Hikvision DS-2TD2617-3/PA have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2TD2617-3/PA is 40 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2TD2617-3/PA is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Audio
The number of audio input channels of the product Hikvision DS-2TD2617-3/PA is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The voice codec of the Hikvision DS-2TD2617-3/PA product contains G.711a, G.711u, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications. The audio output channels of the Hikvision DS-2TD2617-3/PA are 1 canaux. This specification allows for an immersive and high-quality sound experience.
Connectivity
The RS-485 port of the Hikvision DS-2TD2617-3/PA contains 1. This port allows for robust serial communication and is ideal for industrial applications. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD2617-3/PA is 1. These ports provide a stable and fast network connection for your devices.
Network
Does the product Hikvision DS-2TD2617-3/PA have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Hikvision DS-2TD2617-3/PA have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Hikvision DS-2TD2617-3/PA contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product Hikvision DS-2TD2617-3/PA are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2TD2617-3/PA is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2TD2617-3/PA have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Ethernet interface type of the product Hikvision DS-2TD2617-3/PA is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision DS-2TD2617-3/PA are IEEE 802.1x, IEEE 802.3af. These standards ensure optimal compatibility with various equipment and protocols.
Storage support
The maximum size of the memory card for the product Hikvision DS-2TD2617-3/PA is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2TD2617-3/PA has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2TD2617-3/PA have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2TD2617-3/PA have a built-in hard drive? No. This feature means that the product does not have internal storage.
Power
The product Hikvision DS-2TD2617-3/PA has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision DS-2TD2617-3/PA is 7.5 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision DS-2TD2617-3/PA is 8 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The type of power source for the product Hikvision DS-2TD2617-3/PA is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Weight and dimensions
The width of the product Hikvision DS-2TD2617-3/PA is 113.5 mm. This dimension is essential to ensure optimal integration into your space. The length of the product Hikvision DS-2TD2617-3/PA is 358.3 mm. This dimension is essential to ensure optimal use. The depth of the product Hikvision DS-2TD2617-3/PA is 115.2 mm. This dimension allows for optimal integration into your space. The weight of the product Hikvision DS-2TD2617-3/PA is 1760 g. This weight is ideal for ensuring optimal use and easy handling.
Environmental conditions
The operating temperature of the product Hikvision DS-2TD2617-3/PA is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2TD2617-3/PA has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Design
The mounting type of the product Hikvision DS-2TD2617-3/PA is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2TD2617-3/PA is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2TD2617-3/PA is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2TD2617-3/PA contains IP66. This code indicates the level of protection against solid objects and moisture.
