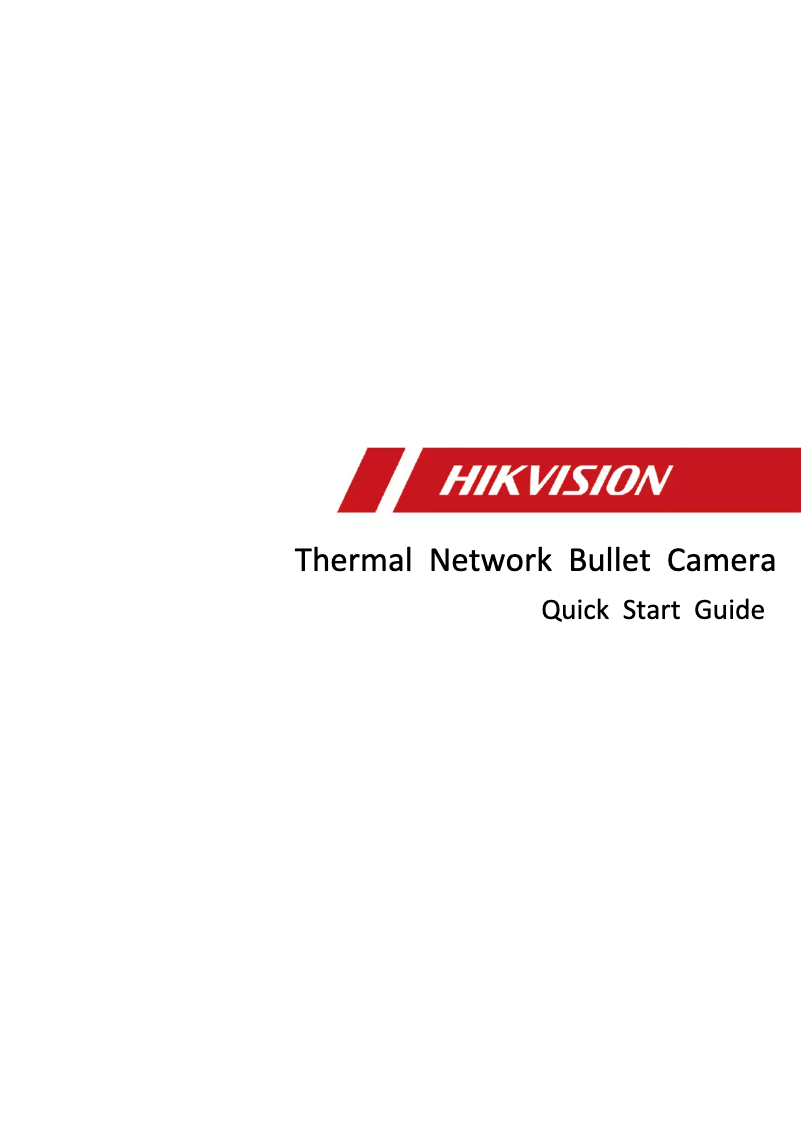

Manuals of product DS-2TD2637T-15/QY
Technical Specifications DS-2TD2637T-15/QY
General Information
-
ModelDS-2TD2637T-15/QY
-
Brand
-
Category
-
Type
-
SKU1843840
-
MPN1843840
Representation / realization
-
TypeIP security camera
-
IFOV (spatial resolution)1.13 mRad
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Number of languages32
-
Languages taken into accountMulti
-
Thermal sensitivity (NETD)35 mK
-
Dynamic range120 dB
Objective system
-
Fixed focal length (thermal module)15 mm
-
Infrared spectrum band8 - 14 µm
-
Number of lenses1
-
Minimum focusing distance2.5 m
-
Fixed Focal Length6 mm
-
Maximum number of openings1.6
-
Number of lenses1
-
Zoom capacityYes
-
Digital zoom4 x
Camera
-
Field of View (FOV) angle (thermal module)24.5 x 18.5 °
-
Field of view of the lens, horizontal51.7 °
-
Angle of view of the lens, vertical28 °
-
Minimum illumination0 lux
-
White balanceFluorescent, Incandescent, MWB
-
Camera pixel size17 µm
-
Camera shutter speed1 - 1/100000 s
Network
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Ethernet/LANYes
-
Ethernet/LANYes
-
Number of simultaneous live viewing channels20 channels
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP
-
Client interoperabilityiVMS-4200, Hik-Connect
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Connectivity
-
BNC output ports1
-
BNC output ports1
-
BNC output ports1
-
Microphone jack inputYes
Security
-
Alarm output channels2
-
Alarm output channels2
-
Automatic Network Replenishment (ANR)Yes
-
Temperature range-20 - 550 °C
-
Temperature measurement accuracy2 °C
-
Automatic Network Replenishment (ANR)Yes
-
Automatic Network Replenishment (ANR)Yes
-
Security-supported algorithm802.1x RADIUS
-
Automatic Network Replenishment (ANR)Yes
-
Automatic Network Replenishment (ANR)Yes
Design
-
FormatTerminal
-
Mounting typeCeiling/wall
-
Product colorWhite
-
International Protection Code (IP)IP67
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.7 "
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)384 x 288 pixels
-
Progressive scanYes
Power
-
Power supply typeAC, DC, PoE
-
AC input voltage24 V
-
Consumption (max)9.5 W
-
Energy consumption (Power over Ethernet (PoE))10 W
-
Output CC in volts12, 24
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Weight and dimensions
-
Width376.1 mm
-
Depth119.1 mm
-
Height118.1 mm
-
Weight1820 g
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Night vision distance40 m
-
Type of LEDIR
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Supported graphic resolutions352 x 288, 384 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2688 x 1520
-
Noise reductionYes
-
Number of images per second30 fps
-
Noise reductionYes
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Audio
-
Audio input channels1 channels
-
Supported audio formatsG.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD2637T-15/QY specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2TD2637T-15/QY is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2TD2637T-15/QY is 6931847160272. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2TD2637T-15/QY is DS-2TD2637T-15/QY | DS-2TD2637T-15/QY. This model ensures optimal performance and an enhanced user experience.
Camera
The product Hikvision DS-2TD2637T-15/QY has a field of view (FOV) angle (thermal module) of 24.5 x 18.5 °. This angle allows for precise and effective visualization of the monitored areas. The vertical field of view of the product Hikvision DS-2TD2637T-15/QY is 28 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The field of view of the Hikvision DS-2TD2637T-15/QY lens is 51.7 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The minimum illumination of the product Hikvision DS-2TD2637T-15/QY is 0 lux. This feature ensures optimal performance even in low light conditions. The white balance of the product Hikvision DS-2TD2637T-15/QY consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The pixel size of the Hikvision DS-2TD2637T-15/QY camera is 17 µm. An optimal pixel size allows for capturing high-quality images, even in low-light conditions. The shutter speed of the camera of the product Hikvision DS-2TD2637T-15/QY is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions.
Representation / realization
The spatial resolution of the Hikvision DS-2TD2637T-15/QY product is 1.13 mRad. This resolution allows for optimal image clarity for detailed analysis. The type of product Hikvision DS-2TD2637T-15/QY is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The product Hikvision DS-2TD2637T-15/QY features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hikvision DS-2TD2637T-15/QY supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision DS-2TD2637T-15/QY have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2TD2637T-15/QY have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2TD2637T-15/QY have an entry/end Alarm? Oui. This feature effectively secures access to your space. The number of languages of the product Hikvision DS-2TD2637T-15/QY is 32. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2TD2637T-15/QY are Multi. This product thus caters to a wide international audience. The product Hikvision DS-2TD2637T-15/QY has a thermal sensitivity (NETD) of 35 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. The dynamic range of the product Hikvision DS-2TD2637T-15/QY is 120 dB. This feature allows for precise and nuanced sound reproduction, ideal for fully enjoying your favorite tracks.
Objective system
The product Hikvision DS-2TD2637T-15/QY has a fixed focal length (thermal module) of 15 mm. This specification ensures optimal performance for precise and detailed shots. The infrared spectrum band of the product Hikvision DS-2TD2637T-15/QY is 8 - 14 µm. This band allows for precise analysis of wavelengths in the infrared range. The minimum focusing distance of the product Hikvision DS-2TD2637T-15/QY is 2.5 m. This feature allows for sharp images even at relatively far distances. The opening number of the product Hikvision DS-2TD2637T-15/QY is 1. This opening number is essential for determining the thermal performance of the device. The product goal system Hikvision DS-2TD2637T-15/QY has a fixed focal length of 6 mm. This feature allows for images with great sharpness and exceptional quality. The maximum number of openings for the product Hikvision DS-2TD2637T-15/QY is 1.6. This feature allows for optimal use and increased flexibility. The number of lenses in the product Hikvision DS-2TD2637T-15/QY is 1. This number determines the quality and versatility of the lens. The digital zoom of the product Hikvision DS-2TD2637T-15/QY is 4 x. This zoom allows for capturing precise details even from a distance. Does the product Hikvision DS-2TD2637T-15/QY have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance.
Storage support
The maximum size of the memory card for the product Hikvision DS-2TD2637T-15/QY is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2TD2637T-15/QY has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2TD2637T-15/QY have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2TD2637T-15/QY have a built-in hard drive? No. This feature means that the product does not have internal storage.
Connectivity
Does the product Hikvision DS-2TD2637T-15/QY have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The product Hikvision DS-2TD2637T-15/QY has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment. The RS-485 port of the Hikvision DS-2TD2637T-15/QY contains 1. This port allows for robust serial communication and is ideal for industrial applications. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD2637T-15/QY is 1. These ports provide a stable and fast network connection for your devices.
Design
The International Protection Code (IP) for product Hikvision DS-2TD2637T-15/QY contains IP67. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2TD2637T-15/QY is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2TD2637T-15/QY is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The format of the product Hikvision DS-2TD2637T-15/QY is a bar. This format allows for practical and efficient use in various contexts.
Network
The number of users of the product Hikvision DS-2TD2637T-15/QY is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2TD2637T-15/QY have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. Does the product Hikvision DS-2TD2637T-15/QY have a live view? Oui. This feature allows you to see in real-time what the camera captures. The user access level of the product Hikvision DS-2TD2637T-15/QY contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user. The number of simultaneous live viewing channels for the product Hikvision DS-2TD2637T-15/QY is 20 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. Does the product Hikvision DS-2TD2637T-15/QY have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2TD2637T-15/QY contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision DS-2TD2637T-15/QY have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2TD2637T-15/QY is Fast Ethernet. This type of interface allows for fast and efficient network connections. The supported network protocols of the product Hikvision DS-2TD2637T-15/QY are IPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, TP, Bonjour, SFTP, SRTP. These protocols ensure efficient and reliable communication for your networking needs. The product Hikvision DS-2TD2637T-15/QY has client interoperability iVMS-4200, Hik-Connect, thus ensuring optimal compatibility with various systems and protocols.
Management features
The Hikvision DS-2TD2637T-15/QY system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Image sensor
The sensor type of the product Hikvision DS-2TD2637T-15/QY is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2TD2637T-15/QY is 1/2.7 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The image detector of the product Hikvision DS-2TD2637T-15/QY contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection. The effective resolution of the sensor (thermal module) of the product Hikvision DS-2TD2637T-15/QY is 384 x 288 pixels. This specification ensures accurate and reliable detection of temperature variations. Does the product Hikvision DS-2TD2637T-15/QY have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Power
The type of power source for the product Hikvision DS-2TD2637T-15/QY is AC, DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The AC input voltage of the Hikvision DS-2TD2637T-15/QY is 24 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption of the product Hikvision DS-2TD2637T-15/QY is 10 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The maximum consumption of the product Hikvision DS-2TD2637T-15/QY is 9.5 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2TD2637T-15/QY has a DC output in volts of 12, 24. This specification ensures a stable power supply suitable for the needs of your electronic devices.
Security
Does the Hikvision DS-2TD2637T-15/QY have a temperature sensor? Oui. This sensor allows for accurate measurement of the ambient temperature to ensure optimal comfort. The alarm output channel of the product Hikvision DS-2TD2637T-15/QY contains 2. This channel allows for the effective reporting of any alerts or important events. The temperature range of the product Hikvision DS-2TD2637T-15/QY is -20 - 550 °C. This feature ensures optimal use in varied conditions. The alarm input channel of the product Hikvision DS-2TD2637T-15/QY contains 2. This channel allows for efficient integration of security systems. The temperature measurement accuracy of the product Hikvision DS-2TD2637T-15/QY is 2 °C. This feature ensures a reliable assessment of thermal conditions, essential for ensuring the safety and proper functioning of your equipment. Does the product Hikvision DS-2TD2637T-15/QY have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the Hikvision DS-2TD2637T-15/QY product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The supported security algorithm of the product Hikvision DS-2TD2637T-15/QY contains 802.1x RADIUS. This algorithm ensures optimal protection of your data. Does the product Hikvision DS-2TD2637T-15/QY have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the product Hikvision DS-2TD2637T-15/QY have Automatic Network Replenishment (ANR)? Oui. This feature ensures proactive and secure management of network resources.
Environmental conditions
The operating temperature of the product Hikvision DS-2TD2637T-15/QY is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2TD2637T-15/QY has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging contents
The number of cameras of the product Hikvision DS-2TD2637T-15/QY is 1. This product is equipped with a camera that allows capturing high-quality images.
Night vision
Does the product Hikvision DS-2TD2637T-15/QY have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2TD2637T-15/QY is 40 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2TD2637T-15/QY is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Weight and dimensions
The weight of the product Hikvision DS-2TD2637T-15/QY is 1820 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Hikvision DS-2TD2637T-15/QY is 119.1 mm. This dimension allows for optimal integration into your space. The height of the product Hikvision DS-2TD2637T-15/QY is 118.1 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Hikvision DS-2TD2637T-15/QY is 376.1 mm. This dimension is essential to ensure optimal integration into your space.
Audio
The number of audio input channels of the product Hikvision DS-2TD2637T-15/QY is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The supported audio formats of the product Hikvision DS-2TD2637T-15/QY are G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM. These formats ensure optimal compatibility for an enriching listening experience.
Video
The maximum resolution of the product Hikvision DS-2TD2637T-15/QY is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2TD2637T-15/QY are 352 x 288,384 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2688 x 1520. These resolutions provide optimal display quality for your content. The product Hikvision DS-2TD2637T-15/QY has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The total megapixels of the product Hikvision DS-2TD2637T-15/QY is 4 MP. This total ensures exceptional image quality for your photos. Does the product Hikvision DS-2TD2637T-15/QY have a Video Recording? Oui. This feature allows you to capture moving moments with optimal quality. The number of frames per second of the product Hikvision DS-2TD2637T-15/QY is 30 ips. This specification ensures optimal smoothness when playing videos. Does the product Hikvision DS-2TD2637T-15/QY have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2TD2637T-15/QY have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The product Hikvision DS-2TD2637T-15/QY features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience.
