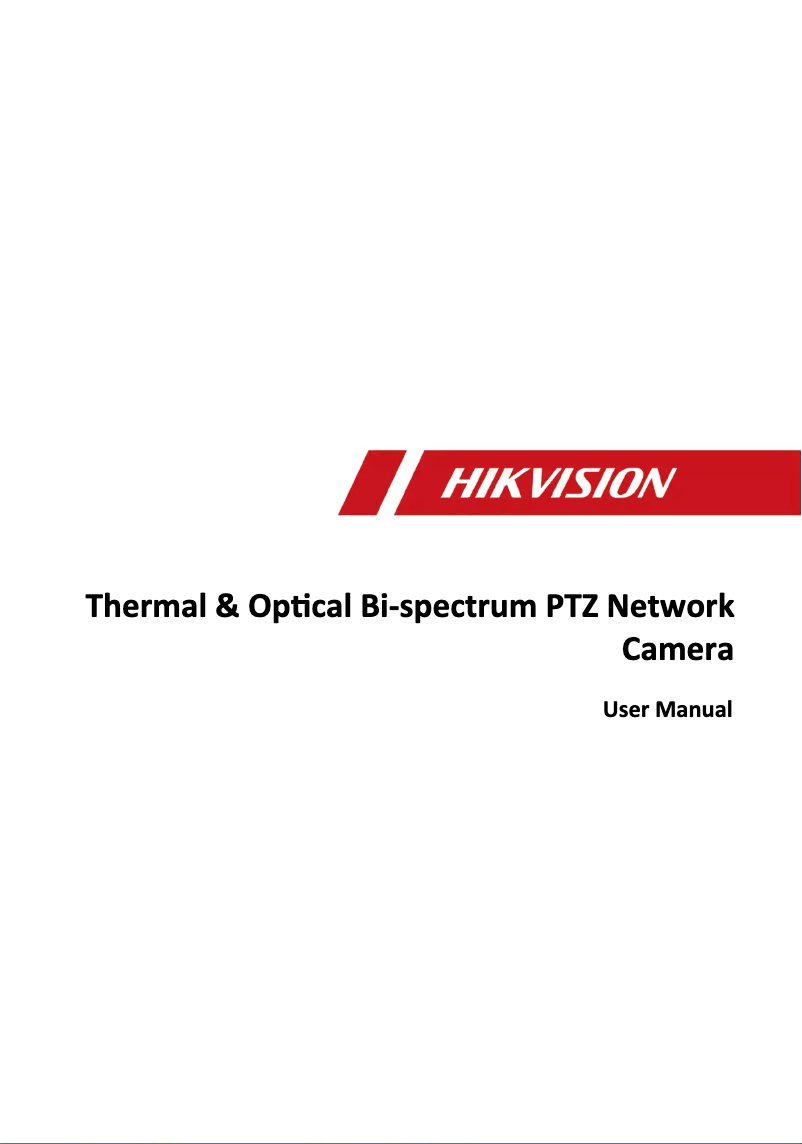

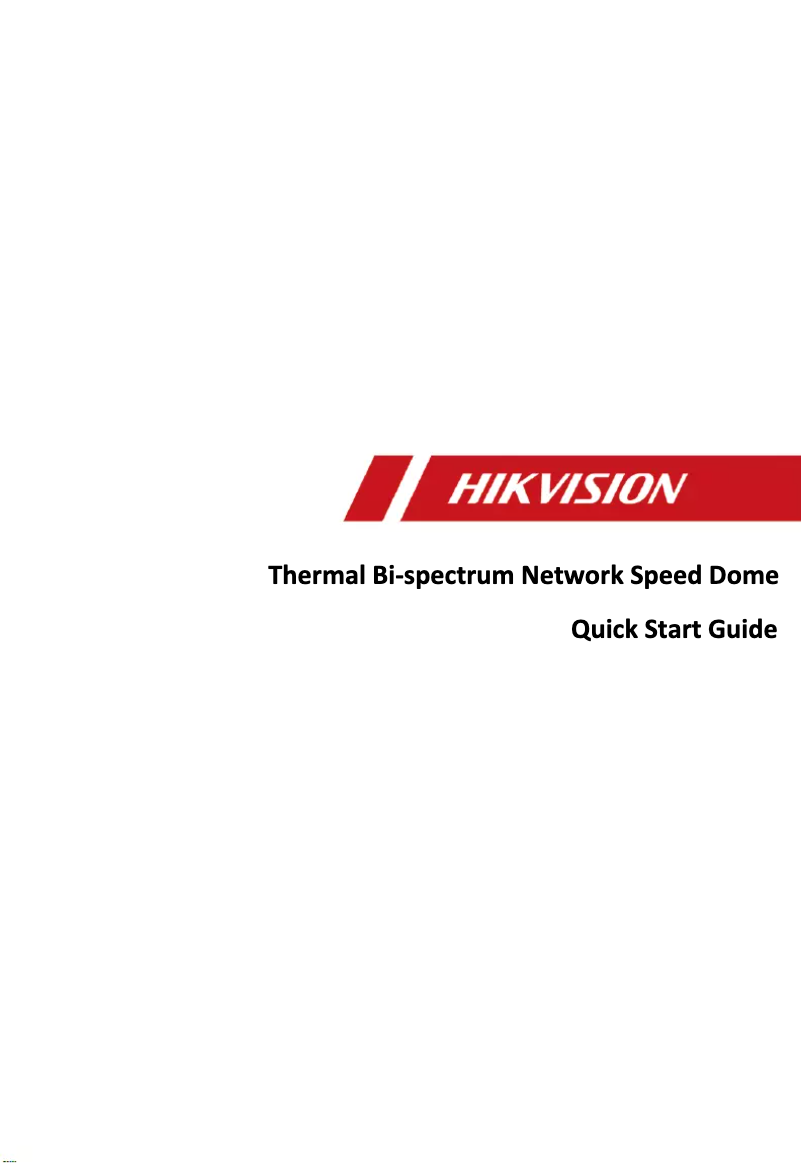

Manuals of product DS-2TD4137-50
Technical Specifications DS-2TD4137-50
General Information
-
ModelDS-2TD4137-50
-
Brand
-
Category
-
Type
-
SKU1448100
-
MPN1448100
Design
-
Protection functionsCorrosion resistant
-
Mounting typeCeiling/wall
-
Product colorWhite
-
FormatDome
-
International Protection Code (IP)IP66
Network
-
Supported network protocolsIPv4/IPv6
-
Type of Ethernet interfaceHTTP
-
Quality of Service (QoS)HTTPS
-
Bluetooth802.1x
-
BluetoothQos
-
Number of usersFTP
-
Quality of Service (QoS)SMTP
-
UPnP
-
SNMP
-
DNS
-
DDNS
-
NTP
-
RTSP
-
RTCP
-
RTP
-
TCP
-
UDP
-
IGMP
-
ICMP
-
DHCP
-
PPPoE
-
Fast Ethernet
-
Yes
-
No
-
No
-
32 user(s)
-
Yes
Audio
-
Voice codecsG.711a
-
G.711u
-
G.722.1
-
G.726
-
MP2L2
-
PCM
Video
-
Noise reduction technologyDigital noise suppression 3D
-
Gain control typeCar
-
Noise reductionYes
-
Noise reductionYes
-
Number of images per second30 fps
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Supported graphic resolutions352 x 288, 384 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Night vision distance200 m
-
Type of LEDIR
Weight and dimensions
-
Weight9000 g
-
Width266.6 mm
-
Depth410 mm
-
Height198.6 mm
Objective system
-
Number of lenses-
-
Focal length6 - 240 mm
-
Minimum opening amount1.3
-
Maximum number of openings4.6
-
TuningMotorized/manual
-
Zoom capacityYes
-
Zoom capacityYes
-
Optical zoom40 x
-
Digital zoom16 x
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Consumption (max)60 W
-
Power supply typeSector
-
AC input voltage24 V
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/1.8 "
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)384 x 288 pixels
-
Progressive scanYes
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Camera
-
Camera shutter speed1 - 30000 s
-
Pan tilt preset speed240 °/sec
-
Panoramic speed160 °/sec
-
Panoramic0 - 360 °
-
Tilt speed200 °/sec
-
Inclination angle-20 - 90 °
-
Field of View (FOV) angle (thermal module)7.5 x 5.6 °
-
Camera tilt controlYes
-
Minimum illumination0.001 lux
-
Camera tilt controlYes
Security
-
Temperature sensorYes
-
Temperature sensorYes
-
Security-supported algorithmEAP-MD5, EAP-TLS
-
Temperature sensorYes
Representation / realization
-
IFOV (spatial resolution)0.34 mRad
-
Thermal sensitivity (NETD)35 mK
-
Preset pointsYes
-
Preset pointsYes
-
Preset pointsYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Preset pointsYes
-
PTZ ModesPreselection point
-
Preset pointsYes
-
Preset pointsYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Microphone jack inputYes
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD4137-50 specifications from brand Hikvision
Audio
The voice codec of the Hikvision DS-2TD4137-50 product contains G.711a, G.711u, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications.
Design
The product Hikvision DS-2TD4137-50 has Résistant à la corrosion protection features. These characteristics ensure reliable use in various environmental conditions. The format of the product Hikvision DS-2TD4137-50 is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2TD4137-50 is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision DS-2TD4137-50 is Blanc. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2TD4137-50 contains IP66. This code indicates the level of protection against solid objects and moisture.
Generalities
The brand of the product Hikvision DS-2TD4137-50 is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2TD4137-50 is DS-2TD4137-50 | DS-2TD4137-50/WY. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2TD4137-50 is 6931847128449. This code allows for the unique identification of the product in the distribution system.
Network
The supported network protocols of the product Hikvision DS-2TD4137-50 are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. The Wifi of the product Hikvision DS-2TD4137-50 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2TD4137-50 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Ethernet interface type of the product Hikvision DS-2TD4137-50 is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the Hikvision DS-2TD4137-50 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The number of users of the product Hikvision DS-2TD4137-50 is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2TD4137-50 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Packaging contents
The number of cameras of the product Hikvision DS-2TD4137-50 is 1. This product is equipped with a camera that allows capturing high-quality images.
Video
The product Hikvision DS-2TD4137-50 features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2TD4137-50 have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The gain control type of the product Hikvision DS-2TD4137-50 is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2TD4137-50 have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The number of frames per second of the product Hikvision DS-2TD4137-50 is 30 ips. This specification ensures optimal smoothness when playing videos. The maximum resolution of the product Hikvision DS-2TD4137-50 is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2TD4137-50 is 4 MP. This total ensures exceptional image quality for your photos. The product Hikvision DS-2TD4137-50 has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision DS-2TD4137-50 are 352 x 288,384 x 288,640 x 480 (VGA),704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2688 x 1520. These resolutions provide optimal display quality for your content.
Night vision
The type of LED of the product Hikvision DS-2TD4137-50 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2TD4137-50 is 200 m. This feature allows for clear and precise observation even in darkness. Does the product Hikvision DS-2TD4137-50 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Weight and dimensions
The width of the product Hikvision DS-2TD4137-50 is 266.6 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Hikvision DS-2TD4137-50 is 9000 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2TD4137-50 is 198.6 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-2TD4137-50 is 410 mm. This dimension allows for optimal integration into your space.
Environmental conditions
The operating temperature of the product Hikvision DS-2TD4137-50 is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2TD4137-50 has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Objective system
The focal length of the product Hikvision DS-2TD4137-50 is 6 - 240 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The adjustment of the Hikvision DS-2TD4137-50 is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The maximum number of openings for the product Hikvision DS-2TD4137-50 is 4.6. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hikvision DS-2TD4137-50 is 1.3. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. Does the Hikvision DS-2TD4137-50 have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. Does the product Hikvision DS-2TD4137-50 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The optical zoom of the product Hikvision DS-2TD4137-50 is 40 x. This zoom allows for capturing precise details from a distance, thus providing superior image quality. The digital zoom of the product Hikvision DS-2TD4137-50 is 16 x. This zoom allows for capturing precise details even from a distance. The number of lenses in the product Hikvision DS-2TD4137-50 is -. This number determines the quality and versatility of the lens.
Power
The maximum consumption of the product Hikvision DS-2TD4137-50 is 60 W. This specification allows for the assessment of the energy efficiency of the device. The AC input voltage of the Hikvision DS-2TD4137-50 is 24 V. This specification ensures optimal compatibility with standard electrical systems. The type of power source for the product Hikvision DS-2TD4137-50 is Secteur. This type of power supply ensures optimal performance and efficient use of the device.
Management features
The Hikvision DS-2TD4137-50 system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Image sensor
The image detector of the product Hikvision DS-2TD4137-50 contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection. The effective resolution of the sensor (thermal module) of the product Hikvision DS-2TD4137-50 is 384 x 288 pixels. This specification ensures accurate and reliable detection of temperature variations. The sensor type of the product Hikvision DS-2TD4137-50 is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision DS-2TD4137-50 is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision DS-2TD4137-50 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Security
The supported security algorithm of the product Hikvision DS-2TD4137-50 contains EAP-MD5, EAP-TLS. This algorithm ensures optimal protection of your data. Does the product Hikvision DS-2TD4137-50 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Hikvision DS-2TD4137-50 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the Hikvision DS-2TD4137-50 have a temperature sensor? Oui. This sensor allows for accurate measurement of the ambient temperature to ensure optimal comfort.
Camera
The shutter speed of the camera of the product Hikvision DS-2TD4137-50 is 1 - 30000 s. This feature allows capturing sharp images even in low light conditions. The product Hikvision DS-2TD4137-50 has a preset panning speed of 240 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The panoramic view of the product Hikvision DS-2TD4137-50 is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The panning speed of the product Hikvision DS-2TD4137-50 is 160 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt speed of the product Hikvision DS-2TD4137-50 is 200 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The tilt angle of the product Hikvision DS-2TD4137-50 is -20 - 90 °. This angle allows for adjusting the position for optimal comfort. The minimum illumination of the product Hikvision DS-2TD4137-50 is 0.001 lux. This feature ensures optimal performance even in low light conditions. The tilt command of the Hikvision DS-2TD4137-50 camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The product Hikvision DS-2TD4137-50 has a field of view (FOV) angle (thermal module) of 7.5 x 5.6 °. This angle allows for precise and effective visualization of the monitored areas. Does the product Hikvision DS-2TD4137-50 have a camera pan command? No. This feature is not available on this model.
Connectivity
Does the product Hikvision DS-2TD4137-50 have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The product Hikvision DS-2TD4137-50 has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD4137-50 is 1. These ports provide a stable and fast network connection for your devices. The RS-485 port of the Hikvision DS-2TD4137-50 contains 1. This port allows for robust serial communication and is ideal for industrial applications.
Storage support
The maximum size of the memory card for the product Hikvision DS-2TD4137-50 is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. The product Hikvision DS-2TD4137-50 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision DS-2TD4137-50 have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2TD4137-50 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Representation / realization
The spatial resolution of the Hikvision DS-2TD4137-50 product is 0.34 mRad. This resolution allows for optimal image clarity for detailed analysis. Does the product Hikvision DS-2TD4137-50 have an entry/end Alarm? Oui. This feature effectively secures access to your space. The product Hikvision DS-2TD4137-50 has a thermal sensitivity (NETD) of 35 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. Does the product Hikvision DS-2TD4137-50 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2TD4137-50 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The type of product Hikvision DS-2TD4137-50 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The PTZ control of the product Hikvision DS-2TD4137-50 is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The design of the product Hikvision DS-2TD4137-50 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2TD4137-50 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The PTZ modes of the product Hikvision DS-2TD4137-50 contain Point de préselection. These modes allow for increased flexibility and customization to meet your specific needs. Does the product Hikvision DS-2TD4137-50 have a Patrol mode? Oui. This mode allows for effective and continuous monitoring. Does the product Hikvision DS-2TD4137-50 have preset points? Oui. This feature allows for simplified and customized use according to your preferences.
