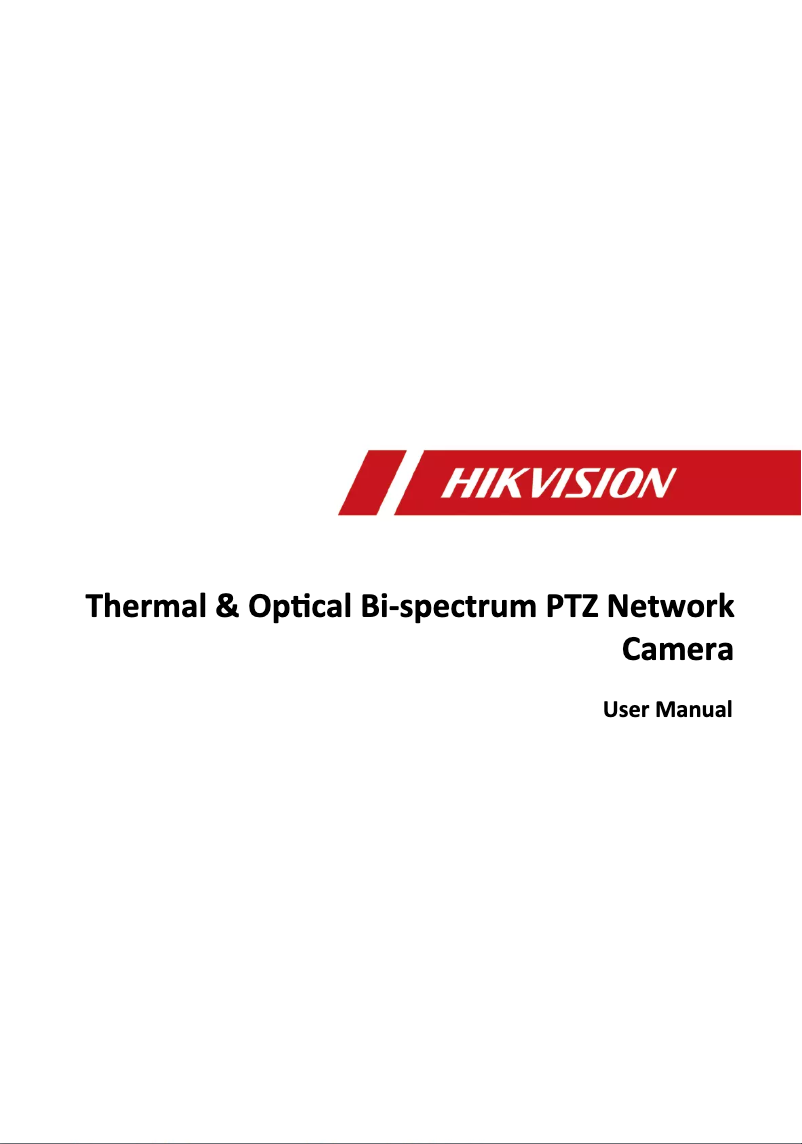

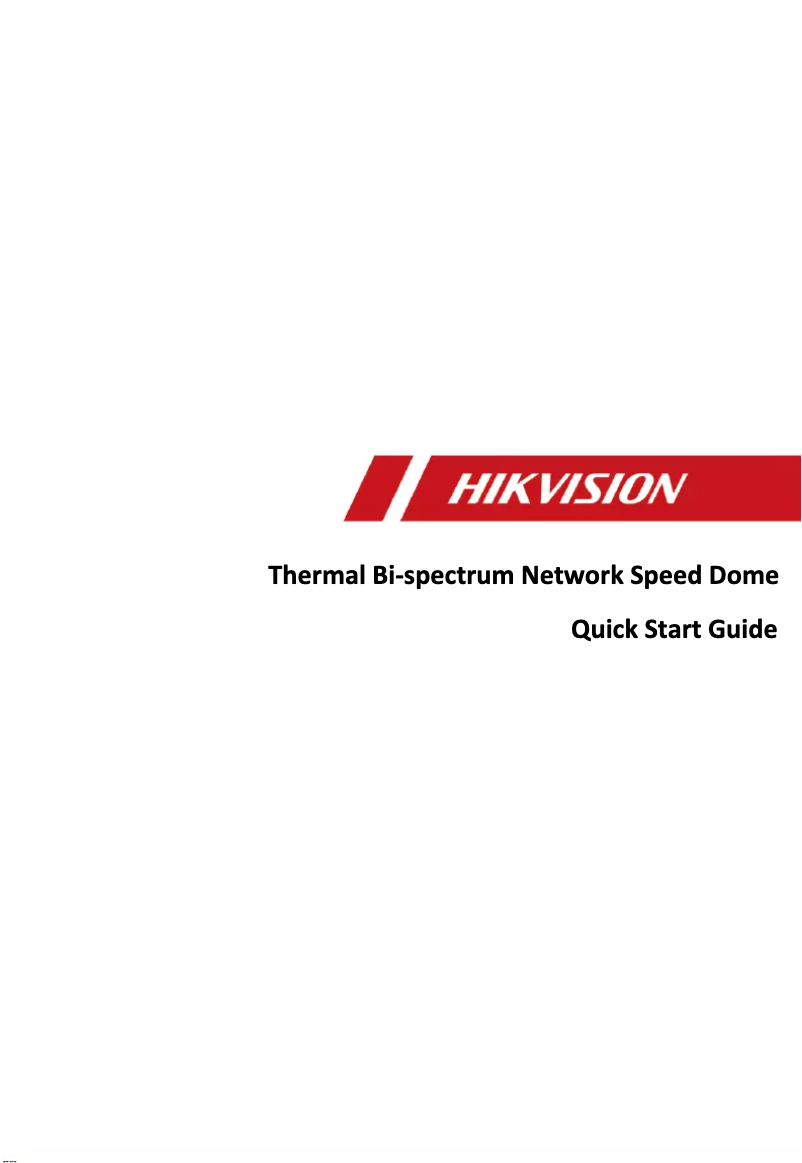

Manuals of product DS-2TD4137T-25/W
Technical Specifications DS-2TD4137T-25/W
General Information
-
ModelDS-2TD4137T-25/W
-
Brand
-
Category
-
Type
-
SKU1843842
-
MPN1843842
Representation / realization
-
TypeCCTV security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Large dynamic range (WRD)Yes
-
PTZ ModesAutomatic scanning
-
Large dynamic range (WRD)Yes
-
Number of languages32
-
Languages taken into accountBUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
-
Thermal sensitivity (NETD)35 mK
-
IFOV (spatial resolution)0.68 mRad
-
Dynamic range120 dB
-
CertificationFCC: 47 CFR Part 15, Subpart B,
-
CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014,
-
RCM: AS/NZS CISPR 32: 2015,
-
IC: ICES-003: Issue 7,
-
KC: KN32: 2015, KN35: 2015
-
UL: UL 62368-1,
-
CB: IEC 62368-1: 2014+A11,
-
CE-LVD: EN 62368-1: 2014/A11: 2017,
-
BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005,
-
LOA: IEC/EN 60950-1
-
CE-RoHS: 2011/65/EU,
-
WEEE: 2012/19/EU,
-
Reach: Regulation (EC) No 1907/2006
Design
-
FormatDome
-
Mounting typeCeiling
-
Product colorBlack, White
-
International Protection Code (IP)IP67
Camera
-
Minimum illumination0.005 lux
-
Field of View (FOV) angle (thermal module)14.9 x 11.2 °
-
Field of view of the lens, horizontal56.6 °
-
Angle of view of the lens, vertical33.7 °
-
Inclination angle-20 - 90 °
-
Tilt speed105 °/sec
-
Panoramic speed200 °/sec
-
Panoramic0 - 360 °
-
Panoramic speed200 °/sec
-
Pan tilt preset speed240 °/sec
-
Camera pixel size17 µm
-
Response waveband8 - 14 µm
-
Camera shutter speed1 - 1/30000 s
Image sensor
-
Sensor typeCMOS
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)384 x 288 pixels
Objective system
-
Number of lenses-
-
Digital zoom16 x
-
Maximum number of openings4.6
-
Minimum opening amount1.3
-
Focal length6 - 240 mm
-
Fixed focal length (thermal module)25 mm
-
Opening number (thermal model)1
Night vision
-
Night visionYes
-
Night vision distance200 m
-
Type of LEDIR
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Supported graphic resolutions384 x 288, 640 x 512, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520
-
Number of images per second30 ips
-
Noise reductionYes
-
Noise reduction technology3D digital noise reduction
Audio
-
Audio output channels1 channels
-
Audio output channels1 channels
-
Supported audio formatsG.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Network
-
Live viewYes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-
Number of simultaneous live viewing channels20 channels
-
Live viewYes
-
User access levelAdministrator, Operator, User
-
Number of users32 user(s)
Packaging contents
-
Number of cameras1
Weight and dimensions
-
Weight9000 g
-
Height410 mm
-
Depth198.6 mm
-
Width266.6 mm
Environmental conditions
-
Operating relative humidity (H-H)0 - 95 %
-
Operating temperature
-
-40 - 65 °C
Power
-
Output CC in volts24, 48
-
Consumption (max)65 W
-
Consumption (max)65 W
-
Power supply typeDC, PoC
Management features
-
Web BrowserYes
Security
-
Temperature sensorYes
-
Temperature sensorYes
-
Number of detectable fire points10
-
Temperature sensorYes
-
Temperature measurement accuracy2 °C
-
Temperature range-20 - 550 °C
-
Temperature sensorYes
-
Alarm input channels7
-
Alarm output channels2
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Compatible memory cardsMicroSD (TransFlash)
-
Maximum memory card sizeSDHC
-
Integrated hard driveSDXC
-
256 GB
-
No
