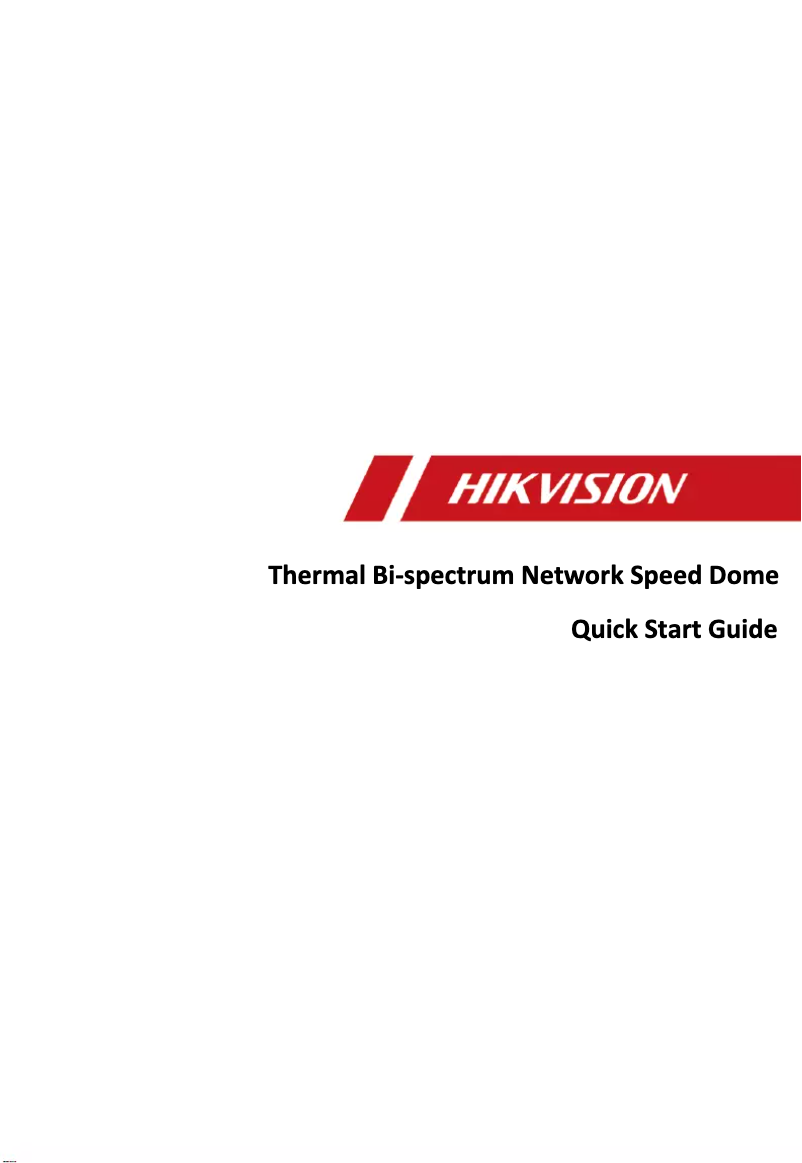

Manuals of product DS-2TD4167T-25/W
Technical Specifications DS-2TD4167T-25/W
General Information
-
ModelDS-2TD4167T-25/W
-
Brand
-
Category
-
Type
-
SKU1843911
-
MPN1843911
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Supported graphic resolutions384 x 288, 640 x 512, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520
Representation / realization
-
Large dynamic range (WRD)Yes
-
TypeIP security camera
-
Supported installationIndoor and outdoor
-
Connectivity technologyWired
-
Large dynamic range (WRD)Yes
-
PTZ Modes4 Pattern, Auto Scan
-
Large dynamic range (WRD)Yes
-
Number of languages32
-
Languages taken into accountBUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, UKR, VIE
-
Thermal sensitivity (NETD)35 mK
-
IFOV (spatial resolution)0.68 mRad
Image sensor
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)640 x 512 pixels
-
Number of sensors1
-
Optical sensor size1/1.8 "
-
Sensor typeCMOS
Design
-
FormatDome
-
Mounting typeCeiling
-
Product colorBlack, White
-
International Protection Code (IP)IP67
Camera
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Field of View (FOV) angle (thermal module)24.5 x 19.7 °
-
Field of view of the lens, horizontal56.6 °
-
Angle of view of the lens, vertical33.7 °
-
Pan tilt preset speed200 °/sec
-
Pan tilt preset speed200 °/sec
-
Camera pixel size17 µm
-
Response waveband8 - 14 µm
-
Camera shutter speed1 - 1/30000 s
Objective system
-
Number of lenses-
-
Zoom capacityYes
-
Digital zoom16 x
-
Maximum number of openings4.6
-
TuningMotorized/manual
-
Minimum opening amount1.3
-
Focal length6 - 240 mm
-
Fixed focal length (thermal module)25 mm
-
Opening number (thermal model)1
Night vision
-
Night visionYes
-
Night vision distance200 m
-
Type of LEDIR
Audio
-
Audio output channels2 channels
-
Supported audio formatsG.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM
Network
-
Live viewYes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-
Live viewYes
-
Number of simultaneous live viewing channels20 channels
-
User access levelAdministrator, Operator, User
-
Number of users32 user(s)
Packaging contents
-
Number of cameras1
Weight and dimensions
-
Weight9000 g
-
Width266.6 mm
-
Depth198.6 mm
-
Height410 mm
Environmental conditions
-
Operating relative humidity (H-H)0 - 90 %
-
Operating temperature
-
-40 - 65 °C
Power
-
Output CC in amperes2.5 A
-
Output CC in volts24, 48
-
Consumption (max)60 W
-
Consumption (max)60 W
-
Power supply typeDC, PoE
Management features
-
Web BrowserYes
Security
-
Number of detectable fire points10
-
Fire detectionYes
-
Temperature measurement accuracy2 °C
-
Temperature range-20 - 550 °C
-
Alarm output channels2
-
Alarm input channels7
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsSD, SDHC, SDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD4167T-25/W specifications from brand Hikvision
Video
The maximum resolution of the product Hikvision DS-2TD4167T-25/W is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2TD4167T-25/W is 4 MP. This total ensures exceptional image quality for your photos. The product Hikvision DS-2TD4167T-25/W has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision DS-2TD4167T-25/W are 384 x 288,640 x 512,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2688 x 1520. These resolutions provide optimal display quality for your content.
Generalities
The brand of the product Hikvision DS-2TD4167T-25/W is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2TD4167T-25/W is 6931847128463. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2TD4167T-25/W is DS-2TD4167T-25/W | DS-2TD4167T-25/W. This model ensures optimal performance and an enhanced user experience.
Image sensor
The image detector of the product Hikvision DS-2TD4167T-25/W contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection. The number of sensors of the product Hikvision DS-2TD4167T-25/W is 1. This number of sensors allows for precise and efficient image detection. The optical sensor size of the product Hikvision DS-2TD4167T-25/W is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The effective resolution of the sensor (thermal module) of the product Hikvision DS-2TD4167T-25/W is 640 x 512 pixels. This specification ensures accurate and reliable detection of temperature variations. The sensor type of the product Hikvision DS-2TD4167T-25/W is CMOS. This type of sensor ensures optimal image quality for your needs.
Design
The format of the product Hikvision DS-2TD4167T-25/W is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2TD4167T-25/W is Black, White. This shade gives it a modern and elegant look. The International Protection Code (IP) for product Hikvision DS-2TD4167T-25/W contains IP67. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Hikvision DS-2TD4167T-25/W is Plafond. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Representation / realization
The type of product Hikvision DS-2TD4167T-25/W is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision DS-2TD4167T-25/W have a thermal module? Oui. This module ensures optimal temperature management for efficient operation. The design of the product Hikvision DS-2TD4167T-25/W supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2TD4167T-25/W features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The PTZ control of the product Hikvision DS-2TD4167T-25/W is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. The PTZ modes of the product Hikvision DS-2TD4167T-25/W contain 4 Pattern, Auto Scan. These modes allow for increased flexibility and customization to meet your specific needs. Does the product Hikvision DS-2TD4167T-25/W have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The number of languages of the product Hikvision DS-2TD4167T-25/W is 32. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2TD4167T-25/W are BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, UKR, VIE. This product thus caters to a wide international audience. The product Hikvision DS-2TD4167T-25/W has a thermal sensitivity (NETD) of 35 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. The spatial resolution of the Hikvision DS-2TD4167T-25/W product is 0.68 mRad. This resolution allows for optimal image clarity for detailed analysis.
Camera
Does the product Hikvision DS-2TD4167T-25/W have a camera pan command? No. This feature is not available on this model. The product Hikvision DS-2TD4167T-25/W has a field of view (FOV) angle (thermal module) of 24.5 x 19.7 °. This angle allows for precise and effective visualization of the monitored areas. The field of view of the Hikvision DS-2TD4167T-25/W lens is 56.6 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The tilt command of the Hikvision DS-2TD4167T-25/W camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The vertical field of view of the product Hikvision DS-2TD4167T-25/W is 33.7 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The panning speed of the product Hikvision DS-2TD4167T-25/W is 200 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2TD4167T-25/W has a preset panning speed of 200 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The pixel size of the Hikvision DS-2TD4167T-25/W camera is 17 µm. An optimal pixel size allows for capturing high-quality images, even in low-light conditions. The response wavelength range of the product Hikvision DS-2TD4167T-25/W is 8 - 14 µm. This specification is essential for determining the camera's sensitivity to different wavelengths. The shutter speed of the camera of the product Hikvision DS-2TD4167T-25/W is 1 - 1/30000 s. This feature allows capturing sharp images even in low light conditions.
Night vision
Does the product Hikvision DS-2TD4167T-25/W have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2TD4167T-25/W is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2TD4167T-25/W is 200 m. This feature allows for clear and precise observation even in darkness.
Audio
The audio output channels of the Hikvision DS-2TD4167T-25/W are 2 canaux. This specification allows for an immersive and high-quality sound experience. The supported audio formats of the product Hikvision DS-2TD4167T-25/W are G.711 A-law, G.711 μ-law, G.722.1, G.726, MP2L2, PCM. These formats ensure optimal compatibility for an enriching listening experience.
Objective system
The digital zoom of the product Hikvision DS-2TD4167T-25/W is 16 x. This zoom allows for capturing precise details even from a distance. Does the product Hikvision DS-2TD4167T-25/W have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The number of lenses in the product Hikvision DS-2TD4167T-25/W is -. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2TD4167T-25/W is 4.6. This feature allows for optimal use and increased flexibility. The adjustment of the Hikvision DS-2TD4167T-25/W is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The minimum opening number of the product Hikvision DS-2TD4167T-25/W is 1.3. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The focal length of the product Hikvision DS-2TD4167T-25/W is 6 - 240 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The opening number of the product Hikvision DS-2TD4167T-25/W is 1. This opening number is essential for determining the thermal performance of the device. The product Hikvision DS-2TD4167T-25/W has a fixed focal length (thermal module) of 25 mm. This specification ensures optimal performance for precise and detailed shots.
Packaging contents
The number of cameras of the product Hikvision DS-2TD4167T-25/W is 1. This product is equipped with a camera that allows capturing high-quality images.
Network
Does the Hikvision DS-2TD4167T-25/W have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Wifi of the product Hikvision DS-2TD4167T-25/W contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the product Hikvision DS-2TD4167T-25/W have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The supported network protocols of the product Hikvision DS-2TD4167T-25/W are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision DS-2TD4167T-25/W have a live view? Oui. This feature allows you to see in real-time what the camera captures. The number of simultaneous live viewing channels for the product Hikvision DS-2TD4167T-25/W is 20 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. The user access level of the product Hikvision DS-2TD4167T-25/W contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user. The number of users of the product Hikvision DS-2TD4167T-25/W is 32 utilisateur(s). This product is ideal for several people.
Weight and dimensions
The weight of the product Hikvision DS-2TD4167T-25/W is 9000 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Hikvision DS-2TD4167T-25/W is 266.6 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Hikvision DS-2TD4167T-25/W is 198.6 mm. This dimension allows for optimal integration into your space. The height of the product Hikvision DS-2TD4167T-25/W is 410 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Environmental conditions
The product Hikvision DS-2TD4167T-25/W has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2TD4167T-25/W is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Power
The product Hikvision DS-2TD4167T-25/W has a DC output in amperes of 2.5 A. This specification ensures a stable power supply suitable for your needs. The energy consumption of the product Hikvision DS-2TD4167T-25/W is 60 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The maximum consumption of the product Hikvision DS-2TD4167T-25/W is 60 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2TD4167T-25/W has a DC output in volts of 24, 48. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2TD4167T-25/W is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Management features
Does the product Hikvision DS-2TD4167T-25/W have a Web Browser? Oui. This feature allows easy access to the Internet to browse your favorite sites.
Storage support
The maximum size of the memory card for the product Hikvision DS-2TD4167T-25/W is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2TD4167T-25/W have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision DS-2TD4167T-25/W have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2TD4167T-25/W has compatible memory cards: SD, SDHC, SDXC. These memory cards ensure optimal performance for storing your data.
Security
The number of detectable fire points of the product Hikvision DS-2TD4167T-25/W is 10. This number ensures optimal protection against fire hazards. The temperature measurement accuracy of the product Hikvision DS-2TD4167T-25/W is 2 °C. This feature ensures a reliable assessment of thermal conditions, essential for ensuring the safety and proper functioning of your equipment. Does the product Hikvision DS-2TD4167T-25/W have Fire Detection? Oui. This feature ensures optimal safety by quickly detecting any source of heat or smoke. The temperature range of the product Hikvision DS-2TD4167T-25/W is -20 - 550 °C. This feature ensures optimal use in varied conditions. The alarm output channel of the product Hikvision DS-2TD4167T-25/W contains 2. This channel allows for the effective reporting of any alerts or important events. The alarm input channel of the product Hikvision DS-2TD4167T-25/W contains 7. This channel allows for efficient integration of security systems.
Connectivity
The product Hikvision DS-2TD4167T-25/W has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment. The RS-485 port of the Hikvision DS-2TD4167T-25/W contains 1. This port allows for robust serial communication and is ideal for industrial applications. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD4167T-25/W is 1. These ports provide a stable and fast network connection for your devices.
