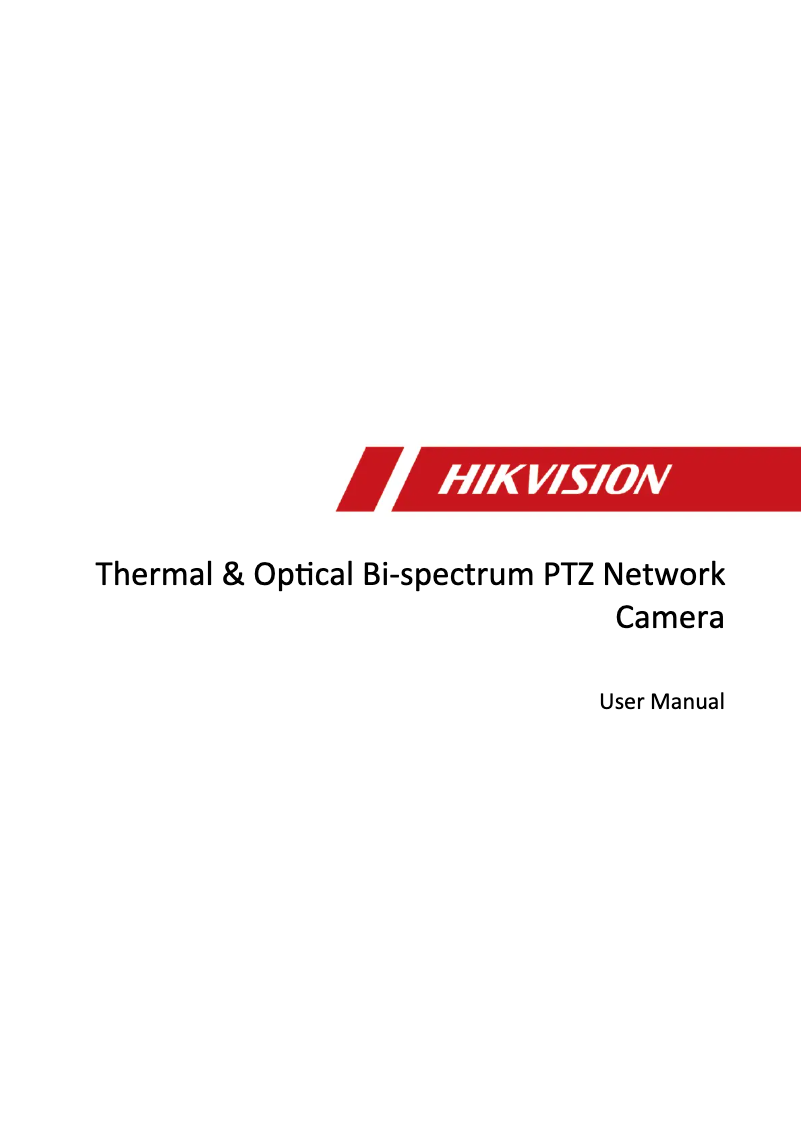

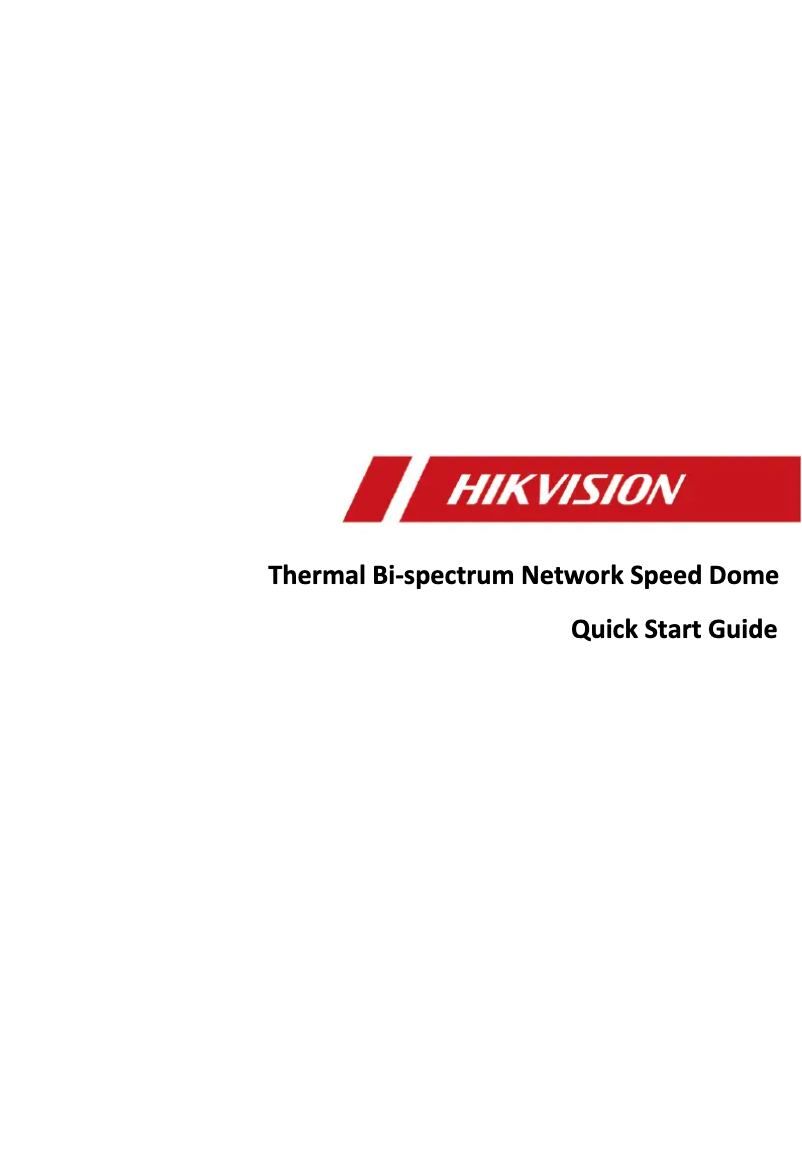

Manuals of product DS-2TD4237-25/V2
Technical Specifications DS-2TD4237-25/V2
General Information
-
ModelDS-2TD4237-25/V2
-
Brand
-
Category
-
Type
-
SKU1132226
-
MPN1132226
Representation / realization
-
Entry/exit alarmYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
PTZ ModesAuto Scan, Preset point
-
Entry/exit alarmYes
-
Number of languages1
-
Languages taken into accountEnglish
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
-
Network standardsIEEE 802.1x
-
Number of users32 user(s)
-
Quality of Service (QoS)Yes
-
Type of Ethernet interfaceFast Ethernet
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/2.8 "
-
Number of sensors1
-
Progressive scanYes
Objective system
-
Number of lenses1
-
Focal length4.8 - 153 mm
-
Maximum number of openings4.4
-
Minimum opening amount1.2
-
Auto focusYes
-
TuningMotorized/manual
Video
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels- MP
-
Number of images per second30 fps
-
Visual compression formatsH.264, H.265
-
Supported graphic resolutions352 x 240, 352 x 288, 384 x 288, 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
Packaging contents
-
Number of cameras1
Camera
-
Minimum illumination0.01 lux
-
Automatic flippingYes
-
Automatic flippingYes
-
Field of view of the lens, horizontal58.4 °
-
Angle of view of the lens, vertical33.8 °
-
Angle of view of the lens, diagonal65.6 °
-
Camera shutter speed1 - 1/100000 s
-
Panoramic0 - 360 °
-
Inclination angle-5 - 90 °
-
Automatic flippingYes
-
Panoramic speed200 °/sec
-
Tilt speed105 °/sec
Storage support
-
Integrated hard driveNo
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
Security
-
HTTPS encryptionYes
-
HTTPS encryptionYes
-
HTTPS encryptionYes
Night vision
-
Night visionYes
-
Night vision distance100 m
-
Type of LEDIR
Audio
-
Voice codecsG.711a
-
Supported audio formatsG.711u
-
Audio output channelsG.722.1
-
Audio output channelsG.726
-
MP2L2
-
PCM
-
1 channels
-
1 channels
Management features
-
Reset buttonYes
-
Reset buttonYes
Connectivity
-
Microphone jack inputYes
-
BNC output ports1
-
BNC output ports1
Design
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorBlack, White
-
International Protection Code (IP)IP66
Power
-
Power supply typeSector
-
AC input voltage24 V
-
Consumption (max)30 W
Environmental conditions
-
Operating temperature-30 - 60 °C
-
Operating relative humidity (H-H)0 - 90 %
Weight and dimensions
-
Width305 mm
-
Depth185 mm
-
Height163 mm
-
Weight3900 g
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD4237-25/V2 specifications from brand Hikvision
Image sensor
The sensor type of the product Hikvision DS-2TD4237-25/V2 is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hikvision DS-2TD4237-25/V2 have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The optical sensor size of the product Hikvision DS-2TD4237-25/V2 is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision DS-2TD4237-25/V2 is 1. This number of sensors allows for precise and efficient image detection.
Generalities
The brand of the product Hikvision DS-2TD4237-25/V2 is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2TD4237-25/V2 is DS-2TD4237-25/V2 | DS-2TD4237-25/V2. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2TD4237-25/V2 is 0842571130096, 6954273689469. This code allows for the unique identification of the product in the distribution system.
Network
Does the product Hikvision DS-2TD4237-25/V2 have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2TD4237-25/V2 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product Hikvision DS-2TD4237-25/V2 are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. Does the Hikvision DS-2TD4237-25/V2 have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The network standards of the product Hikvision DS-2TD4237-25/V2 are IEEE 802.1x. These standards ensure optimal compatibility with various equipment and protocols. The number of users of the product Hikvision DS-2TD4237-25/V2 is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2TD4237-25/V2 have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The Ethernet interface type of the product Hikvision DS-2TD4237-25/V2 is Fast Ethernet. This type of interface allows for fast and efficient network connections.
Representation / realization
Does the product Hikvision DS-2TD4237-25/V2 have a thermal module? Oui. This module ensures optimal temperature management for efficient operation. The product Hikvision DS-2TD4237-25/V2 features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Hikvision DS-2TD4237-25/V2 is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2TD4237-25/V2 supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The PTZ control of the product Hikvision DS-2TD4237-25/V2 is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Hikvision DS-2TD4237-25/V2 have preset points? Oui. This feature allows for simplified and customized use according to your preferences. Does the product Hikvision DS-2TD4237-25/V2 have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2TD4237-25/V2 have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2TD4237-25/V2 have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The PTZ modes of the product Hikvision DS-2TD4237-25/V2 contain Auto Scan, Preset point. These modes allow for increased flexibility and customization to meet your specific needs. Does the product Hikvision DS-2TD4237-25/V2 have an entry/end Alarm? Oui. This feature effectively secures access to your space. The number of languages of the product Hikvision DS-2TD4237-25/V2 is 1. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2TD4237-25/V2 are Anglais. This product thus caters to a wide international audience.
Objective system
The focal length of the product Hikvision DS-2TD4237-25/V2 is 4.8 - 153 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The number of lenses in the product Hikvision DS-2TD4237-25/V2 is 1. This number determines the quality and versatility of the lens. The maximum number of openings for the product Hikvision DS-2TD4237-25/V2 is 4.4. This feature allows for optimal use and increased flexibility. The minimum opening number of the product Hikvision DS-2TD4237-25/V2 is 1.2. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. Does the Hikvision DS-2TD4237-25/V2 have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The adjustment of the Hikvision DS-2TD4237-25/V2 is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user.
Video
The total megapixels of the product Hikvision DS-2TD4237-25/V2 is - MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision DS-2TD4237-25/V2 is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The number of frames per second of the product Hikvision DS-2TD4237-25/V2 is 30 ips. This specification ensures optimal smoothness when playing videos. The product Hikvision DS-2TD4237-25/V2 has visual compression formats: H.264, H.265. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision DS-2TD4237-25/V2 are 352 x 240,352 x 288,384 x 288,704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content.
Packaging contents
The number of cameras of the product Hikvision DS-2TD4237-25/V2 is 1. This product is equipped with a camera that allows capturing high-quality images.
Storage support
Does the Hikvision DS-2TD4237-25/V2 have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2TD4237-25/V2 have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2TD4237-25/V2 has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. The maximum size of the memory card for the product Hikvision DS-2TD4237-25/V2 is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Security
Does the Hikvision DS-2TD4237-25/V2 have a temperature sensor? Oui. This sensor allows for accurate measurement of the ambient temperature to ensure optimal comfort. Does the product Hikvision DS-2TD4237-25/V2 have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. Does the Hikvision DS-2TD4237-25/V2 product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access.
Camera
The minimum illumination of the product Hikvision DS-2TD4237-25/V2 is 0.01 lux. This feature ensures optimal performance even in low light conditions. Does the product Hikvision DS-2TD4237-25/V2 have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2TD4237-25/V2 camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The field of view of the Hikvision DS-2TD4237-25/V2 lens is 58.4 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision DS-2TD4237-25/V2 is 33.8 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision DS-2TD4237-25/V2 is 65.6 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The shutter speed of the camera of the product Hikvision DS-2TD4237-25/V2 is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The panoramic view of the product Hikvision DS-2TD4237-25/V2 is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision DS-2TD4237-25/V2 is -5 - 90 °. This angle allows for adjusting the position for optimal comfort. Does the Hikvision DS-2TD4237-25/V2 have automatic flipping? Oui. This feature allows the camera to automatically adjust to capture the best angles. The panning speed of the product Hikvision DS-2TD4237-25/V2 is 200 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt speed of the product Hikvision DS-2TD4237-25/V2 is 105 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience.
Night vision
Does the product Hikvision DS-2TD4237-25/V2 have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision DS-2TD4237-25/V2 is 100 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision DS-2TD4237-25/V2 is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Audio
The supported audio formats of the product Hikvision DS-2TD4237-25/V2 are PCM. These formats ensure optimal compatibility for an enriching listening experience. The voice codec of the Hikvision DS-2TD4237-25/V2 product contains G.711a, G.711u, G.722.1, G.726, MP2L2. This voice codec ensures optimal audio quality for your communications. The number of audio input channels of the product Hikvision DS-2TD4237-25/V2 is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The audio output channels of the Hikvision DS-2TD4237-25/V2 are 1 canaux. This specification allows for an immersive and high-quality sound experience.
Connectivity
Does the product Hikvision DS-2TD4237-25/V2 have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD4237-25/V2 is 1. These ports provide a stable and fast network connection for your devices. The product Hikvision DS-2TD4237-25/V2 has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment.
Management features
The Hikvision DS-2TD4237-25/V2 product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. Does the product Hikvision DS-2TD4237-25/V2 have a Reset Button? Oui. This button allows you to easily reset the product settings.
Design
The format of the product Hikvision DS-2TD4237-25/V2 is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision DS-2TD4237-25/V2 contains IP66. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2TD4237-25/V2 is Black, White. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2TD4237-25/V2 is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Power
The maximum consumption of the product Hikvision DS-2TD4237-25/V2 is 30 W. This specification allows for the assessment of the energy efficiency of the device. The AC input voltage of the Hikvision DS-2TD4237-25/V2 is 24 V. This specification ensures optimal compatibility with standard electrical systems. The type of power source for the product Hikvision DS-2TD4237-25/V2 is Secteur. This type of power supply ensures optimal performance and efficient use of the device.
Environmental conditions
The product Hikvision DS-2TD4237-25/V2 has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2TD4237-25/V2 is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Weight and dimensions
The weight of the product Hikvision DS-2TD4237-25/V2 is 3900 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2TD4237-25/V2 is 163 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-2TD4237-25/V2 is 185 mm. This dimension allows for optimal integration into your space. The width of the product Hikvision DS-2TD4237-25/V2 is 305 mm. This dimension is essential to ensure optimal integration into your space.
