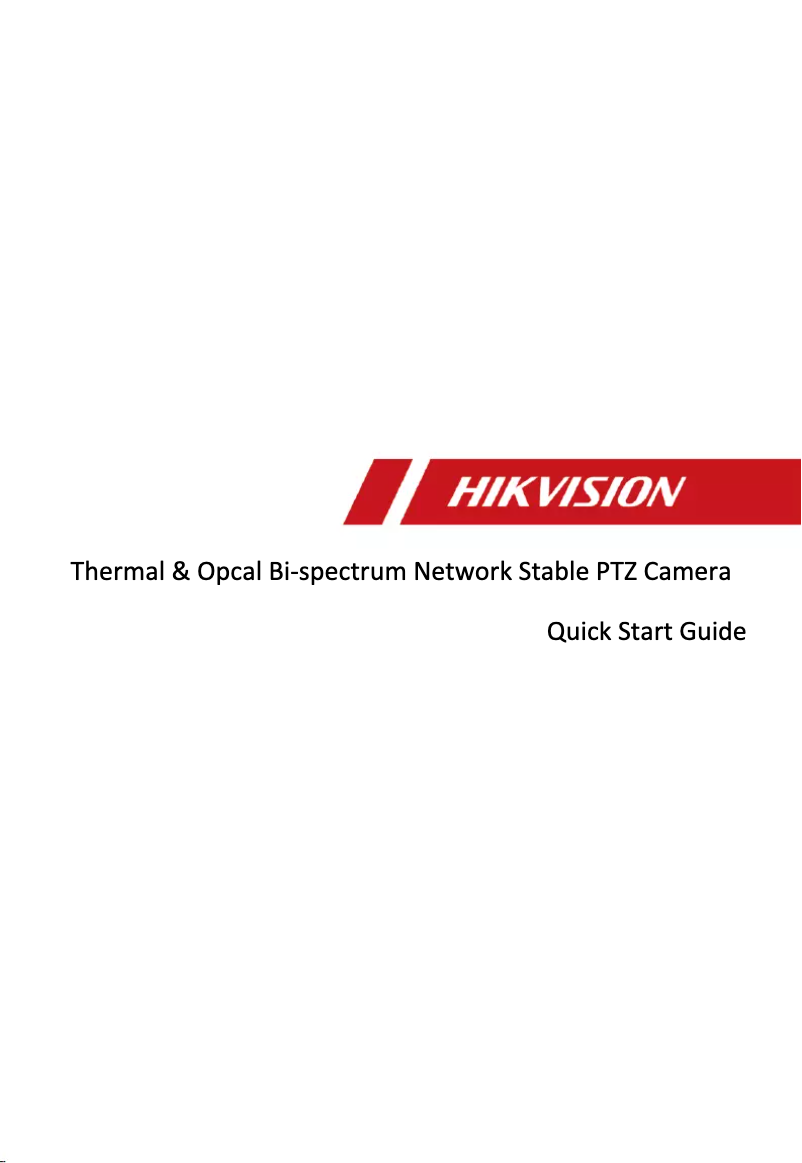

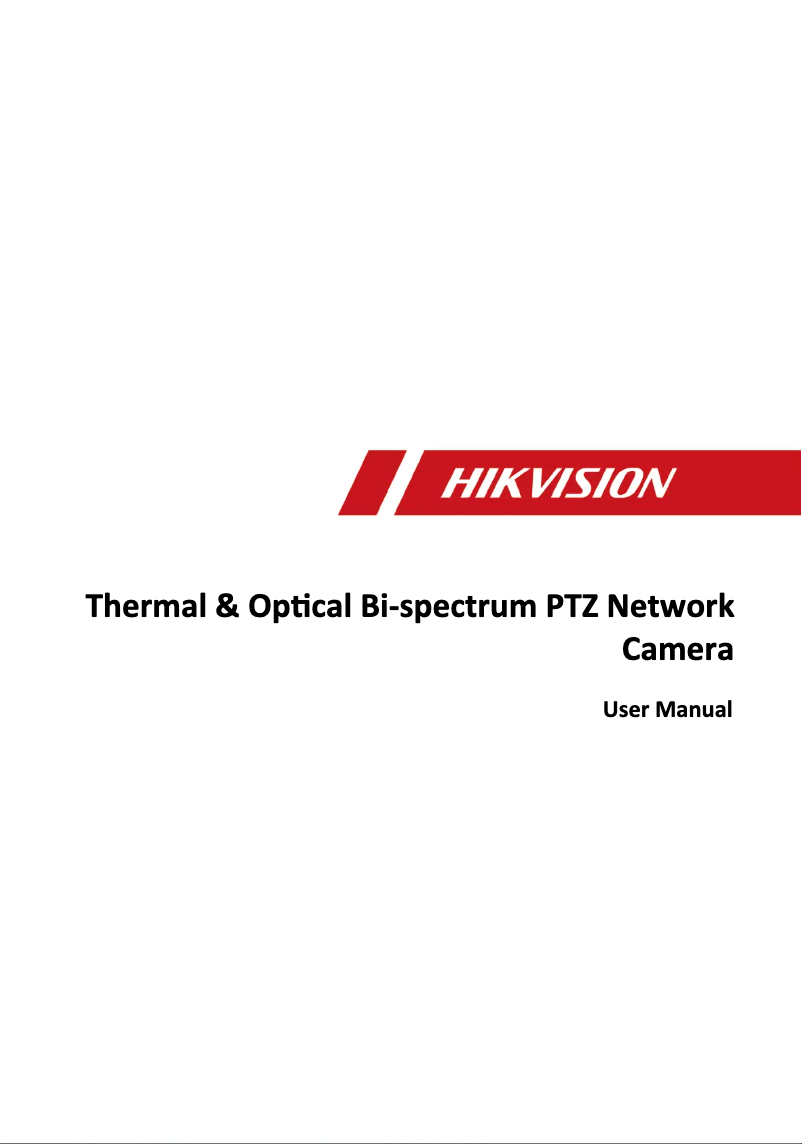

Manuals of product DS-2TD8167-230ZG2F
Technical Specifications DS-2TD8167-230ZG2F
General Information
-
ModelDS-2TD8167-230ZG2F
-
Brand
-
Category
-
Type
-
SKU1447961
-
MPN1447961
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceFast Ethernet
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-
Number of users32 user(s)
-
Quality of Service (QoS)Yes
Audio
-
Voice codecsG.711a
-
G.711u
-
G.722.1
-
G.726
-
MP2L2
-
PCM
Video
-
Noise reduction technologyDigital noise suppression 3d
-
Noise reductionYes
-
Noise reductionYes
-
Gain control typeAuto
-
Number of images per second30 fps
-
Maximum resolution1920 x 1080 pixels
-
Total megapixels- MP
-
Supported graphic resolutions352 x 288, 384 x 288, 640 x 480 (VGA), 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080)
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Packaging contents
-
Number of cameras1
Night vision
-
Night vision-
Weight and dimensions
-
Weight60000 g
-
Width649.2 mm
-
Depth438 mm
-
Height668.3 mm
Objective system
-
Number of lenses-
-
Focal length16.7 - 1000 mm
-
Maximum number of openings8.8
-
Minimum opening amount3.5
-
Digital zoom8 x
-
Zoom capacityYes
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Operating relative humidity (H-H)0 - 95 %
Power
-
Output CC in volts48
-
Output CC in amperes5 A
-
Consumption (max)220 W
-
Power supply typeCC
Image sensor
-
Sensor typeCMOS
-
Optical sensor size1/1.8 "
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)640 x 512 pixels
-
Progressive scanYes
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Region entrance detection
-
Region exiting detection
Camera
-
Camera shutter speed1 - 30000 s
-
Inclination angle-45 - 45 °
-
Tilt speed20 °/sec
-
Panoramic0 - 360 °
-
Panoramic speed40 °/sec
-
Field of View (FOV) angle (thermal module)26.61 x 21.43 °
-
Minimum illumination0.0005 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
Security
-
Security-supported algorithmEAP-MD5
-
Temperature sensorEAP-TLS
-
Temperature sensorYes
-
Temperature sensorYes
-
Yes
Design
-
Format-
-
Mounting typeCeiling/wall
-
International Protection Code (IP)IP66
-
Product colorWhite
Representation / realization
-
Number of languages32
-
Thermal sensitivity (NETD)35 mK
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
PTZ ControlYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
PTZ ModesPreselection point
-
PTZ ControlYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
-
Microphone jack inputYes
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
-
Integrated hard driveNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TD8167-230ZG2F specifications from brand Hikvision
Audio
The voice codec of the Hikvision DS-2TD8167-230ZG2F product contains G.711a, G.711u, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications.
Generalities
The brand of the product Hikvision DS-2TD8167-230ZG2F is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-2TD8167-230ZG2F is DS-2TD8167-230ZG2F | DS-2TD8167-230ZG2F/WY. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-2TD8167-230ZG2F is 6941264083986. This code allows for the unique identification of the product in the distribution system.
Video
The product Hikvision DS-2TD8167-230ZG2F features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2TD8167-230ZG2F have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The gain control type of the product Hikvision DS-2TD8167-230ZG2F is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. Does the product Hikvision DS-2TD8167-230ZG2F have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. The number of frames per second of the product Hikvision DS-2TD8167-230ZG2F is 30 ips. This specification ensures optimal smoothness when playing videos. The maximum resolution of the product Hikvision DS-2TD8167-230ZG2F is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The total megapixels of the product Hikvision DS-2TD8167-230ZG2F is - MP. This total ensures exceptional image quality for your photos. The supported graphic resolutions of the product Hikvision DS-2TD8167-230ZG2F are 352 x 288,384 x 288,640 x 480 (VGA),704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080). These resolutions provide optimal display quality for your content. The product Hikvision DS-2TD8167-230ZG2F has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos.
Packaging contents
The number of cameras of the product Hikvision DS-2TD8167-230ZG2F is 1. This product is equipped with a camera that allows capturing high-quality images.
Night vision
Does the product Hikvision DS-2TD8167-230ZG2F have night vision? -. This feature allows for clear visibility in the dark, thus providing enhanced security.
Network
Does the product Hikvision DS-2TD8167-230ZG2F have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. Does the Hikvision DS-2TD8167-230ZG2F have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The Ethernet interface type of the product Hikvision DS-2TD8167-230ZG2F is Fast Ethernet. This type of interface allows for fast and efficient network connections. The Wifi of the product Hikvision DS-2TD8167-230ZG2F contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product Hikvision DS-2TD8167-230ZG2F are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. The number of users of the product Hikvision DS-2TD8167-230ZG2F is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision DS-2TD8167-230ZG2F have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Weight and dimensions
The weight of the product Hikvision DS-2TD8167-230ZG2F is 60000 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-2TD8167-230ZG2F is 668.3 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-2TD8167-230ZG2F is 438 mm. This dimension allows for optimal integration into your space. The width of the product Hikvision DS-2TD8167-230ZG2F is 649.2 mm. This dimension is essential to ensure optimal integration into your space.
Environmental conditions
The operating temperature of the product Hikvision DS-2TD8167-230ZG2F is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-2TD8167-230ZG2F has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity.
Objective system
The focal length of the product Hikvision DS-2TD8167-230ZG2F is 16.7 - 1000 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The digital zoom of the product Hikvision DS-2TD8167-230ZG2F is 8 x. This zoom allows for capturing precise details even from a distance. The minimum opening number of the product Hikvision DS-2TD8167-230ZG2F is 3.5. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The maximum number of openings for the product Hikvision DS-2TD8167-230ZG2F is 8.8. This feature allows for optimal use and increased flexibility. Does the product Hikvision DS-2TD8167-230ZG2F have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The number of lenses in the product Hikvision DS-2TD8167-230ZG2F is -. This number determines the quality and versatility of the lens.
Power
The maximum consumption of the product Hikvision DS-2TD8167-230ZG2F is 220 W. This specification allows for the assessment of the energy efficiency of the device. The product Hikvision DS-2TD8167-230ZG2F has a DC output in amperes of 5 A. This specification ensures a stable power supply suitable for your needs. The product Hikvision DS-2TD8167-230ZG2F has a DC output in volts of 48. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision DS-2TD8167-230ZG2F is CC. This type of power supply ensures optimal performance and efficient use of the device.
Image sensor
The effective resolution of the sensor (thermal module) of the product Hikvision DS-2TD8167-230ZG2F is 640 x 512 pixels. This specification ensures accurate and reliable detection of temperature variations. The image detector of the product Hikvision DS-2TD8167-230ZG2F contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection. The optical sensor size of the product Hikvision DS-2TD8167-230ZG2F is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The sensor type of the product Hikvision DS-2TD8167-230ZG2F is CMOS. This type of sensor ensures optimal image quality for your needs. Does the product Hikvision DS-2TD8167-230ZG2F have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Management features
The Hikvision DS-2TD8167-230ZG2F system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Camera
The panoramic view of the product Hikvision DS-2TD8167-230ZG2F is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt speed of the product Hikvision DS-2TD8167-230ZG2F is 20 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The tilt angle of the product Hikvision DS-2TD8167-230ZG2F is -45 - 45 °. This angle allows for adjusting the position for optimal comfort. The shutter speed of the camera of the product Hikvision DS-2TD8167-230ZG2F is 1 - 30000 s. This feature allows capturing sharp images even in low light conditions. The panning speed of the product Hikvision DS-2TD8167-230ZG2F is 40 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The product Hikvision DS-2TD8167-230ZG2F has a field of view (FOV) angle (thermal module) of 26.61 x 21.43 °. This angle allows for precise and effective visualization of the monitored areas. The minimum illumination of the product Hikvision DS-2TD8167-230ZG2F is 0.0005 lux. This feature ensures optimal performance even in low light conditions. Does the product Hikvision DS-2TD8167-230ZG2F have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2TD8167-230ZG2F camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives.
Security
The supported security algorithm of the product Hikvision DS-2TD8167-230ZG2F contains EAP-MD5, EAP-TLS. This algorithm ensures optimal protection of your data. Does the Hikvision DS-2TD8167-230ZG2F product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the Hikvision DS-2TD8167-230ZG2F have a temperature sensor? Oui. This sensor allows for accurate measurement of the ambient temperature to ensure optimal comfort. Does the product Hikvision DS-2TD8167-230ZG2F have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site.
Design
The format of the product Hikvision DS-2TD8167-230ZG2F is a bar. This format allows for practical and efficient use in various contexts. The mounting type of the product Hikvision DS-2TD8167-230ZG2F is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The International Protection Code (IP) for product Hikvision DS-2TD8167-230ZG2F contains IP66. This code indicates the level of protection against solid objects and moisture. The color of the product Hikvision DS-2TD8167-230ZG2F is Blanc. This shade gives it a modern and elegant look.
Connectivity
The product Hikvision DS-2TD8167-230ZG2F has 1 BNC output port. This port allows for an easy and reliable connection for various video equipment. Does the product Hikvision DS-2TD8167-230ZG2F have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TD8167-230ZG2F is 1. These ports provide a stable and fast network connection for your devices.
Storage support
Does the Hikvision DS-2TD8167-230ZG2F have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The maximum size of the memory card for the product Hikvision DS-2TD8167-230ZG2F is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2TD8167-230ZG2F have a built-in hard drive? No. This feature means that the product does not have internal storage. The product Hikvision DS-2TD8167-230ZG2F has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Representation / realization
Does the product Hikvision DS-2TD8167-230ZG2F have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The product Hikvision DS-2TD8167-230ZG2F has a thermal sensitivity (NETD) of 35 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. Does the product Hikvision DS-2TD8167-230ZG2F have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. The number of languages of the product Hikvision DS-2TD8167-230ZG2F is 32. This product offers an enriching multilingual experience. Does the product Hikvision DS-2TD8167-230ZG2F have an entry/end Alarm? Oui. This feature effectively secures access to your space. Does the product Hikvision DS-2TD8167-230ZG2F have a Patrol mode? Oui. This mode allows for effective and continuous monitoring. Does the product Hikvision DS-2TD8167-230ZG2F have preset points? Oui. This feature allows for simplified and customized use according to your preferences. The design of the product Hikvision DS-2TD8167-230ZG2F supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2TD8167-230ZG2F features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The type of product Hikvision DS-2TD8167-230ZG2F is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The PTZ modes of the product Hikvision DS-2TD8167-230ZG2F contain Point de préselection. These modes allow for increased flexibility and customization to meet your specific needs. The PTZ control of the product Hikvision DS-2TD8167-230ZG2F is Oui. This control allows for precise and efficient management of pan, tilt, and zoom.
