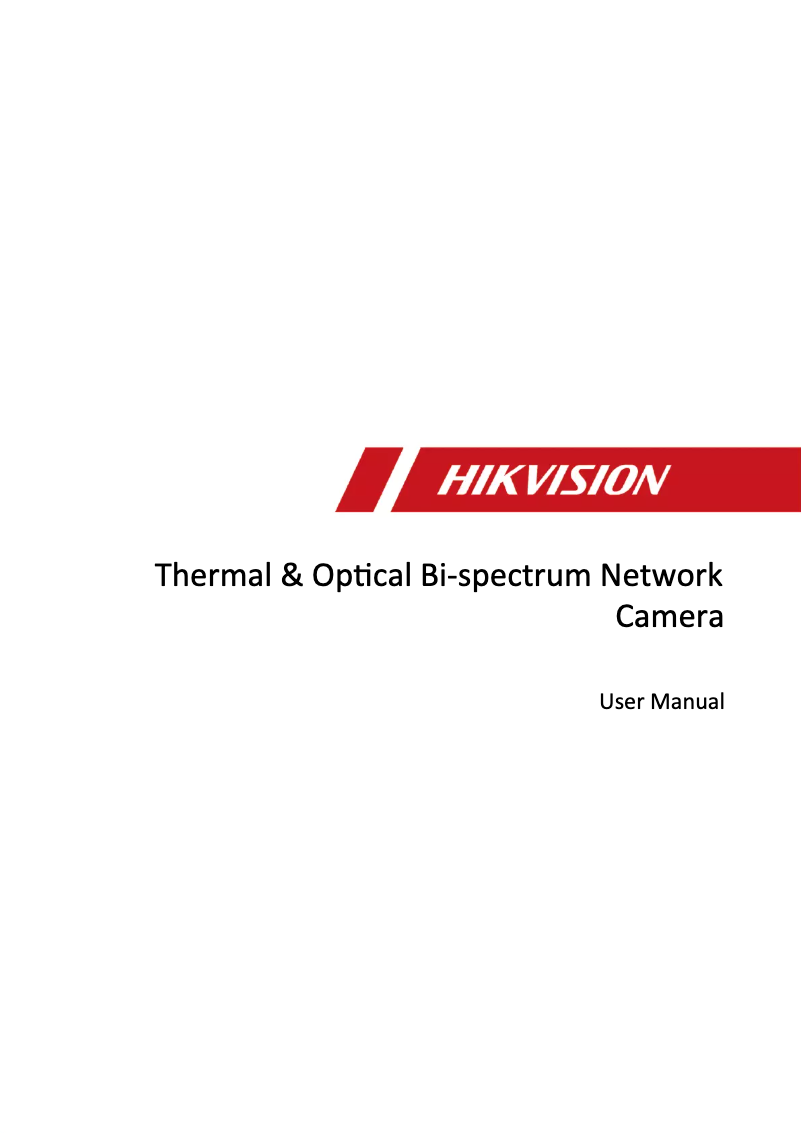

Manual of product DS-2TX3742-25A
Technical Specifications DS-2TX3742-25A
General Information
-
ModelDS-2TX3742-25A
-
Brand
-
Category
-
Type
-
SKU1447960
-
MPN1447960
Representation / realization
-
IFOV (spatial resolution)0.68 mRad
-
Number of languages32
-
Automatic trackingYes
-
Thermal sensitivity (NETD)35 mK
-
Languages taken into accountBUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, ITA, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, UKR, VIE
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
Automatic trackingYes
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
Camera
-
Field of View (FOV) angle (thermal module)14.9 x 11.2 °
-
Camera shutter speed1 - 30000 s
-
Panoramic speed160 °/sec
-
Pan tilt preset speed240 °/sec
-
Tilt speed200 °/sec
-
White balanceATW, Auto, Daylight, Indoor, Manual, Outdoor, Sodium lamp
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
Objective system
-
Fixed focal length (thermal module)25 mm
-
Opening number (thermal model)1
-
Number of lenses2
-
Zoom capacityYes
-
Digital zoom16 x
Network
-
Type of Ethernet interfaceFast Ethernet
-
Ethernet/LANYes
-
BluetoothNo
-
BluetoothNo
Audio
-
Voice codecsG.711a
-
G.711u
-
G.722.1
-
G.726
-
MP2L2
-
PCM
Video
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reduction technology3D digital noise suppression
-
Noise reductionYes
-
Noise reductionYes
-
Gain control typeAuto
-
Number of images per second30 fps
-
Maximum resolution2688 x 1520 pixels
-
Supported graphic resolutions320 x 240, 352 x 240, 352 x 288, 640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2560 x 1440, 2688 x 1520
-
Visual compression formatsH.264, H.265, M-JPEG
-
Total megapixels- MP
Packaging contents
-
Number of cameras1
Night vision
-
Night visionYes
-
Night vision distance500 m
-
Type of LEDIR
Weight and dimensions
-
Weight10890 g
-
Width266.6 mm
-
Depth573.5 mm
-
Height699.8 mm
Environmental conditions
-
Operating temperature-40 - 65 °C
-
Operating relative humidity (H-H)0 - 90 %
Power
-
Consumption (max)80 W
-
AC input voltage24 V
-
Power supply typeSector
Image sensor
-
Sensor typeCMOS
-
Number of sensors2
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)384 x 288 pixels
-
Progressive scanYes
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
Design
-
Format-
-
International Protection Code (IP)IP66
-
Mounting typeCeiling/wall
-
Product colorWhite
Connectivity
-
Microphone jack inputYes
-
Number of Ethernet LAN ports (RJ-45)1
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size256 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-2TX3742-25A specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-2TX3742-25A is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-2TX3742-25A is 6941264078944. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-2TX3742-25A is DS-2TX3742-25A | DS-2TX3742-25A/P. This model ensures optimal performance and an enhanced user experience.
Objective system
The product Hikvision DS-2TX3742-25A has a fixed focal length (thermal module) of 25 mm. This specification ensures optimal performance for precise and detailed shots. The opening number of the product Hikvision DS-2TX3742-25A is 1. This opening number is essential for determining the thermal performance of the device. The number of lenses in the product Hikvision DS-2TX3742-25A is 2. This number determines the quality and versatility of the lens. Does the product Hikvision DS-2TX3742-25A have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The digital zoom of the product Hikvision DS-2TX3742-25A is 16 x. This zoom allows for capturing precise details even from a distance.
Camera
The product Hikvision DS-2TX3742-25A has a field of view (FOV) angle (thermal module) of 14.9 x 11.2 °. This angle allows for precise and effective visualization of the monitored areas. The panning speed of the product Hikvision DS-2TX3742-25A is 160 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The shutter speed of the camera of the product Hikvision DS-2TX3742-25A is 1 - 30000 s. This feature allows capturing sharp images even in low light conditions. The product Hikvision DS-2TX3742-25A has a preset panning speed of 240 °/sec. This specification allows for smooth and fast camera movement, ideal for capturing dynamic scenes. The tilt speed of the product Hikvision DS-2TX3742-25A is 200 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. The white balance of the product Hikvision DS-2TX3742-25A consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. The minimum illumination of the product Hikvision DS-2TX3742-25A is 0 lux. This feature ensures optimal performance even in low light conditions. Does the product Hikvision DS-2TX3742-25A have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision DS-2TX3742-25A camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives.
Network
The Ethernet interface type of the product Hikvision DS-2TX3742-25A is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the Hikvision DS-2TX3742-25A have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product Hikvision DS-2TX3742-25A have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision DS-2TX3742-25A contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Audio
The voice codec of the Hikvision DS-2TX3742-25A product contains G.711a, G.711u, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications.
Representation / realization
The spatial resolution of the Hikvision DS-2TX3742-25A product is 0.68 mRad. This resolution allows for optimal image clarity for detailed analysis. The product Hikvision DS-2TX3742-25A has a thermal sensitivity (NETD) of 35 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. Does the product Hikvision DS-2TX3742-25A have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The number of languages of the product Hikvision DS-2TX3742-25A is 32. This product offers an enriching multilingual experience. The languages considered for the product Hikvision DS-2TX3742-25A are BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, ITA, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, UKR, VIE. This product thus caters to a wide international audience. Does the product Hikvision DS-2TX3742-25A have a thermal module? Oui. This module ensures optimal temperature management for efficient operation. Does the product Hikvision DS-2TX3742-25A have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision DS-2TX3742-25A have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision DS-2TX3742-25A have an entry/end Alarm? Oui. This feature effectively secures access to your space. Does the product Hikvision DS-2TX3742-25A have Automatic Tracking? Oui. This feature allows you to track your orders in real-time, providing you with peace of mind while shopping. The type of product Hikvision DS-2TX3742-25A is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision DS-2TX3742-25A supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision DS-2TX3742-25A features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Packaging contents
The number of cameras of the product Hikvision DS-2TX3742-25A is 1. This product is equipped with a camera that allows capturing high-quality images.
Night vision
Does the product Hikvision DS-2TX3742-25A have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The type of LED of the product Hikvision DS-2TX3742-25A is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. The night vision distance of the product Hikvision DS-2TX3742-25A is 500 m. This feature allows for clear and precise observation even in darkness.
Weight and dimensions
The weight of the product Hikvision DS-2TX3742-25A is 10890 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Hikvision DS-2TX3742-25A is 266.6 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Hikvision DS-2TX3742-25A is 699.8 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-2TX3742-25A is 573.5 mm. This dimension allows for optimal integration into your space.
Video
Does the product Hikvision DS-2TX3742-25A have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The product Hikvision DS-2TX3742-25A features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision DS-2TX3742-25A have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision DS-2TX3742-25A have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. Does the product Hikvision DS-2TX3742-25A have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision DS-2TX3742-25A have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The gain control type of the product Hikvision DS-2TX3742-25A is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The number of frames per second of the product Hikvision DS-2TX3742-25A is 30 ips. This specification ensures optimal smoothness when playing videos. The maximum resolution of the product Hikvision DS-2TX3742-25A is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The supported graphic resolutions of the product Hikvision DS-2TX3742-25A are 320 x 240,352 x 240,352 x 288,640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2560 x 1440,2688 x 1520. These resolutions provide optimal display quality for your content. The product Hikvision DS-2TX3742-25A has visual compression formats: H.264, H.265, M-JPEG. These formats ensure optimal image quality for your videos. The total megapixels of the product Hikvision DS-2TX3742-25A is - MP. This total ensures exceptional image quality for your photos.
Environmental conditions
The product Hikvision DS-2TX3742-25A has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-2TX3742-25A is -40 - 65 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Power
The type of power source for the product Hikvision DS-2TX3742-25A is Secteur. This type of power supply ensures optimal performance and efficient use of the device. The AC input voltage of the Hikvision DS-2TX3742-25A is 24 V. This specification ensures optimal compatibility with standard electrical systems. The maximum consumption of the product Hikvision DS-2TX3742-25A is 80 W. This specification allows for the assessment of the energy efficiency of the device.
Management features
The Hikvision DS-2TX3742-25A system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Image sensor
The sensor type of the product Hikvision DS-2TX3742-25A is CMOS. This type of sensor ensures optimal image quality for your needs. The image detector of the product Hikvision DS-2TX3742-25A contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection. The number of sensors of the product Hikvision DS-2TX3742-25A is 2. This number of sensors allows for precise and efficient image detection. The effective resolution of the sensor (thermal module) of the product Hikvision DS-2TX3742-25A is 384 x 288 pixels. This specification ensures accurate and reliable detection of temperature variations. Does the product Hikvision DS-2TX3742-25A have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience.
Design
The International Protection Code (IP) for product Hikvision DS-2TX3742-25A contains IP66. This code indicates the level of protection against solid objects and moisture. The format of the product Hikvision DS-2TX3742-25A is a bar. This format allows for practical and efficient use in various contexts. The color of the product Hikvision DS-2TX3742-25A is Blanc. This shade gives it a modern and elegant look. The mounting type of the product Hikvision DS-2TX3742-25A is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product.
Connectivity
Does the product Hikvision DS-2TX3742-25A have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The RS-485 port of the Hikvision DS-2TX3742-25A contains 1. This port allows for robust serial communication and is ideal for industrial applications. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-2TX3742-25A is 1. These ports provide a stable and fast network connection for your devices.
Storage support
The maximum size of the memory card for the product Hikvision DS-2TX3742-25A is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision DS-2TX3742-25A have a built-in hard drive? No. This feature means that the product does not have internal storage. Does the Hikvision DS-2TX3742-25A have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision DS-2TX3742-25A has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
