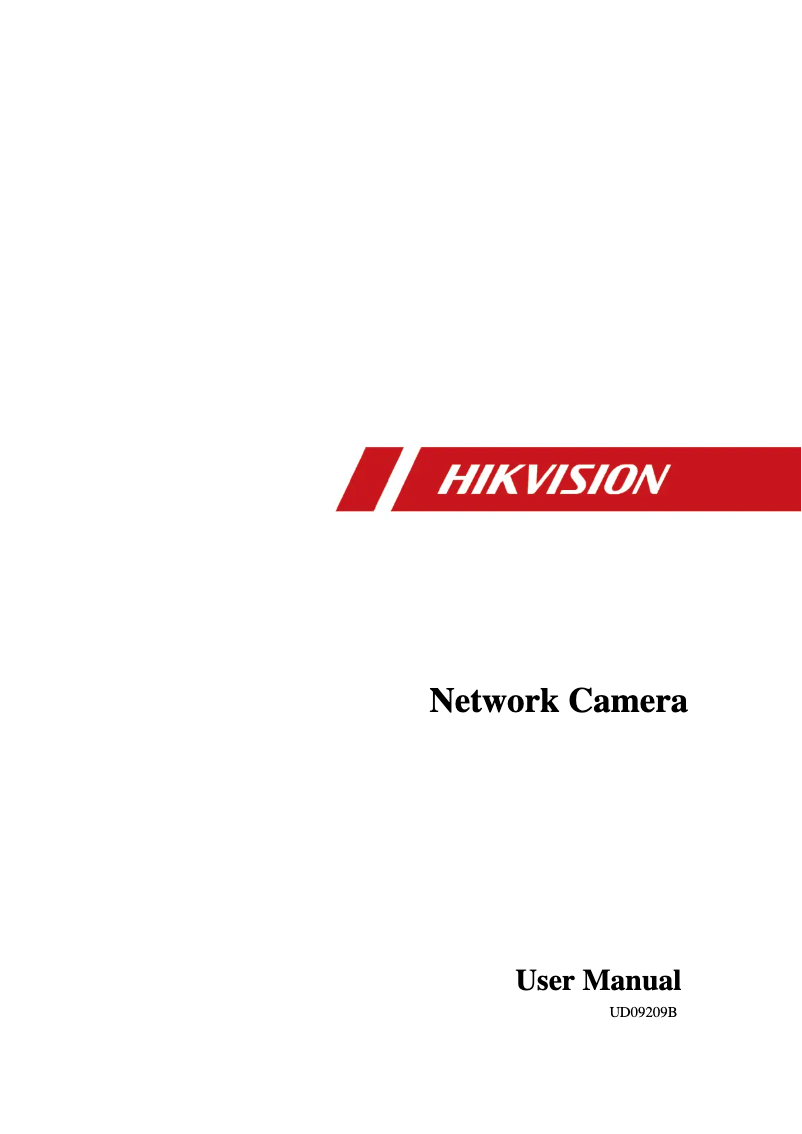

Manual of product DS-2XM6756FWD-IM/ND
Technical Specifications DS-2XM6756FWD-IM/ND
General Information
-
ModelDS-2XM6756FWD-IM/ND
-
Brand
-
Category
-
Type
-
SKU1177616
-
MPN1177616
Camera
-
Field of view of the lens, horizontal97.6 °
-
Angle of view of the lens, vertical53.5 °
-
Angle of view of the lens, diagonal113.6 °
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0.005 lux
-
Rotation angle360 °
-
Inclination angle0 - 75 °
-
Panoramic-30 - 30 °
-
Camera shutter speed1/3 s - 1/100000 s
Objective system
-
Fixed Focal Length2.8 mm
-
Number of lenses1
-
Fixed focusYes
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
-
Infrared cutoff filterYes
Design
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
-
Material of the case/bodyMetal
-
International Protection Code (IP)IP67
-
Code IKIK10
-
Weather-resistantYes
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.9 "
-
Progressive scanYes
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
-
Infrared wavelength850 nm
Video
-
Maximum resolution3072 x 2048 pixels
-
Total megapixels5 MP
-
Visual compression formatsH.264, H.265, M-JPEG
-
Supported graphic resolutions320 x 240,352 x 240,352 x 288,640 x 360,640 x 480 (VGA),1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440,2944 x 1656,3072 x 1728,3072 x 2048
-
Number of images per second30 ips
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Coding of the region of interestYes
-
Noise reduction technology3D digital noise reduction
-
Image quality adjustmentBrightness, Saturation, Sharpness
-
Coding of the region of interestYes
-
Bitrate32 Kbps - 16 Mbps
-
Coding of the region of interestYes
-
Coding of the region of interestYes
Audio
-
Built-in microphoneYes
-
Voice codecsG.711, G.722.1, G.726, MP2L2, PCM
Packaging contents
-
Number of cameras1
Packaging information
-
Package weight860 g
-
Package height250 mm
-
Package depth100 mm
-
Package width60 mm
Weight and dimensions
-
Height (support included)69.4 mm
-
Diameter110 mm
-
Diameter110 mm
-
Weight580 g
-
Diameter110 mm
-
Height57.4 mm
Environmental conditions
-
Operating relative humidity (H-H)0 - 95 %
-
Operating temperature
-
-30 - 60 °C
Power
-
Output CC in amperes0.5 A
-
Output CC in volts12
-
Energy consumption (Power over Ethernet (PoE))7.5 W
-
Consumption (max)6 W
-
Power supply typeDC, PoE
Management features
-
Behavior analysisIntrusion detection
-
Reset buttonLine crossing detection
-
Reset buttonObject removal detection
-
Reset buttonUnattended baggage detection
-
Yes
-
Yes
-
Yes
Security
-
Password protectionYes
-
Password protectionYes
-
Password protectionYes
-
Password protectionYes
-
Functions of the IVS system (intelligent video surveillance)Crossing line, Face detection, Intrusion
-
Password protectionYes
-
Password protectionYes
-
Password protectionYes
Connectivity
-
Number of Ethernet LAN ports (RJ-45)1
Storage support
-
Maximum memory card size128 GB
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Integrated hard driveNo
Network
-
Number of users32 user(s)
-
Ethernet/LANYes
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
-
Network standardsIEEE 802.3af
-
Type of Ethernet interfaceFast Ethernet
-
WifiNo
-
WifiNo
-
Ethernet/LANYes
