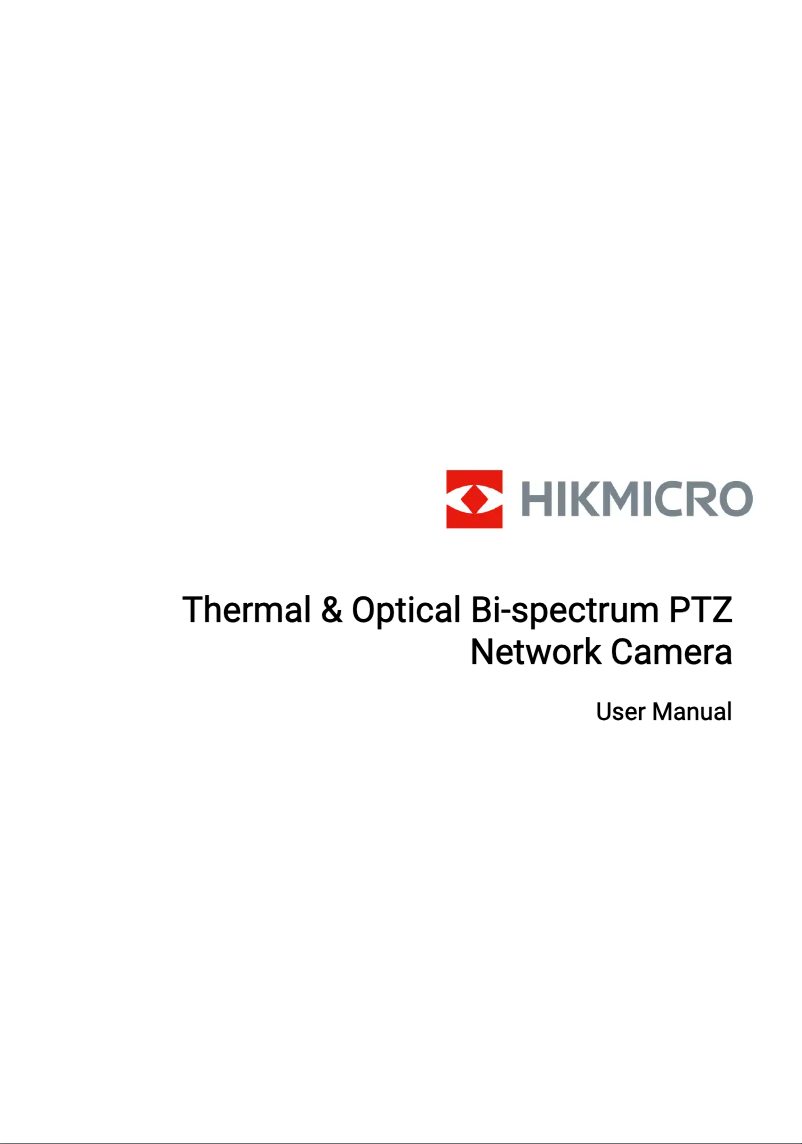

Manuals of product HM-TD5528T-10/W
Technical Specifications HM-TD5528T-10/W
General Information
-
ModelHM-TD5528T-10/W
-
Brand
-
Category
-
Type
-
SKU1843847
-
MPN1843847
Weight and dimensions
-
Width320.1 mm
-
Depth193.9 mm
-
Height153.1 mm
-
Weight4800 g
Representation / realization
-
Number of languages32
-
Languages taken into accountBUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
-
Thermal sensitivity (NETD)35 mK
-
IFOV (spatial resolution)1.2 mRad
-
Entry/exit alarmYes
-
Dynamic range120 dB
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
PTZ Modes8 Tour, Preset point
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
Image sensor
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)256 x 192 pixels
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
Camera
-
Camera pixel size12 µm
-
Minimum illumination0.05 lux
-
Field of view of the lens, horizontal58.4 - 2.14 °
-
Angle of view of the lens, vertical33.8 - 1.2 °
-
Camera shutter speed1 - 1/100000 s
-
Panoramic0 - 360 °
-
Inclination angle-90 - 90 °
-
Panoramic speed90 °/sec
-
Tilt speed40 °/sec
-
Automatic flippingYes
-
Automatic flippingYes
-
Automatic flippingYes
Objective system
-
Number of lenses-
-
Opening number (thermal model)1
-
Infrared spectrum band8 - 14 µm
-
Fixed focal length (thermal module)10 mm
-
Focal length4.8 - 153 mm
-
TuningMotorized/manual
-
Digital zoom16 x
-
Zoom capacityYes
-
Detection distance1278 m
-
Recognition distance319 m
-
Identification distance160 m
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Supported graphic resolutions384 x 288, 640 x 512, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520
-
Number of images per second30 ips
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Video broadcastingYes
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Management features
-
Behavior analysisIntrusion detection
-
Web-based managementLine crossing detection
-
Management softwareRegion entrance detection
-
Region exiting detection
-
Yes
-
iVMS-4200
-
Hik-Connect
Security
-
Temperature range-20 - 550 °C
-
Temperature measurement accuracy2 °C
-
Network Attached Storage (NAS)Yes
-
Number of detectable fire points10
-
Alarm output channels2
-
Alarm output channels2
-
Network Attached Storage (NAS)Yes
-
Network Attached Storage (NAS)Yes
-
Network Attached Storage (NAS)Yes
-
Security-supported algorithmEAP-MD5, EAP-TLS
-
Network Attached Storage (NAS)Yes
-
Network Attached Storage (NAS)Yes
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Quality of Service (QoS)Yes
-
Number of simultaneous live viewing channels20 channels
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x
-
Quality of Service (QoS)Yes
Storage support
-
Integrated hard driveNo
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Built-in memory card readerYes
-
Maximum memory card size128 GB
Audio
-
Audio output channels1 channels
-
Audio output channels1 channels
-
Voice codecsAAC, G.711alaw, G.711ulaw, G.722.1, G.726, PCM
Connectivity
-
RS-485 ports1
-
RS-485 ports1
Power
-
Power supply typeCC
-
Typical electricity consumption20 W
-
Output CC in volts24
Environmental conditions
-
Operating temperature-40 - 70 °C
-
Operating relative humidity (H-H)0 - 90 %
Packaging contents
-
Eraser includedYes
-
Number of cameras1
Design
-
Format-
-
International Protection Code (IP)IP67
-
Mounting typeWall
-
Product colorGray
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product HM-TD5528T-10/W specifications from brand Hikvision
Generalities
The brand of the product Hikvision HM-TD5528T-10/W is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision HM-TD5528T-10/W is HM-TD5528T-10/W | HM-TD5528T-10/W. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision HM-TD5528T-10/W is 6974004642495. This code allows for the unique identification of the product in the distribution system.
Weight and dimensions
The width of the product Hikvision HM-TD5528T-10/W is 320.1 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Hikvision HM-TD5528T-10/W is 153.1 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision HM-TD5528T-10/W is 193.9 mm. This dimension allows for optimal integration into your space. The weight of the product Hikvision HM-TD5528T-10/W is 4800 g. This weight is ideal for ensuring optimal use and easy handling.
Image sensor
The image detector of the product Hikvision HM-TD5528T-10/W contains a thermal module. This type of sensor is designed to provide excellent performance in heat detection. The number of sensors of the product Hikvision HM-TD5528T-10/W is 1. This number of sensors allows for precise and efficient image detection. The effective resolution of the sensor (thermal module) of the product Hikvision HM-TD5528T-10/W is 256 x 192 pixels. This specification ensures accurate and reliable detection of temperature variations. The sensor type of the product Hikvision HM-TD5528T-10/W is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision HM-TD5528T-10/W is 1/2.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots.
Representation / realization
The number of languages of the product Hikvision HM-TD5528T-10/W is 32. This product offers an enriching multilingual experience. The spatial resolution of the Hikvision HM-TD5528T-10/W product is 1.2 mRad. This resolution allows for optimal image clarity for detailed analysis. The product Hikvision HM-TD5528T-10/W has a thermal sensitivity (NETD) of 35 mK. This feature allows for the detection of temperature variations with high precision, thus ensuring optimal performance in various applications. The languages considered for the product Hikvision HM-TD5528T-10/W are BUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE. This product thus caters to a wide international audience. Does the product Hikvision HM-TD5528T-10/W have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The design of the product Hikvision HM-TD5528T-10/W supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The type of product Hikvision HM-TD5528T-10/W is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The dynamic range of the product Hikvision HM-TD5528T-10/W is 120 dB. This feature allows for precise and nuanced sound reproduction, ideal for fully enjoying your favorite tracks. The product Hikvision HM-TD5528T-10/W features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The PTZ control of the product Hikvision HM-TD5528T-10/W is Oui. This control allows for precise and efficient management of pan, tilt, and zoom. Does the product Hikvision HM-TD5528T-10/W have preset points? Oui. This feature allows for simplified and customized use according to your preferences. Does the product Hikvision HM-TD5528T-10/W have a Patrol mode? Oui. This mode allows for effective and continuous monitoring. The PTZ modes of the product Hikvision HM-TD5528T-10/W contain 8 Tour, Preset point. These modes allow for increased flexibility and customization to meet your specific needs. Does the product Hikvision HM-TD5528T-10/W have a thermal module? Oui. This module ensures optimal temperature management for efficient operation. Does the product Hikvision HM-TD5528T-10/W have an entry/end Alarm? Oui. This feature effectively secures access to your space.
Camera
The minimum illumination of the product Hikvision HM-TD5528T-10/W is 0.05 lux. This feature ensures optimal performance even in low light conditions. The pixel size of the Hikvision HM-TD5528T-10/W camera is 12 µm. An optimal pixel size allows for capturing high-quality images, even in low-light conditions. The field of view of the Hikvision HM-TD5528T-10/W lens is 58.4 - 2.14 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision HM-TD5528T-10/W is 33.8 - 1.2 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The shutter speed of the camera of the product Hikvision HM-TD5528T-10/W is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The panoramic view of the product Hikvision HM-TD5528T-10/W is 0 - 360 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The tilt angle of the product Hikvision HM-TD5528T-10/W is -90 - 90 °. This angle allows for adjusting the position for optimal comfort. The panning speed of the product Hikvision HM-TD5528T-10/W is 90 °/sec. This feature allows for smooth and fast rotation, ideal for capturing dynamic images. The tilt speed of the product Hikvision HM-TD5528T-10/W is 40 °/sec. This feature allows for a quick and smooth adjustment of the viewing angle, thus providing an optimal user experience. Does the product Hikvision HM-TD5528T-10/W have a camera pan command? No. This feature is not available on this model. The tilt command of the Hikvision HM-TD5528T-10/W camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. Does the Hikvision HM-TD5528T-10/W have automatic flipping? Oui. This feature allows the camera to automatically adjust to capture the best angles.
Objective system
The opening number of the product Hikvision HM-TD5528T-10/W is 1. This opening number is essential for determining the thermal performance of the device. The product Hikvision HM-TD5528T-10/W has a fixed focal length (thermal module) of 10 mm. This specification ensures optimal performance for precise and detailed shots. The number of lenses in the product Hikvision HM-TD5528T-10/W is -. This number determines the quality and versatility of the lens. The infrared spectrum band of the product Hikvision HM-TD5528T-10/W is 8 - 14 µm. This band allows for precise analysis of wavelengths in the infrared range. The focal length of the product Hikvision HM-TD5528T-10/W is 4.8 - 153 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The adjustment of the Hikvision HM-TD5528T-10/W is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The digital zoom of the product Hikvision HM-TD5528T-10/W is 16 x. This zoom allows for capturing precise details even from a distance. Does the product Hikvision HM-TD5528T-10/W have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The detection distance of the product Hikvision HM-TD5528T-10/W is 1278 m. This feature allows for effective detection over a significant range. The detection range of the product Hikvision HM-TD5528T-10/W is 319 m. This specification allows for the assessment of the system's effectiveness under various usage conditions. The product identification distance Hikvision HM-TD5528T-10/W is 160 m. This specification allows determining the range at which the device can recognize objects or people.
Video
The supported graphic resolutions of the product Hikvision HM-TD5528T-10/W are 384 x 288,640 x 512,704 x 576,1280 x 720 (HD 720),1280 x 960,1920 x 1080 (HD 1080),2688 x 1520. These resolutions provide optimal display quality for your content. The total megapixels of the product Hikvision HM-TD5528T-10/W is 4 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision HM-TD5528T-10/W is 2688 x 1520 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The number of frames per second of the product Hikvision HM-TD5528T-10/W is 30 ips. This specification ensures optimal smoothness when playing videos. The product Hikvision HM-TD5528T-10/W has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. Does the product Hikvision HM-TD5528T-10/W have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience.
Night vision
Does the product Hikvision HM-TD5528T-10/W have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision HM-TD5528T-10/W is 30 m. This feature allows for clear and precise observation even in darkness. The type of LED of the product Hikvision HM-TD5528T-10/W is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness.
Management features
The Hikvision HM-TD5528T-10/W product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision HM-TD5528T-10/W system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. The Hikvision HM-TD5528T-10/W management software contains iVMS-4200, Hik-Connect. This management software allows for efficient and intuitive administration of video security systems.
Security
The temperature range of the product Hikvision HM-TD5528T-10/W is -20 - 550 °C. This feature ensures optimal use in varied conditions. The number of detectable fire points of the product Hikvision HM-TD5528T-10/W is 10. This number ensures optimal protection against fire hazards. The temperature measurement accuracy of the product Hikvision HM-TD5528T-10/W is 2 °C. This feature ensures a reliable assessment of thermal conditions, essential for ensuring the safety and proper functioning of your equipment. Does the product Hikvision HM-TD5528T-10/W have Fire Detection? Oui. This feature ensures optimal safety by quickly detecting any source of heat or smoke. The alarm input channel of the product Hikvision HM-TD5528T-10/W contains 2. This channel allows for efficient integration of security systems. The alarm output channel of the product Hikvision HM-TD5528T-10/W contains 2. This channel allows for the effective reporting of any alerts or important events. Does the Hikvision HM-TD5528T-10/W have a temperature sensor? Oui. This sensor allows for accurate measurement of the ambient temperature to ensure optimal comfort. Does the Hikvision HM-TD5528T-10/W product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision HM-TD5528T-10/W have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The supported security algorithm of the product Hikvision HM-TD5528T-10/W contains EAP-MD5, EAP-TLS. This algorithm ensures optimal protection of your data. Does the product Hikvision HM-TD5528T-10/W have Automatic Network Replenishment (ANR)? Oui. This feature ensures proactive and secure management of network resources. Does the product Hikvision HM-TD5528T-10/W have Network Attached Storage (NAS)? Oui. This system allows secure and centralized access to data, ideal for sharing and backup.
Storage support
Does the Hikvision HM-TD5528T-10/W have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision HM-TD5528T-10/W is 128 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision HM-TD5528T-10/W have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. The product Hikvision HM-TD5528T-10/W has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data.
Audio
The number of audio input channels of the product Hikvision HM-TD5528T-10/W is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience. The voice codec of the Hikvision HM-TD5528T-10/W product contains AAC, G.711alaw, G.711ulaw, G.722.1, G.726, PCM. This voice codec ensures optimal audio quality for your communications. The audio output channels of the Hikvision HM-TD5528T-10/W are 1 canaux. This specification allows for an immersive and high-quality sound experience.
Network
Does the product Hikvision HM-TD5528T-10/W have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision HM-TD5528T-10/W contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The supported network protocols of the product Hikvision HM-TD5528T-10/W are IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE. These protocols ensure efficient and reliable communication for your networking needs. Does the Hikvision HM-TD5528T-10/W have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The number of users of the product Hikvision HM-TD5528T-10/W is 32 utilisateur(s). This product is ideal for several people. The user access level of the product Hikvision HM-TD5528T-10/W contains Administrator, Operator, User. This access level defines the permissions and features available for each type of user. The Ethernet interface type of the product Hikvision HM-TD5528T-10/W is Fast Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision HM-TD5528T-10/W are IEEE 802.1x. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hikvision HM-TD5528T-10/W have a live view? Oui. This feature allows you to see in real-time what the camera captures. The number of simultaneous live viewing channels for the product Hikvision HM-TD5528T-10/W is 20 canaux. This feature allows for a smooth and enriching viewing experience, ideal for users wanting to follow multiple streams at the same time. Does the product Hikvision HM-TD5528T-10/W have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Connectivity
The RS-485 port of the Hikvision HM-TD5528T-10/W contains 1. This port allows for robust serial communication and is ideal for industrial applications. The number of Ethernet LAN (RJ-45) ports of the product Hikvision HM-TD5528T-10/W is 1. These ports provide a stable and fast network connection for your devices.
Power
The type of power source for the product Hikvision HM-TD5528T-10/W is CC. This type of power supply ensures optimal performance and efficient use of the device. The product Hikvision HM-TD5528T-10/W has a DC output in volts of 24. This specification ensures a stable power supply suitable for the needs of your electronic devices. The typical power consumption of the product Hikvision HM-TD5528T-10/W is 20 W. This feature allows for the assessment of the energy efficiency of the device.
Environmental conditions
The operating temperature of the product Hikvision HM-TD5528T-10/W is -40 - 70 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision HM-TD5528T-10/W has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Packaging contents
Does the product Hikvision HM-TD5528T-10/W come with an Eraser included? Yes. This handy accessory allows you to easily correct your mistakes. The number of cameras of the product Hikvision HM-TD5528T-10/W is 1. This product is equipped with a camera that allows capturing high-quality images.
Design
The format of the product Hikvision HM-TD5528T-10/W is a bar. This format allows for practical and efficient use in various contexts. The International Protection Code (IP) for product Hikvision HM-TD5528T-10/W contains IP67. This code indicates the level of protection against solid objects and moisture. The mounting type of the product Hikvision HM-TD5528T-10/W is Mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision HM-TD5528T-10/W is Gris. This shade gives it a modern and elegant look.
