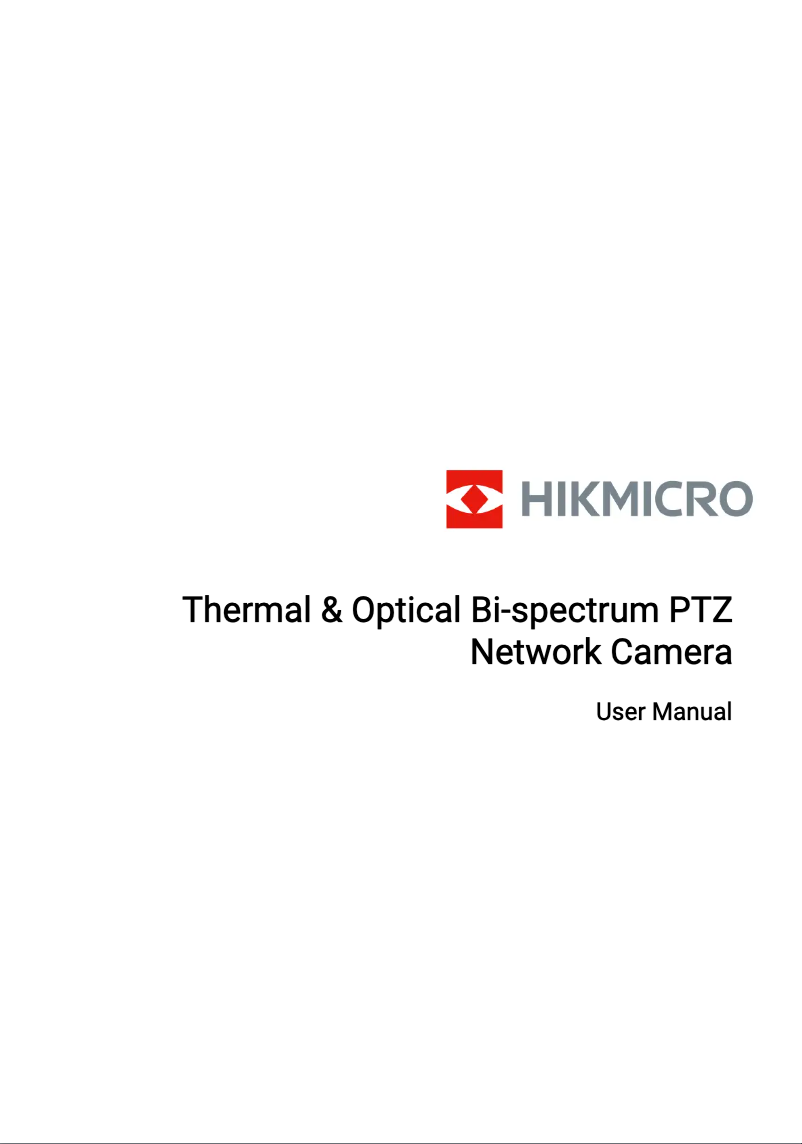

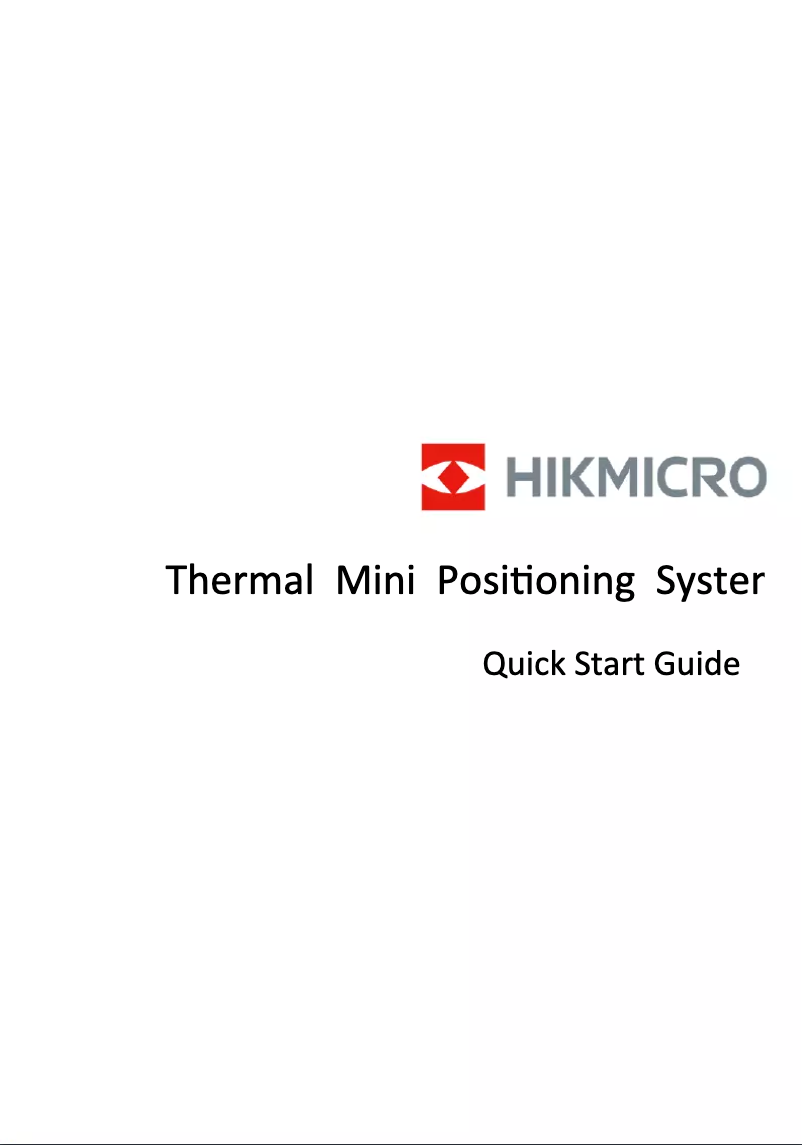

Manuals of product HM-TD5567T-25/W
Technical Specifications HM-TD5567T-25/W
General Information
-
ModelHM-TD5567T-25/W
-
Brand
-
Category
-
Type
-
SKU1843851
-
MPN1843851
Weight and dimensions
-
Width320.1 mm
-
Depth193.9 mm
-
Height153.1 mm
-
Weight4800 g
Objective system
-
Number of lenses-
-
Fixed focal length (thermal module)25 mm
-
Opening number (thermal model)1
-
Digital zoom16 x
-
TuningMotorized/manual
-
Maximum number of openings4.4
-
Minimum opening amount1.2
-
Focal length4.8 - 153 mm
-
Infrared spectrum band8 - 14 µm
-
Zoom capacityYes
-
Detection distance2255 m
-
Recognition distance564 m
-
Identification distance282 m
Representation / realization
-
IFOV (spatial resolution)0.68 mRad
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
Number of languages32
-
Languages taken into accountBUL, CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, EST, FIN, FRE, GRE, HUN, ITA, JPN, KOR, LAT, LIT, NOR, POL, POR, RUM, RUS, SER, SLK, SLV, SWE, THA, TUR, VIE
-
Thermal sensitivity (NETD)35 mK
-
Dynamic range120 dB
-
Entry/exit alarmYes
-
PTZ Modes8 Tour, Auto Scan, Preset point
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
Network
-
Number of users32 user(s)
-
User access levelAdministrator, Operator, User
-
Quality of Service (QoS)Yes
-
Number of simultaneous live viewing channels20 channels
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Supported network protocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE
-
Type of Ethernet interfaceFast Ethernet
-
Network standardsIEEE 802.1x
-
Quality of Service (QoS)Yes
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size128 GB
Connectivity
-
RS-485 ports1
-
RS-485 ports1
Security
-
Alarm output channels2
-
Alarm output channels2
-
Temperature range-20 - 550 °C
-
Temperature measurement accuracy2 °C
-
Network Attached Storage (NAS)Yes
-
Number of detectable fire points10
-
Network Attached Storage (NAS)Yes
-
Security-supported algorithmEAP-MD5
-
Network Attached Storage (NAS)Yes
-
Network Attached Storage (NAS)Yes
-
Network Attached Storage (NAS)Yes
Design
-
Format-
-
Mounting typeWall
-
Product colorGray
-
International Protection Code (IP)IP67
Camera
-
Minimum illumination0.05 lux
-
Field of view of the lens, horizontal58.4 - 2.14 °
-
Angle of view of the lens, vertical33.8 - 1.2 °
-
Inclination angle-90 - 90 °
-
Tilt speed40 °/sec
-
Camera pixel size17 µm
-
Camera shutter speed1 - 1/100000 s
-
Automatic flippingYes
-
Automatic flippingYes
-
Field of View (FOV) angle (thermal module)24.9 x 20 °
-
Panoramic0 - 360 °
-
Panoramic speed90 °/sec
-
Automatic flippingYes
Management features
-
Behavior analysisIntrusion detection
-
Web-based managementLine crossing detection
-
Management softwareRegion entrance detection
-
Region exiting detection
-
Yes
-
iVMS-4200
-
Hik-Connect
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/2.8 "
-
Sensor type (thermal module)Vanadium Oxide Uncooled Focal Plane Arrays
-
Effective sensor resolution (thermal module)640 x 512 pixels
-
Progressive scanYes
Power
-
Power supply typeCC
-
Typical electricity consumption20 W
-
Output CC in volts24
Environmental conditions
-
Operating temperature-40 - 70 °C
-
Operating relative humidity (H-H)0 - 90 %
Packaging contents
-
Number of cameras1
-
Eraser includedYes
Night vision
-
Night visionYes
-
Night vision distance30 m
-
Type of LEDIR
Video
-
Maximum resolution2688 x 1520 pixels
-
Total megapixels4 MP
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Supported graphic resolutions384 x 288, 640 x 512, 704 x 576, 1280 x 720 (HD 720), 1280 x 960, 1920 x 1080 (HD 1080), 2688 x 1520
-
Number of images per second30 ips
-
Video broadcastingYes
Audio
-
Audio output channels1 channels
-
Audio output channels1 channels
-
Audio CodecsG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/AAC/PCM
