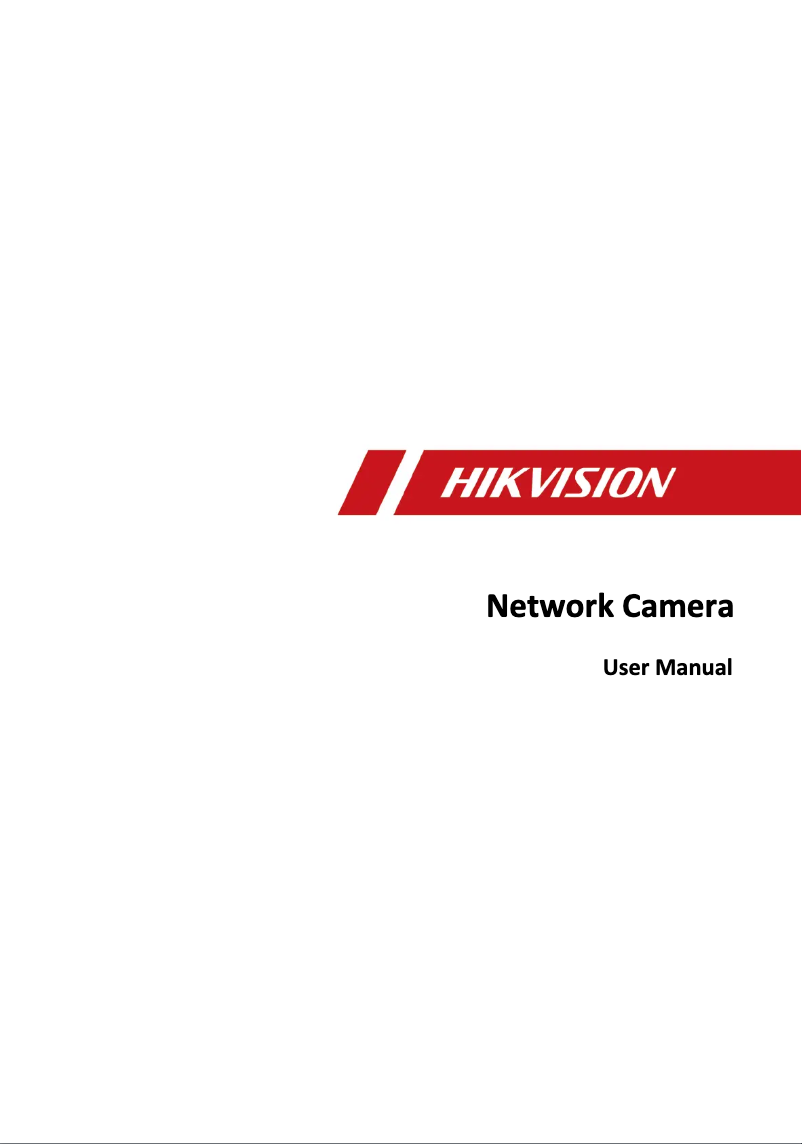

Manuals of product IDS-2CD7526G0-IZHS
Technical Specifications IDS-2CD7526G0-IZHS
General Information
-
ModelIDS-2CD7526G0-IZHS
-
Brand
-
Category
-
Type
-
SKU1448171
-
MPN1448171
Representation / realization
-
TypeIP security camera
-
Supported installationOutdoor
-
Connectivity technologyWired
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
Entry/exit alarmYes
Image sensor
-
Optical sensor size1/1.8 "
-
Sensor type
-
Number of sensorsCMOS
-
Progressive scan
-
1
-
-
Yes
Video
-
Total megapixels2 MP
-
Maximum resolution1920 x 1080 pixels
-
Bitrate32 Kbps - 16 Mbps
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Gain control typeAuto
-
Noise reduction technology3D digital noise reduction
-
Noise reductionYes
-
Noise reductionYes
-
Number of images per second30 fps
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
Camera
-
Minimum illumination0 lux
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Inclination angle0 - 75 °
-
Panoramic0 - 355 °
-
Rotation angle355 °
-
Camera shutter speed1 - 1/100000 s
-
Field of view of the lens, horizontal42.5 °
-
Angle of view of the lens, vertical23.3 °
-
Angle of view of the lens, diagonal49.6 °
Objective system
-
Focal length8-32 mm
-
Maximum number of openings1.73
-
Minimum opening amount1.7
-
TuningMotorized/manual
-
Auto focusYes
-
Number of lenses1
Night vision
-
Night vision distance50 m
-
Night visionYes
-
Type of LEDIR
-
Infrared wavelength850 nm
Weight and dimensions
-
Diameter162 mm
-
Height141.8 mm
-
Weight1490 g
Packaging information
-
Package weight2435 g
-
Package width251 mm
-
Package depth215 mm
-
Package height189 mm
Power
-
Energy consumption (Power over Ethernet (PoE))15 W
-
Consumption (max)14.7 W
-
Output CC in volts12
-
Power supply typeDC, PoE
Network
-
Supported network protocolsTCP/IP
-
Network standardsICMP
-
Type of Ethernet interfaceHTTP
-
Quality of Service (QoS)HTTPS
-
BluetoothFTP
-
BluetoothDHCP
-
Number of usersDNS
-
Quality of Service (QoS)DDNS
-
RTP
-
RTSP
-
RTCP
-
PPPoE
-
NTP
-
UPnP
-
SMTP
-
SNMP
-
IGMP
-
802.1X
-
QoS
-
IPv6
-
UDP
-
Bonjour
-
IEEE 802.1x
-
IEEE 802.3at
-
Gigabit Ethernet
-
Yes
-
No
-
No
-
32 user(s)
-
Yes
Audio
-
Voice codecsG.711
-
Sampling frequencyG.722.1
-
G.726
-
MP2L2
-
PCM
-
48 kHz
Packaging contents
-
Number of cameras1
Environmental conditions
-
Operating temperature-40 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Management features
-
Behavior analysisIntrusion detection
-
Line crossing detection
-
Object removal detection
-
Region entrance detection
-
Region exiting detection
-
Unattended baggage detection
Security
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Functions of the IVS system (intelligent video surveillance)Face detection, Scene change
-
Motion detector (video)Yes
-
Motion detector (video)Yes
-
Security-supported algorithmEAP-LEAP, EAP-MD5, EAP-TLS
-
Motion detector (video)Yes
-
Motion detector (video)Yes
Design
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
-
Material of the case/bodyAluminum
-
International Protection Code (IP)IP67
-
Code IKIK10
Connectivity
-
Component output1
-
Component output1
Storage support
-
Integrated hard driveNo
-
Built-in memory card readerYes
-
Compatible memory cardsMicroSD (TransFlash), MicroSDHC, MicroSDXC
-
Maximum memory card size256 GB
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product IDS-2CD7526G0-IZHS specifications from brand Hikvision
Generalities
The EAN code of the product Hikvision IDS-2CD7526G0-IZHS is 6941264061199. This code allows for the unique identification of the product in the distribution system. The brand of the product Hikvision IDS-2CD7526G0-IZHS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision IDS-2CD7526G0-IZHS is IDS-2CD7526G0-IZHS | IDS-2CD7526G0-IZHS(8-32MM). This model ensures optimal performance and an enhanced user experience.
Image sensor
The optical sensor size of the product Hikvision IDS-2CD7526G0-IZHS is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. The number of sensors of the product Hikvision IDS-2CD7526G0-IZHS is 1. This number of sensors allows for precise and efficient image detection. Does the product Hikvision IDS-2CD7526G0-IZHS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The sensor type of the product Hikvision IDS-2CD7526G0-IZHS is CMOS. This type of sensor ensures optimal image quality for your needs.
Representation / realization
The type of product Hikvision IDS-2CD7526G0-IZHS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. Does the product Hikvision IDS-2CD7526G0-IZHS have an infrared cut filter? Oui. This filter blocks infrared wavelengths, thereby improving image quality and color accuracy. The product Hikvision IDS-2CD7526G0-IZHS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables. The design of the product Hikvision IDS-2CD7526G0-IZHS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. Does the product Hikvision IDS-2CD7526G0-IZHS have the people counting feature? Oui. This feature allows tracking the number of people present in a given space, thus providing valuable data for management and flow optimization. Does the product Hikvision IDS-2CD7526G0-IZHS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. Does the product Hikvision IDS-2CD7526G0-IZHS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision IDS-2CD7526G0-IZHS have an entry/end Alarm? Oui. This feature effectively secures access to your space.
Video
The total megapixels of the product Hikvision IDS-2CD7526G0-IZHS is 2 MP. This total ensures exceptional image quality for your photos. The maximum resolution of the product Hikvision IDS-2CD7526G0-IZHS is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The bit rate of the product Hikvision IDS-2CD7526G0-IZHS is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision IDS-2CD7526G0-IZHS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. Does the product Hikvision IDS-2CD7526G0-IZHS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. Does the product Hikvision IDS-2CD7526G0-IZHS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. The gain control type of the product Hikvision IDS-2CD7526G0-IZHS is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The product Hikvision IDS-2CD7526G0-IZHS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision IDS-2CD7526G0-IZHS have Personal Data Masking? Oui. This feature ensures the protection of users' personal information when streaming videos. The image quality setting of the product Hikvision IDS-2CD7526G0-IZHS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. Does the product Hikvision IDS-2CD7526G0-IZHS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision IDS-2CD7526G0-IZHS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The number of frames per second of the product Hikvision IDS-2CD7526G0-IZHS is 30 ips. This specification ensures optimal smoothness when playing videos. The product Hikvision IDS-2CD7526G0-IZHS has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos.
Night vision
The infrared wavelength of the product Hikvision IDS-2CD7526G0-IZHS is 850 nm. This feature allows for optimal use in various technological applications. The type of LED of the product Hikvision IDS-2CD7526G0-IZHS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. Does the product Hikvision IDS-2CD7526G0-IZHS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security. The night vision distance of the product Hikvision IDS-2CD7526G0-IZHS is 50 m. This feature allows for clear and precise observation even in darkness.
Camera
Does the product Hikvision IDS-2CD7526G0-IZHS have a camera pan command? No. This feature is not available on this model. The minimum illumination of the product Hikvision IDS-2CD7526G0-IZHS is 0 lux. This feature ensures optimal performance even in low light conditions. The tilt angle of the product Hikvision IDS-2CD7526G0-IZHS is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The tilt command of the Hikvision IDS-2CD7526G0-IZHS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The panoramic view of the product Hikvision IDS-2CD7526G0-IZHS is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The rotation angle of the product Hikvision IDS-2CD7526G0-IZHS is 355 °. This angle allows for optimal usage flexibility. The shutter speed of the camera of the product Hikvision IDS-2CD7526G0-IZHS is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. The field of view of the Hikvision IDS-2CD7526G0-IZHS lens is 42.5 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The vertical field of view of the product Hikvision IDS-2CD7526G0-IZHS is 23.3 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The angle of view of the lens, diagonal of the product Hikvision IDS-2CD7526G0-IZHS is 49.6 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience.
Objective system
The focal length of the product Hikvision IDS-2CD7526G0-IZHS is 8-32 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The minimum opening number of the product Hikvision IDS-2CD7526G0-IZHS is 1.7. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The maximum number of openings for the product Hikvision IDS-2CD7526G0-IZHS is 1.73. This feature allows for optimal use and increased flexibility. The adjustment of the Hikvision IDS-2CD7526G0-IZHS is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. Does the Hikvision IDS-2CD7526G0-IZHS have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The number of lenses in the product Hikvision IDS-2CD7526G0-IZHS is 1. This number determines the quality and versatility of the lens.
Weight and dimensions
The weight of the product Hikvision IDS-2CD7526G0-IZHS is 1490 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision IDS-2CD7526G0-IZHS is 141.8 mm. This dimension is essential to ensure that the product fits perfectly in your space. The diameter of the product Hikvision IDS-2CD7526G0-IZHS is 162 mm. This diameter allows for optimal use and fits perfectly with your needs.
Packaging information
The depth of the product package Hikvision IDS-2CD7526G0-IZHS is 215 mm. This dimension is essential to ensure proper packaging and secure transport. The width of the package of the product Hikvision IDS-2CD7526G0-IZHS is 251 mm. This dimension is essential to ensure optimal transport and storage. The weight of the Hikvision IDS-2CD7526G0-IZHS package is 2435 g. This weight ensures optimal protection during transport and delivery. The height of the package of the product Hikvision IDS-2CD7526G0-IZHS is 189 mm. This dimension is essential to ensure optimal transport and storage.
Audio
The sampling frequency of the product Hikvision IDS-2CD7526G0-IZHS is 48 kHz. This feature ensures optimal sound quality for your recordings. The voice codec of the Hikvision IDS-2CD7526G0-IZHS product contains G.711, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications.
Power
The energy consumption of the product Hikvision IDS-2CD7526G0-IZHS is 15 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The product Hikvision IDS-2CD7526G0-IZHS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The maximum consumption of the product Hikvision IDS-2CD7526G0-IZHS is 14.7 W. This specification allows for the assessment of the energy efficiency of the device. The type of power source for the product Hikvision IDS-2CD7526G0-IZHS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device.
Packaging contents
The number of cameras of the product Hikvision IDS-2CD7526G0-IZHS is 1. This product is equipped with a camera that allows capturing high-quality images.
Network
The Ethernet interface type of the product Hikvision IDS-2CD7526G0-IZHS is Gigabit Ethernet. This type of interface allows for fast and efficient network connections. The network standards of the product Hikvision IDS-2CD7526G0-IZHS are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision IDS-2CD7526G0-IZHS are TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision IDS-2CD7526G0-IZHS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision IDS-2CD7526G0-IZHS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. Does the Hikvision IDS-2CD7526G0-IZHS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. The number of users of the product Hikvision IDS-2CD7526G0-IZHS is 32 utilisateur(s). This product is ideal for several people. Does the product Hikvision IDS-2CD7526G0-IZHS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience.
Management features
The Hikvision IDS-2CD7526G0-IZHS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage.
Environmental conditions
The non-operating temperature of the product Hikvision IDS-2CD7526G0-IZHS is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The operating temperature of the product Hikvision IDS-2CD7526G0-IZHS is -40 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision IDS-2CD7526G0-IZHS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The relative humidity (storage) rate of the product Hikvision IDS-2CD7526G0-IZHS is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Connectivity
The output component of the product Hikvision IDS-2CD7526G0-IZHS contains 1. This specification ensures optimal connectivity for efficient use. The number of Ethernet LAN (RJ-45) ports of the product Hikvision IDS-2CD7526G0-IZHS is 1. These ports provide a stable and fast network connection for your devices.
Storage support
The product Hikvision IDS-2CD7526G0-IZHS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision IDS-2CD7526G0-IZHS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution. Does the Hikvision IDS-2CD7526G0-IZHS have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision IDS-2CD7526G0-IZHS is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space.
Security
The Hikvision IDS-2CD7526G0-IZHS has a heart rate. This feature allows you to monitor your health in real time. Does the Hikvision IDS-2CD7526G0-IZHS have an Anti-glare? Oui. This feature ensures optimal protection against unwanted reflections, thus providing an enhanced visual experience. The intelligent video surveillance system of the product Hikvision IDS-2CD7526G0-IZHS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision IDS-2CD7526G0-IZHS have a digital watermark? Oui. This feature provides additional protection against counterfeiting and ensures the authenticity of digital content. Does the Hikvision IDS-2CD7526G0-IZHS product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. Does the product Hikvision IDS-2CD7526G0-IZHS have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site. The supported security algorithm of the product Hikvision IDS-2CD7526G0-IZHS contains EAP-LEAP, EAP-MD5, EAP-TLS. This algorithm ensures optimal protection of your data. Does the product Hikvision IDS-2CD7526G0-IZHS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. Does the product Hikvision IDS-2CD7526G0-IZHS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access.
Design
The material of the product case Hikvision IDS-2CD7526G0-IZHS is Aluminium. This material ensures both durability and elegance. The mounting type of the product Hikvision IDS-2CD7526G0-IZHS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision IDS-2CD7526G0-IZHS is Blanc. This shade gives it a modern and elegant look. The format of the product Hikvision IDS-2CD7526G0-IZHS is a bar. This format allows for practical and efficient use in various contexts. The IK Code of the product Hikvision IDS-2CD7526G0-IZHS is IK10. This IK Code allows for easy identification of the specific design of the item. The International Protection Code (IP) for product Hikvision IDS-2CD7526G0-IZHS contains IP67. This code indicates the level of protection against solid objects and moisture.
