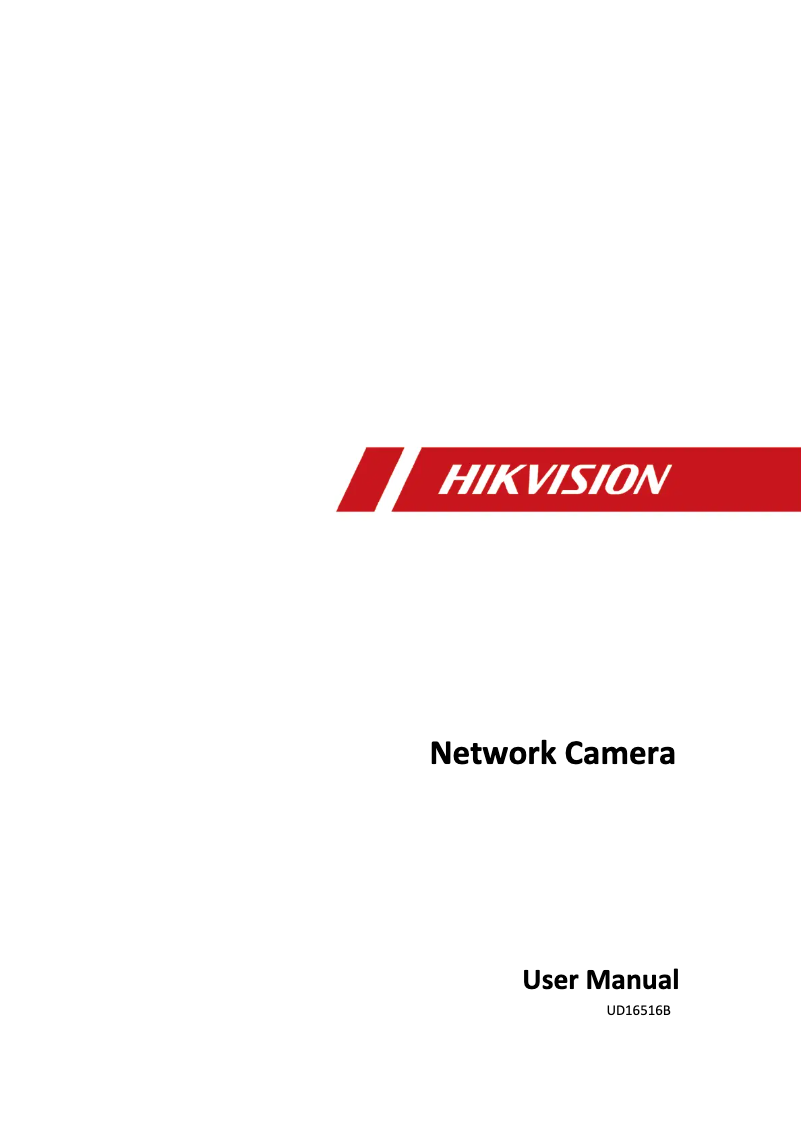

Manual of product IDS-2CD8146G0-IZS
Technical Specifications IDS-2CD8146G0-IZS
General Information
-
ModelIDS-2CD8146G0-IZS
-
Brand
-
Category
-
Type
-
SKU1177628
-
MPN1177628
Design
-
Code IKIK10
-
FormatDome
-
Mounting typeCeiling/wall
-
Product colorWhite
-
Material of the case/bodyMetal
Representation / realization
-
Certification47 CFR 15, B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: 6, 2016; KN 32: 2015, KN 35: 2015
-
Entry/exit alarmUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + 1:2009 + Am 2:2013, IS 13252(1):2010+A1:2013+A2:2015
-
Entry/exit alarmYes
-
Entry/exit alarmYes
-
TypeYes
-
Supported installationIP security camera
-
Connectivity technologyOutdoor
-
Wired
Weight and dimensions
-
Diameter140 mm
-
Height123 mm
-
Weight940 g
Packaging information
-
Package weight1410 g
-
Package width244 mm
-
Package depth174 mm
-
Package height173 mm
Power
-
Output CC in volts12
-
Power supply typeDC, PoE
-
Consumption (max)11.4 W
-
Energy consumption (Power over Ethernet (PoE))13.6 W
-
Electricity consumption200 mA
Environmental conditions
-
Temperature out of operation-30 - 60 °C
-
Temperature out of operation-30 - 60 °C
-
Relative humidity rate (storage)0 - 95 %
-
Relative humidity rate (storage)0 - 95 %
Connectivity
-
Component output1
-
Component output1
-
Component output1
Video
-
Total megapixels4 MP
-
Maximum resolution2560 x 1440 pixels
-
Supported graphic resolutions640 x 480 (VGA), 704 x 480, 704 x 576, 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 2560 x 1440
-
Visual compression formatsH.264, H.264+, H.265, H.265+, M-JPEG
-
Noise reductionYes
-
Noise reductionYes
-
Noise reductionYes
-
Bitrate32 Kbps - 16 Mbps
-
Image quality adjustmentBrightness, Contrast, Saturation, Sharpness
-
Gain control typeAuto
-
Noise reduction technology3D digital noise reduction
-
Noise reductionYes
-
Noise reductionYes
-
Number of images per second30 fps
Night vision
-
Night vision distance30 m
-
Infrared wavelength850 nm
-
Night visionYes
-
Type of LEDIR
Objective system
-
Maximum number of openings2
-
Minimum opening amount1.8
-
Focal length8 - 32 mm
-
TuningMotorized/manual
-
Auto focusYes
-
Number of lenses1
Camera
-
Field of view of the lens, horizontal40 °
-
Angle of view of the lens, vertical22 °
-
Angle of view of the lens, diagonal46 °
-
Panoramic0 - 355 °
-
Inclination angle0 - 75 °
-
Rotation angle355 °
-
Camera shutter speed1 - 1/100000 s
-
Camera tilt controlYes
-
Camera tilt controlYes
-
Minimum illumination0 lux
Audio
-
Voice codecsG.711
-
Sampling frequencyG.722.1
-
Supported audio formatsG.726
-
Audio input channelsMP2L2
-
Audio input channelsPCM
-
48 kHz
-
MP3
-
1 channel
-
1 channel
Packaging contents
-
Number of cameras1
Image sensor
-
Sensor typeCMOS
-
Number of sensors1
-
Optical sensor size1/1.8 "
-
Progressive scanYes
Management features
-
Behavior analysisIntrusion detection
-
Reset buttonLine crossing detection
-
Reset buttonObject removal detection
-
Unattended baggage detection
-
Yes
-
Yes
Security
-
Functions of the IVS system (intelligent video surveillance)Defocus
-
Security-supported algorithmFace detection
-
HTTPS encryptionScene change
-
HTTPS encryptionEAP-MD5
-
HTTPS encryptionEAP-TLS
-
HTTPS encryptionLEAP
-
Yes
-
Yes
-
Yes
-
Yes
Storage support
-
Compatible memory cardsMicroSD (TransFlash)
-
Integrated hard driveMicroSDHC
-
Built-in memory card readerMicroSDXC
-
Maximum memory card sizeNo
-
Yes
-
256 GB
Network
-
Quality of Service (QoS)Yes
-
BluetoothNo
-
BluetoothNo
-
Type of Ethernet interfaceGigabit Ethernet
-
Network standardsIEEE 802.1x, IEEE 802.3at
-
Supported network protocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
-
Quality of Service (QoS)Yes
-
Number of users32 user(s)
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product IDS-2CD8146G0-IZS specifications from brand Hikvision
Generalities
The brand of the product Hikvision IDS-2CD8146G0-IZS is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision IDS-2CD8146G0-IZS is 6941264027577. This code allows for the unique identification of the product in the distribution system. The product model Hikvision IDS-2CD8146G0-IZS is IDS-2CD8146G0-IZS | IDS-2CD8146G0-IZS(8-32MM). This model ensures optimal performance and an enhanced user experience.
Weight and dimensions
The diameter of the product Hikvision IDS-2CD8146G0-IZS is 140 mm. This diameter allows for optimal use and fits perfectly with your needs. The weight of the product Hikvision IDS-2CD8146G0-IZS is 940 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision IDS-2CD8146G0-IZS is 123 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Design
The IK Code of the product Hikvision IDS-2CD8146G0-IZS is IK10. This IK Code allows for easy identification of the specific design of the item. The mounting type of the product Hikvision IDS-2CD8146G0-IZS is Plafond/mur. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The color of the product Hikvision IDS-2CD8146G0-IZS is Blanc. This shade gives it a modern and elegant look. The format of the product Hikvision IDS-2CD8146G0-IZS is a bar. This format allows for practical and efficient use in various contexts. The material of the product case Hikvision IDS-2CD8146G0-IZS is Métal. This material ensures both durability and elegance.
Representation / realization
Does the product Hikvision IDS-2CD8146G0-IZS have a Day/Night Mode? Oui. This feature allows for adjusting the lighting according to the time of day, thus providing optimal comfort. Does the product Hikvision IDS-2CD8146G0-IZS have a Wide Range Dynamic (WRD)? Oui. This specification ensures optimal performance and increased adaptability in various conditions. The certification of the product Hikvision IDS-2CD8146G0-IZS contains 47 CFR 15, B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: 6, 2016; KN 32: 2015, KN 35: 2015\nUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + 1:2009 + Am 2:2013, IS 13252(1):2010+A1:2013+A2:2015. This certification guarantees compliance with the required safety and performance standards. Does the product Hikvision IDS-2CD8146G0-IZS have an entry/end Alarm? Oui. This feature effectively secures access to your space. The type of product Hikvision IDS-2CD8146G0-IZS is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The design of the product Hikvision IDS-2CD8146G0-IZS supports vertical installation. This feature allows for optimal integration into various spaces, thus offering flexibility and practicality. The product Hikvision IDS-2CD8146G0-IZS features a Avec fil connectivity technology. This functionality allows for practical and flexible use without the constraints of cables.
Packaging information
The weight of the Hikvision IDS-2CD8146G0-IZS package is 1410 g. This weight ensures optimal protection during transport and delivery. The depth of the product package Hikvision IDS-2CD8146G0-IZS is 174 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product Hikvision IDS-2CD8146G0-IZS is 173 mm. This dimension is essential to ensure optimal transport and storage. The width of the package of the product Hikvision IDS-2CD8146G0-IZS is 244 mm. This dimension is essential to ensure optimal transport and storage.
Environmental conditions
The operating temperature of the product Hikvision IDS-2CD8146G0-IZS is -30 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision IDS-2CD8146G0-IZS has an operating relative humidity (H-H) of 0 - 95 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Hikvision IDS-2CD8146G0-IZS is -30 - 60 °C. This specification ensures that the product can withstand extreme conditions without suffering damage. The relative humidity (storage) rate of the product Hikvision IDS-2CD8146G0-IZS is 0 - 95 %. This rate ensures optimal conditions for the preservation and durability of the product.
Connectivity
The RS-485 port of the Hikvision IDS-2CD8146G0-IZS contains 1. This port allows for robust serial communication and is ideal for industrial applications. The output component of the product Hikvision IDS-2CD8146G0-IZS contains 1. This specification ensures optimal connectivity for efficient use. The number of Ethernet LAN (RJ-45) ports of the product Hikvision IDS-2CD8146G0-IZS is 1. These ports provide a stable and fast network connection for your devices.
Power
The product Hikvision IDS-2CD8146G0-IZS has a DC output in volts of 12. This specification ensures a stable power supply suitable for the needs of your electronic devices. The type of power source for the product Hikvision IDS-2CD8146G0-IZS is DC, PoE. This type of power supply ensures optimal performance and efficient use of the device. The maximum consumption of the product Hikvision IDS-2CD8146G0-IZS is 11.4 W. This specification allows for the assessment of the energy efficiency of the device. The energy consumption of the product Hikvision IDS-2CD8146G0-IZS is 13.6 W. This specification allows powering devices via the Ethernet network, thus providing a practical and efficient solution to reduce the number of cables needed. The electrical consumption of the product Hikvision IDS-2CD8146G0-IZS is 200 mA. This consumption ensures optimal operation while guaranteeing energy efficiency.
Night vision
The night vision distance of the product Hikvision IDS-2CD8146G0-IZS is 30 m. This feature allows for clear and precise observation even in darkness. The infrared wavelength of the product Hikvision IDS-2CD8146G0-IZS is 850 nm. This feature allows for optimal use in various technological applications. The type of LED of the product Hikvision IDS-2CD8146G0-IZS is IR. This type of LED allows for optimal night vision, ensuring image clarity even in darkness. Does the product Hikvision IDS-2CD8146G0-IZS have night vision? Oui. This feature allows for clear visibility in the dark, thus providing enhanced security.
Video
The total megapixels of the product Hikvision IDS-2CD8146G0-IZS is 4 MP. This total ensures exceptional image quality for your photos. The product Hikvision IDS-2CD8146G0-IZS has visual compression formats: H.264, H.264+, H.265, H.265+, M-JPEG. These formats ensure optimal image quality for your videos. The supported graphic resolutions of the product Hikvision IDS-2CD8146G0-IZS are 640 x 480 (VGA),704 x 480,704 x 576,1280 x 720 (HD 720),1920 x 1080 (HD 1080),2560 x 1440. These resolutions provide optimal display quality for your content. The maximum resolution of the product Hikvision IDS-2CD8146G0-IZS is 2560 x 1440 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. Does the product Hikvision IDS-2CD8146G0-IZS have Region of Interest Encoding? Oui. This feature allows targeting specific areas in the video for more precise processing or analysis. Does the product Hikvision IDS-2CD8146G0-IZS have a Brightness Compensation? Oui. This feature allows for automatic adjustment of the image brightness for a better visual experience. The bit rate of the product Hikvision IDS-2CD8146G0-IZS is 32 Kbps - 16 Mbps. This bit rate determines the quality and clarity of the sound, providing an enriching audio experience. Does the product Hikvision IDS-2CD8146G0-IZS have Highlight Compensation (HLC)? Oui. This feature enhances image quality by reducing highlight effects. The image quality setting of the product Hikvision IDS-2CD8146G0-IZS contains Brightness, Contrast, Saturation, Sharpness. This setting allows for optimizing the display for an enhanced visual experience. The gain control type of the product Hikvision IDS-2CD8146G0-IZS is Auto/Manual. This type of control allows for easy adjustment of the gain level according to needs, thus providing optimal flexibility for your video recordings. The product Hikvision IDS-2CD8146G0-IZS features advanced noise reduction technology. This technology effectively eliminates noise disturbances, providing an optimal visual and auditory experience. Does the product Hikvision IDS-2CD8146G0-IZS have a video broadcast? Oui. This feature allows sharing content in real-time with a large audience. Does the product Hikvision IDS-2CD8146G0-IZS have noise reduction? Oui. This feature allows for an optimal sound experience by minimizing external distractions. The number of frames per second of the product Hikvision IDS-2CD8146G0-IZS is 30 ips. This specification ensures optimal smoothness when playing videos.
Objective system
The focal length of the product Hikvision IDS-2CD8146G0-IZS is 8 - 32 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The minimum opening number of the product Hikvision IDS-2CD8146G0-IZS is 1.8. This minimum opening number allows for better brightness and enables high-quality shots in low-light conditions. The maximum number of openings for the product Hikvision IDS-2CD8146G0-IZS is 2. This feature allows for optimal use and increased flexibility. The adjustment of the Hikvision IDS-2CD8146G0-IZS is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. Does the Hikvision IDS-2CD8146G0-IZS have Auto focus? Oui. This feature allows for capturing sharp and accurate images by automatically adjusting the focus. The number of lenses in the product Hikvision IDS-2CD8146G0-IZS is 1. This number determines the quality and versatility of the lens.
Camera
The field of view of the Hikvision IDS-2CD8146G0-IZS lens is 40 °. This field of view allows for capturing images with a wide perspective, ideal for landscapes and group shots. The angle of view of the lens, diagonal of the product Hikvision IDS-2CD8146G0-IZS is 46 °. This angle allows capturing images with a wide perspective, thus providing an immersive visual experience. The panoramic view of the product Hikvision IDS-2CD8146G0-IZS is 0 - 355 °. This specification allows for an expanded overview, ideal for capturing landscapes or wide scenes. The vertical field of view of the product Hikvision IDS-2CD8146G0-IZS is 22 °. This field of view allows for image capture with an expanded perspective, ideal for dynamic compositions. The tilt angle of the product Hikvision IDS-2CD8146G0-IZS is 0 - 75 °. This angle allows for adjusting the position for optimal comfort. The rotation angle of the product Hikvision IDS-2CD8146G0-IZS is 355 °. This angle allows for optimal usage flexibility. The tilt command of the Hikvision IDS-2CD8146G0-IZS camera is %. This feature allows you to adjust the viewing angle to capture images from different perspectives. The minimum illumination of the product Hikvision IDS-2CD8146G0-IZS is 0 lux. This feature ensures optimal performance even in low light conditions. The shutter speed of the camera of the product Hikvision IDS-2CD8146G0-IZS is 1 - 1/100000 s. This feature allows capturing sharp images even in low light conditions. Does the product Hikvision IDS-2CD8146G0-IZS have a camera pan command? No. This feature is not available on this model.
Packaging contents
The number of cameras of the product Hikvision IDS-2CD8146G0-IZS is 1. This product is equipped with a camera that allows capturing high-quality images.
Image sensor
The sensor type of the product Hikvision IDS-2CD8146G0-IZS is CMOS. This type of sensor ensures optimal image quality for your needs. The optical sensor size of the product Hikvision IDS-2CD8146G0-IZS is 1/1.8 ". This size contributes to better image quality, allowing for sharper and more detailed shots. Does the product Hikvision IDS-2CD8146G0-IZS have a Progressive Scan? Oui. This feature allows for superior image quality by displaying each image in its entirety, thus providing a smoother and sharper visual experience. The number of sensors of the product Hikvision IDS-2CD8146G0-IZS is 1. This number of sensors allows for precise and efficient image detection.
Audio
The voice codec of the Hikvision IDS-2CD8146G0-IZS product contains G.711, G.722.1, G.726, MP2L2, PCM. This voice codec ensures optimal audio quality for your communications. The supported audio formats of the product Hikvision IDS-2CD8146G0-IZS are MP3. These formats ensure optimal compatibility for an enriching listening experience. The sampling frequency of the product Hikvision IDS-2CD8146G0-IZS is 48 kHz. This feature ensures optimal sound quality for your recordings. The audio output channels of the Hikvision IDS-2CD8146G0-IZS are 1 canaux. This specification allows for an immersive and high-quality sound experience. The number of audio input channels of the product Hikvision IDS-2CD8146G0-IZS is 1 canaux. This specification ensures optimal sound quality and an enriching listening experience.
Management features
The Hikvision IDS-2CD8146G0-IZS product has web-based management. This feature allows for easy and accessible administration of your data from any device connected to the Internet. The Hikvision IDS-2CD8146G0-IZS system has behavior analysis. This feature allows for detecting intrusions, monitoring passage lines, reporting removed objects, and identifying unattended luggage. Does the product Hikvision IDS-2CD8146G0-IZS have a Reset Button? Oui. This button allows you to easily reset the product settings.
Security
Does the product Hikvision IDS-2CD8146G0-IZS have a Motion Detector (video)? Oui. This device provides effective monitoring by capturing video footage during motion detections. The supported security algorithm of the product Hikvision IDS-2CD8146G0-IZS contains EAP-MD5, EAP-TLS, LEAP. This algorithm ensures optimal protection of your data. Does the product Hikvision IDS-2CD8146G0-IZS have Password Protection? Oui. This feature ensures the security of your data by restricting unauthorized access. Does the Hikvision IDS-2CD8146G0-IZS product filter IP addresses? Oui. This feature enhances security by blocking unauthorized access. The intelligent video surveillance system of the product Hikvision IDS-2CD8146G0-IZS has features such as face detection and intrusion. These advanced functionalities ensure optimal security by enabling proactive and effective monitoring. Does the product Hikvision IDS-2CD8146G0-IZS have HTTPS Encryption? Oui. This encryption ensures the security of the data exchanged between the user and the site.
Storage support
The product Hikvision IDS-2CD8146G0-IZS has compatible memory cards: MicroSD (TransFlash), MicroSDHC, MicroSDXC. These memory cards ensure optimal performance for storing your data. Does the Hikvision IDS-2CD8146G0-IZS have a built-in hard drive? No. This feature means that the product does not have internal storage. The maximum size of the memory card for the product Hikvision IDS-2CD8146G0-IZS is 256 Go. This feature allows for storing a large amount of data, ideal for users who need more space. Does the Hikvision IDS-2CD8146G0-IZS have a built-in memory card reader? Oui. This feature allows you to read and write data directly on memory cards, providing a convenient and efficient storage solution.
Network
The Ethernet interface type of the product Hikvision IDS-2CD8146G0-IZS is Gigabit Ethernet. This type of interface allows for fast and efficient network connections. Does the Hikvision IDS-2CD8146G0-IZS have Bluetooth? Non. This feature allows for a convenient wireless connection with other compatible devices. Does the product Hikvision IDS-2CD8146G0-IZS have Ethernet/LAN? Oui. This specification determines the network connectivity of the product. The Wifi of the product Hikvision IDS-2CD8146G0-IZS contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices. The network standards of the product Hikvision IDS-2CD8146G0-IZS are IEEE 802.1x, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision IDS-2CD8146G0-IZS are TCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS. These protocols ensure efficient and reliable communication for your networking needs. Does the product Hikvision IDS-2CD8146G0-IZS have Quality of Service (QoS)? Oui. This feature ensures optimal management of network resources, thus providing a smooth and uninterrupted user experience. The number of users of the product Hikvision IDS-2CD8146G0-IZS is 32 utilisateur(s). This product is ideal for several people.
