Thumbnail of product DS-D5024FN10 from brand Hikvision
Logo of brand Hikvision

Monitor Hikvision DS-D5024FN10

Hikvision
Computers and accessories
Monitor

The DS-D5024FN10 is a product in the category Computers and accessories, specifically of type Monitor. We have listed 1 manual of type User Manual for product Monitor Hikvision DS-D5024FN10. We have also listed 90 specifications for product Monitor Hikvision DS-D5024FN10. Have a question about product Hikvision DS-D5024FN10 and can't find the answer in the manual(s)? Do not hesitate to contact us.

Manual of product DS-D5024FN10

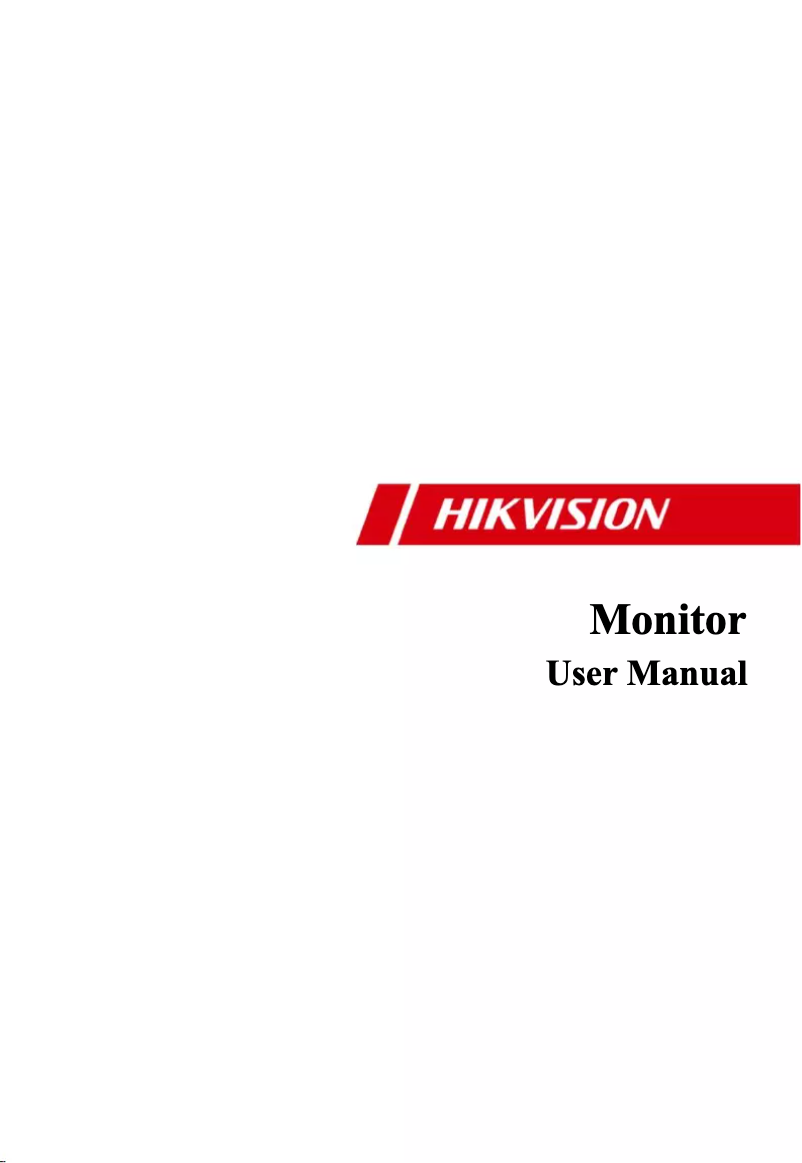

First page image of the manual for DS-D5024FN10

User Manual
15 pages
View manual

Technical Specifications DS-D5024FN10

General Information

Screen

  • Number of colors displayed
    -
  • Screen size
    23.8 "
  • Screen resolution
    1920 x 1080 pixels
  • Image format
    16:9
  • Display technology
    LED
  • Touch screen
    No
  • Type HD
    Full HD
  • Type of panel
    VA
  • Type of feedback
    Edge LED
  • Horizontal viewable size
    527.04 mm
  • Vertical viewable size
    296.46 mm
  • No pixel
    0.2745 x 0.2745 mm
  • Response time
    6.5 ms
  • Reaction time (fast)
    5 ms
  • Maximum discount rate
    60 Hz
  • Contrast ratio
    4000:1
  • Screen brightness (typical)
    250 cd/m²
  • Vertical viewing angle
    178 °
  • Vertical viewing angle
    178 °
  • Color depth
    8 bit
  • Surface hardness
    3H
  • Anti-glare screen
    Yes
  • Screen shape
    Flat
  • Color palette
    72 %
  • Color range standard
    NTSC
  • Visible diagonal size
    605 mm

Representation / realization

  • Service hours (hours/days)
    24/7
  • AMD FreeSync
    No
  • AMD FreeSync
    No
  • Low-Blue-Light Technology
    Yes

Connectivity

  • Built-in USB hub
    -
  • DC Input
    Yes
  • Number of VGA (D-Sub) ports
    1
  • HDMI version
    1.4
  • Number of VGA (D-Sub) ports
    1
  • Headphone output
    No
  • DC Input
    Yes

Ergonomics

  • Cable anti-theft lock
    -
  • Height adjustment
    -
  • Plug and Play
    Yes
  • VESA standard
    100 x 100 mm
  • Plug and Play
    Yes

Power

  • Energy efficiency class (SDR)
    -
  • Energy efficiency class (HDR)
    -
  • Energy consumption (HDR) for 1000 hours
    - kWh
  • Energy consumption (HDR) for 1000 hours
    - kWh
  • Typical electricity consumption
    30 W
  • Energy consumption (standby mode)
    0.5 W
  • Type of power supply
    External
  • Current intensity
    2.5 A
  • External power adapter
    Yes

Environmental conditions

  • Operating temperature
    0 - 40 °C
  • Temperature out of operation
    -20 - 60 °C
  • Relative humidity rate (storage)
    20 - 80 %
  • Relative humidity rate (storage)
    20 - 80 %

Design

  • Material of the case/body
    Plastic
  • Market position
    Professional
  • Front chassis
    Black
  • Detachable support
    Yes
  • Detachable support
    Yes
  • Front chassis
    Black
  • Front chassis
    Black

Weight and dimensions

  • Frame width (top)
    1.8 mm
  • Frame width (top)
    1.8 mm
  • Frame width (at the bottom)
    21.4 mm
  • Width (without support)
    538.4 mm
  • Depth (support included)
    186.37 mm
  • Height (support included)
    407.1 mm
  • Width (without support)
    538.4 mm
  • Depth (without support)
    37.5 mm
  • Height (without support)
    326.35 mm
  • Weight (without support)
    2634 g

Packaging information

  • Type of packaging
    Box
  • Package weight
    3340 g
  • Package width
    600 mm
  • Package depth
    94 mm
  • Package height
    408 mm

Packaging contents

  • User manual
    Yes
  • Cables included
    HDMI
  • User manual
    Yes
  • User manual
    Yes
  • Length of the HDMI cable
    1.5 m

Multimedia

  • Built-in camera
    No
  • Built-in camera
    No

Other features

  • Noise filter
    Yes
