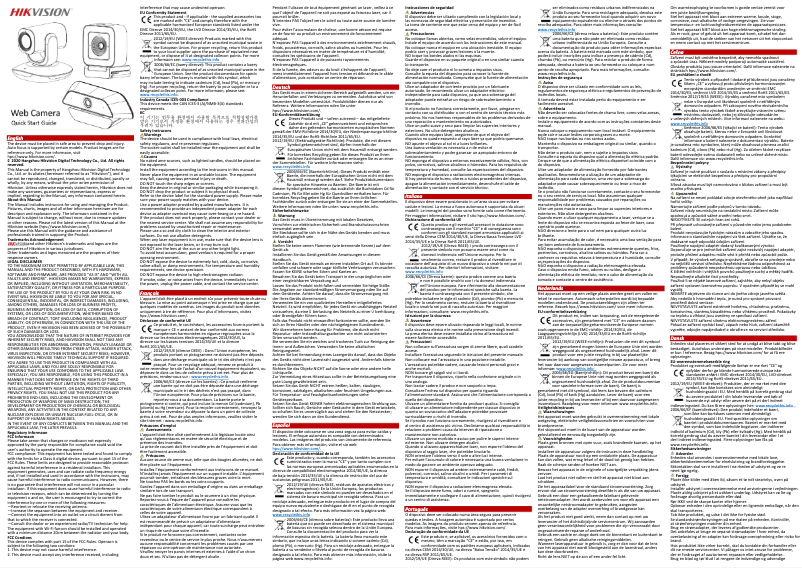

Manuals of product DS-U18
Technical Specifications DS-U18
General Information
-
ModelDS-U18
-
Brand
-
Category
-
Type
-
SKU1564396
-
MPN1564396
Representation / realization
-
Face centering-
-
Megapixel8 MP
-
Maximum video resolution3840 x 2160 pixels
-
Horizontal viewing angle79 °
-
Vertical viewing angle43 °
-
Diagonal viewpoint92 °
-
Camera shutter speedPAL: 1/25 - 1/50000; NTSC: 1/30 - 1/50000 s
-
Focusing Area, normal2 - ∞ m
-
White balanceAuto
-
Night modeYes
-
Operating voltage5 V
-
Minimum illumination0.1 lux
-
Night modeYes
-
Focal length3.6 mm
-
Maximum cadence30 ips
-
Quick shot resolution640x480@25fps, 640x480@30fps, 1280x720@25fps, 1280x720@30fps, 1280x960@25fps, 1280x960@30fps, 1920x1080@25fps, 1920x1080@30fps, 2560x1440@25fps, 2560x1440@30fps, 3840x2160@25fps, 3840x2160@30fps
-
HD type of the cameraFull HD
Design
-
Built-in flash-
-
Inclination angle-10 - 30 °
-
IndicatorsActivity, Stand-by
-
Cable length2 m
-
Built-in microphoneYes
-
Sensor typeCMOS
-
Mounting typeClip
-
InterfaceUSB 3.2 Gen 1 (3.1 Gen 1)
-
Product colorBlack
-
Built-in microphoneYes
Environmental conditions
-
Operating temperature-10 - 45 °C
-
Operating relative humidity (H-H)0 - 90 %
Weight and dimensions
-
Width130 mm
-
Depth53.2 mm
-
Height56.6 mm
-
Weight137 g
Packaging contents
-
Quick Installation GuideYes
Software
-
Supported mobile systemAndroid
-
Support for the Mac operating systemYes
-
Support for the Mac operating systemYes
-
Support for the Windows operating systemWindows 10, Windows 7, Windows XP
Packaging information
-
Quantity1
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-U18 specifications from brand Hikvision
Environmental conditions
The operating temperature of the product Hikvision DS-U18 is -10 - 45 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-U18 has an operating relative humidity (H-H) of 0 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Generalities
The brand of the product Hikvision DS-U18 is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-U18 is 0842571135091, 842571135091. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-U18 is DS-U18 | DS-U18(3.6MM). This model ensures optimal performance and an enhanced user experience.
Design
The tilt angle of the product Hikvision DS-U18 is -10 - 30 °. This angle allows for adjusting the position for optimal comfort. Does the product Hikvision DS-U18 have indicators? Activity, Stand-by. These indicators allow you to visualize the operating status of the device. Is the Hikvision DS-U18 powered by USB port? Oui. This feature allows for convenient and flexible use, making it easier to charge and power the device. The cable length of the product Hikvision DS-U18 is 2 m. This specification ensures optimal use and installation flexibility. Does the Hikvision DS-U18 have a built-in Flash? -. This flash allows for capturing sharp images even in low light conditions. The sensor type of the product Hikvision DS-U18 is CMOS. This type of sensor ensures optimal image quality for your needs. The mounting type of the product Hikvision DS-U18 is Clip. This type of mounting ensures easy and quick installation, thus guaranteeing optimal use of the product. The product Hikvision DS-U18 has an Interface USB 3.2 Gen 1 (3.1 Gen 1). This interface allows for easy and quick connection with various devices. The color of the product Hikvision DS-U18 is Noir. This shade gives it a modern and elegant look. Does the product Hikvision DS-U18 have a built-in Microphone? Oui. This microphone allows for clear and precise audio capture, ideal for calls and recordings.
Weight and dimensions
The height of the product Hikvision DS-U18 is 56.6 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-U18 is 53.2 mm. This dimension allows for optimal integration into your space. The width of the product Hikvision DS-U18 is 130 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Hikvision DS-U18 is 137 g. This weight is ideal for ensuring optimal use and easy handling.
Representation / realization
The megapixel of the product Hikvision DS-U18 is 8 MP. This megapixel ensures images of exceptional quality, allowing for the capture of every detail with precision. The vertical viewing angle of the Hikvision DS-U18 is 43 °. This angle allows for optimal viewing from different angles, thus providing an enhanced visual experience. The horizontal viewing angle of the product Hikvision DS-U18 is 79 °. This angle allows for optimal viewing from different angles, thus providing an immersive and comfortable experience. The maximum video resolution of the product Hikvision DS-U18 is 3840 x 2160 pixels. This specification ensures optimal image quality for your videos. The diagonal viewpoint of the product Hikvision DS-U18 is 92 °. This viewpoint provides a unique and dynamic perspective, thereby enriching the visual experience. The shutter speed of the camera of the product Hikvision DS-U18 is PAL: 1/25 - 1/50000; NTSC: 1/30 - 1/50000 s. This feature allows capturing sharp images even in low light conditions. The normal focus area of the product Hikvision DS-U18 is 2 - ∞ m. This specification ensures optimal accuracy for your needs. The white balance of the product Hikvision DS-U18 consists of several options, including Auto, Cloudy, Daylight, Fluorescent, Incandescent, and Manual. This feature allows you to adjust the color temperature to achieve true-to-life images. Does the product Hikvision DS-U18 have Plug and Play? Oui. This feature allows for quick and hassle-free installation, making the use of the product even more enjoyable. The operating voltage of the product Hikvision DS-U18 is 5 V. This specification ensures optimal performance and compatibility with various devices. The minimum illumination of the product Hikvision DS-U18 is 0.1 lux. This feature ensures optimal performance even in low light conditions. Does the product Hikvision DS-U18 have a Night mode? Oui. This feature allows you to capture quality images even in low light conditions. Does the product Hikvision DS-U18 have face centering? -. This feature ensures that faces are well positioned and highlighted in your images. The focal length of the product Hikvision DS-U18 is 3.6 mm. This specification determines the field of view and the distance at which subjects can be captured accurately. The maximum frame rate of the product Hikvision DS-U18 is 30 ips. This specification ensures optimal image smoothness for your recordings. The fast shooting resolution of the product Hikvision DS-U18 is 640x480@25fps, 640x480@30fps, 1280x720@25fps, 1280x720@30fps, 1280x960@25fps, 1280x960@30fps, 1920x1080@25fps, 1920x1080@30fps, 2560x1440@25fps, 2560x1440@30fps, 3840x2160@25fps, 3840x2160@30fps. This feature allows for capturing smooth, high-quality videos, perfect for preserving your precious moments. The HD Type of the camera of the product Hikvision DS-U18 has Full HD. This feature ensures exceptional image quality for an immersive viewing experience.
Packaging contents
Does the product Hikvision DS-U18 have a Quick Installation Guide? Oui. This guide will help you easily install the product by following clear and concise steps.
Software
The supported mobile system of the product Hikvision DS-U18 contains Android. This system allows for smooth usage on major mobile platforms. Does the product Hikvision DS-U18 support the Windows operating system? Windows 10, Windows 7, Windows XP. This feature ensures optimal compatibility with Windows systems, providing a smooth and uninterrupted user experience. Does the product Hikvision DS-U18 support the Linux operating system? Oui. This feature allows for optimal compatibility with Linux environments, thus providing increased usability flexibility. Does the product Hikvision DS-U18 support the Mac operating system? Oui. This feature ensures optimal compatibility for Mac users.
Packaging information
The quantity of the product Hikvision DS-U18 is 1. This specification allows you to know the number of units included in the packaging.
