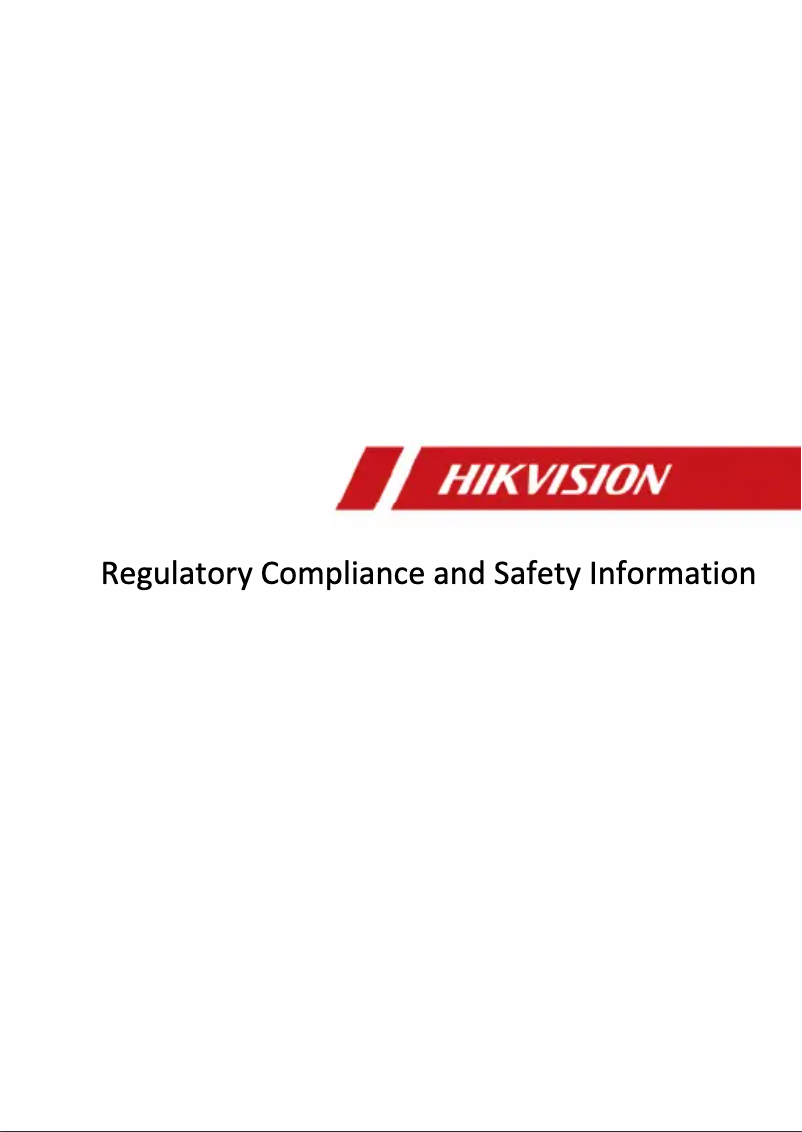

Manuals of product DS-7608NI-K1
Technical Specifications DS-7608NI-K1
General Information
-
ModelDS-7608NI-K1
-
Brand
-
Category
-
Type
-
SKU1448010
-
MPN1448010
Representation / realization
-
Video input channels8 channels
-
Output bandwidth80 Mbit/s
-
Output bandwidth80 Mbit/s
-
Audio system2-way
-
Video CodecsH.265/H.265+/H.264/H.264+/MPEG4
-
Audio CodecsG.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
-
Supported resolutions1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
-
Maximum resolution1920 x 1080 pixels
-
Alarm input channels4
-
Alarm output channels1
Power
-
Output current1.8 A
-
Total Power over Ethernet (PoE) Budget75 W
-
Output voltage48 V
-
Typical electricity consumption10 W
Connectivity
-
Number of Ethernet LAN ports (RJ-45)9
-
Power over Ethernet (PoE) Number of ports8
-
Network standardsIEEE 802.3af, IEEE 802.3at
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of USB 2.0 Ports2
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Ethernet connection, supporting power over this port (PoE)Yes
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
-
Supported network protocolsTCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS
Weight and dimensions
-
Width315 mm
-
Depth240 mm
-
Height48 mm
-
Weight1180 g
Disk reader
-
Maximum storage capacity6 To
-
Hard drive interfaceSATA, SATA II, SATA III
-
Number of supported hard drives1
-
Hard drive capacity0 Go
-
Number of installed hard drives0
Wireless LAN Features
-
WifiNo
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Operating relative humidity (H-H)10 - 90 %
Features
-
CertificationEN 301489-1
-
Product colorEN 301489-19
-
Assembly gridEN 301489-52
-
Assembly gridEN 303413
-
Rack capacityEN 301511
-
EN 301908-1
-
EN 301908-2
-
EN 301908-13
-
EN 62311:2008
-
Black
-
Yes
-
Yes
-
1U
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-7608NI-K1 specifications from brand Hikvision
Generalities
The product model Hikvision DS-7608NI-K1 is DS-7608NI-K1 | DS-7608NI-K1/8P/4G. This model ensures optimal performance and an enhanced user experience. The brand of the product Hikvision DS-7608NI-K1 is Hikvision. This brand is known for its quality and innovation in the field of household appliances.
Power
The typical power consumption of the product Hikvision DS-7608NI-K1 is 10 W. This feature allows for the assessment of the energy efficiency of the device. The Total Power over Ethernet (PoE) budget of the product Hikvision DS-7608NI-K1 is 75 W. This budget allows for the efficient powering of multiple devices through a single network cable. The output voltage of the Hikvision DS-7608NI-K1 is 48 V. This specification ensures optimal performance for your electrical needs. The output current of the product Hikvision DS-7608NI-K1 is 1.8 A. This current ensures optimal performance for your electrical needs.
Representation / realization
The number of video input channels of the product Hikvision DS-7608NI-K1 is 8 canaux. These channels allow for optimal connectivity for your multimedia devices. The audio system of the product Hikvision DS-7608NI-K1 is stereo. This audio system provides an immersive and high-quality sound experience. The input bandwidth of the product Hikvision DS-7608NI-K1 is 80 Mbit/s. This specification ensures optimal performance for data processing. The output bandwidth of the product Hikvision DS-7608NI-K1 is 80 Mbit/s. This feature ensures fast and efficient data transmission. The video codecs of the product Hikvision DS-7608NI-K1 contain H.265/H.265+/H.264/H.264+/MPEG4. These codecs ensure efficient compression and optimal image quality for your videos. The audio codecs of the product Hikvision DS-7608NI-K1 contain G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2. These codecs ensure optimal sound quality and a smooth listening experience. The supported resolutions of the product Hikvision DS-7608NI-K1 are 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768. These resolutions provide exceptional image quality for an immersive viewing experience. The maximum resolution of the product Hikvision DS-7608NI-K1 is 1920 x 1080 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The alarm input channel of the product Hikvision DS-7608NI-K1 contains 4. This channel allows for efficient integration of security systems. The alarm output channel of the product Hikvision DS-7608NI-K1 contains 1. This channel allows for the effective reporting of any alerts or important events.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-7608NI-K1 is 9. These ports provide a stable and fast network connection for your devices. The network standards of the product Hikvision DS-7608NI-K1 are IEEE 802.3af, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The number of Power over Ethernet (PoE) ports of the product Hikvision DS-7608NI-K1 is 8. This number of ports allows for efficient and simplified connectivity to power your network devices. The product Hikvision DS-7608NI-K1 has 1 RCA audio output. This output allows for an easy and high-quality connection for your audio devices. The product Hikvision DS-7608NI-K1 has 1 RCA audio input. This feature allows for an easy and high-quality connection with various audio devices. The number of USB 2.0 ports on the Hikvision DS-7608NI-K1 is 2. These ports allow for a fast and efficient connection for your devices. The VGA output port (D-Sub) of the product Hikvision DS-7608NI-K1 contains 1. This port allows for easy connection of monitors and projectors for an optimal viewing experience. Does the Hikvision DS-7608NI-K1 have an HDMI Output? Oui. This feature allows for easy connection of the product to external displays for a better visual experience. Does the Hikvision DS-7608NI-K1 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The number of HDMI ports on the Hikvision DS-7608NI-K1 is 1. This detail is essential for determining compatibility with your multimedia devices. The data transfer rate of the product Hikvision DS-7608NI-K1 is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The supported network protocols of the product Hikvision DS-7608NI-K1 are TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS. These protocols ensure efficient and reliable communication for your networking needs.
Wireless LAN Features
The Wifi of the product Hikvision DS-7608NI-K1 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Weight and dimensions
The width of the product Hikvision DS-7608NI-K1 is 315 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Hikvision DS-7608NI-K1 is 240 mm. This dimension allows for optimal integration into your space. The weight of the product Hikvision DS-7608NI-K1 is 1180 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product Hikvision DS-7608NI-K1 is 48 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Disk reader
The maximum storage capacity of the product Hikvision DS-7608NI-K1 is 6 To. This capacity meets all your storage needs. The hard drive interface of the product Hikvision DS-7608NI-K1 is SATA, SATA II, SATA III. This interface allows for a fast and efficient connection for data transfer. The hard drive capacity of the product Hikvision DS-7608NI-K1 is 0 Go. This capacity allows for storing a large amount of data, ideal for users with significant storage needs. The number of hard drives supported by the product Hikvision DS-7608NI-K1 is 1. This feature allows for optimizing storage and adapting needs based on users. The number of installed hard drives for the product Hikvision DS-7608NI-K1 is 0. This number helps optimize storage and improve the overall performance of the device.
Environmental conditions
The product Hikvision DS-7608NI-K1 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-7608NI-K1 is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Features
The color of the product Hikvision DS-7608NI-K1 is Noir. This shade gives it a modern and elegant look. The certification of the product Hikvision DS-7608NI-K1 contains EN 301489-1, EN 301489-19, EN 301489-52, EN 303413, EN 301511, EN 301908-1, EN 301908-2, EN 301908-13, EN 62311:2008. This certification guarantees compliance with the required safety and performance standards. Does the product Hikvision DS-7608NI-K1 have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. Does the product Hikvision DS-7608NI-K1 have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. The capacity of the Hikvision DS-7608NI-K1 rack is 1U. This specification ensures optimal space for the installation of your equipment.
