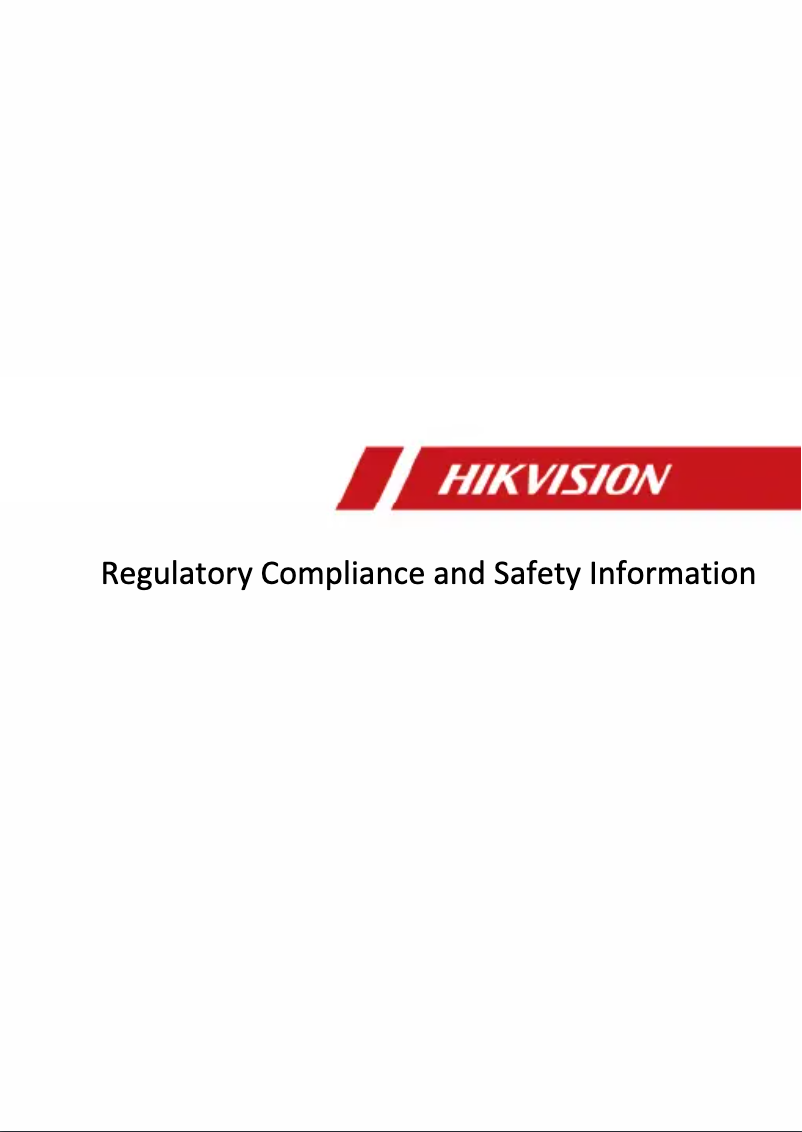

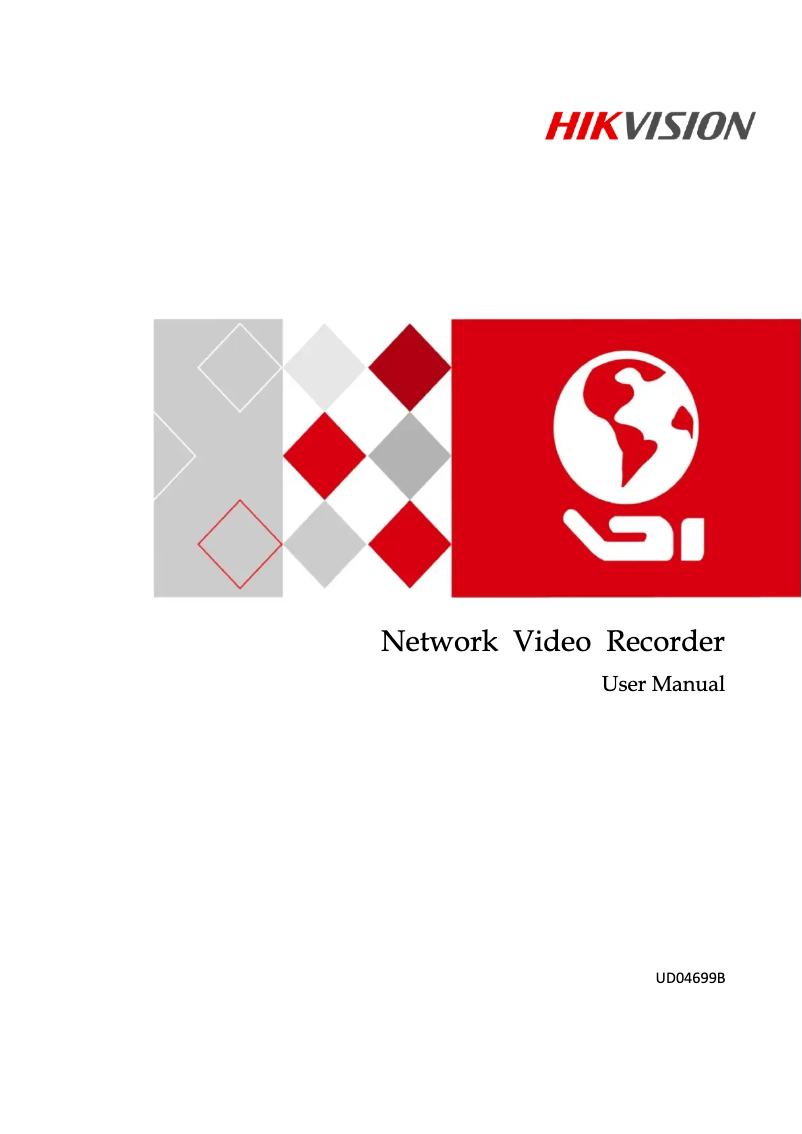

Manuals of product DS-7616NI-Q2/16P
Technical Specifications DS-7616NI-Q2/16P
General Information
-
ModelDS-7616NI-Q2/16P
-
Brand
-
Category
-
Type
-
SKU1106899
-
MPN1106899
Representation / realization
-
Alarm input channels1
-
Alarm input channels1
-
Video input channels16 channels
-
Video recording modes720p, 1080p
-
Supported resolutions3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
-
Maximum resolution3840 x 2160 pixels
-
Supported video formatH.264, H.264+, H.265, H.265+, MPEG4
-
DHCP serverYes
-
DHCP serverYes
-
Input bandwidth160 Mbit/s
-
Output bandwidth80 Mbit/s
Connectivity
-
Network standardsIEEE 802.3af
-
Supported network protocolsIEEE 802.3at
-
RCA audio outputs
-
LAN Ethernet: data transfer rateTCP/IP
-
RCA audio outputsDHCP
-
RCA audio outputsHik-Connect
-
RCA audio outputsDNS
-
RCA audio outputsDDNS
-
RCA audio outputsNTP
-
Ethernet connection, supporting power over this port (PoE)SADP
-
SMTP
-
NFS
-
iSCSI
-
UPnP
-
HTTPS
-
-
1
-
10,100,1000 Mbit/s
-
1
-
1
-
1
-
1
-
1
-
Yes
Features
-
Built-in power buttonYes
-
Rack capacity1U
-
Built-in power buttonYes
-
Built-in power buttonYes
-
Product colorBlack
Power
-
Power280 W
-
AC input voltage100 - 240 V
-
Power280 W
-
Total Power over Ethernet (PoE) Budget150 W
Wireless LAN Features
-
WifiNo
Disk reader
-
Number of supported hard drives2
-
Maximum storage capacity16 To
-
Hard drive interfaceSATA
-
Total installed storage capacity1000 Go
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Operating relative humidity (H-H)10 - 90 %
Weight and dimensions
-
Width385 mm
-
Depth315 mm
-
Height52 mm
-
Weight3000 g
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-7616NI-Q2/16P specifications from brand Hikvision
Generalities
The brand of the product Hikvision DS-7616NI-Q2/16P is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-7616NI-Q2/16P is DS-7616NI-Q2/16P | DS-7616NI-Q2/16P-1TB. This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-7616NI-Q2/16P is 0842571123449. This code allows for the unique identification of the product in the distribution system.
Features
Does the product Hikvision DS-7616NI-Q2/16P have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. Does the product Hikvision DS-7616NI-Q2/16P have a built-in power button? Oui. This feature allows for simplified use and optimal control of the device. Does the product Hikvision DS-7616NI-Q2/16P have indicators? Oui. These indicators allow you to visualize the operating status of the device. The capacity of the Hikvision DS-7616NI-Q2/16P rack is 1U. This specification ensures optimal space for the installation of your equipment. The color of the product Hikvision DS-7616NI-Q2/16P is Noir. This shade gives it a modern and elegant look.
Connectivity
The network standards of the product Hikvision DS-7616NI-Q2/16P are IEEE 802.3af, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The supported network protocols of the product Hikvision DS-7616NI-Q2/16P are TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP, HTTPS. These protocols ensure efficient and reliable communication for your networking needs. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-7616NI-Q2/16P is 1. These ports provide a stable and fast network connection for your devices. The data transfer rate of the product Hikvision DS-7616NI-Q2/16P is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The number of HDMI ports on the Hikvision DS-7616NI-Q2/16P is 1. This detail is essential for determining compatibility with your multimedia devices. The VGA output port (D-Sub) of the product Hikvision DS-7616NI-Q2/16P contains 1. This port allows for easy connection of monitors and projectors for an optimal viewing experience. The number of USB 2.0 ports on the Hikvision DS-7616NI-Q2/16P is 1. These ports allow for a fast and efficient connection for your devices. The product Hikvision DS-7616NI-Q2/16P has 1 RCA audio input. This feature allows for an easy and high-quality connection with various audio devices. The product Hikvision DS-7616NI-Q2/16P has 1 RCA audio output. This output allows for an easy and high-quality connection for your audio devices. Does the Hikvision DS-7616NI-Q2/16P have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices.
Representation / realization
The alarm output channel of the product Hikvision DS-7616NI-Q2/16P contains 1. This channel allows for the effective reporting of any alerts or important events. The number of video input channels of the product Hikvision DS-7616NI-Q2/16P is 16 canaux. These channels allow for optimal connectivity for your multimedia devices. The alarm input channel of the product Hikvision DS-7616NI-Q2/16P contains 1. This channel allows for efficient integration of security systems. The camera of the product Hikvision DS-7616NI-Q2/16P has video recording modes at 720p, 1080p. These modes allow you to capture videos of quality suited to your needs. The supported resolutions of the product Hikvision DS-7616NI-Q2/16P are 3840 × 2160, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768. These resolutions provide exceptional image quality for an immersive viewing experience. The maximum resolution of the product Hikvision DS-7616NI-Q2/16P is 3840 x 2160 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The DHCP server of the product Hikvision DS-7616NI-Q2/16P is Oui. This server allows for the dynamic assignment of IP addresses to devices on a network, thus facilitating the management of connections. The input bandwidth of the product Hikvision DS-7616NI-Q2/16P is 160 Mbit/s. This specification ensures optimal performance for data processing. The DHCP client of the product Hikvision DS-7616NI-Q2/16P is Oui. This client allows for dynamic management of IP addresses, thus facilitating the connection of devices to the network. The supported video format of the product Hikvision DS-7616NI-Q2/16P contains H.264, H.264+, H.265, H.265+, MPEG4. This format allows for smooth and high-quality playback of your multimedia content. The output bandwidth of the product Hikvision DS-7616NI-Q2/16P is 80 Mbit/s. This feature ensures fast and efficient data transmission.
Power
The maximum consumption of the product Hikvision DS-7616NI-Q2/16P is 280 W. This specification allows for the assessment of the energy efficiency of the device. The AC input voltage of the Hikvision DS-7616NI-Q2/16P is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The Total Power over Ethernet (PoE) budget of the product Hikvision DS-7616NI-Q2/16P is 150 W. This budget allows for the efficient powering of multiple devices through a single network cable. The power of the product Hikvision DS-7616NI-Q2/16P is 280 W. This power ensures optimal performance for your needs.
Wireless LAN Features
The Wifi of the product Hikvision DS-7616NI-Q2/16P contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Disk reader
The number of hard drives supported by the product Hikvision DS-7616NI-Q2/16P is 2. This feature allows for optimizing storage and adapting needs based on users. The hard drive interface of the product Hikvision DS-7616NI-Q2/16P is SATA. This interface allows for a fast and efficient connection for data transfer. The total installed storage capacity of the product Hikvision DS-7616NI-Q2/16P is 1000 Go. This capacity allows for the storage of a large amount of data, thus providing optimal flexibility for all your digital needs. The maximum storage capacity of the product Hikvision DS-7616NI-Q2/16P is 16 To. This capacity meets all your storage needs.
Environmental conditions
The operating temperature of the product Hikvision DS-7616NI-Q2/16P is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Hikvision DS-7616NI-Q2/16P has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity.
Weight and dimensions
The height of the product Hikvision DS-7616NI-Q2/16P is 52 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-7616NI-Q2/16P is 315 mm. This dimension allows for optimal integration into your space. The weight of the product Hikvision DS-7616NI-Q2/16P is 3000 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Hikvision DS-7616NI-Q2/16P is 385 mm. This dimension is essential to ensure optimal integration into your space.
