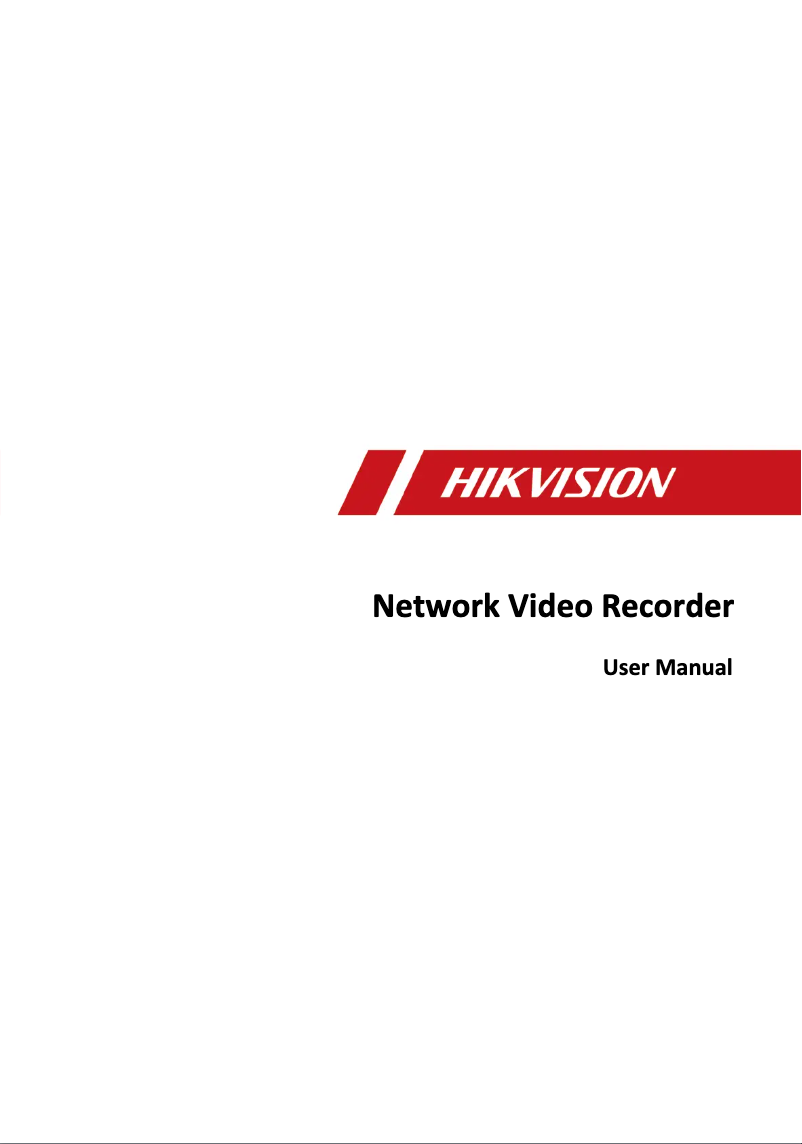

Manual of product DS-7808NXI-I2
Technical Specifications DS-7808NXI-I2
General Information
-
ModelDS-7808NXI-I2
-
Brand
-
Category
-
Type
-
SKU1447981
-
MPN1447981
Connectivity
-
Number of Ethernet LAN ports (RJ-45)9
-
Power over Ethernet (PoE) Number of ports8
-
Network standardsIEEE 802.3af, IEEE 802.3at
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
Quantity of HDMI ports1
-
HDMI outputYes
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power
-
Total Power over Ethernet (PoE) Budget120 W
-
Typical electricity consumption15 W
-
AC input voltage100-240 V
-
AC input frequency50-60 Hz
Weight and dimensions
-
Weight2700 g
-
Width385 mm
-
Depth315 mm
-
Height52 mm
Disk reader
-
Hard drive interfaceSATA
-
Number of installed hard drivesSATA II
-
Hard drive capacitySATA III
-
Number of supported hard drives0
-
Maximum storage capacity0 GB
-
2
-
20 TB
Wireless LAN Features
-
WifiNo
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Operating relative humidity (H-H)10 - 90 %
Representation / realization
-
Audio system2-way
-
Face detectionYes
-
Input bandwidth320 Mbit/s
-
Output bandwidth256 Mbit/s
-
Video CodecsH.265+/H.265/H.264+/H.264/MPEG4
-
Audio CodecsG.711ulaw/G.711alaw
-
Supported resolutions3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
-
Maximum resolution3840 x 2160 pixels
-
Video input channels16 channels
-
Alarm input channels4
-
Alarm output channels1
Features
-
CertificationFCC 15 B, ANSI C63.4-2014
-
Product colorCE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
-
Assembly gridBlack
-
Rack capacityYes
-
1U
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-7808NXI-I2 specifications from brand Hikvision
Power
The AC input frequency of the product Hikvision DS-7808NXI-I2 is 50-60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The AC input voltage of the Hikvision DS-7808NXI-I2 is 100-240 V. This specification ensures optimal compatibility with standard electrical systems. The typical power consumption of the product Hikvision DS-7808NXI-I2 is 15 W. This feature allows for the assessment of the energy efficiency of the device. The Total Power over Ethernet (PoE) budget of the product Hikvision DS-7808NXI-I2 is 120 W. This budget allows for the efficient powering of multiple devices through a single network cable.
Weight and dimensions
The weight of the product Hikvision DS-7808NXI-I2 is 2700 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Hikvision DS-7808NXI-I2 is 385 mm. This dimension is essential to ensure optimal integration into your space. The height of the product Hikvision DS-7808NXI-I2 is 52 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product Hikvision DS-7808NXI-I2 is 315 mm. This dimension allows for optimal integration into your space.
Generalities
The brand of the product Hikvision DS-7808NXI-I2 is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The product model Hikvision DS-7808NXI-I2 is DS-7808NXI-I2 | DS-7808NXI-I2/8P/S(C). This model ensures optimal performance and an enhanced user experience. The EAN code of the product Hikvision DS-7808NXI-I2 is 6941264082873. This code allows for the unique identification of the product in the distribution system.
Connectivity
The number of Power over Ethernet (PoE) ports of the product Hikvision DS-7808NXI-I2 is 8. This number of ports allows for efficient and simplified connectivity to power your network devices. The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-7808NXI-I2 is 9. These ports provide a stable and fast network connection for your devices. The product Hikvision DS-7808NXI-I2 has 1 RCA audio output. This output allows for an easy and high-quality connection for your audio devices. The network standards of the product Hikvision DS-7808NXI-I2 are IEEE 802.3af, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. The product Hikvision DS-7808NXI-I2 has 1 RCA audio input. This feature allows for an easy and high-quality connection with various audio devices. The product Hikvision DS-7808NXI-I2 has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of USB 2.0 ports on the Hikvision DS-7808NXI-I2 is 1. These ports allow for a fast and efficient connection for your devices. The VGA output port (D-Sub) of the product Hikvision DS-7808NXI-I2 contains 1. This port allows for easy connection of monitors and projectors for an optimal viewing experience. The number of HDMI ports on the Hikvision DS-7808NXI-I2 is 1. This detail is essential for determining compatibility with your multimedia devices. Does the Hikvision DS-7808NXI-I2 have an HDMI Output? Oui. This feature allows for easy connection of the product to external displays for a better visual experience. The data transfer rate of the product Hikvision DS-7808NXI-I2 is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The supported network protocols of the product Hikvision DS-7808NXI-I2 are TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS. These protocols ensure efficient and reliable communication for your networking needs.
Disk reader
The hard drive interface of the product Hikvision DS-7808NXI-I2 is SATA, SATA II, SATA III. This interface allows for a fast and efficient connection for data transfer. The number of installed hard drives for the product Hikvision DS-7808NXI-I2 is 0. This number helps optimize storage and improve the overall performance of the device. The hard drive capacity of the product Hikvision DS-7808NXI-I2 is 0 Go. This capacity allows for storing a large amount of data, ideal for users with significant storage needs. The number of hard drives supported by the product Hikvision DS-7808NXI-I2 is 2. This feature allows for optimizing storage and adapting needs based on users. The maximum storage capacity of the product Hikvision DS-7808NXI-I2 is 20 To. This capacity meets all your storage needs.
Environmental conditions
The product Hikvision DS-7808NXI-I2 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-7808NXI-I2 is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
Wireless LAN Features
The Wifi of the product Hikvision DS-7808NXI-I2 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Features
The certification of the product Hikvision DS-7808NXI-I2 contains FCC 15 B, ANSI C63.4-2014\nCE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4. This certification guarantees compliance with the required safety and performance standards. The color of the product Hikvision DS-7808NXI-I2 is Noir. This shade gives it a modern and elegant look. Does the product Hikvision DS-7808NXI-I2 have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product. The capacity of the Hikvision DS-7808NXI-I2 rack is 1U. This specification ensures optimal space for the installation of your equipment.
Representation / realization
The audio system of the product Hikvision DS-7808NXI-I2 is stereo. This audio system provides an immersive and high-quality sound experience. Does the product Hikvision DS-7808NXI-I2 have Face Detection? Oui. This feature allows for the identification and tracking of faces within the camera's field of view, thereby enhancing security and interaction. The output bandwidth of the product Hikvision DS-7808NXI-I2 is 256 Mbit/s. This feature ensures fast and efficient data transmission. The input bandwidth of the product Hikvision DS-7808NXI-I2 is 320 Mbit/s. This specification ensures optimal performance for data processing. The video codecs of the product Hikvision DS-7808NXI-I2 contain H.265+/H.265/H.264+/H.264/MPEG4. These codecs ensure efficient compression and optimal image quality for your videos. The supported resolutions of the product Hikvision DS-7808NXI-I2 are 3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768. These resolutions provide exceptional image quality for an immersive viewing experience. The maximum resolution of the product Hikvision DS-7808NXI-I2 is 3840 x 2160 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The number of video input channels of the product Hikvision DS-7808NXI-I2 is 16 canaux. These channels allow for optimal connectivity for your multimedia devices. The audio codecs of the product Hikvision DS-7808NXI-I2 contain G.711ulaw/G.711alaw. These codecs ensure optimal sound quality and a smooth listening experience. The alarm input channel of the product Hikvision DS-7808NXI-I2 contains 4. This channel allows for efficient integration of security systems. The alarm output channel of the product Hikvision DS-7808NXI-I2 contains 1. This channel allows for the effective reporting of any alerts or important events.
