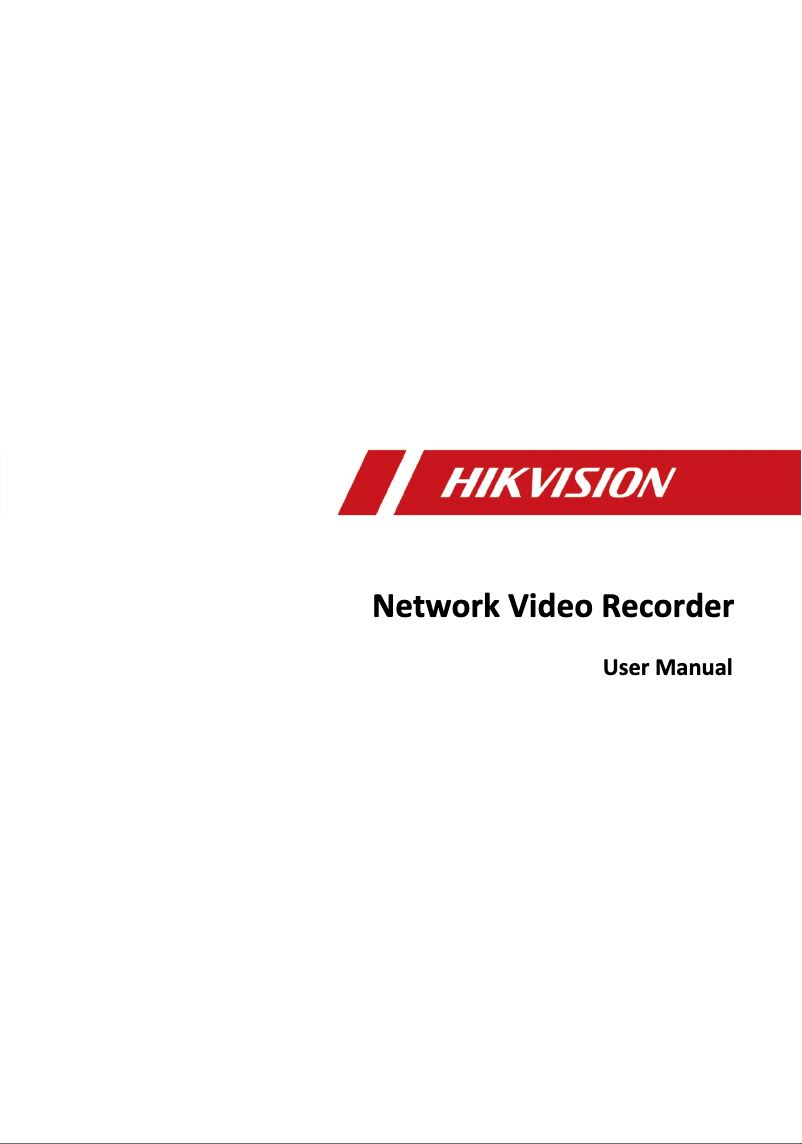

Manual of product DS-7932NXI-I4
Technical Specifications DS-7932NXI-I4
General Information
-
ModelDS-7932NXI-I4
-
Brand
-
Category
-
Type
-
SKU1447958
-
MPN1447958
Representation / realization
-
Video input channels32 channels
-
Face detectionYes
-
Audio system2-way
-
Input bandwidth320 Mbit/s
-
Output bandwidth256 Mbit/s
-
Video CodecsH.265+/H.265/H.264+/H.264/MPEG4
-
Audio CodecsG.711ulaw/G.711alaw/G.722/G.726/MP2L2
-
Supported resolutions3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768
-
Maximum resolution3840 x 2160 pixels
-
Alarm input channels16
-
Alarm output channels8
Connectivity
-
Number of Ethernet LAN ports (RJ-45)17
-
Power over Ethernet (PoE) Number of ports16
-
Network standardsIEEE 802.3af, IEEE 802.3at
-
VGA output ports (D-Sub)1
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Ethernet connection, supporting power over this port (PoE)Yes
-
VGA output ports (D-Sub)1
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
VGA output ports (D-Sub)1
-
Quantity of HDMI ports2
-
VGA output ports (D-Sub)1
-
Quantity of HDMI ports2
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Supported network protocolsTCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS
Power
-
Total Power over Ethernet (PoE) Budget200 W
-
Power360 W
-
Typical electricity consumption30 W
-
AC input voltage100-240 V
-
AC input frequency50 - 60 Hz
Weight and dimensions
-
Weight7000 g
-
Width445 mm
-
Depth400 mm
-
Height75 mm
Disk reader
-
Number of installed hard drives0
-
Hard drive capacity0 Go
-
Number of supported hard drives4
-
Maximum storage capacity40 To
-
Hard drive interfaceSATA, SATA II, SATA III
Wireless LAN Features
-
WifiNo
Environmental conditions
-
Operating temperature-10 - 55 °C
-
Operating relative humidity (H-H)10 - 90 %
Features
-
CertificationFCC 15 B, ANSI C63.4-2014
-
Product colorCE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
-
Assembly gridBlack
-
Rack capacityYes
-
1.5U
Similar products
More product categories from brand Hikvision
Other Hikvision
Audio Hikvision
Interior Hikvision
Phones Hikvision
Tools Hikvision
More product types from brand Hikvision
Presentation of product DS-7932NXI-I4 specifications from brand Hikvision
Power
The Total Power over Ethernet (PoE) budget of the product Hikvision DS-7932NXI-I4 is 200 W. This budget allows for the efficient powering of multiple devices through a single network cable. The power of the product Hikvision DS-7932NXI-I4 is 360 W. This power ensures optimal performance for your needs. The AC input voltage of the Hikvision DS-7932NXI-I4 is 100-240 V. This specification ensures optimal compatibility with standard electrical systems. The typical power consumption of the product Hikvision DS-7932NXI-I4 is 30 W. This feature allows for the assessment of the energy efficiency of the device. The AC input frequency of the product Hikvision DS-7932NXI-I4 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Generalities
The brand of the product Hikvision DS-7932NXI-I4 is Hikvision. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Hikvision DS-7932NXI-I4 is 6941264082910. This code allows for the unique identification of the product in the distribution system. The product model Hikvision DS-7932NXI-I4 is DS-7932NXI-I4 | DS-7932NXI-I4/16P/S(C). This model ensures optimal performance and an enhanced user experience.
Representation / realization
The number of video input channels of the product Hikvision DS-7932NXI-I4 is 32 canaux. These channels allow for optimal connectivity for your multimedia devices. The input bandwidth of the product Hikvision DS-7932NXI-I4 is 320 Mbit/s. This specification ensures optimal performance for data processing. Does the product Hikvision DS-7932NXI-I4 have Face Detection? Oui. This feature allows for the identification and tracking of faces within the camera's field of view, thereby enhancing security and interaction. The audio system of the product Hikvision DS-7932NXI-I4 is stereo. This audio system provides an immersive and high-quality sound experience. The output bandwidth of the product Hikvision DS-7932NXI-I4 is 256 Mbit/s. This feature ensures fast and efficient data transmission. The video codecs of the product Hikvision DS-7932NXI-I4 contain H.265+/H.265/H.264+/H.264/MPEG4. These codecs ensure efficient compression and optimal image quality for your videos. The audio codecs of the product Hikvision DS-7932NXI-I4 contain G.711ulaw/G.711alaw/G.722/G.726/MP2L2. These codecs ensure optimal sound quality and a smooth listening experience. The supported resolutions of the product Hikvision DS-7932NXI-I4 are 3840 × 2160, 2560 × 1440, 1920 × 1080, 1600 × 1200, 1280 × 1024, 1280 × 720, 1024 × 768. These resolutions provide exceptional image quality for an immersive viewing experience. The maximum resolution of the product Hikvision DS-7932NXI-I4 is 3840 x 2160 pixels. This resolution ensures prints of exceptional clarity, ideal for all your professional and personal needs. The alarm input channel of the product Hikvision DS-7932NXI-I4 contains 16. This channel allows for efficient integration of security systems. The alarm output channel of the product Hikvision DS-7932NXI-I4 contains 8. This channel allows for the effective reporting of any alerts or important events.
Weight and dimensions
The weight of the product Hikvision DS-7932NXI-I4 is 7000 g. This weight is ideal for ensuring optimal use and easy handling. The width of the product Hikvision DS-7932NXI-I4 is 445 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product Hikvision DS-7932NXI-I4 is 400 mm. This dimension allows for optimal integration into your space. The height of the product Hikvision DS-7932NXI-I4 is 75 mm. This dimension is essential to ensure that the product fits perfectly in your space.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Hikvision DS-7932NXI-I4 is 17. These ports provide a stable and fast network connection for your devices. The RS-485 port of the Hikvision DS-7932NXI-I4 contains 1. This port allows for robust serial communication and is ideal for industrial applications. The number of Power over Ethernet (PoE) ports of the product Hikvision DS-7932NXI-I4 is 16. This number of ports allows for efficient and simplified connectivity to power your network devices. The network standards of the product Hikvision DS-7932NXI-I4 are IEEE 802.3af, IEEE 802.3at. These standards ensure optimal compatibility with various equipment and protocols. Does the product Hikvision DS-7932NXI-I4 have RS-232 Interface? Oui. This interface allows for standardized serial communication, ideal for many devices. Does the product Hikvision DS-7932NXI-I4 have ESATA? Oui. This specification allows for a fast and efficient connection for data transfer. The product Hikvision DS-7932NXI-I4 has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The number of USB 2.0 ports on the Hikvision DS-7932NXI-I4 is 2. These ports allow for a fast and efficient connection for your devices. The number of eSATA ports on the Hikvision DS-7932NXI-I4 is 1. This port allows for a fast and efficient connection for your external storage devices. The data transfer rate of the product Hikvision DS-7932NXI-I4 is 10,100,1000 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The VGA output port (D-Sub) of the product Hikvision DS-7932NXI-I4 contains 1. This port allows for easy connection of monitors and projectors for an optimal viewing experience. The number of HDMI ports on the Hikvision DS-7932NXI-I4 is 2. This detail is essential for determining compatibility with your multimedia devices. Does the Hikvision DS-7932NXI-I4 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. Does the Hikvision DS-7932NXI-I4 have an HDMI Output? Oui. This feature allows for easy connection of the product to external displays for a better visual experience. The supported network protocols of the product Hikvision DS-7932NXI-I4 are TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP, HTTP, HTTPS. These protocols ensure efficient and reliable communication for your networking needs.
Wireless LAN Features
The Wifi of the product Hikvision DS-7932NXI-I4 contains Non. This Wifi allows for a fast and reliable wireless connection for all your devices.
Disk reader
The number of installed hard drives for the product Hikvision DS-7932NXI-I4 is 0. This number helps optimize storage and improve the overall performance of the device. The hard drive capacity of the product Hikvision DS-7932NXI-I4 is 0 Go. This capacity allows for storing a large amount of data, ideal for users with significant storage needs. The maximum storage capacity of the product Hikvision DS-7932NXI-I4 is 40 To. This capacity meets all your storage needs. The number of hard drives supported by the product Hikvision DS-7932NXI-I4 is 4. This feature allows for optimizing storage and adapting needs based on users. The hard drive interface of the product Hikvision DS-7932NXI-I4 is SATA, SATA II, SATA III. This interface allows for a fast and efficient connection for data transfer.
Features
The certification of the product Hikvision DS-7932NXI-I4 contains FCC 15 B, ANSI C63.4-2014\nCE EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4. This certification guarantees compliance with the required safety and performance standards. The color of the product Hikvision DS-7932NXI-I4 is Noir. This shade gives it a modern and elegant look. The capacity of the Hikvision DS-7932NXI-I4 rack is 1.5U. This specification ensures optimal space for the installation of your equipment. Does the product Hikvision DS-7932NXI-I4 have a mounting bracket? Oui. This feature determines the compatibility and ease of installation of the product.
Environmental conditions
The product Hikvision DS-7932NXI-I4 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The operating temperature of the product Hikvision DS-7932NXI-I4 is -10 - 55 °C. This specification ensures optimal performance within a temperature range suitable for various environments.
