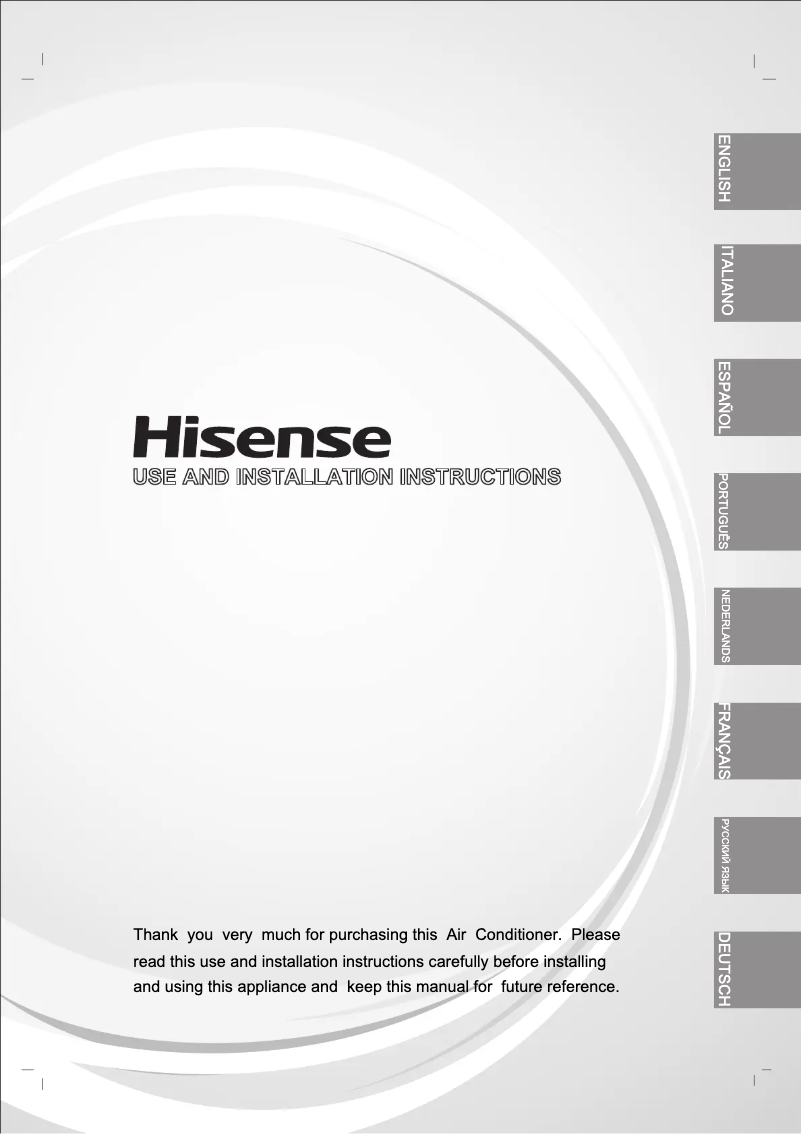

Manual of product AST-12UW4RXXQA
Editorial note
The Hisense AST-12UW4RXXQA air conditioner stands out for its high energy efficiency, displaying an A+++ rating for both cooling and heating. This allows users to achieve significant savings on their energy bills while preserving the environment. Its modern white design fits perfectly into various interior styles, and it is equipped with a remote control for convenient operation from a distance. Additionally, its dehumidification capacity of 1.2 l/h helps maintain a healthy and comfortable indoor environment. However, the model has some drawbacks. The noise level of the outdoor unit, at 59 dB, can be perceived as disturbing, especially in quiet environments. Furthermore, the absence of an ionizer may disappoint those seeking improved air quality. The weight of the outdoor unit, which reaches 36 kg, can complicate installation, potentially requiring the help of several people. Finally, although its heating and cooling performance is solid, the dehumidification capacity may not be sufficient in very humid regions. In terms of scores, the user experience has been rated pleasant thanks to the remote control and the integrated LED screen, making it easy to use. The performance received a positive evaluation, but dehumidification is an area for improvement. The design was particularly appreciated, while the robustness of the outdoor unit raises questions about ease of installation. Although energy efficiency is a major asset, the price could be a barrier for some consumers. Overall, the Hisense AST-12UW4RXXQA is a solid choice for those looking for a high-performing and economical air conditioner, provided that its limitations are taken into account.Score details
User experience
The user experience is pleasant thanks to an included remote control and a modern design. However, the noise level of the outdoor unit can be disturbing.
Performance
The heating and cooling performance is solid, with good dehumidification capacity. However, the dehumidification capacity of 1.2 l/h may be insufficient in very humid environments.
Design
The design is modern and sleek, with a white finish that easily integrates into various interior styles.
Value for money
The high energy efficiency (class A+++) allows for savings on energy bills, but the price may be a limiting factor for some consumers.
Usability
The use is facilitated by the remote control and the integrated LED screen, making the control of the device simple and convenient.
Robustness
Although the outdoor unit is robust, its weight (36 kg) can complicate installation, potentially requiring the help of several people.
Features
The heating and cooling features are appreciated, but the absence of an ionizer and modern connectivity may disappoint some users.
Support
The provided user manual is comprehensive, offering clear instructions for optimal use of the product.
Documentation
The documentation is available but could benefit from a digital version to facilitate access for users.
Advantages
Energy efficiency A+++ for energy savings.
Heating and cooling function all year round.
Modern design in white color.
Remote control for convenient operation.
Dehumidification of 1.2 l/h for comfort.
Noise level of 34 dB, discreet operation.
Disadvantages
Disturbing external noise of 59 dB
No ionizer for air quality
Complicated installation due to weight
Insufficient dehumidification for high humidity
No Wi-Fi connectivity or voice control
Technical Specifications AST-12UW4RXXQA
General Information
-
ModelAST-12UW4RXXQA
-
Brand
-
Category
-
Type
-
SKU938441
-
MPN938441
Features
-
Seasonal performance rating (heating) (SCOP)-
-
TypeSharing system
-
Product colorWhite
-
Air conditioning functionsCooling, Dehumidifying, Fan, Heating
-
Indicator lightYes
-
Screen typeLED
-
Cooling capacity in watts (nominal)3010 W
-
Heating capacity in Watts (min)860 W
-
Heating capacity in Watts (max)4128 W
-
Heating capacity in watts (nominal) (average of a heating season)3440 W
-
Heating capacity in Watts (min)860 W
-
Heating capacity in Watts (max)4128 W
-
Seasonal performance rating (cooling) (SEER)8.5
-
Energy efficiency of the cooling system4.32
-
Energy efficiency of the heating system4.21
-
Dehumidification capacity1.2 l/h
-
Indicator lightYes
-
Display of maximum duration24 h
-
Type of compressorRotating
-
Indicator lightYes
-
Indicator lightYes
-
Indicator lightYes
-
Indicator lightYes
-
IonizerNo
-
Number of heat settings4
-
Seasonal efficiency rate (heating) (SCOP) (average of a heating season)4.6
Packaging contents
-
Warranty cardYes
-
Warranty cardYes
-
Warranty cardYes
Power
-
AC input voltage220-240 V
-
AC input frequency50 Hz
-
Electricity Consumption (heating) (min)170 W
-
Electricity Consumption (cooling) (max)1300 W
-
Electricity Consumption (heating) (min)170 W
-
Electricity Consumption (heating) (max)1475 W
-
Current (cooling)3.6 A
-
Current (heating)4.2 A
-
Energy efficiency class (cooling)A+++
-
Energy efficiency class (cooling)A+++
Indoor unit
-
Quantity interior units1
-
Type of indoor unitWall mounting
-
Noise level of the indoor unit (low speed)34 dB
-
Noise level of the indoor unit (high speed)39 dB
-
Sound power level of the indoor unit36 dB
-
Height of the indoor unit319 mm
-
Depth of the indoor unit226 mm
-
Width of the inner unit963 mm
-
Weight of the indoor unit13000 g
-
Weight of the inner unit packaging17500 g
-
Air cooling (indoor unit)650 m³/h
Outdoor unit
-
Noise level of the outdoor unit59 dB
-
Width of the outdoor unit810 mm
-
Depth of the outdoor unit280 mm
-
Height of the outdoor unit585 mm
-
Weight of the outdoor unit36000 g
-
Weight of the outer unit packaging40000 g
Frequently Asked Questions
What is BTU?
What is the role of R-410A?
How often should I clean the filters of my Hisense air conditioner?
What is the energy class of the Hisense AST-12UW4RXXQA?
Is the manual for the Hisense AST-12UW4RXXQA available in French?
Similar products
More product categories from brand Hisense
Household appliances Hisense
Home appliances Hisense
Phones Hisense
Other Hisense
Audio Hisense
Interior Hisense
More product types from brand Hisense
Presentation of product AST-12UW4RXXQA specifications from brand Hisense
General Information
The model Hisense AST-12UW4RXXQA is part of the range of household appliances from the brand Hisense, known for its quality and innovation. This air conditioner is designed to provide optimal performance and enhance the user experience. Its EAN code, 6946087346409 and 6946087346621, allows for unique identification in the distribution system.
Features
This island-type air conditioner stands out for its functional and aesthetic design, perfect for optimizing indoor space. Its white hue gives it a modern look that easily integrates into various decors. It offers cooling and heating functions, ensuring comfort throughout the year. Equipped with an LED screen, it provides a clear and practical visual experience.
The nominal cooling capacity is 3010 W, with minimum and maximum capacities of 860 W and 4128 W respectively, ensuring performance suited to different needs. Regarding heating, the nominal capacity is 3440 W, with similar values for minimum and maximum.
This model has a seasonal energy efficiency ratio in cooling (SEER) of 8.5 and an energy efficiency of 4.32 for cooling, as well as 4.21 for heating, allowing for savings on your energy bills. Its dehumidification capacity is 1.2 l/h, contributing to a healthy indoor environment.
The product features a timer that allows for usage management over a maximum duration of 24 h. The rotary compressor ensures both performance and efficiency. It is also remote-controlled for convenient operation from a distance. The integrated air filter and indicator light enhance the user experience.
This model offers 4 heat settings to adjust the temperature according to user preferences, and its seasonal efficiency (SCOP) is 4.6.
Packaging Contents
The Hisense AST-12UW4RXXQA air conditioner comes with a remote control, a user manual detailing installation and usage instructions, as well as a warranty card to ensure additional protection for your purchase.
Power
The AC input voltage of the model is 220-240 V and the frequency is 50 Hz, ensuring compatibility and efficiency. In cooling mode, the power consumption is 170 W with a maximum of 1300 W. For heating, the values are 170 W and 1475 W respectively. The cooling current is 3.6 A, while for heating, it is 4.2 A. The energy efficiency class is rated A+++ for both cooling and heating.
Indoor Unit
The air conditioner includes a wall-mounted indoor unit, with a noise level of only 34 dB for discreet operation. Its dimensions are 319 mm in height, 226 mm in depth, and 963 mm in width, with a weight of 13000 g. The air circulation capacity is 650 m³/h, ensuring pleasant thermal comfort.
Outdoor Unit
The outdoor unit has a noise level of 59 dB, which may be noticeable in quiet environments. Its dimensions are 585 mm in height, 810 mm in width, and 280 mm in depth, with a total weight of 36000 g, ensuring robustness and stability.
