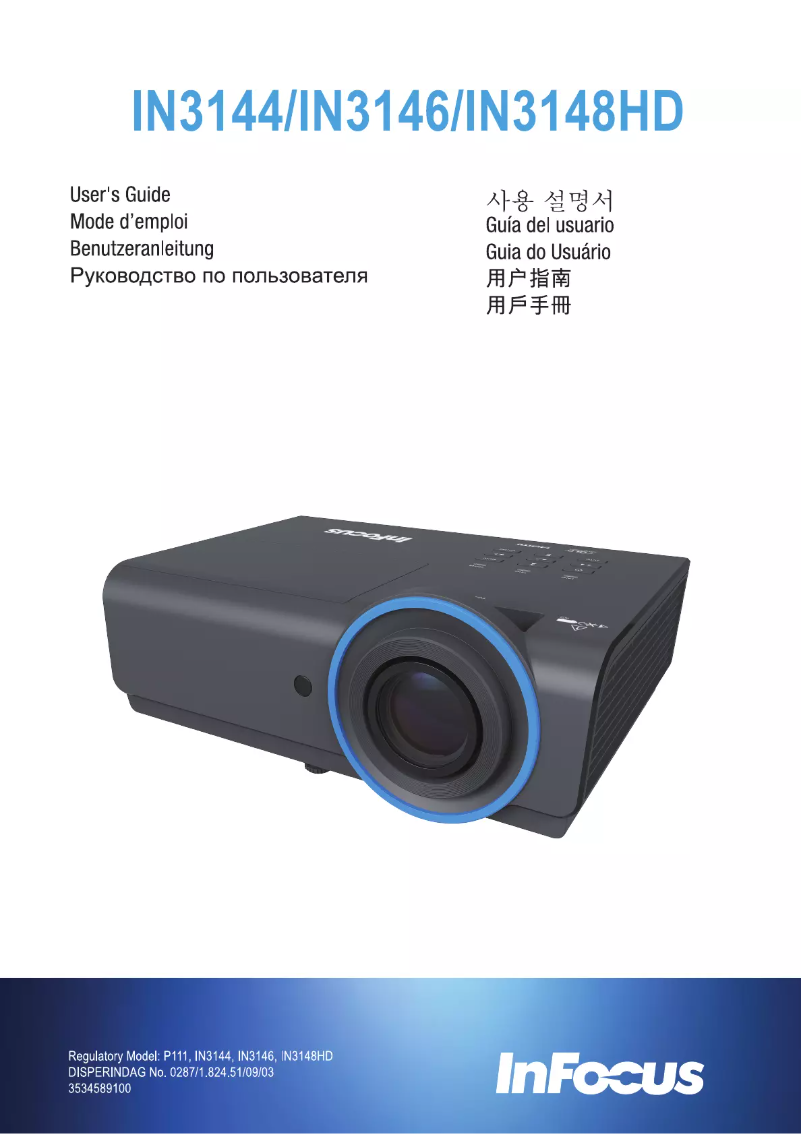

Manual of product IN3144
Technical Specifications IN3144
General Information
-
ModelIN3144
-
Brand
-
Category
-
Type
-
SKU1374209
-
MPN1374209
Projector
-
Native resolution of the projectorXGA (1024x768)
-
Projector brightness5000 ANSI lumens
-
Projection technologyDLP
-
Projector brightness (eco mode)4000 ANSI lumens
-
Contrast ratio16000:1
-
Horizontal synchronization (min)15 kHz
-
Horizontal synchronization (max)91.4 kHz
-
Vertical synchronization (min)24 kHz
-
Vertical synchronization (max)30 kHz
-
Image format4:3
-
Supported aspect ratios2.35:1, 4:3, 16:10, 16:9
-
Projection distance1 - 10 m
-
Compatible screen size22 - 270 "
-
Correction of the trapezium, vertical-40 - 40 °
-
Correction of the trapezium, vertical-40 - 40 °
-
Number of colors16.78 million colors
Video
-
Analog signal format systemNTSC
-
Supported video modesNTSC 4.43
-
PAL
-
PAL M
-
PAL N
-
SECAM
-
480i
-
480p
-
576i
-
576p
-
720p
-
1080i
-
1080p
Multimedia
-
Built-in speakersYes
-
Number of built-in speakers1
-
Rated power of RMS10 W
Light source
-
Lifespan of the light source3500 h
-
Power of the lamp310 W
-
Lamp power (eco mode)245 W
-
Lifespan of the light source (eco mode)4500 h
-
Type of light sourceLamp
Design
-
Product typeStandard focal projector
-
Product colorBlack
-
PositioningOffice
Screen
-
Number of colors displayed-
Objective system
-
Shift14 %
-
Projection ratio
-
Zoom ratio1.83 - 2.75:1
-
Zoom capacity1.5:1
-
Zoom typeYes
-
Zoom typeManual
-
Manual
Connectivity
-
PC Audio OutputYes
-
Quantity of HDMI ports2
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports1
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports1
-
Number of VGA (D-Sub) ports3
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports1
-
PC Audio OutputYes
-
Number of USB 3.2 Gen 1 (3.1 Gen 1) type A ports1
-
Serial interface typeRS-232
Other features
-
RS-232 port1
Network
-
Number of Ethernet LAN ports (RJ-45)1
Features
-
Sound level32 dB
-
Sound level (economy mode)30 dB
-
On-Screen Display (OSD)Yes
-
Multilingual display on screenARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, HUN, IND, ITA, KOR, NOR, PER, POL, POR, RUS, SWE, TUR, VIE
Packaging contents
-
Cables includedAC, VGA
-
User manualYes
-
User manualYes
Power
-
Typical electricity consumption410 W
-
Energy consumption (eco mode)320 W
-
AC input voltage100 - 240 V
-
AC input frequency50 - 60 Hz
Environmental conditions
-
Operating temperature5 - 40 °C
-
Operating altitude- m
Weight and dimensions
-
Width315 mm
-
Depth215.9 mm
-
Height127 mm
-
Weight3100 g
-
Package width391.2 mm
-
Package depth368.3 mm
-
Package height208.3 mm
-
Package weight4700 g
Similar products
More product categories from brand InFocus
More product types from brand InFocus
Presentation of product IN3144 specifications from brand InFocus
Multimedia
The RMS rated power of the product InFocus IN3144 is 10 W. This specification ensures optimal sound quality for an enriching multimedia experience. The number of built-in speakers of the product InFocus IN3144 is 1. These speakers provide immersive audio quality for an optimal listening experience. Does the product InFocus IN3144 have built-in speakers? Oui. These speakers provide an immersive and convenient audio experience.
Video
The supported video mode of the product InFocus IN3144 is 480i, 480p, 576i, 576p, 720p, 1080i, 1080p. This mode allows you to enjoy optimal image quality for your videos. The analog signal format system of the product InFocus IN3144 contains NTSC, NTSC 4.43, PAL, PAL M, PAL N, SECAM. This system ensures compatibility with various broadcasting formats, thus providing an optimal viewing experience.
Generalities
The EAN code of the product InFocus IN3144 is 0797212987716, 0797212981332. This code allows for the unique identification of the product in the distribution system. The product model InFocus IN3144 is IN3144 | IN3144. This model ensures optimal performance and an enhanced user experience. The brand of the product InFocus IN3144 is InFocus. This brand is known for its quality and innovation in the field of household appliances.
Screen
The number of colors displayed for the product InFocus IN3144 is -. This detail is essential for appreciating the visual quality of the screen.
Design
The color of the product InFocus IN3144 is Noir. This shade gives it a modern and elegant look. The product type of InFocus IN3144 is Projecteur à focale standard. This product is ideal for an immersive and comfortable audio experience. The positioning of the product InFocus IN3144 is Bureau. This positioning allows for optimizing its use and ensuring an optimal user experience.
Light source
The power of the lamp (economy mode) of the product InFocus IN3144 is 245 W. This specification ensures optimal energy efficiency while providing quality lighting. The power of the lamp of the product InFocus IN3144 is 310 W. This power ensures optimal lighting for your needs. The lifespan of the light source of the product InFocus IN3144 is 3500 h. This feature ensures prolonged and efficient use, allowing you to enjoy lasting lighting. The lifespan of the light source (eco mode) of the product InFocus IN3144 is 4500 h. This longevity ensures prolonged and economical use. The type of light source of the product InFocus IN3144 is Lampe. This light source ensures effective illumination tailored to your needs.
Projector
The InFocus IN3144 projector has a brightness of 3200 ANSI lumens in eco mode. This performance allows for clear and bright images, even in low-light environments. The projector InFocus IN3144 features a DLP projection technology. This technology ensures optimal image quality and an immersive visual experience. The brightness of the product InFocus IN3144 is 5000 ANSI lumens. This feature ensures a clear and bright projection, even in well-lit environments. The native resolution of the product InFocus IN3144 is XGA (1024x768). This feature ensures optimal image quality for your presentations and entertainment. The contrast ratio of the product InFocus IN3144 is 16000:1. A high contrast ratio makes images sharper and colors more vibrant, thus providing an enhanced visual experience. The horizontal synchronization (min) of the product is 15 kHz. This specification ensures optimal performance for your projections. The horizontal synchronization (max) of the product is 91.4 kHz. This specification ensures optimal performance for your projections. The vertical sync (min) of the product InFocus IN3144 is 24 kHz. This specification ensures smooth and lag-free display performance. The vertical synchronization (max) of the product InFocus IN3144 is 30 kHz. This feature allows for a smooth and lag-free image, ideal for presentations and videos. The image format of the product InFocus IN3144 is 4:3. This format is ideal for an immersive visual experience. The aspect ratio of the product InFocus IN3144 supports 2.35:1, 4:3, 16:10, 16:9. This aspect ratio allows for display flexibility suited to different content. The projection distance of the product InFocus IN3144 is 1 - 10 m. This specification allows for optimizing the visual experience based on the available space. The compatible screen size of the product InFocus IN3144 is 22 - 270 ". This specification allows the projector to adapt to different screen formats for an optimal viewing experience. The correction of the trapezoid, horizontal, of the product InFocus IN3144 is -40 - 40 °. This feature allows for adjusting the projected image for better accuracy and optimal rendering. The product InFocus IN3144 features trapezoidal correction, vertical of -40 - 40 °. This functionality allows for adjusting the projected image for optimal rendering, regardless of the projection angle. The number of colors of the product InFocus IN3144 is 16,78 millions de couleurs. This wide range of colors allows for the creation of varied and immersive atmospheres.
Other features
The RS-232 port of the InFocus IN3144 contains 1. This port is essential for ensuring reliable serial communication with other devices.
Objective system
Does the product InFocus IN3144 have zoom capacity? Oui. This feature allows you to capture precise details, even from a distance. The zoom ratio of the product InFocus IN3144 is fixed. This ratio determines the lens's ability to enlarge or reduce the image while maintaining optimal image quality. The projection ratio of the product InFocus IN3144 is 1.83 - 2.75:1. This ratio determines the distance at which the projected image will be displayed relative to the screen size. The offset of the product InFocus IN3144 is 14 %. This offset helps to optimize the performance and accuracy of the objective. The adjustment of the InFocus IN3144 is manual. This specification allows for precise and personalized control of the objective to meet the specific needs of each user. The zoom type of the product InFocus IN3144 is Manuel. This type of zoom allows for precise and customized handling to suit your photographic needs.
Network
The number of Ethernet LAN (RJ-45) ports of the product InFocus IN3144 is 1. These ports provide a stable and fast network connection for your devices.
Connectivity
The number of HDMI ports on the InFocus IN3144 is 2. This detail is essential for determining compatibility with your multimedia devices. Does the product InFocus IN3144 have a microphone jack input? No. This feature means that the product does not allow connecting a microphone via a jack. The product InFocus IN3144 has an S-Video input. This input allows you to connect video devices with enhanced image quality. The product InFocus IN3144 has a composite video input. This input allows for easy connection of analog video devices for an optimal viewing experience. The number of VGA (D-Sub) ports on the InFocus IN3144 is 3. This port allows for easy connection with various devices and monitors. The number of USB 2.0 ports on the InFocus IN3144 is 1. These ports allow for a fast and efficient connection for your devices. Does the InFocus IN3144 have a PC audio output? Oui. This feature allows you to easily connect your PC to speakers or headphones for an optimal sound experience. The product InFocus IN3144 has 0 Type A USB 3.2 Gen 1 (3.1 Gen 1) ports. This specification allows for the connection of various devices with optimal transfer speed. The serial interface type of the product InFocus IN3144 is RS-232. This type of interface allows for effective communication between different devices.
Features
The noise level of the product InFocus IN3144 is 32 dB. This noise level allows for pleasant use without excessive noise disturbances. Does the product InFocus IN3144 have an on-screen display (OSD)? Oui. This display allows for intuitive navigation through the product settings. The noise level in eco mode of the product InFocus IN3144 is 30 dB. This noise level ensures discreet and pleasant use, ideal for noise-sensitive environments. The multilingual display on the InFocus IN3144 screen contains ARA, CHI (SIMPL), CHI (TR), CZE, DAN, DEU, DUT, ENG, ESP, FIN, FRE, HUN, IND, ITA, KOR, NOR, PER, POL, POR, RUS, SWE, TUR, VIE. This system allows users to easily navigate in multiple languages, making the experience more accessible and user-friendly.
Packaging contents
The included cable of the product InFocus IN3144 contains a power plug. This cable is essential for ensuring an optimal electrical connection. Does the product InFocus IN3144 have a User Manual? Oui. This document provides clear instructions for optimal use of the product. Does the product InFocus IN3144 have a Quick Start Guide? Yes. This guide allows you to quickly and easily start using the product.
Power
The typical power consumption of the product InFocus IN3144 is 410 W. This feature allows for the assessment of the energy efficiency of the device. The AC input voltage of the InFocus IN3144 is 100 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The energy consumption in economy mode of the product InFocus IN3144 is 320 W. This feature significantly reduces electrical consumption while maintaining optimal performance. The AC input frequency of the product InFocus IN3144 is 50 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Environmental conditions
The operating temperature of the product InFocus IN3144 is 5 - 40 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The operating altitude of the product InFocus IN3144 is - m. This specification ensures optimal performance across a wide range of altitudes.
Weight and dimensions
The width of the product InFocus IN3144 is 315 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product InFocus IN3144 is 3100 g. This weight is ideal for ensuring optimal use and easy handling. The height of the product InFocus IN3144 is 127 mm. This dimension is essential to ensure that the product fits perfectly in your space. The depth of the product InFocus IN3144 is 215.9 mm. This dimension allows for optimal integration into your space. The width of the package of the product InFocus IN3144 is 391.2 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package InFocus IN3144 is 368.3 mm. This dimension is essential to ensure proper packaging and secure transport. The height of the package of the product InFocus IN3144 is 208.3 mm. This dimension is essential to ensure optimal transport and storage. The weight of the InFocus IN3144 package is 4700 g. This weight ensures optimal protection during transport and delivery.
