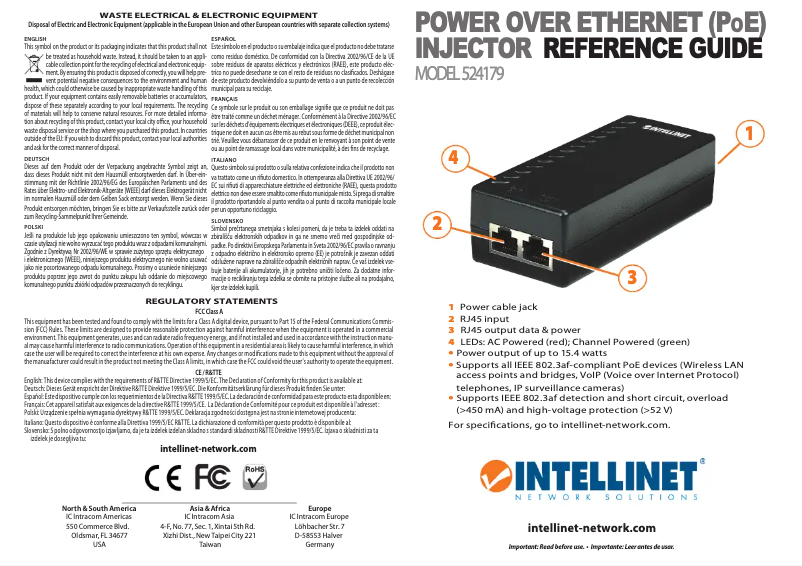

Manual of product 524179
Technical Specifications 524179
General Information
-
Model524179
-
Brand
-
Category
-
SKU1008592
-
MPN1008592
Power
-
Power over Ethernet (PoE)52 V
-
Input current0.45 A
-
Input frequency50 - 60 Hz
-
Input voltage100 - 240 V
-
Power requirements15.4 W
-
Power adapter frequency50/60 Hz
-
Output voltage of the power adapter48 V
-
Output current0.35 A
Weight and dimensions
-
Size (imperial)2 "
-
Weight
-
Height140 g
-
Width35 mm
-
Depth50 mm
-
120 mm
Features
-
SecuritySCP
-
IndicatorsNo
-
Electrical protection devicesOver voltage, Overload, Short circuit
-
Product colorBlack
Connectivity
-
Number of Ethernet LAN ports (RJ-45)2
Environmental conditions
-
Operating temperature0 - 60 °C
-
Operating relative humidity (H-H)10 - 90 %
-
Temperature out of operation-20 - 85 °C
Certificate
-
CertificationFCC Class B
-
Part 15
-
CE 89/336/EEC
-
UKCA
-
NDAA
Network
-
Ethernet connection, supporting power over this port (PoE)Yes
-
Network standardsIEEE 802.3, IEEE 802.3af, IEEE 802.3u
-
LAN Ethernet: data transfer rate10, 100 Mbit/s
-
Type of Ethernet interfaceFast Ethernet
-
Supported cable typesCat5
Packaging contents
-
Number of products included1 piece(s)
-
User manualYes
Logistics data
-
Harmonized System Code85044095
Similar products
More product categories from brand Intellinet
More product types from brand Intellinet
Presentation of product 524179 specifications from brand Intellinet
Generalities
The brand of the product Intellinet 524179 is Intellinet. This brand is known for its quality and innovation in the field of household appliances. The EAN code of the product Intellinet 524179 is 100177417493, 5711045416309, 743172986443, 766623524179, 7666235241798, 0766623524179, 0743172986443, 0100177417493, 0999993364209, 8978467395620. This code allows for the unique identification of the product in the distribution system. The product model Intellinet 524179 is 524179 | 524179. This model ensures optimal performance and an enhanced user experience.
Weight and dimensions
The product Intellinet 524179 has an (imperial) Size of 2 ". This dimension is ideal for meeting your specific needs. The height of the product Intellinet 524179 is 35 mm. This dimension is essential to ensure that the product fits perfectly in your space. The width of the product Intellinet 524179 is 50 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product Intellinet 524179 is 140 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product Intellinet 524179 is 120 mm. This dimension allows for optimal integration into your space.
Features
Does the product Intellinet 524179 have indicators? Non. These indicators allow you to visualize the operating status of the device. The safety of the product Intellinet 524179 includes SCP. This safety ensures optimal protection against electrical and environmental risks. The color of the product Intellinet 524179 is Noir. This shade gives it a modern and elegant look. The electrical protection devices of the product Intellinet 524179 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation.
Environmental conditions
The operating temperature of the product Intellinet 524179 is 0 - 60 °C. This specification ensures optimal performance within a temperature range suitable for various environments. The product Intellinet 524179 has an operating relative humidity (H-H) of 10 - 90 %. This specification ensures optimal operation in a wide range of ambient humidity. The non-operating temperature of the product Intellinet 524179 is -20 - 85 °C. This specification ensures that the product can withstand extreme conditions without suffering damage.
Connectivity
The number of Ethernet LAN (RJ-45) ports of the product Intellinet 524179 is 2. These ports provide a stable and fast network connection for your devices.
Certificate
The certification of the product Intellinet 524179 contains FCC Class B, Part 15, CE 89/336/EEC, UKCA, NDAA. This certification guarantees compliance with the required safety and performance standards.
Power
The input current of the product Intellinet 524179 is 0.45 A. This input current ensures optimal performance and increased energy efficiency. The input voltage of the product Intellinet 524179 is 100 - 240 V. This feature ensures compatibility with standard electrical systems. The input frequency of the product Intellinet 524179 is 50 - 60 Hz. This specification ensures optimal compatibility with standard power grids. The product Intellinet 524179 features Power over Ethernet (PoE) of 52 V. This specification allows for the transmission of both data and electrical power over a single cable, thereby simplifying installation and reducing the need for additional electrical outlets. The power requirements of the product Intellinet 524179 are 15.4 W. These requirements ensure optimal operation of the device. The frequency of the power adapter for the product Intellinet 524179 is 50/60 Hz. This specification ensures optimal compatibility with electrical networks. The output voltage of the power adapter for the product Intellinet 524179 is 48 V. This voltage is essential to ensure optimal operation of the device. The output current of the product Intellinet 524179 is 0.35 A. This current ensures optimal performance for your electrical needs.
Network
The network standards of the product Intellinet 524179 are IEEE 802.3, IEEE 802.3af, IEEE 802.3u. These standards ensure optimal compatibility with various equipment and protocols. The data transfer rate of the product Intellinet 524179 is 10, 100 Mbit/s. This rate ensures a fast and efficient connection for your networking needs. The Ethernet interface type of the product Intellinet 524179 is Fast Ethernet. This type of interface allows for fast and efficient network connections. Does the Intellinet 524179 have an Ethernet connection, supporting power over this port (PoE)? Oui. This feature allows for simplified and efficient power supply to connected devices. The type of cables supported by the product Intellinet 524179 is Cat5. These cables ensure optimal performance for your network connections.
Logistics data
The Harmonized System code for the product Intellinet 524179 is 85044095. This code allows for the unique identification of goods in international trade.
Packaging contents
The number of products included in the Intellinet 524179 is 1 pièce(s). This product is ideal for those looking for a practical and comprehensive solution. Does the product Intellinet 524179 have a User Manual? Oui. This document provides clear instructions for optimal use of the product.
