Name: Kyocera ECOSYS M3145idn
Brand: Kyocera
SKU: 1245366
Rating: 79 (18 reviews)

Manuals of product ECOSYS M3145idn

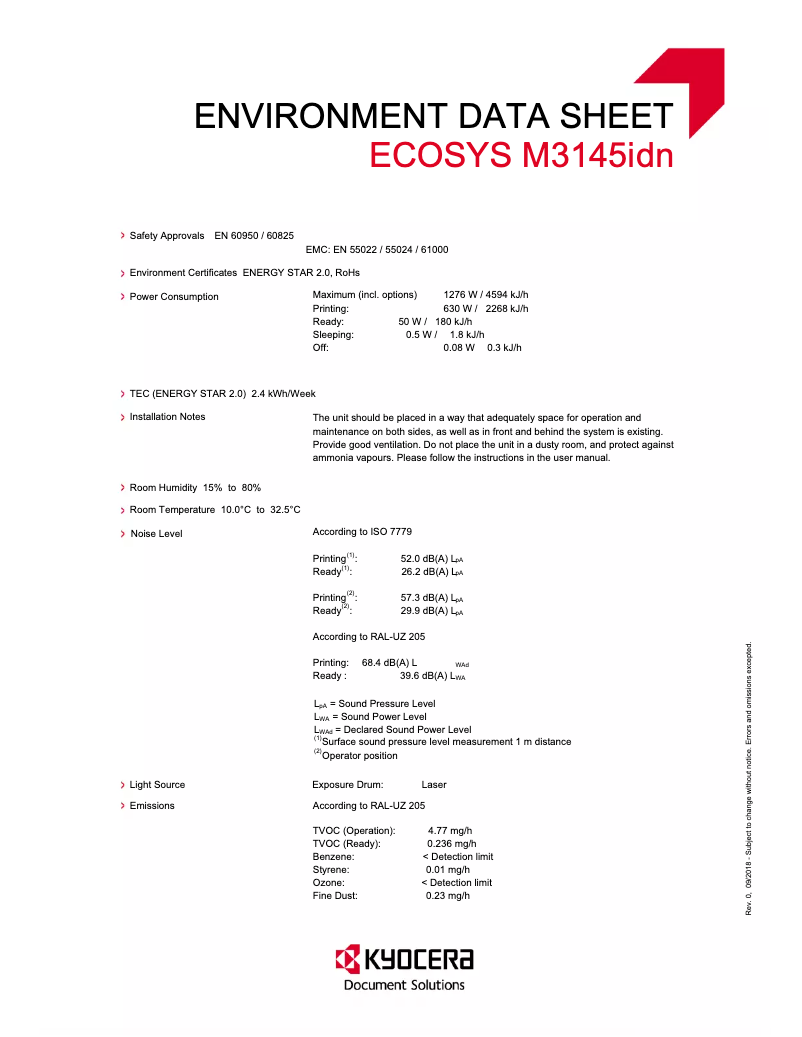

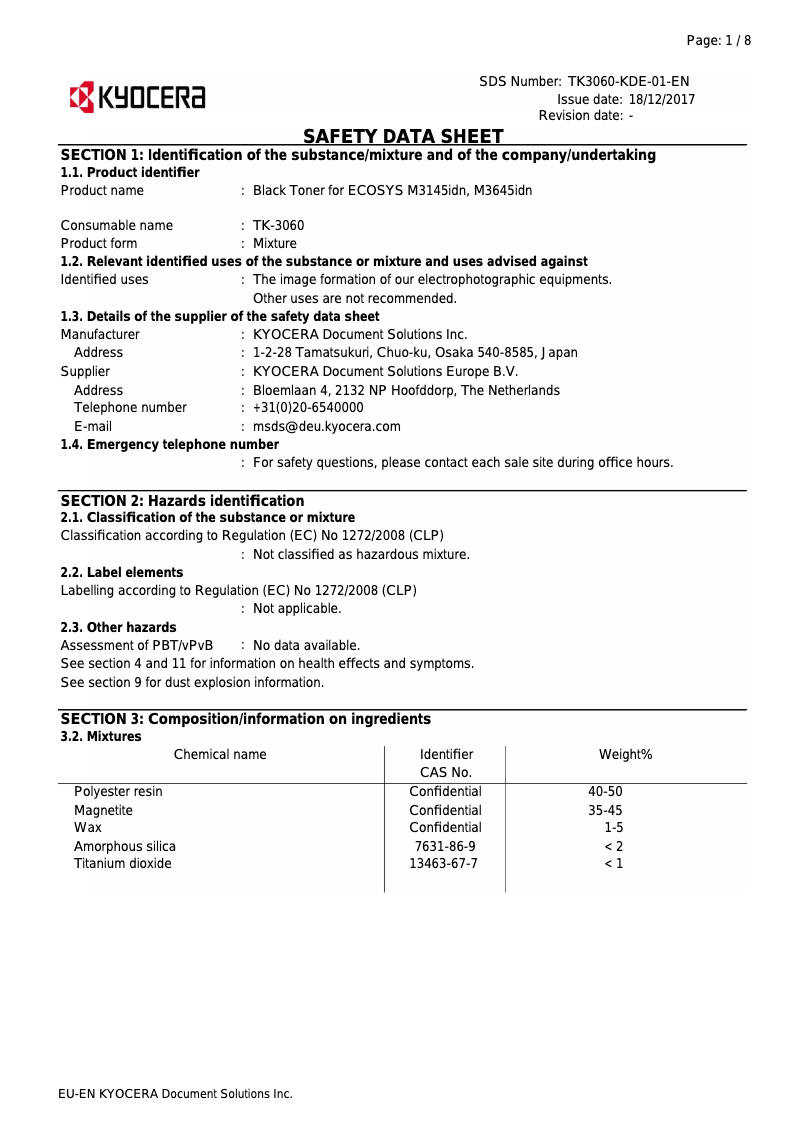

First page image of the manual for ECOSYS M3145idn

The Kyocera ECOSYS M3145idn printer stands out with its impressive printing speed of 45 pages per minute and laser print quality with a maximum resolution of 1200 x 1200 DPI. These features make it an ideal choice for demanding work environments where speed and accuracy are essential. Additionally, the color scanning function at 600 x 600 DPI allows for faithful reproduction of documents and images. However, there are some drawbacks to consider. The copier does not have an automatic duplex copying function, which can make the double-sided copying process less convenient. The lack of Wi-Fi connectivity also limits usage flexibility, requiring a wired connection for printing from mobile devices. Furthermore, the weight of 23 kg can pose challenges during the installation and movement of the device. In terms of user experience, the intuitive interface and compatibility with various operating systems, such as Windows, Mac, and Linux, facilitate integration into different work environments. The available support documents, such as the user manual and FAQ, provide a good level of support, although additional online resources could be beneficial. Finally, despite its many positive features, the cost of replacement cartridges can increase long-term printing expenses, which is a factor to consider for those seeking a cost-effective solution. Overall, the Kyocera ECOSYS M3145idn is a high-performing printer that meets the needs of professional users but has some limitations to keep in mind.

Score details

User experience

The user experience is generally positive, with an intuitive interface and extensive compatibility with various operating systems, allowing for easy integration into different work environments.

Performance

The printing speed of 45 ppm and laser print quality with a resolution of 1200 x 1200 DPI ensure optimal performance for demanding tasks, although the duplex printing speed of 22.5 ppm may be insufficient for some users.

Design

The design is modern and functional, but the weight of 23 kg can pose challenges during installation and movement, especially in tight spaces.

Value for money

Although the printer offers high quality and interesting features, the cost of replacement cartridges can be high, increasing long-term expenses.

Features

The manual duplex printing and color scanning features are very useful, but the lack of automatic duplex copying and Wi-Fi connectivity limits usage flexibility.

Support

The available documents, such as the user manual and FAQ, provide good support for users, although additional online resources could be beneficial.

Documentation

The documentation is comprehensive with a total of 500 pages, providing detailed information on the use and maintenance of the device.

Advantages

Print speed of 45 pages per minute

Manual duplex printing for savings

Laser quality up to 1200 x 1200 DPI

Color scanning at 600 x 600 DPI

Compatible with Windows, Mac, and Linux

ENERGY STAR and Blue Angel certified

Disadvantages

No automatic duplex copying

Lack of Wi-Fi connectivity

Heavy weight, difficult to move

Insufficient double-sided printing speed

High cost of replacement cartridges

Technical Specifications ECOSYS M3145idn

General Information

Model

ECOSYS M3145IDN
Brand

Kyocera
Category

Computers and accessories
Type

Printer
SKU

1245366
MPN

1245366

Print speed

Printing technology

Laser
Printing

Mono printing
Print speed (black, normal quality, A4/US Letter)

45 ppm
Maximum resolution

1200 x 1200 DPI
Preheating time

21 s
Copy time for the first page (Black, normal)

5.9 s
Duplex printing speed (Black, normal quality, A4/US Letter)

22.5 ppm
Poster printing function

Yes
Duplex printing mode

Auto
Poster printing function

Yes
Layout option

2, 4
Poster printing function

Yes
Poster printing function

Yes
Poster printing function

Yes
Poster printing function

Yes
Borderless printing

No

Copier

Copy

Simple copy
Release time of the first print (black, normal)

7 s
Max. resolution of copies

600 x 600 DPI
Resizing copy

25 - 400 %
Maximum number of copies

999 copies
All-in-one function (N=)

2, 4
Function ID-Card Copy

Yes
Copy speed (normal quality, black, A4)

45 cpm
Duplex copy mode

Auto
Function ID-Card Copy

Yes
Function ID-Card Copy

Yes
Function ID-Card Copy

Yes

Digitization

Digitization

Color scanning
Optical scanning resolution

600 x 600 DPI
Supported image formats

JPEG, TIFF
Support for text formats

PDF, XPS
Scan to

E-mail, FTP, SMB, TWAIN, USB, WIA
Gray levels

256
Scan drivers

TWAIN, WIA
Double-sided scanning

Yes
Duplex scanning mode

Auto
Scanning speed (color)

40 ppm
Scanner speed (black)

60 ppm
Scanning technology

CIS

Fax

Fax

No

Features

Service cycle (Maximum)

150,000 pages per month
Digital sender

Yes
Printing colors

Black
Languages of the page description

IBM ProPrinter XL24E, OpenXPS, PCL 6, PostScript 3, TIFF, XPS
Number of print cartridges

1
Service cycle (recommended)

3000 - 10,000 pages per month
Replacement cartridges

TK-3060 (14,500 pages)
Double-sided functions

Copy, Print, Scan

Design

Product color

Black, White
Touch screen

Yes
Market position

Professional
Screen

TFT
Screen size

7 "
Order type

Touchscreen
Touch screen

Yes
Touch screen

Yes

Representation / realization

Built-in memory card reader

-
Processor frequency

1200 MHz
Sound pressure level (impression)

54 dB
Sound pressure level (impression)

54 dB
Sound power level (standby)

30 dB
Internal memory

1000 MB
Processor family

ARM Cortex-A9
Coprocessor frequency

1.2 GHz
Integrated into the processor

Yes
Maximum internal memory

3000 MB
Compatible memory cards

SD, SDHC
Number of processor cores

2

Minimum system requirements

Support for the Linux operating system

Yes
Support for the Mac operating system

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Support for the Linux operating system

Yes

Paper management

Types of multi-purpose bins

Envelopes
Maximum ISO A series paper size

Labels
Type of paper tray support

Legal
ISO, Format Series A (A0...A9)

Letter
Weight of the media, automatic document feeder

Plain paper
Weight of paper tray support

Recycled paper
Maximum print format

Thick paper
ISO, Formats Series-B (B0...B9)

Thin paper
Non-ISO print support sizes

A4
Weight of paper tray support

Ordinary paper
Weight of the multifunctional tray support

A4, A5
Customization of support length

50 - 120 g/m²
Support width customization

60 - 120 g/m²
216 x 356 mm
B5, B6
Folio (media size), Legal (media size), Letter (media size)
60 - 120 g/m²
60 - 220 g/m²
148 - 356 mm
70 - 216 mm

Input and output capacity

Maximum output capacity

250 sheets
Input capacity of the paper tray 1

500 sheets
Maximum input capacity

2600 sheets
Maximum output capacity

250 sheets
Input capacity of multi-purpose trays

100 sheets
Automatic Document Feeder (ADF)

Yes
Total number of power supply units

1
Input capacity of the paper tray 1

500 sheets
Automatic Document Feeder (ADF)

Yes
Automatic document feeder capacity

75 sheets
Maximum number of feed bins

5
Paper feed type

Cassette, Paper tray

Weight and dimensions

Width

475 mm
Depth

476 mm
Height

575 mm
Weight

23000 g

Power

Electricity consumption (average operation)

630 W
Average power consumption in Copy mode

652 W
Energy consumption (loan)

50 W
Energy consumption (in standby mode)

0.5 W
Electricity consumption (average operation)

630 W
AC input voltage

220 - 240 V
AC input frequency

50 - 60 Hz
Energy Star, typical electrical consumption (TEC)

2.38 kWh/week

Connectivity

USB port

Yes
Standard interfaces

Ethernet, USB 2.0
Quantity of USB 2.0 Ports

3
USB port

Yes
Optional connectivity

Ethernet, Wireless LAN

Environmental conditions

Operating relative humidity (H-H)

15 - 80 %
Temperature out of operation

-20 - 40 °C
Operating temperature

10 - 32.5 °C
Relative humidity rate (storage)

10 - 90 %
Operating altitude

0 - 3500 m
Non-operating altitude

0.6 - 15000 m

Sustainability

Sustainability certificates

Blue Angel
REACH
RoHS
EPEAT Silver
ENERGY STAR

Certificate

Certification

TÜV/GS
Compliant with the standard (WEEE, Waste Electrical and Electronic Equipment)

CE
ISO 9001
ISO 14001

Packaging information

Package width

589 mm
Package depth

572 mm
Package height

695 mm
Package weight

29800 g

Packaging contents

Imaging unit included

Yes
Included cartridge capacity (black)

6000 pages
Imaging unit included

Yes
Cables included

Sector

Logistics data

Harmonized System Code

84433100

Frequently Asked Questions

What is the weight of the Kyocera ECOSYS M3145idn?

The weight of the Kyocera ECOSYS M3145idn is 23,000 g.

What is the best method to remove paper jammed in the printer?

To remove jammed paper, it is recommended to do so carefully. Turn off the printer and ensure that the print head is not in contact with the paper and that no pieces of paper remain inside.

Why does my printer not recognize original cartridges?

Non-genuine cartridges may not be detected by the printer, which can result in a message indicating that the cartridge is empty. Check the manual of the purchased cartridge for solutions; if the problem persists, contact the seller.

What could be the reasons for poor print quality?

There are several possible causes for poor print quality. Check that the cartridges or toners are full. For inkjet printers, it may be necessary to perform a cleaning, as the cartridges may be dry or the print head may be damaged. For laser printers, calibration is often recommended.

What are the distinctions between a laser printer and an inkjet printer?

A laser printer uses toner to print, while an inkjet printer uses ink.

Why does my inkjet printer leave black streaks on the paper?

In most cases, this indicates that the inkjet printer cartridge is damaged and needs to be replaced.

What does the acronym DPI mean?

DPI stands for Dots Per Inch and indicates the number of ink droplets deposited per inch during printing.

What certifications does the Kyocera ECOSYS M3145idn have?

The Kyocera ECOSYS M3145idn is certified TÜV/GS, CE, ISO 9001, and ISO 14001.

How many cartridges can be installed in the Kyocera ECOSYS M3145idn?

The Kyocera ECOSYS M3145idn can accommodate a single cartridge.

What is the size of the screen on the Kyocera ECOSYS M3145idn?

The screen of the Kyocera ECOSYS M3145idn measures 7 inches.

What is the height of the Kyocera ECOSYS M3145idn?

The height of the Kyocera ECOSYS M3145idn is 575 mm.

What is the width of the Kyocera ECOSYS M3145idn?

The width of the Kyocera ECOSYS M3145idn is 475 mm.

What is the depth of the Kyocera ECOSYS M3145idn?

The depth of the Kyocera ECOSYS M3145idn is 476 mm.

Is the manual for the Kyocera ECOSYS M3145idn available in French?

Yes, the manual for the Kyocera ECOSYS M3145idn is available in French.
