Name: Kyocera ECOSYS M3645dn
Brand: Kyocera
SKU: 1245363
Rating: 82 (19 reviews)

Manuals of product ECOSYS M3645dn

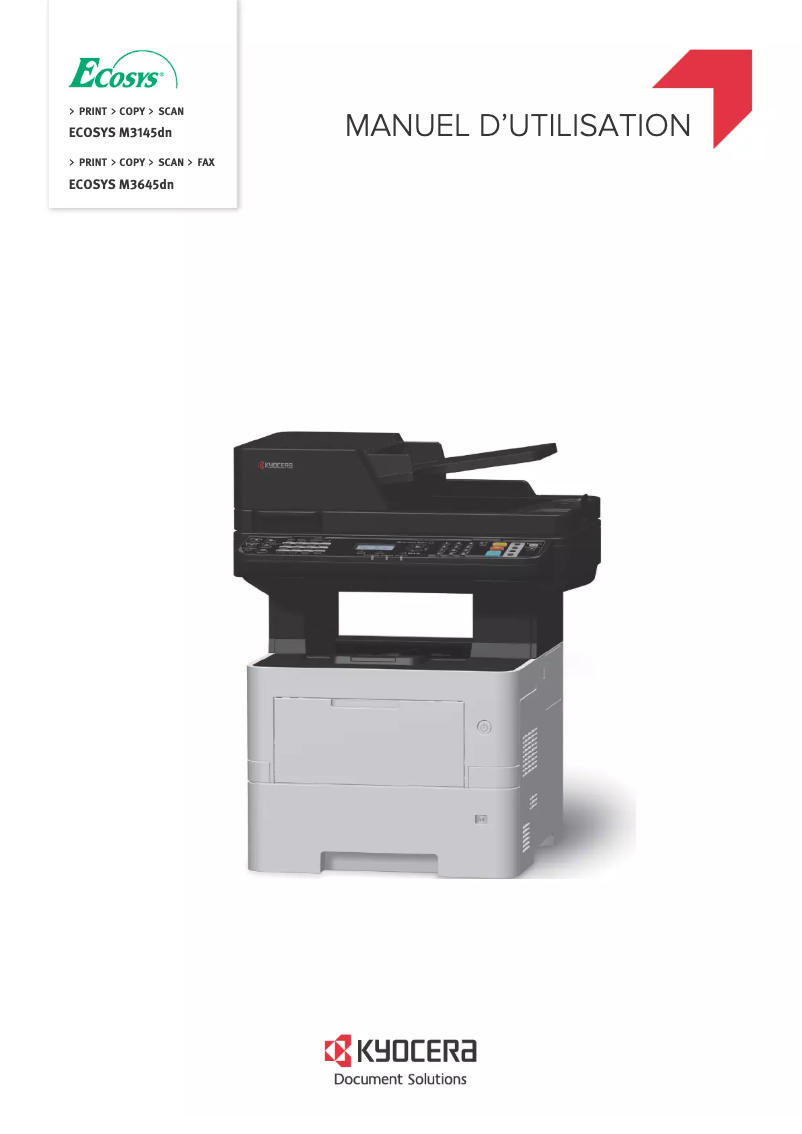

First page image of the manual for ECOSYS M3645dn

The Kyocera ECOSYS M3645dn is a multifunction printer that stands out for its printing speed, with a rate of 45 pages per minute and a maximum resolution of 1200 x 1200 DPI, ensuring results of exceptional clarity. Its input capacity of 2600 sheets allows for handling large volumes of printing without the need for frequent reloading, thus providing an efficient solution for demanding work environments. Additionally, its manual duplex printing feature helps reduce paper waste, which is an asset for more eco-friendly practices. However, the printer has some drawbacks. The lack of Wi-Fi connectivity limits its flexibility of use in wireless environments. Furthermore, the absence of automatic duplex copying can slow down the copying process for users needing to handle double-sided documents. The weight of 22.3 kg can also pose challenges when moving it, especially in tight workspaces. Finally, the noise level of 54 dB during printing may be perceived as high in environments where silence is required. In terms of scores, the user experience is generally satisfactory (80), although the lack of Wi-Fi is a notable drawback. Performance is rated excellent (85), but the printing speed in duplex mode is lower. The all-in-one features provide a comprehensive solution (78), but the lack of automatic duplex for copies can be a hindrance. The design is considered functional (70), although the weight may pose mobility issues. The value for money is good (82) due to the advanced features and large input capacity. Finally, usability is simple (75), but the noise generated can be disruptive in certain contexts. In summary, the Kyocera ECOSYS M3645dn is a solid option for professionals looking for a fast and efficient printer, but some limitations in connectivity and features may influence users' choices.

Score details

User experience

The user experience is generally satisfactory due to the all-in-one feature, but the lack of Wi-Fi limits flexibility.

Performance

With a printing speed of 45 pages per minute and a resolution of 1200 x 1200 DPI, performance is excellent, although the speed in duplex mode is lower.

Features

The all-in-one features provide a comprehensive solution, but the lack of automatic duplexing for copies can slow down the process.

Design

The design is functional, but the weight of 22.3 kg can make it difficult to move in tight spaces.

Value for money

The value for money is good, especially due to its input capacity of 2600 sheets and advanced features.

Usability

Usage is simple thanks to the interface, but the noise of 54 dB during printing can be disruptive in quiet environments.

Advantages

Print speed of 45 pages per minute

All-in-one printer: printing, copying, scanning, faxing

Laser print quality up to 1200 x 1200 DPI

Double-sided printing to save paper

Maximum input capacity of 2600 sheets

Disadvantages

No Wi-Fi connectivity

No automatic duplex copying

Slower duplex printing speed

Heavy weight, difficult to move

Noise level of 54 dB

Technical Specifications ECOSYS M3645dn

General Information

Model

ECOSYS M3645DN
Brand

Kyocera
Category

Computers and accessories
Type

Printer
SKU

1245363
MPN

1245363

Print speed

Printing technology

Laser
Printing

Mono printing
Print speed (black, normal quality, A4/US Letter)

45 ppm
Maximum resolution

1200 x 1200 DPI
Preheating time

16 s
Copy time for the first page (Black, normal)

5.9 s
Duplex printing speed (Black, normal quality, A4/US Letter)

22.5 ppm
Poster printing function

Yes
Duplex printing mode

Auto
Poster printing function

Yes
Layout option

2, 4
Poster printing function

Yes
Poster printing function

Yes
Poster printing function

Yes
Borderless printing

No

Copier

Copy

Simple copy
Release time of the first print (black, normal)

7 s
Max. resolution of copies

600 x 600 DPI
Resizing copy

25 - 400 %
Maximum number of copies

999 copies
All-in-one function (N=)

2, 4
Function ID-Card Copy

Yes
Duplex copy mode

Auto
Copy speed (normal quality, black, A4)

45 cpm
Function ID-Card Copy

Yes
Function ID-Card Copy

Yes
Function ID-Card Copy

Yes

Digitization

Digitization

Color scanning
Optical scanning resolution

600 x 600 DPI
Supported image formats

JPEG, TIFF
Support for text formats

PDF, XPS
Scan drivers

TWAIN, WIA
Double-sided scanning

Yes
Duplex scanning mode

Auto
Scan to

E-mail, FTP, SMB, TWAIN, USB, WIA
Scanning speed (color)

40 ppm
Scanner speed (black)

60 ppm
Duplex scanning speed (color)

17 ppm
Duplex scanning speed (black)

26 ppm
Gray levels

256
Scanning technology

CIS

Fax

Fax

Simple fax
Modem speed

33.6 Kbit/s
Fax transmission speed

3 sec/page
Fax resolution (black)

400 x 400 DPI
Quick numbering

Yes
Fax memory

256 pages
Quick numbering

Yes

Features

Service cycle (Maximum)

150000 pages per month
All-in-one multitasking

Yes
Printing colors

Black
Number of print cartridges

1
Languages of the page description

Epson LQ, IBM ProPrinter XL24E, OpenXPS, PCL 6, TIFF, XPS
Service cycle (recommended)

3000 - 10000 pages per month
Printer fonts

Barcode, Bitmap, PCL, Windows
All-in-one multitasking

Yes
Replacement cartridges

TK-3160 (12,500 pages)
Double-sided functions

Copy, Fax, Print, Scan

Design

Product color

Black, White
Built-in screen

Yes
Market position

Professional
Screen

LCD
Order type

Buttons
Touch screen

No
Touch screen

No
Number of lines displayed

5 lines

Representation / realization

Processor frequency

1200 MHz
Internal memory

1000 MB
Integrated into the processor

Yes
Sound pressure level (impression)

54 dB
Sound pressure level (impression)

54 dB
Sound power level (standby)

30 dB
Processor family

ARM Cortex-A9
Integrated into the processor

Yes
Maximum internal memory

3000 MB
Compatible memory cards

SD, SDHC
Number of processor cores

2

Network

Contactless payment

No
Ethernet/LAN

Yes
Mobile printing technologies

Apple AirPrint, Google Cloud Print, Kyocera Mobile Print
LAN Ethernet: data transfer rate

10,100,1000 Mbit/s
Wiring technology

10/100/1000Base-T(X)
Contactless payment

No
Contactless payment

No

Connectivity

USB port

Yes
Quantity of USB 2.0 Ports

3
Standard interfaces

Ethernet, USB 2.0
USB port

Yes
Optional connectivity

Ethernet, Wireless LAN

Input and output capacity

Input capacity of the paper tray 1

500 sheets
Maximum input capacity

2600 sheets
Maximum output capacity

250 sheets
Maximum output capacity

250 sheets
Input capacity of multi-purpose trays

100 sheets
Automatic Document Feeder (ADF)

Yes
Total number of power supply units

1
Input capacity of the paper tray 1

500 sheets
Automatic Document Feeder (ADF)

Yes
Automatic document feeder capacity

75 sheets
Maximum number of feed bins

5
Paper feed type

Cassette, Paper tray

Weight and dimensions

Width

475 mm
Depth

476 mm
Height

575 mm
Weight

22300 g

Power

Electricity consumption (average operation)

630 W
Average power consumption in Copy mode

652 W
Energy consumption (loan)

50 W
Energy consumption (in standby mode)

0.5 W
Energy consumption (eco mode)

29 W
Electricity consumption (average operation)

630 W
AC input voltage

220 - 240 V
AC input frequency

50 - 60 Hz
Energy Star, typical electrical consumption (TEC)

2.25 kWh/week

Paper management

Maximum ISO A series paper size

A4
Type of paper tray support

Ordinary paper
Types of multi-purpose bins

Envelopes, Labels, Legal, Letter, Plain paper, Recycled paper, Thick paper, Thin paper
ISO, Format Series A (A0...A9)

A4, A5
Weight of the media, automatic document feeder

50 - 120 g/m²
Weight of paper tray support

60 - 120 g/m²
Maximum print format

216 x 356 mm
ISO, Formats Series-B (B0...B9)

B5, B6
Non-ISO print support sizes

Folio (media size), Legal (media size), Letter (media size)
Support width customization

140 - 216 mm
Customization of support length

148 - 356 mm
Weight of paper tray support

60 - 120 g/m²
Weight of the multifunctional tray support

60 - 220 g/m²

Certificate

Compliant with the standard (WEEE, Waste Electrical and Electronic Equipment)

Yes
Certification

TÜV/GS, CE, ISO 9001, ISO 14001.

Minimum system requirements

Support for the Linux operating system

Yes
Support for the Mac operating system

Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
Support for the Linux operating system

Yes

Environmental conditions

Operating relative humidity (H-H)

15 - 80 %
Temperature out of operation

-20 - 40 °C
Operating temperature

10 - 32.5 °C
Relative humidity rate (storage)

10 - 90 %
Operating altitude

0 - 3500 m
Non-operating altitude

0.6 - 15000 m

Sustainability

Sustainability certificates

Blue Angel
REACH
RoHS
EPEAT Silver
ENERGY STAR

Packaging information

Package width

589 mm
Package depth

572 mm
Package height

695 mm
Package weight

29300 g

Packaging contents

Imaging unit included

Yes
Included cartridge capacity (black)

6000 pages
Imaging unit included

Yes
Cables included

Sector

Logistics data

Harmonized System Code

84433100

Frequently Asked Questions

What is the weight of the Kyocera ECOSYS M3645dn printer?

The Kyocera ECOSYS M3645dn printer weighs 22,300 g.

What is the recommended method for removing paper jammed in the printer?

It is advised to carefully remove the jammed paper. Turn off the printer and ensure that the print head is not in contact with the paper and that no pieces of paper remain inside.

Why does my printer not recognize original cartridges?

Non-official cartridges may not be accepted by the printer. In this case, a message may appear indicating that the cartridge is empty. Refer to the cartridge manual for solutions, and if the problem persists, it is recommended to contact the seller.

What could be the reasons for poor print quality?

Print quality can be affected by several factors. Check if the cartridges or toners are full. For inkjet printers, cleaning may be necessary if the cartridges are dry or if the print head is damaged. For laser printers, calibration may be helpful.

How does a laser printer differ from an inkjet printer?

A laser printer uses toner, while an inkjet printer uses ink.

Why is my inkjet printer printing black streaks?

Generally, this means that the inkjet printer cartridge is damaged and needs to be replaced.

What does the acronym DPI mean?

DPI, or Dots Per Inch, indicates the number of ink droplets deposited on the paper per inch during printing.

What certifications does the Kyocera ECOSYS M3645dn have?

The Kyocera ECOSYS M3645dn holds the following certifications: TÜV/GS, CE, ISO 9001, and ISO 14001.

How many cartridges can be installed in the Kyocera ECOSYS M3645dn?

Only one cartridge can be installed in the Kyocera ECOSYS M3645dn.

What is the height of the Kyocera ECOSYS M3645dn printer?

The Kyocera ECOSYS M3645dn printer measures 575 mm in height.

What is the width of the Kyocera ECOSYS M3645dn printer?

The width of the Kyocera ECOSYS M3645dn is 475 mm.

What is the depth of the Kyocera ECOSYS M3645dn printer?

The depth of the Kyocera ECOSYS M3645dn is 476 mm.

Is the manual for the Kyocera ECOSYS M3645dn printer available in French?

Yes, the manual for the Kyocera ECOSYS M3645dn printer is available in French.
