Printer Kyocera ECOSYS P5021cdw/KL3

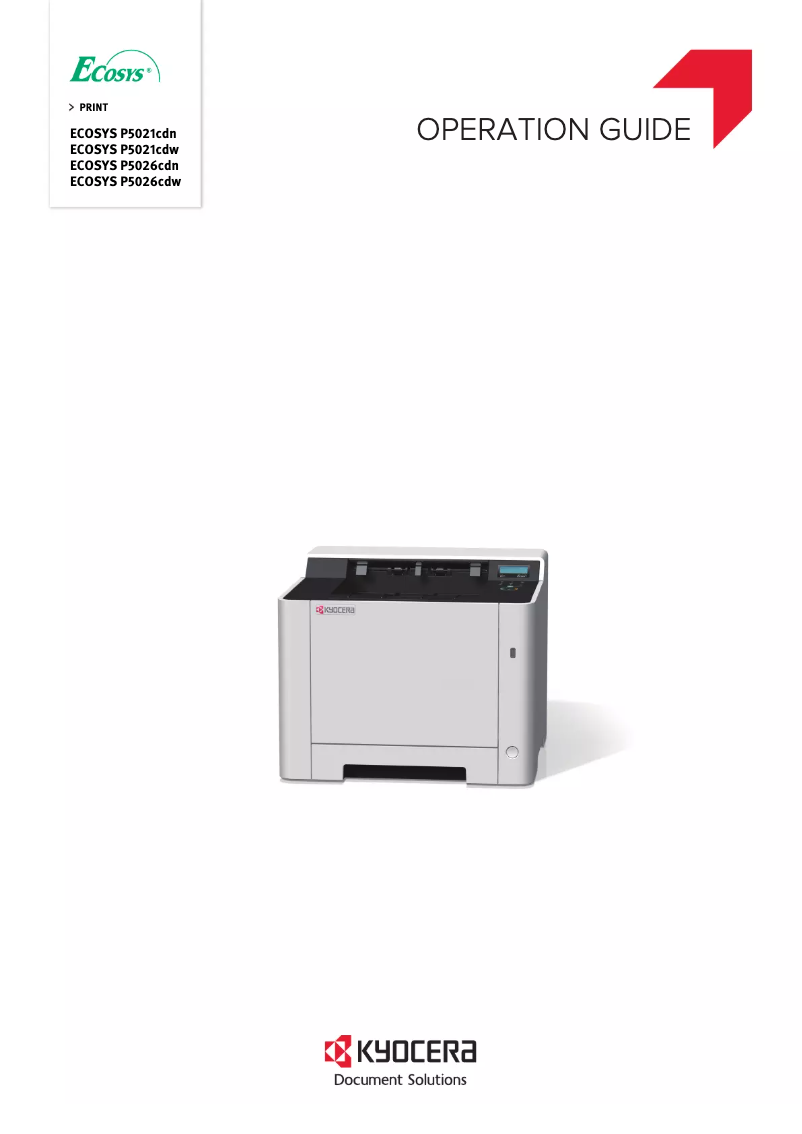

Manual of product ECOSYS P5021cdw/KL3

Technical Specifications ECOSYS P5021cdw/KL3

General Information

• Model

  ECOSYS P5021CDW/KL3
• Brand

  Kyocera
• Category

  Computers and accessories
• Type

  Printer
• SKU

  781726
• MPN

  781726

Design

• Built-in screen

  Yes
• Product color

  Black, White
• Certification

  GS, TÜV, CE
• Market position

  Domestic and professional
• Screen

  LCD
• Color display

  No
• Number of lines displayed

  2 lines
• Color display

  No
• Order type

  Buttons

Print speed

• Economic printing

  Yes
• Maximum resolution

  1200 x 1200 DPI
• Economic printing

  Yes
• Printing technology

  Laser
• Print speed (color, normal quality, A4/US Letter)

  21 ppm
• Print speed (color, normal quality, A4/US Letter)

  21 ppm
• Preheating time

  32 s
• Copy time for the first page (Black, normal)

  11 s
• Copy time for the first page (color, normal)

  12.5 s
• Economic printing

  Yes
• Duplex printing mode

  Auto
• Preheating time (from standby mode)

  12 s
• Print margins (top, bottom, right, left)

  4.2 mm
• Layout option

  2, 4, 6, 9
• Duplex printing speed (color, normal quality, A4/US Letter)

  11 ppm
• Duplex printing speed (color, normal quality, A4/US Letter)

  11 ppm
• Print speed (color, normal quality, A4/US Letter)

  21 ppm
• Economic printing

  Yes

Features

• Service cycle (Maximum)

  30000 pages per month
• Number of print cartridges

  4
• Languages of the page description

  Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
• Printing colors

  Black, Cyan, Magenta, Yellow
• Service cycle (recommended)

  1000 - 1500 pages per month
• Maximum yield of the cartridge (black)

  2600 pages
• Replacement cartridges

  TK-5220K, TK-5220C, TK-5220M, TK-5220Y
• TK-5230K, TK-5230C, TK-5230M, TK-5230Y

Input and output capacity

• Input capacity of the paper tray 1

  250 sheets
• Maximum input capacity

  550 sheets
• Input capacity of multi-purpose trays

  50 sheets
• Total number of power supply units

  1
• Paper feed type

  Cassette, Paper tray
• Maximum output capacity

  150 sheets
• Maximum output capacity

  150 sheets
• Maximum number of feed bins

  2
• Multifunctional tray

  Yes
• Input capacity of the paper tray 1

  250 sheets

Paper management

• Maximum ISO A series paper size

  A4
• Type of paper tray support

  Ordinary paper
• ISO, Format Series A (A0...A9)

  A4, A5, A6
• ISO, Formats Series-B (B0...B9)

  B5, B6
• Non-ISO print support sizes

  Legal (media size), Letter (media size)
• Weight of paper tray support

  60 - 163 g/m²
• Weight of the multifunctional tray support

  60 - 220 g/m²
• Support weight supported in duplex mode

  60 - 120 g/m²
• Support width customization

  70 - 216 mm
• Customization of support length

  148 - 356 mm
• Maximum print format

  216 x 356 mm

Network

• Ready-to-use network

  Yes
• Ready-to-use network

  Yes
• Ready-to-use network

  Yes
• Wifi standards

  802.11b, 802.11g, Wi-Fi 4 (802.11n)
• Mobile printing technologies

  Apple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
• Wiring technology

  10/100/1000Base-T(X)
• LAN Ethernet: data transfer rate

  10,100,1000 Mbit/s
• Bluetooth

  No
• Bluetooth

  No

Connectivity

• Standard interfaces

  RJ-45
• Quantity of USB 2.0 Ports

  USB 2.0
• USB port

  Wireless LAN
• USB port

  1
• Yes
• Yes

Representation / realization

• Maximum internal memory

  512 MB
• Maximum internal memory

  512 MB
• Sound pressure level (impression)

  48 dB
• Sound pressure level (silent mode)

  44 dB
• Built-in memory card reader

  Yes
• Processor family

  ARM Cortex
• Processor model

  A9
• Processor frequency

  800 MHz
• Built-in memory card reader

  Yes
• Compatible memory cards

  SD, SDHC
• Sound power level (standby)

  30 dB

Power

• AC input voltage

  220 - 240 V
• AC input frequency

  50 - 60 Hz
• Average power consumption in Print mode

  345 W
• Energy consumption (loan)

  33 W
• Electricity consumption (stop)

  0.2 W
• Consumption (max)

  1047 W
• Energy consumption (eco mode)

  0.9 W
• Energy Star, typical electrical consumption (TEC)

  0.69 kWh/week

Minimum system requirements

• Support for the Linux operating system

  Yes
• Support for the Mac operating system

  Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks
• Support for the Linux operating system

  Yes

Weight and dimensions

• Depth

  410 mm
• Depth

  410 mm
• Height

  329 mm
• Weight

  21000 g

Packaging contents

• Warranty card

  Yes
• Included cartridge capacity (CMY)

  1200 pages
• Included cartridge capacity (CMY)

  1200 pages
• Warranty card

  Yes
• Warranty card

  Yes
• Warranty card

  Yes
• Warranty card

  Yes
• Warranty card

  Yes
• Warranty card

  Yes
• Warranty card

  Yes
• Cables included

  Sector

Sustainability

• Sustainability certificates

  Blue Angel
• CE
• REACH
• RoHS
• EPEAT Silver
• ENERGY STAR

Certificate

• Compliant with the standard (WEEE, Waste Electrical and Electronic Equipment)

  Yes

Environmental conditions

• Operating temperature

  10 - 32.5 °C
• Temperature out of operation

  -20 - 40 °C
• Operating relative humidity (H-H)

  15 - 80 %
• Relative humidity rate (storage)

  10 - 90 %
• Operating altitude

  0 - 3500 m
• Non-operating altitude

  0.6 - 15000 m

Packaging information

• Package width

  529 mm
• Package depth

  567 mm
• Package height

  460 mm
• Package weight

  27000 g
