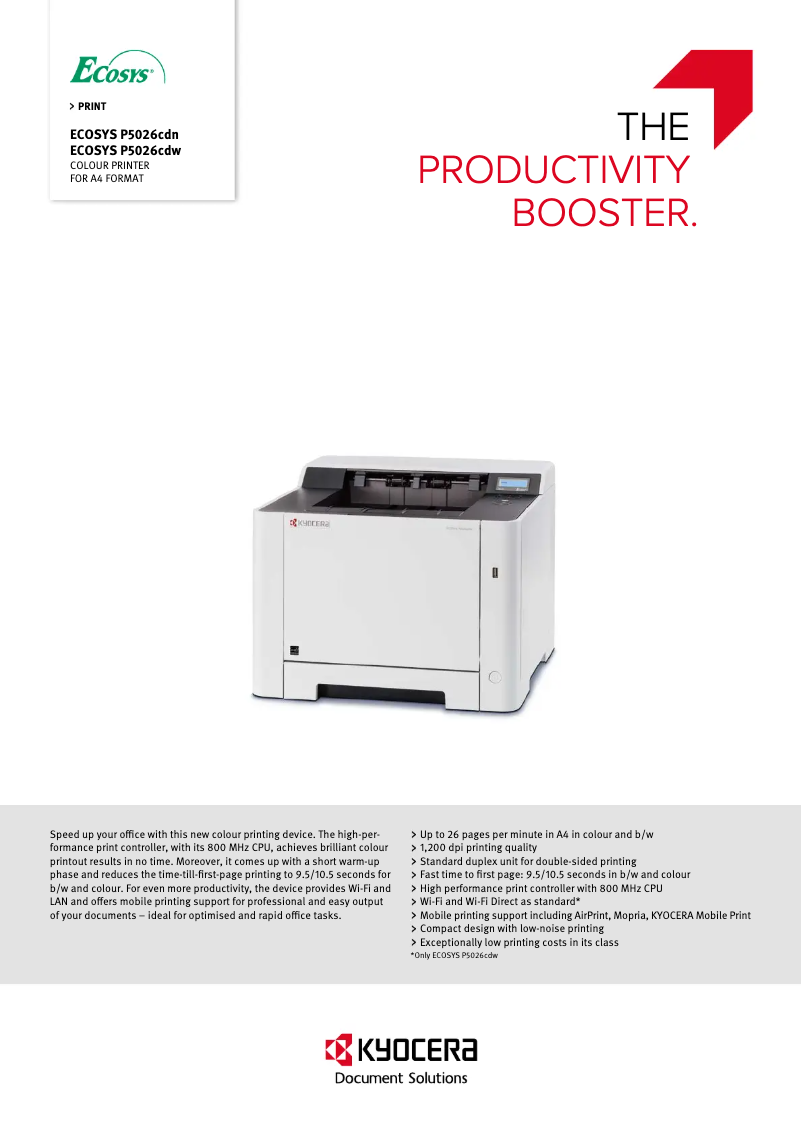

Manuals of product ECOSYS P5026cdn
Editorial note
The Kyocera ECOSYS P5026cdn is a printer that stands out for its fast printing speed of 26 pages per minute, both in black and color, making it ideal for dynamic work environments. Its maximum resolution of 9600 x 600 DPI ensures exceptional print quality, thus meeting the demands of professional users. Additionally, the manual duplex printing feature helps reduce paper consumption, contributing to a more eco-friendly approach. However, some drawbacks may hinder its adoption. The warm-up time of 29 seconds may seem long for users seeking immediate printing. Furthermore, the lack of Wi-Fi connectivity limits usage flexibility, which can be a disadvantage in environments where a wireless connection would be more convenient. The weight of 21 kg also makes the printer less portable, and the maximum input capacity of 550 sheets may be insufficient for offices with very high printing volumes. In terms of performance, the Kyocera ECOSYS P5026cdn scores high at 85, while the user experience is rated at 78, highlighting an intuitive interface but a limitation due to the absence of Wi-Fi. Energy efficiency is notable, especially in sleep mode, with a score of 80, helping to reduce electricity costs. The design, while functional, receives a score of 75, reflecting the weight that may be a drawback for some users. Finally, the value for money is deemed satisfactory with a score of 82, due to the print quality and savings achieved through economical printing. Overall, the Kyocera ECOSYS P5026cdn offers solid performance and remarkable print quality, but certain aspects, such as portability and connectivity, could be improved to meet the varied needs of users.Score details
User experience
The user experience is improved thanks to an intuitive interface, but the lack of Wi-Fi connectivity limits usage flexibility.
Performance
With a printing speed of 26 pages per minute and a maximum resolution of 9600 x 600 DPI, the performance is very satisfactory for professional use.
Battery life
Energy efficiency is notable, especially in sleep mode, helping to reduce electricity costs.
Design
The design is functional, but the weight of 21 kg makes it difficult to move, which can be a disadvantage for some users.
Features
Features such as manual duplex printing are eco-friendly, but the 29-second warm-up time can frustrate those who need quick prints.
Value for money
The value for money is generally good, especially considering the print quality and savings achieved through economical printing.
Advantages
Print speed of 26 pages per minute
Print quality up to 9600 x 600 DPI
Manual duplex printing to save paper
Input capacity of 550 sheets
Low power consumption in standby
Disadvantages
Preheating time of 29 seconds
No Wi-Fi connectivity
Manual duplex printing
Weight of 21 kg
Paper capacity limited to 550 sheets
Technical Specifications ECOSYS P5026cdn
General Information
-
ModelECOSYS P5026CDN
-
Brand
-
Category
-
Type
-
SKU1265709
-
MPN1265709
Print speed
-
Economic printingYes
-
Maximum resolution9600 x 600 DPI
-
Economic printingYes
-
Printing technologyLaser
-
Print speed (color, normal quality, A4/US Letter)26 ppm
-
Print speed (color, normal quality, A4/US Letter)26 ppm
-
Preheating time29 s
-
Copy time for the first page (Black, normal)9.5 s
-
Copy time for the first page (color, normal)10.5 s
-
Duplex printing modeAuto
-
Duplex printing speed (color, normal quality, A4/US Letter)13 ppm
-
Duplex printing speed (color, normal quality, A4/US Letter)13 ppm
-
Economic printingYes
-
Black print resolution1200 x 1200 DPI
-
Black print resolution1200 x 1200 DPI
Features
-
Service cycle (Maximum)50000 pages per month
-
Number of print cartridges4
-
Languages of the page descriptionMicrosoft XPS, PCL 5c, PCL 6, PCL XL, PostScript 3
-
Printing colorsBlack, Cyan, Magenta, Yellow
-
Service cycle (recommended)1000 - 2000 pages per month
-
Replacement cartridgesTK-5240K (4,000 pages)
-
TK-5240CMY (3,000 pages)
Design
-
ScreenLCD
-
Product colorBlack, White
-
Built-in screenYes
-
Market positionDomestic and professional
-
Color displayNo
-
Order typeButtons
-
CertificationGS, TüV, CE
Power
-
AC input voltage220 - 240 V
-
AC input frequency50 Hz
-
Average power consumption in Print mode375 W
-
Energy consumption (standby mode)33 W
-
Energy consumption (eco mode)0.9 W
-
Electricity consumption (stop)0.2 W
-
Energy Star, typical electrical consumption (TEC)0.94 kWh/week
Representation / realization
-
Sound pressure level (impression)47.4 dB
-
Sound level (ready)30 dB
-
Built-in memory card readerYes
-
Processor frequency800 MHz
-
Maximum internal memory512 MB
-
Maximum internal memory512 MB
-
Compatible memory cardsSD, SDHC
-
Built-in memory card readerYes
-
Processor familyARM Cortex
-
Processor modelA9
-
Sound pressure level (silent mode)43.4 dB
Input and output capacity
-
Input capacity of the paper tray 1250 sheets
-
Maximum input capacity550 sheets
-
Input capacity of multi-purpose trays50 sheets
-
Total number of power supply units1
-
Maximum number of feed bins2
-
Paper feed typeCassette, Paper tray
-
Maximum output capacity150 sheets
-
Multifunctional trayYes
-
Input capacity of the paper tray 1250 sheets
-
Maximum output capacity150 sheets
Minimum system requirements
-
Support for the Linux operating systemYes
-
Support for the Mac operating systemMac OS X 10.10 Yosemite
-
Support for the Linux operating systemMac OS X 10.11 El Capitan
-
Mac OS X 10.12 Sierra
-
Mac OS X 10.13 High Sierra
-
Mac OS X 10.14 Mojave
-
Mac OS X 10.15 Catalina
-
Mac OS X 10.8 Mountain Lion
-
Mac OS X 10.9 Mavericks
-
Yes
Paper management
-
Maximum ISO A series paper sizeA4
-
Type of paper tray supportOrdinary paper
-
ISO, Format Series A (A0...A9)A4, A5, A6
-
ISO, Formats Series-B (B0...B9)B5, B6
-
Non-ISO print support sizesLegal (media size), Letter (media size)
-
Weight of paper tray support60 - 163 g/m²
-
Weight of the multifunctional tray support60 - 220 g/m²
-
Support weight supported in duplex mode60 - 120 g/m²
-
Support width customization70 - 216 mm
-
Customization of support length148 - 356 mm
-
Maximum print format216 x 356 mm
Weight and dimensions
-
Depth410 mm
-
Depth410 mm
-
Height329 mm
-
Weight21000 g
Network
-
Ready-to-use networkYes
-
BluetoothNo
-
Ready-to-use networkYes
-
Wiring technology10/100/1000Base-T(X)
-
LAN Ethernet: data transfer rate10,100,1000 Mbit/s
-
BluetoothNo
-
BluetoothNo
-
Mobile printing technologiesApple AirPrint, Google Cloud Print, Kyocera Mobile Print, Mopria Print Service
-
Security-supported algorithm802.1x RADIUS, HTTPS, IPPS, IPSEC, SNMPv3
Connectivity
-
Standard interfacesEthernet, USB 2.0
-
USB portYes
-
USB portYes
-
Quantity of USB 2.0 Ports2
Sustainability
-
Sustainability certificatesBlue Angel
-
CE
-
REACH
-
RoHS
-
EPEAT Silver
-
ENERGY STAR
Environmental conditions
-
Operating temperature10 - 32.5 °C
-
Temperature out of operation-20 - 40 °C
-
Operating relative humidity (H-H)10 - 80 %
-
Relative humidity rate (storage)10 - 90 %
-
Operating altitude0 - 3500 m
-
Non-operating altitude0.6 - 15000 m
Packaging information
-
Package width592 mm
-
Package depth567 mm
-
Package height460 mm
-
Package weight27000 g
Packaging contents
-
Cartridge(s) includedYes
-
Included cartridge capacity (CMY)1200 pages
-
Included cartridge capacity (CMY)1200 pages
-
Cables includedSector
Certificate
-
Compliant with the standard (WEEE, Waste Electrical and Electronic Equipment)Yes
Logistics data
-
Harmonized System Code84433210
Frequently Asked Questions
What is the weight of the Kyocera ECOSYS P5026cdn printer?
What is the recommended method for removing jammed paper from the printer?
Why is my printer not accepting genuine cartridges?
Why is the quality of my prints poor?
What are the main differences between a laser printer and an inkjet printer?
Why is my inkjet printer producing black streaks?
What does the acronym DPI mean?
What certifications does the Kyocera ECOSYS P5026cdn have?
How many cartridges are compatible with the Kyocera ECOSYS P5026cdn?
What is the height of the Kyocera ECOSYS P5026cdn?
What is the width of the Kyocera ECOSYS P5026cdn?
What is the depth of the Kyocera ECOSYS P5026cdn?
Is the user manual for the Kyocera ECOSYS P5026cdn available in French?
Similar products
More product categories from brand Kyocera
Phones Kyocera
Other Kyocera
More product types from brand Kyocera
Presentation of product ECOSYS P5026cdn specifications from brand Kyocera
General Information
The Kyocera ECOSYS P5026cdn is a printer from the Kyocera brand, known for its innovation and quality in the printing device sector. This model, identified by the number ECOSYS P5026cdn | 1102RC3NL0, is designed to deliver optimal performance, thus ensuring a high-level user experience. Its unique EAN code, which includes 0632983935521 and other variants, facilitates its identification in distribution systems.
Print Speed
This printer supports color printing and offers a maximum resolution of 9600 x 600 DPI, ensuring prints of exceptional clarity. The print speed reaches 26 pages per minute for both black and color documents, making this device ideal for dynamic work environments. Additionally, it features a manual duplex printing function, allowing for optimized paper usage. The warm-up time is 29 seconds, with a first page print delay of 9.5 seconds for black and 10.5 seconds for color.
Technical Specifications
The Kyocera ECOSYS P5026cdn is designed for a maximum service cycle of 50,000 pages per month, making it a suitable choice for users with high printing needs. The printer uses four cartridges (black, cyan, magenta, yellow) and is compatible with several page description languages, including PostScript 3 and PCL 6. It also features an input capacity of 550 sheets, allowing for efficient management of a large volume of documents.
Design and Ergonomics
The ECOSYS P5026cdn model is equipped with a built-in LCD screen, facilitating user interaction. Its modern design, with black and white colors, easily integrates into an office environment. The controls are accessible via buttons, offering intuitive use.
Energy Consumption
In terms of energy efficiency, the printer consumes 375 W in print mode and only 33 W in standby mode. It also has a power-saving mode consumption of 0.9 W, contributing to reduced electricity costs and a positive environmental impact.
Operating Conditions
The Kyocera ECOSYS P5026cdn operates within a temperature range of 10 to 32.5 °C and can withstand a relative humidity of 10 to 80 %. It is designed to operate at altitudes of up to 3500 m, broadening its application in various work environments.
Connectivity and Compatibility
This printer is equipped with an Ethernet/LAN interface but does not have Wi-Fi connectivity. It supports Windows, Mac, and Linux operating systems, ensuring compatibility with a wide range of devices.
Dimensions and Weight
With dimensions of 410 mm in width, 410 mm in depth, and 329 mm in height, the Kyocera ECOSYS P5026cdn is designed to fit easily into your workspace. However, its weight of 21 kg may make it less portable.
Durability
This printer complies with several environmental standards, being certified by Blue Angel, CE, RoHS, and ENERGY STAR, thus ensuring its compliance with sustainability and energy efficiency standards.
