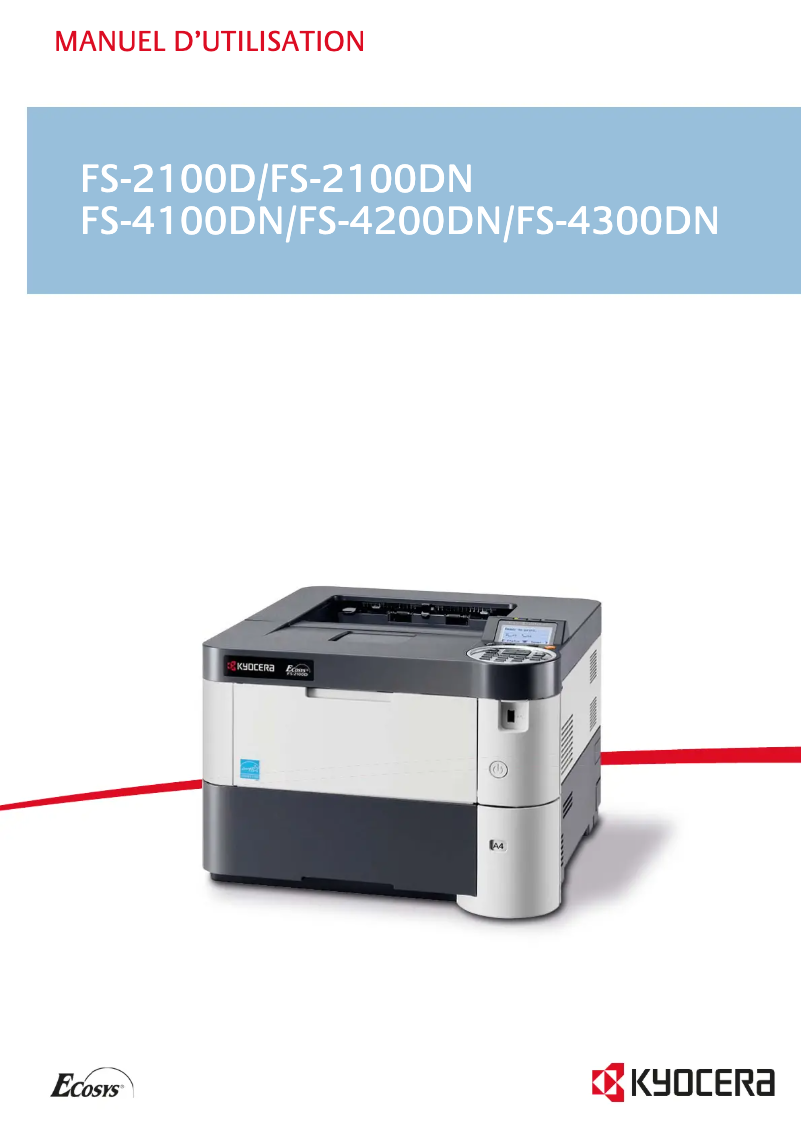

Manual of product FS-4100DN/KL3
Editorial note
The Kyocera FS-4100DN/KL3 printer stands out for its printing speed with a performance of up to 45 pages per minute, making it an excellent choice for demanding work environments. Its maximum resolution of 1200 x 1200 DPI ensures prints of exceptional clarity, suitable for professional documents. Additionally, its maximum paper capacity of 2600 sheets allows for handling large print volumes without frequent interruptions, thus offering increased productivity. However, some drawbacks must be considered. The lack of color printing limits its use for documents requiring graphic elements or attractive presentations. Furthermore, the unavailability of Wi-Fi connectivity can be a disadvantage for users who wish to print wirelessly. Moreover, although its printing speed is fast, it may not be sufficient in very demanding work environments where even higher volumes are needed. The scores assigned to user experience and performance are 80 and 75, respectively, indicating overall satisfaction, although improvements are possible. The modern and sleek design of the printer, while weighing 14.6 kg, may complicate its installation, which is something to consider. In terms of value for money, the product is competitive, particularly due to its features tailored to professional needs. Finally, the ENERGY STAR certification and other sustainability standards demonstrate its environmental respect, thus enhancing its appeal to users concerned about ecological impact. Overall, the Kyocera FS-4100DN/KL3 is a robust and high-performing printer, although it may not suit all printing needs.Score details
User experience
The user experience is generally positive thanks to an intuitive interface and an integrated duplex printing feature, although the lack of Wi-Fi may be a drawback for some.
Performance
With a printing speed of 45 pages per minute and a maximum resolution of 1200 x 1200 DPI, the performance is good for professional use, but may not be sufficient for very demanding environments.
Design
The design is modern and the black and white color gives it an elegant look, although its weight of 14.6 kg may complicate its installation.
Value for money
The value for money is excellent thanks to its maximum paper capacity of 2600 sheets and its features suited for work environments.
Features
Features such as duplex printing and compatibility with multiple operating systems are a plus, but the lack of color printing limits its use.
Robustness
The robustness is enhanced by the ENERGY STAR certification and other sustainability standards, ensuring an environmentally friendly product.
repairability
Repair is facilitated by the availability of user manuals, but the complexity of the internal components could pose challenges.
Support
The support is adequate, with a comprehensive user manual, although technical support could be improved to meet user needs.
Documentation
The provided documentation is extensive, with a 323-page manual that covers all aspects of using and maintaining the printer.
Advantages
Fast printing: 45 pages per minute
Built-in duplex printing for savings
Exceptional print quality: 1200 x 1200 DPI
Paper capacity: 2600 sheets
Compatible with Windows, Mac, and Linux
Disadvantages
No color printing available
Lack of Wi-Fi connectivity
Insufficient printing speed for large volumes
Heavy weight, difficult installation
Internal memory limited to 256 MB
Technical Specifications FS-4100DN/KL3
General Information
-
ModelFS-4100DN/KL3
-
Brand
-
Category
-
Type
-
SKU162413
-
MPN162413
Print speed
-
ColorNo
-
Maximum resolution1200 x 1200 DPI
-
Double-sided printingYes
-
Printing technologyLaser
-
Print speed (black, normal quality, A4/US Letter)45 ppm
-
Preheating time15 s
-
Copy time for the first page (Black, normal)9 s
Network
-
Ethernet/LANYes
-
Ethernet/LANYes
-
WifiNo
-
Mobile printing technologiesNot supported
Features
-
Service cycle (Maximum)200,000 pages per month
-
Number of print cartridges1
-
Languages of the page descriptionEpson LQ, IBM ProPrinter, Microsoft XPS, PCL 5c, PCL 6, PCL XL, PDF 1.7, PostScript 3
-
Printing colorsBlack
Representation / realization
-
Internal memory256 MB
-
Maximum internal memory1280 MB
-
Processor frequency750 MHz
-
Processor model465
-
Processor familyPowerPC
-
Sound power level (standby)27.8 dB
-
Sound pressure level (impression)53.6 dB
-
Compatible memory cardsSD, SDHC
-
Integrated into the processorYes
Input and output capacity
-
Total power capacity600 sheets
-
Maximum input capacity2600 sheets
-
Input capacity of multi-purpose trays100 sheets
-
Total number of power supply units2
-
Total output capacity500 sheets
-
Maximum output capacity750 sheets
-
Maximum number of feed bins6
-
Multifunctional trayYes
Paper management
-
Maximum print format216 x 356 mm
-
Type of paper tray supportOrdinary paper
-
ISO, Format Series A (A0...A9)A4, A5, A6
-
Non-ISO print support sizesLetter
-
Support weight supported in duplex mode60 - 120 g/m²
-
Weight of the multifunctional tray support60 - 220 g/m²
-
Support weight supported in duplex mode60 - 120 g/m²
-
Support width customization70 - 216 mm
-
Customization of support length148 - 356 mm
-
ISO, Formats Series-B (B0...B9)B5
-
Maximum ISO A series paper sizeA4
Connectivity
-
Standard interfacesEthernet, USB 2.0
-
Direct printingYes
Minimum system requirements
-
Support for the Linux operating systemYes
-
Support for the Mac operating systemMac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
-
Support for the Linux operating systemYes
-
Support for the server operating systemWindows 2000 Advanced Server, Windows 2000 Server, Windows MultiPoint Server 2011, Windows SBS 2011 Essentials, Windows SBS 2011 Standard, Windows Server 2003, Windows Server 2003 R2, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64, Windows Server 2012
Power
-
Average power consumption in Print mode618 W
-
Energy consumption (standby mode)13.3 W
-
Energy consumption (eco mode)1.6 W
-
AC input voltage220 - 240 V
-
AC input frequency50 - 60 Hz
Weight and dimensions
-
Weight14600 g
-
Width380 mm
-
Depth416 mm
-
Height320 mm
Design
-
CertificationTÜV/GS, CE
-
ScreenLCD
-
Product colorBlack, White
-
Built-in screenYes
Sustainability
-
Sustainability certificatesBlue Angel
-
ENERGY STAR
Frequently Asked Questions
What is the weight of the Kyocera FS-4100DN/KL3 printer?
What is the recommended method for removing paper jammed in the printer?
Why is my printer not accepting original cartridges?
What are the possible reasons for poor print quality?
What is the difference between a laser printer and an inkjet printer?
Why is my inkjet printer producing black lines on prints?
What does the acronym DPI mean?
What certifications does the Kyocera FS-4100DN/KL3 have?
How many cartridges can be installed in the Kyocera FS-4100DN/KL3?
What is the height of the Kyocera FS-4100DN/KL3 printer?
What is the width of the Kyocera FS-4100DN/KL3 printer?
What is the depth of the Kyocera FS-4100DN/KL3 printer?
Is the manual for the Kyocera FS-4100DN/KL3 available in French?
Similar products
More product categories from brand Kyocera
Phones Kyocera
Other Kyocera
More product types from brand Kyocera
Presentation of product FS-4100DN/KL3 specifications from brand Kyocera
General Information
The model Kyocera FS-4100DN/KL3, offered by the brand Kyocera, is recognized for its quality and innovation in the printer sector. This model, identified by the code 870B61102MT3NL0, is designed to provide reliable performance and an optimized user experience. Its EAN code, 632983932278, facilitates its identification in the distribution system.
Print Speed
This printer is monochrome, not allowing color printing, which may limit its use for documents requiring graphic elements. However, it stands out with a maximum resolution of 1200 x 1200 DPI, ensuring prints of exceptional clarity, suitable for professional needs. The printer features an integrated duplex printing function, allowing for optimized paper usage and cost reduction. Thanks to its laser printing technology, the FS-4100DN/KL3 model achieves a print speed of 45 pages per minute, which is ideal for demanding work environments. Its warm-up time is 15 seconds and the first page print delay is 9 seconds.
Network
The Kyocera FS-4100DN/KL3 is ready for network connectivity, offering Ethernet/LAN configuration. However, it does not support Wi-Fi, which could be a drawback for users wishing to print wirelessly. It also supports various mobile printing technologies, facilitating printing from mobile devices.
Features
With a maximum monthly duty cycle of 200,000 pages, this printer is designed for intensive use, ideal for high-volume offices. It requires a single print cartridge to operate. The Kyocera FS-4100DN/KL3 is compatible with several page description languages such as Epson LQ, IBM ProPrinter, and PostScript 3, allowing for great flexibility of use.
Performance / Execution
Equipped with an internal memory of 256 MB, expandable up to 1280 MB, this printer can handle a large amount of data. Its processor, of type PowerPC, operates at a frequency of 750 MHz, ensuring optimal performance. The noise level in standby is 27.8 dB, while the sound level during printing reaches 53.6 dB, ensuring relatively quiet operation. Additionally, the model supports SD and SDHC memory cards.
Input and Output Capacity
The total paper feed capacity of the printer is 600 sheets, with a maximum input capacity of 2600 sheets. It is equipped with two paper trays, allowing for the management of different types of documents. The output capacity is 500 sheets, with a maximum capacity of 750 sheets for completed prints.
Paper Management
The maximum supported print size is 216 x 356 mm, compatible with standard formats such as A4, A5, and B5. The accepted paper weight ranges from 60 to 120 g/m² for the paper tray and up to 220 g/m² for the multifunction tray. The printer also allows for customization of the paper width and length to meet specific user needs.
Connectivity
The Kyocera FS-4100DN/KL3 is equipped with standard interfaces that facilitate its integration with various devices. It also allows for direct printing from peripherals, optimizing its daily use.
Minimum System Requirements
This printer is compatible with several operating systems, including Windows, Mac (version 10.4 to 10.8), and Linux, thus ensuring integration flexibility in various computing environments. It also supports several modern server operating systems.
Power
In terms of energy consumption, the Kyocera FS-4100DN/KL3 consumes an average of 618 W in print mode, 13.3 W in standby, and only 1.6 W in energy-saving mode, making it an energy-efficient choice. Its AC input voltage is 220 - 240 V and its AC input frequency is 50 - 60 Hz.
Weight and Dimensions
This model weighs 14.6 kg, with dimensions of 380 mm in width, 416 mm in depth, and 320 mm in height, making it suitable for integration into various workspaces.
Design
The Kyocera FS-4100DN/KL3 is certified TÜV/GS and CE, attesting to its compliance with safety and performance standards. It features a built-in LCD screen, providing an intuitive user interface. Its black and white color gives it a modern and elegant aesthetic.
Durability
Finally, certifications such as Blue Angel and ENERGY STAR highlight this product's commitment to energy efficiency and environmental respect.
