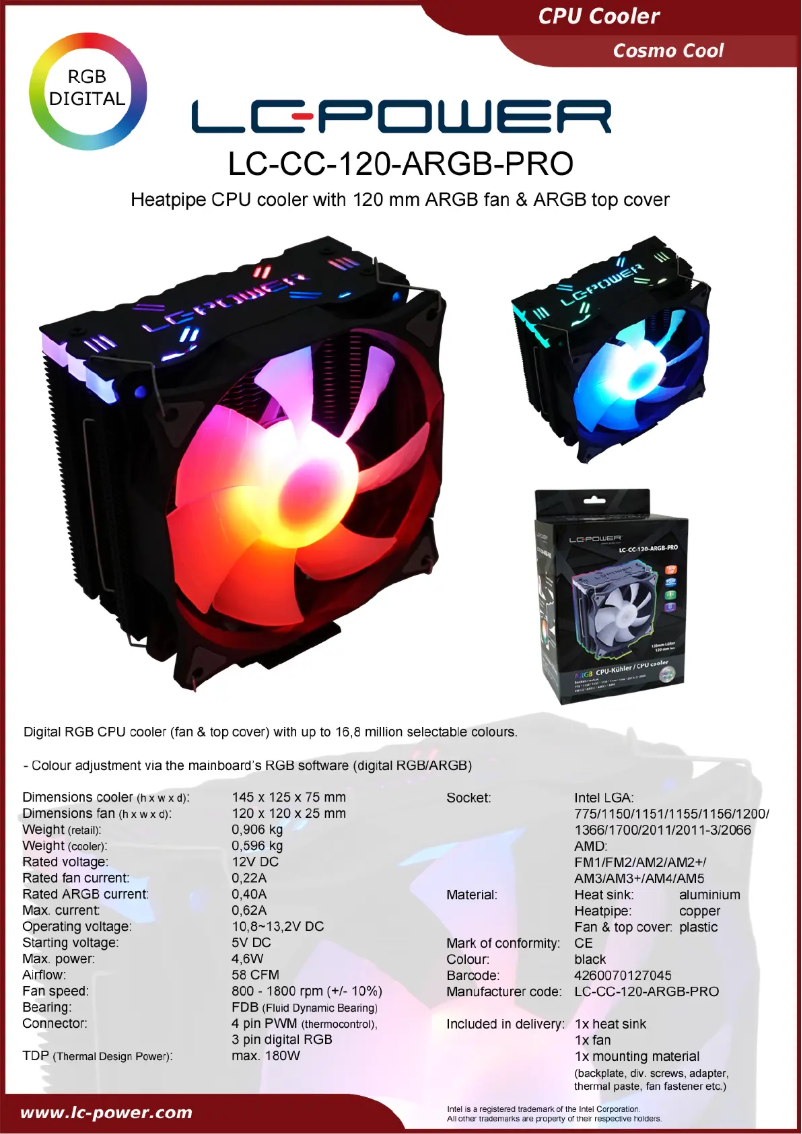

Manual of product LC-CC-120-ARGB-PRO
Technical Specifications LC-CC-120-ARGB-PRO
General Information
-
ModelLC-CC-120-ARGB-PRO
-
Brand
-
Category
-
Type
-
SKU1710650
-
MPN1710650
Representation / realization
-
Appropriate locationProcessor
-
Compatible processorsAMD A, AMD Athlon, AMD Ryzen, Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium
-
Support for processor socketsLGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2
-
Fan diameter120 mm
-
TypeCooler
-
Maximum draft58 cfm
-
Rotation speed (min)800 rpm
-
Rotation speed (max)1800 rpm
-
Bearing typeFluid Dynamic Bearing (FDB)
-
Support for pulse width modulationYes
Design
-
Product colorBlack
-
Color of the lightingBlue, Green, Red
-
Illumination indicatorYes
-
MaterialAluminium, Copper, Plastic
-
Number of fans1 fan(s)
-
Fan connector3-pin + 4-pin
-
CertificationCE
Weight and dimensions
-
Width125 mm
-
Depth75 mm
-
Height145 mm
-
Weight596 g
-
Package weight906 g
-
Fan dimensions (l x w x h)120 x 25 x 120 mm
Power
-
Nominal voltage12 V
-
Nominal current0.4 A
-
Intensity (max.)0.62 A
-
Tension10.8 - 13.2 V
-
Starting voltage5 V
-
Thermal envelope (TDP, Thermal Design Power)180 W
Other features
-
Nominal voltage of the fan0.22 V
Packaging contents
-
Assembly kitYes
-
Type of packagingBox
Logistics data
-
Harmonized System Code84733080
Similar products
More product categories from brand LC-Power
More product types from brand LC-Power
Presentation of product LC-CC-120-ARGB-PRO specifications from brand LC-Power
Generalities
The product model LC-Power LC-CC-120-ARGB-PRO is LC-CC-120-ARGB-PRO | LC-CC-120-ARGB-PRO. This model ensures optimal performance and an enhanced user experience. The EAN code of the product LC-Power LC-CC-120-ARGB-PRO is 4260070127045. This code allows for the unique identification of the product in the distribution system. The brand of the product LC-Power LC-CC-120-ARGB-PRO is LC-Power. This brand is known for its quality and innovation in the field of household appliances.
Design
The color of the product LC-Power LC-CC-120-ARGB-PRO is Noir. This shade gives it a modern and elegant look. The material of the product LC-Power LC-CC-120-ARGB-PRO is made of Aluminium, Copper, Plastic. This material is both lightweight and durable, providing excellent wear resistance. The color of the lighting of the product LC-Power LC-CC-120-ARGB-PRO is multi. This feature allows you to create a personalized and dynamic atmosphere according to your desires. Does the LC-Power LC-CC-120-ARGB-PRO have an illumination indicator? Oui. This indicator shows the operating status of the device. The number of fans of the product LC-Power LC-CC-120-ARGB-PRO is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The fan connector of the product LC-Power LC-CC-120-ARGB-PRO contains 3-pin + 4-pin. This connector is essential for ensuring a reliable and efficient connection between the fan and the system. The certification of the product LC-Power LC-CC-120-ARGB-PRO contains CE. This certification guarantees compliance with the required safety and performance standards.
Weight and dimensions
The width of the product LC-Power LC-CC-120-ARGB-PRO is 125 mm. This dimension is essential to ensure optimal integration into your space. The weight of the product LC-Power LC-CC-120-ARGB-PRO is 596 g. This weight is ideal for ensuring optimal use and easy handling. The depth of the product LC-Power LC-CC-120-ARGB-PRO is 75 mm. This dimension allows for optimal integration into your space. The height of the product LC-Power LC-CC-120-ARGB-PRO is 145 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the LC-Power LC-CC-120-ARGB-PRO package is 906 g. This weight ensures optimal protection during transport and delivery. The fan of the product LC-Power LC-CC-120-ARGB-PRO has fan dimensions (l x w x h) of 120 x 25 x 120 mm. These dimensions make it an ideal choice for various spaces.
Representation / realization
The product LC-Power LC-CC-120-ARGB-PRO has a suitable location: Processeur. This product fits perfectly in this space, offering both functionality and aesthetics. The support for the processor sockets of the product LC-Power LC-CC-120-ARGB-PRO contains LGA 1150 (Socket H3), LGA 1151 (Socket H4), LGA 1155 (Socket H2), LGA 1156 (Socket H), LGA 1366 (Socket B), LGA 2011 (Socket R), LGA 2011-v3 (Socket R), LGA 2066, LGA 775 (Socket T), Socket AM2, Socket AM2+, Socket AM3, Socket AM3+, Socket AM4, Socket FM1, Socket FM2. This support allows for optimal compatibility with various processors. The diameter of the LC-Power LC-CC-120-ARGB-PRO fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The compatible processor of the product LC-Power LC-CC-120-ARGB-PRO contains AMD A, AMD Athlon, AMD Ryzen, Intel Celeron, Intel Core i3, Intel Core i5, Intel Core i7, Intel Core i9, Intel Pentium. This processor ensures optimal performance for your computing needs. The type of product LC-Power LC-CC-120-ARGB-PRO is an island. This type of design offers a functional and aesthetic solution to optimize space in your interior. The maximum airflow of the product LC-Power LC-CC-120-ARGB-PRO is 58 cfm. This airflow ensures optimal performance for efficient use. The rotation speed of the product LC-Power LC-CC-120-ARGB-PRO is 800 tr/min. This feature ensures optimal performance and increased efficiency during its use. The bearing type of the product LC-Power LC-CC-120-ARGB-PRO is Palier à dynamique des fluides (FDB). This type of bearing ensures optimal performance and increased durability. Does the LC-Power LC-CC-120-ARGB-PRO support pulse width modulation? No. This feature is not available on this model. The maximum rotation speed of the product LC-Power LC-CC-120-ARGB-PRO is 1800 tr/min. This feature allows for optimizing performance and ensuring maximum efficiency during its use.
Power
The intensity (max.) of the product LC-Power LC-CC-120-ARGB-PRO is 0.62 A. This specification ensures optimal performance and safe use. The nominal current of the product LC-Power LC-CC-120-ARGB-PRO is 0.4 A. This current is essential to ensure optimal and safe operation of the device. The nominal voltage of the product LC-Power LC-CC-120-ARGB-PRO is 12 V. This specification ensures compatibility with a wide range of power supplies. The voltage of the product LC-Power LC-CC-120-ARGB-PRO is 10.8 - 13.2 V. This voltage ensures optimal and safe operation of the device. The starting voltage of the product LC-Power LC-CC-120-ARGB-PRO is 5 V. This specification ensures optimal operation from the very first attempt. The TDP (Thermal Design Power) of the product is 180 W. This specification indicates the maximum amount of heat that the processor can dissipate, thus ensuring optimal and stable operation.
Packaging contents
Does the LC-Power LC-CC-120-ARGB-PRO product come with a mounting kit? Oui. This kit will allow you to easily assemble your product. The packaging type of the product LC-Power LC-CC-120-ARGB-PRO is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
Other features
The nominal voltage of the LC-Power LC-CC-120-ARGB-PRO fan is 0.22 V. This feature is essential for ensuring optimal operation and energy efficiency.
Logistics data
The Harmonized System code for the product LC-Power LC-CC-120-ARGB-PRO is 84733080. This code allows for the unique identification of goods in international trade.
