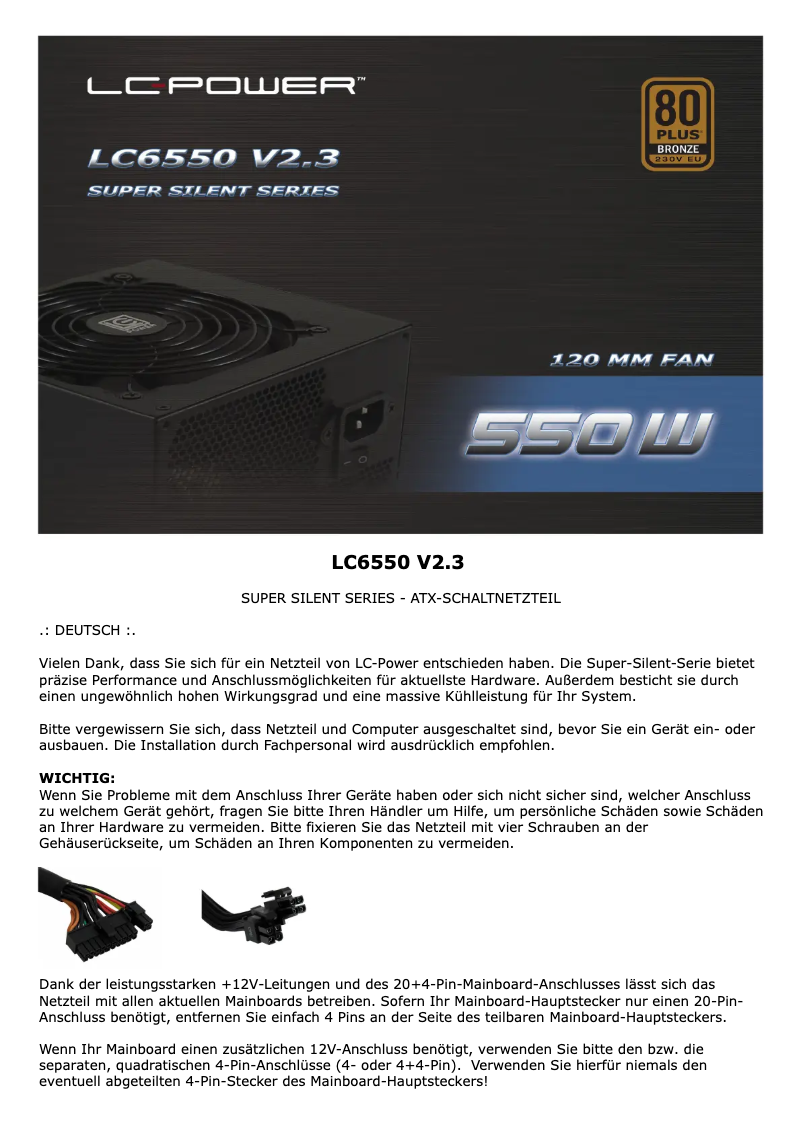

Manuals of product LC6550 V2.3
Technical Specifications LC6550 V2.3
General Information
-
ModelLC6550 V2.3
-
Brand
-
Category
-
Type
-
SKU1939462
-
MPN1939462
Power
-
Total power550 W
-
AC input voltage230 V
-
AC input frequency50 Hz
-
Input current5 A
-
Type of Power Factor Corrector (PFC)Active
-
Maximum output current (+3.3V)25 A
-
Maximum output current (+5V)27 A
-
Maximum output current (+12 V1)21 A
-
Maximum output current (+12 V2)23 A
-
Maximum output current (-12V)0.5 A
-
Maximum output current (+5Vsb)2.5 A
-
Combined power (+5V)145 W
-
Combined power (+5V)145 W
-
Combined power (+12 V)450 W
-
Combined power (+5Vsb)18.5 W
-
Combined power (+5Vsb)18.5 W
-
Effectiveness88 %
-
Electrical protection devicesOver current, Over power, Over voltage, Short circuit, Under voltage
Design
-
Fan diameter120 mm
-
Number of fans1 fan(s)
-
Product colorBlack
Connectivity
-
Molex peripheral connector (4-pin)-
-
Motherboard connector20+4 pin ATX
-
Number of power PATA connectors4
-
Number of power PATA connectors4
-
Floppy disk drive connectorNo
-
PCI Express power connectors (6 +2 pin)1
-
CPU power connector (4+4 pin)Yes
-
Length of the CPU power cable450 mm
-
CPU power connector (4+4 pin)Yes
-
Length of the CPU power cable450 mm
-
Wiring typeNon-modular
Representation / realization
-
Form factor of the power supply unitATX
-
UtilityPC
-
Sound level- dB
-
Version ATX2.3
-
80 PLUS Certification80 PLUS Bronze
Weight and dimensions
-
Width150 mm
-
Depth140 mm
-
Height86 mm
-
Weight1752 g
Logistics data
-
Harmonized System Code84733020
Similar products
More product categories from brand LC-Power
More product types from brand LC-Power
Presentation of product LC6550 V2.3 specifications from brand LC-Power
Generalities
The brand of the product LC-Power LC6550 V2.3 is LC-Power. This brand is known for its quality and innovation in the field of household appliances. The product model LC-Power LC6550 V2.3 is LC6550 V2.3 | LC6550 V2.3. This model ensures optimal performance and an enhanced user experience. The EAN code of the product LC-Power LC6550 V2.3 is 4260070120589. This code allows for the unique identification of the product in the distribution system.
Design
The diameter of the LC-Power LC6550 V2.3 fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The color of the product LC-Power LC6550 V2.3 is Noir. This shade gives it a modern and elegant look. The number of fans of the product LC-Power LC6550 V2.3 is 1 ventilateur(s). This design allows for better air circulation and optimal performance.
Connectivity
The connector on the motherboard of the product LC-Power LC6550 V2.3 contains 20+4 pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The number of SATA power cables for the product LC-Power LC6550 V2.3 is 4. These cables provide a reliable and efficient connection to power your components. The number of PATA power connectors of the product LC-Power LC6550 V2.3 is 4. This detail is essential to ensure optimal compatibility with your components. The Molex peripheral connector (4-pin) of the product LC-Power LC6550 V2.3 contains -. This connector is essential for ensuring a reliable connection between electronic components. Does the product LC-Power LC6550 V2.3 have a floppy disk drive connector? Non. This connector allows for easy and quick connection with floppy disk drives, ensuring optimal compatibility. The PCI Express power connector (6 +2 pin) of the product LC-Power LC6550 V2.3 contains 1. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. Does the product LC-Power LC6550 V2.3 have a PCI Express Connector? Oui. This connector ensures fast and efficient communication between the components of your system. Does the LC-Power LC6550 V2.3 have a CPU power connector (4+4 pin)? Oui. This connector is essential for providing stable and efficient power to your processor. The length of the motherboard power cable of the product LC-Power LC6550 V2.3 is 450 mm. This specification ensures optimal connectivity for your components. The product LC-Power LC6550 V2.3 has a CPU power cable length of 450 mm. This specification ensures optimal connectivity for your system. The wiring type of the product LC-Power LC6550 V2.3 is Non-modulaire. This non-modular wiring ensures a stable and reliable connection.
Representation / realization
The form factor of the power supply unit of the product LC-Power LC6550 V2.3 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The usefulness of the product LC-Power LC6550 V2.3 is PC. This product has been designed to meet specific needs and provide an optimal experience for its users. The noise level of the product LC-Power LC6550 V2.3 is - dB. This noise level allows for pleasant use without excessive noise disturbances. The ATX version of the product LC-Power LC6550 V2.3 is 2.3. This specification ensures optimal compatibility with modern computer components. The product LC-Power LC6550 V2.3 has the 80 PLUS 80 PLUS Bronze certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs.
Power
The total power of the product LC-Power LC6550 V2.3 is 550 W. This power ensures optimal performance for efficient use. The input current of the product LC-Power LC6550 V2.3 is 5 A. This input current ensures optimal performance and increased energy efficiency. The AC input voltage of the LC-Power LC6550 V2.3 is 230 V. This specification ensures optimal compatibility with standard electrical systems. The AC input frequency of the product LC-Power LC6550 V2.3 is 50 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems. The power factor correction device of the product LC-Power LC6550 V2.3 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The maximum output current (+3.3V) of the LC-Power LC6550 V2.3 is 25 A. This current ensures optimal performance for your power supply needs. The product LC-Power LC6550 V2.3 has a maximum output current (+5V) of 27 A. This current allows you to efficiently power your electronic devices. The maximum output current (+12 V1) of the LC-Power LC6550 V2.3 is 21 A. This current ensures optimal performance for your power supply needs. The product LC-Power LC6550 V2.3 has a maximum output current (+12 V2) of 23 A. This high current ensures optimal performance for your devices. The maximum output current (-12V) of the LC-Power LC6550 V2.3 is 0.5 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the LC-Power LC6550 V2.3 is 2.5 A. This current ensures a stable and efficient power supply for your devices. The product LC-Power LC6550 V2.3 has a combined power (+3.3 V) of 145 W. This specification ensures optimal performance for your energy needs. The product LC-Power LC6550 V2.3 has a combined power (+5V) of 145 W. This specification ensures optimal performance for your devices. The combined power (+12 V) of the product LC-Power LC6550 V2.3 is 450 W. This specification ensures optimal performance for your energy needs. The product LC-Power LC6550 V2.3 has a combined power (-12V) of 18.5 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the LC-Power LC6550 V2.3 is 18.5 W. This specification ensures optimal performance for your devices. The effectiveness of the product LC-Power LC6550 V2.3 is 88 %. This performance ensures optimal results for daily use. The electrical protection devices of the product LC-Power LC6550 V2.3 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation.
Weight and dimensions
The depth of the product LC-Power LC6550 V2.3 is 140 mm. This dimension allows for optimal integration into your space. The width of the product LC-Power LC6550 V2.3 is 150 mm. This dimension is essential to ensure optimal integration into your space. The height of the product LC-Power LC6550 V2.3 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product LC-Power LC6550 V2.3 is 1752 g. This weight is ideal for ensuring optimal use and easy handling.
Logistics data
The Harmonized System code for the product LC-Power LC6550 V2.3 is 84733020. This code allows for the unique identification of goods in international trade.
