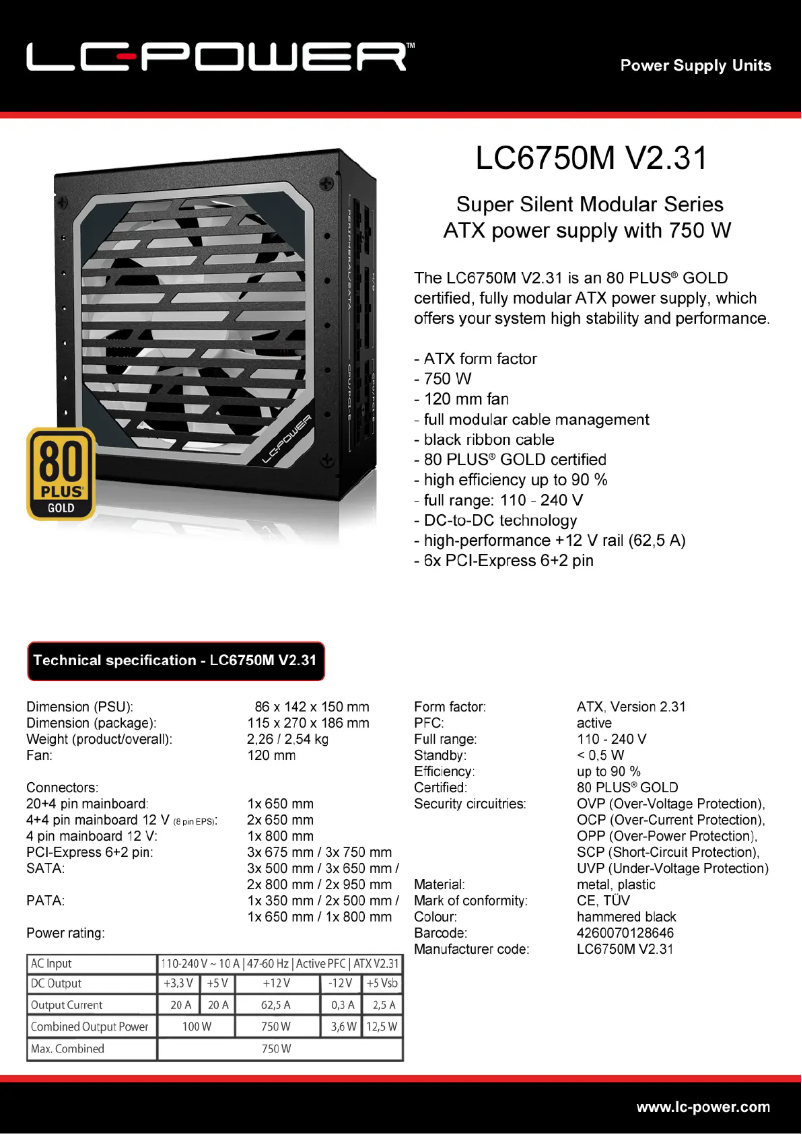

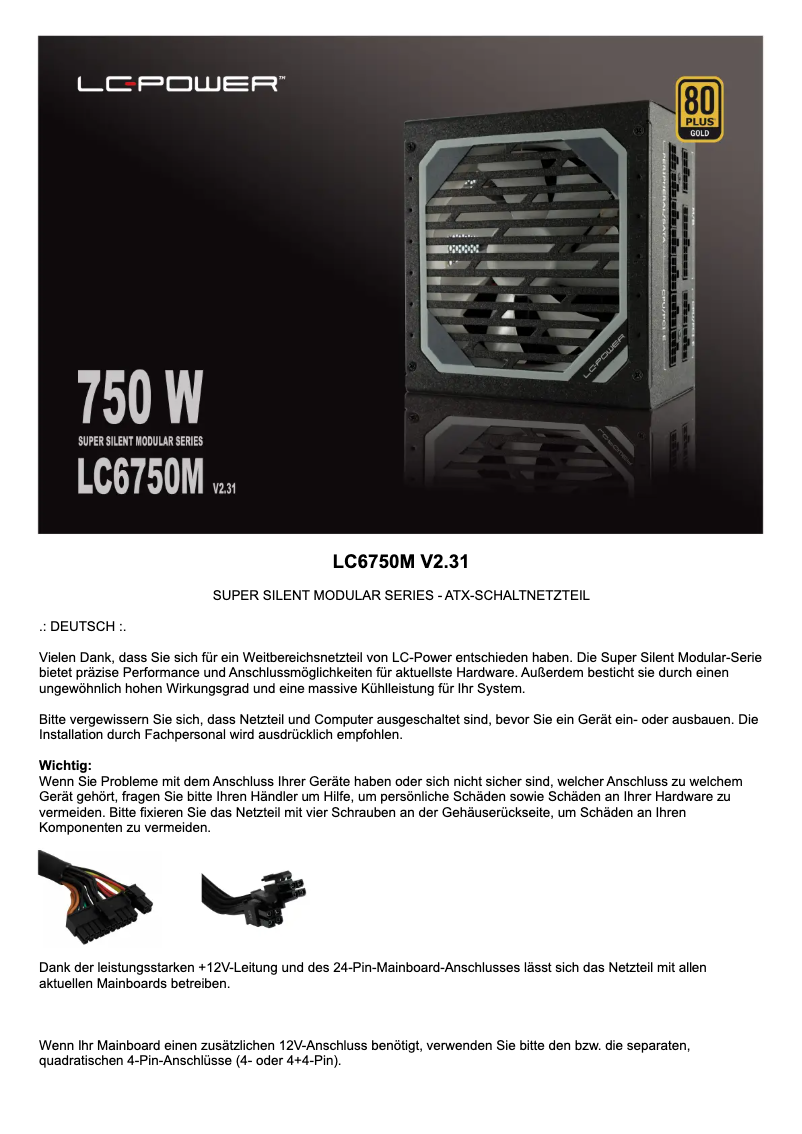

Manuals of product LC6750M V2.31
Technical Specifications LC6750M V2.31
General Information
-
ModelLC6750M V2.31
-
Brand
-
Category
-
Type
-
SKU1939470
-
MPN1939470
Power
-
Combined power (+12 V)750 W
-
AC input voltage110 - 240 V
-
Input current10 A
-
Type of Power Factor Corrector (PFC)Active
-
Combined power (+5V)100 W
-
Combined power (+12 V)750 W
-
Combined power (+5V)100 W
-
Combined power (-12V)3.6 W
-
Combined power (+5Vsb)12.5 W
-
Maximum output current (+5V)20 A
-
Maximum output current (+12V)62.5 A
-
Maximum output current (+5V)20 A
-
Maximum output current (-12V)0.3 A
-
Maximum output current (+5Vsb)2.5 A
-
Effectiveness90 %
-
Electrical protection devicesOver current, Over power, Over voltage, Short circuit, Under voltage
-
AC input frequency47 - 60 Hz
Connectivity
-
Motherboard connector24-pin ATX
-
Length of the CPU power cable650 mm
-
Number of SATA power cables8
-
Molex peripheral connector (4-pin)5
-
Length of the SATA power cable950 mm
-
Molex peripheral connector (4-pin)5
-
Length of the device's power cable (Molex)500.800 mm
-
ATX connector (24-pin)Yes
-
PCI Express power connectors (6 +2 pin)6
-
Length of the PCI Express power cable750 mm
-
ATX connector (24-pin)Yes
-
Length of the CPU power cable650 mm
-
ATX connector (24-pin)Yes
-
Wiring typeFully modular
Representation / realization
-
UtilityPC/server
-
Form factor of the power supply unitATX
-
80 PLUS Certification80 PLUS Gold
-
Version ATX2.31
-
Sound level- dB
Design
-
Product colorBlack
-
Cooling typeActive
-
Fan diameter120 mm
-
Number of fans1 fan(s)
-
Fan locationHigh
Weight and dimensions
-
Width150 mm
-
Depth142 mm
-
Height86 mm
-
Weight2190 g
Packaging contents
-
Cables includedSATA
Packaging information
-
Package width115 mm
-
Package depth270 mm
-
Package height186 mm
-
Package weight2470 g
-
Type of packagingBox
Logistics data
-
Harmonized System Code84733020
Similar products
More product categories from brand LC-Power
More product types from brand LC-Power
Presentation of product LC6750M V2.31 specifications from brand LC-Power
Generalities
The brand of the product LC-Power LC6750M V2.31 is LC-Power. This brand is known for its quality and innovation in the field of household appliances. The product model LC-Power LC6750M V2.31 is LC6750M V2.31 | LC6750M V2.31. This model ensures optimal performance and an enhanced user experience. The EAN code of the product LC-Power LC6750M V2.31 is 4260070128646. This code allows for the unique identification of the product in the distribution system.
Representation / realization
The usefulness of the product LC-Power LC6750M V2.31 is PC/serveur. This product has been designed to meet specific needs and provide an optimal experience for its users. The form factor of the power supply unit of the product LC-Power LC6750M V2.31 is ATX. This form factor determines the compatibility of the power supply with the case and components of your system. The ATX version of the product LC-Power LC6750M V2.31 is 2.31. This specification ensures optimal compatibility with modern computer components. The product LC-Power LC6750M V2.31 has the 80 PLUS 80 PLUS Gold certification. This certification ensures high energy efficiency, thereby helping to reduce energy consumption and associated costs. The noise level of the product LC-Power LC6750M V2.31 is - dB. This noise level allows for pleasant use without excessive noise disturbances.
Design
The color of the product LC-Power LC6750M V2.31 is Noir. This shade gives it a modern and elegant look. The cooling type of the product LC-Power LC6750M V2.31 is active. This system ensures optimal temperature management for improved performance. The diameter of the LC-Power LC6750M V2.31 fan is 120 mm. This diameter is essential for ensuring optimal air circulation. The number of fans of the product LC-Power LC6750M V2.31 is 1 ventilateur(s). This design allows for better air circulation and optimal performance. The location of the fan of the product LC-Power LC6750M V2.31 is at the front and back. This positioning allows for optimal air circulation to maintain an ideal temperature.
Weight and dimensions
The width of the product LC-Power LC6750M V2.31 is 150 mm. This dimension is essential to ensure optimal integration into your space. The depth of the product LC-Power LC6750M V2.31 is 142 mm. This dimension allows for optimal integration into your space. The height of the product LC-Power LC6750M V2.31 is 86 mm. This dimension is essential to ensure that the product fits perfectly in your space. The weight of the product LC-Power LC6750M V2.31 is 2190 g. This weight is ideal for ensuring optimal use and easy handling.
Connectivity
The connector on the motherboard of the product LC-Power LC6750M V2.31 contains 24-pin ATX. This connector is essential for ensuring a stable and reliable connection between the motherboard and the other components of the system. The length of the motherboard power cable of the product LC-Power LC6750M V2.31 is 650 mm. This specification ensures optimal connectivity for your components. The number of SATA power cables for the product LC-Power LC6750M V2.31 is 8. These cables provide a reliable and efficient connection to power your components. The number of PATA power connectors of the product LC-Power LC6750M V2.31 is 5. This detail is essential to ensure optimal compatibility with your components. The SATA power cable of the product LC-Power LC6750M V2.31 has a length of 950 mm. This specification ensures optimal connectivity for your components. The Molex peripheral connector (4-pin) of the product LC-Power LC6750M V2.31 contains 5. This connector is essential for ensuring a reliable connection between electronic components. The PCI Express power connector (6 +2 pin) of the product LC-Power LC6750M V2.31 contains 6. This connector is essential for providing stable and efficient power to graphics cards and other components requiring a PCIe connection. Does the LC-Power LC6750M V2.31 have an EPS electrical connector (4+4 pins)? Oui. This connector is essential for providing stable and reliable power to your system's components. The length of the power cable of the device (Molex) of the product LC-Power LC6750M V2.31 is 500,800 mm. This specification ensures optimal connectivity for your power needs. The length of the PCI Express power cable of the product LC-Power LC6750M V2.31 is 750 mm. This cable is essential for ensuring a reliable and efficient connection between your power supply and your graphics card. Does the LC-Power LC6750M V2.31 have a CPU power connector (4+4 pin)? Oui. This connector is essential for providing stable and efficient power to your processor. The product LC-Power LC6750M V2.31 has a CPU power cable length of 650 mm. This specification ensures optimal connectivity for your system. Does the product LC-Power LC6750M V2.31 have an ATX connector (24-pin)? Oui. This connector is essential for powering the motherboard and ensuring optimal operation of your system. The wiring type of the product LC-Power LC6750M V2.31 is Entièrement modulaire. This non-modular wiring ensures a stable and reliable connection.
Power
The total power of the product LC-Power LC6750M V2.31 is 750 W. This power ensures optimal performance for efficient use. The power factor correction device of the product LC-Power LC6750M V2.31 is active. This type of correction device optimizes energy efficiency by improving the power factor of the system. The AC input voltage of the LC-Power LC6750M V2.31 is 110 - 240 V. This specification ensures optimal compatibility with standard electrical systems. The input current of the product LC-Power LC6750M V2.31 is 10 A. This input current ensures optimal performance and increased energy efficiency. The product LC-Power LC6750M V2.31 has a combined power (+3.3 V) of 100 W. This specification ensures optimal performance for your energy needs. The combined power (+12 V) of the product LC-Power LC6750M V2.31 is 750 W. This specification ensures optimal performance for your energy needs. The product LC-Power LC6750M V2.31 has a combined power (+5V) of 100 W. This specification ensures optimal performance for your devices. The product LC-Power LC6750M V2.31 has a combined power (-12V) of 3.6 W. This specification ensures optimal performance and increased energy efficiency. The combined power (+5Vsb) of the LC-Power LC6750M V2.31 is 12.5 W. This specification ensures optimal performance for your devices. The maximum output current (+3.3V) of the LC-Power LC6750M V2.31 is 20 A. This current ensures optimal performance for your power supply needs. The product LC-Power LC6750M V2.31 has a maximum output current (+12V) of 62.5 A. This specification ensures optimal performance for your power supply needs. The product LC-Power LC6750M V2.31 has a maximum output current (+5V) of 20 A. This current allows you to efficiently power your electronic devices. The maximum output current (-12V) of the LC-Power LC6750M V2.31 is 0.3 A. This specification ensures optimal performance for your energy needs. The maximum output current (+5Vsb) of the LC-Power LC6750M V2.31 is 2.5 A. This current ensures a stable and efficient power supply for your devices. The effectiveness of the product LC-Power LC6750M V2.31 is 90 %. This performance ensures optimal results for daily use. The electrical protection devices of the product LC-Power LC6750M V2.31 include protections against overloads, surges, and short circuits. These devices ensure the safety and reliability of your electrical installation. The AC input frequency of the product LC-Power LC6750M V2.31 is 47 - 60 Hz. This specification is essential to ensure optimal operation and compatibility with electrical systems.
Packaging contents
The included cable of the product LC-Power LC6750M V2.31 contains a power plug. This cable is essential for ensuring an optimal electrical connection.
Packaging information
The height of the package of the product LC-Power LC6750M V2.31 is 186 mm. This dimension is essential to ensure optimal transport and storage. The depth of the product package LC-Power LC6750M V2.31 is 270 mm. This dimension is essential to ensure proper packaging and secure transport. The weight of the LC-Power LC6750M V2.31 package is 2470 g. This weight ensures optimal protection during transport and delivery. The width of the package of the product LC-Power LC6750M V2.31 is 115 mm. This dimension is essential to ensure optimal transport and storage. The packaging type of the product LC-Power LC6750M V2.31 is Boîte. This type of packaging ensures optimal protection and facilitates transportation.
Logistics data
The Harmonized System code for the product LC-Power LC6750M V2.31 is 84733020. This code allows for the unique identification of goods in international trade.
